Edge banding machineIMA
Advantage 400
Edge banding machine
IMA
Advantage 400
Year of construction
2014
Condition
Used
Location
Heiligenkreuz
Show images
Show map
Machine data
- Machine type:
- Edge banding machine
- Manufacturer:
- IMA
- Model:
- Advantage 400
- Year of construction:
- 2014
- Condition:
- reconditioned (used)
Price & Location
- Location:
- Kreuzfeld 2, 4563 Heiligenkreuz, Österreich
Call
Details about the offer
- Listing ID:
- A7848704
- Reference number:
- 850468
- Update:
- 04.03.2025
Description
Advantage 400 single-sided edge banding machine
Doln Um Soitu Eaewskl

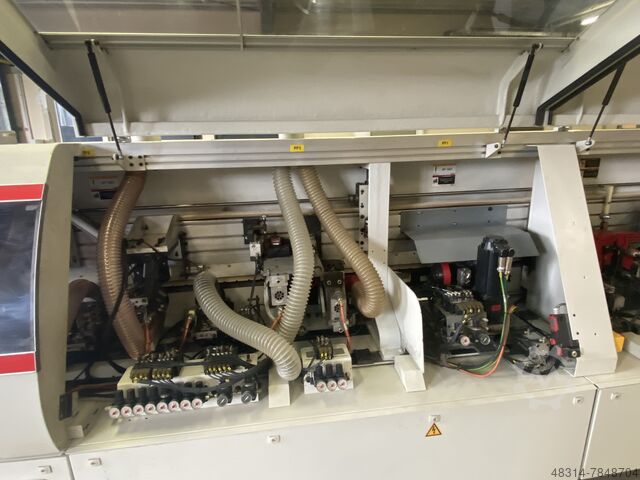

Equipment:
- Working length 6700 mm
-divider top and bottom
- jointing unit 08.380
- Radiator 300 long, 2 x 1.5 kW for preheating the workpiece edge
- gluing unit 283.1516 toothed belt drive
- Strip control to prevent incorrect gluing.
- Rotary capping unit for workpiece leading and trailing edges
- Space reserve for lubricant spraying at high-gloss edge
- Milling unit 08.0561
- Copy milling unit SKF-L
- Profile scraper unit 08.519
- Spray nozzles at top and bottom for application of cleaning agents
- Self-feeding scraper unit 08.521
- Buffing unit 08.617-2
- Interior lighting
- Electronic height adjustment of top pressure (one-sided)
Technical data "workpiece
- Workpiece length min.: 150 mm
- Workpiece width min.: 65*/ 150 mm (*with max. workpiece thickness of 25 mm)
- Workpiece thickness min.: 8 / 12* mm (*with profile scraper)
- max. workpiece thickness: 60 mm
- Smallest workpiece: 65x380 / 150x380 x 19 mm
- Machining allowance per workpiece edge: 0 - 5 mm* (*observe max. cutting cross section)
- workpiece shape: rectangular
- Material: chipboard, MDF
- Surface material: direct coating (melamine resin paper), paper, foil, veneer
- Laterally protruding coating material: 0 mm
Technical data "Edge material
Roll material without foil*:
- Paper edges & plastic edges: 0.3 - 3.0 mm
(*foil only with additional equipment)
- veneer edges: 0.5 - 3.0 mm
Edge cross-section for veneer max.: 150 mm²
Edge cross-section for plastic edge max.: 180 mm²
Cut-to-length edge strips: strips 3.0 - 12.0 mm
Strip cross-section max.: 600 mm²
Edge height min.: 12 mm
Edge height max.: 65 mm
Upper edge protrusion max.: 2 mm
Edge profiles:
- Paper edge approx. 0.4 mm (chamfer 15°)
- Plastic edge up to 3.0 mm (radius depending on tool)
- strip up to 12 mm (flush milling)
Technical data "machine
working length 6700 mm
Feed speed 20 m/min for Advantage 400
Constant workpiece protrusion from the chain track: 35 mm +
Edge thickness
max. cross section: 520 mm²
Throughfeed width min. (with 35 mm projection): 65 mm
Workpiece length in feed direction min.: 150 mm
basic height (upper edge of chain track): 900 mm
Unit side: In feed direction left
Control voltage: 24 V DC / 230 V AC
Mains voltage: 3/N/PE, 400/230 V, 50 Hz, +/-5%
(FI protection circuit not applicable)
Machine control ICOS Expert
Features:
- PC-based control system with integrated PLC and electronic draw frame control
- Simple, machining-related program creation
- Navigation and operation via touch screen
- Program memory for max. 1000 programs
- Program number 3-digit numeric
- Control system prepared for service portal
Technical data control system:*
- Panel PC with integrated 15" TFT display, with touch screen
- USB connection
- Fast EtherCat interface (field bus)
- Ethernet network connection RJ45 in the switchboard
- Operating system: Windows with TwinCat system for real-time control
Note:
The technical data and descriptions are a copy of the order confirmation at that time. Data are for information only and are not binding.
Condition:
- Machine completely overhauled
- upper pressure belt new
- Feed chain new
- Feeler wheels and tools of finishing new
The listing was translated automatically. Translation errors are possible.
