Used Mandrel Tube Bender for sale (3,401)

Condition: new, Year of construction: 2020, tubebender-mandrelbender Zopf 32 H with small digital for programming mandrel length 3000 mm bending capacity round tube up to 32 x 2,0 mm mild steel maximum bending radius 275 mm minimum bending radius 36 mm maximum bending angle 180 degrees motor 2,2 KW main motor Lajdpjfh Nz Tjfx Ag Njh hydraulic motor 1,5 KW hydraulic clamping of tube weight 400 kg 400 volt 50 Hz 3 ph.

Condition: good (used), Mandrel pipe bending machine, LANG type EL 45 Technical data: for pipe diameter 45 x 2 mm Mandrel holder length 2,000 mm Bending speed for 90° approx. 3 s Ljdpfx Agoqff E Ee Neah Electrical connection 380 V, 2.2 kW Weight approx. 1000 kg with tool: 16 x R 76 22 x R 76 28 x R 75 35 x R 105

Condition: new, The Hydraulic Tube Bender 1/2 is a compact and mobile Tube Bending Machine designed for bending steel tubes of larger diameters with a powerful manual hydraulic pump. This machine boasts a capacity of 10 tons and comes complete with dies for commonly used tube dimensions, allowing you to create bends of up to 90 degrees. With its robust 3-leg stand and 6 bending segments, it ensures stability and ease of use during operation. The included attachments cater to various diameters, making this versatile tool ideal for your tube and profile processing needs. You can efficiently bend tubes while enjoying the benefits of its portable design. If you require a reliable Tube Bending Machine, consider the Hydraulic Tube Bender 1/2 from KNUTH to enhance your workshop capabilities. Don't hesitate to request a quote today! Ledpfx Asuzlh Iog Noah

Condition: good (used), functionality: fully functional, Year of construction: 2025, machine/vehicle number: 0100-0149-2024, overall weight: 700 kg, total length: 3,500 mm, total width: 1,100 mm, total height: 1,500 mm, TECHNICAL DATA & EQUIPMENT: Suitable for flat material Working length: approx. 2500 mm PICK-UP NOTES: Collection must take place strictly between December 10th and 12th Ledexm Symspfx Ag Noah FCA Winterlingen, loaded onto truck

Condition: new, Capacity, Ø mm ----- 57 x 2 Radius, min/max ----- 20/250 Radius difference ----- 50/230 Bending speed/repeatability ----- 230º/s. ±0.05 Length of mandrel ----- 1 000-∞ Weight ----- 5000kg Lsdpfx Agega T E Ae Njah Machine dimensions ----- 3.0 x 1.6 x 1.5 Tube rotation ----- 0-360°/sec Length feeding ----- 0-1800 mm/sec Degree of tolerance ----- 0,05°/mm Standard components conform to VDMA, ISO and DIN standards OPTIONS * Online connection with CAD system and measuring machine * Automatic tube magazine with free programmable robot or loading arm * Weld seam detector and tube positioner electromagnetic or optic detection * Free radius bending * Simulation/Collision Control * Bed length extension

Condition: good (used), Year of construction: 1994, control type: CNC control, controller manufacturer: Siemens, controller model: 840 D, pipe diameter (max.): 168 mm, bending angle (max.): 190 °, bending radius (max.): 700 mm, bending radius (min.): 80 mm, overall weight: 32,000 kg, total width: 2,700 mm, total height: 2,450 mm, Tube diameter: 168.3 x 11 mm Tube insertion length: 6000 mm Max. bending radius: 700 mm Control system: Siemens 840 D Min. bending radius: 80 mm Max. bending angle +/-: 190° Dimensions (L/W/H): 11.9 x 2.7 x 2.45 m Machine weight approx.: 33 t - CNC control: CNC MMI Multicontrol 2000 - Control system: NCU - PLC: Siemens Simatic S7 - Electrical connection: 400V / 50 Hz / 85 A The machine is fully automatic and equipped with a tool changer. The following tools are available: Tube Ø 48.3 mm; radius 105 mm Tube Ø 60.3 mm; radius 120 mm Tube Ø 63.5 mm; radius 150 mm Tube Ø 76.1 mm; radius 190 mm Tube Ø 88.9 mm; radius 222 mm Tube Ø 114.3 mm; radius 285 mm Tube Ø 139.7 mm; radius 350 mm Lajdpsxqa Ruofx Ag Njh Tube Ø 141.3 mm; radius 700 mm Tube Ø 168.3 mm; radius 420 mm There were a few mandrels with direct engravings indicating their specifications: 88.9 x 8 mm; 88.9 x 4.5 mm; 114.3 x 8.8 mm; 139.7 x 8.8 mm; 168.3 x 12.5 mm; 168.3 x 8.8 mm The following mandrel outer diameters were measured: 23.2 mm; 32.3 mm; 37.1 mm; 41.5 mm; 59.3 mm; 70.3 mm; 77.7 mm; 80.9 mm; 88.7 mm; 93.2 mm; 94.7 mm; 103.0 mm; 112.8 mm; 118.8 mm; 128.9 mm; 138.5 mm; 147.2 mm; 153.6 mm The accessory package has an estimated value of approx. €150,000.

Condition: good (used), Year of construction: 2002, controller manufacturer: SIEMENS, pipe diameter (max.): 120 mm, overall weight: 16,500 kg, total height: 2,300 mm, space requirement length: 8,000 mm, space requirement width: 2,600 mm, CONTROLS .. CNC controls SIEMENS TECHNICAL SPECIFICATION .. Max. diameter of tube: 120 mm .. Max. bending radius: 180 mm ELECTRICAL SPECIFICATIONS .. mains voltage: 400 V .. mains frequency: 50 Hz DIMENSIONS / WEIGHTS .. space requirements -left/right-: 8000 mm .. space requirements -front/back-: 2600 mm .. total height: 2300 mm .. total weight approx.: 16500 kg machine in a very good condition Machine in very good condition Special features: - Free-form bending option - Laser scanner for securing the bending area - Foot pedal for safe start - Bending simulation Automation: - CNC control BEND MOTION CONTROL - Automatic mandrel lubrication as MMS Retrofit 2018: - Control system retrofit - Cables replaced Lajdpfx Ajxm Ru Ajg Njh - Bending head overhauled - Guides replaced - complete equipment (see photos) Operating hours: 9,000 hours

Condition: refurbished (used), functionality: fully functional, Year of construction: 2006, control type: PLC-controlled, degree of automation: semi-automatic, pipe diameter (max.): 60 mm, mandrel length: 6,000 mm, year of last overhaul: 2025, Equipment: CE marking, emergency stop, Mandrel Bending Machine S6006 ----- For producing dimensionally accurate tube geometries with bending radii of up to 1.5xD → Maximum bending capacity tube 60.3 x 4 mm (400 N/mm²) → Maximum bending capacity tube 60.3 x 2.6 mm (stainless steel) → Total connected load 5 kW → Tube feed length 6 m Robust and durable steel construction with a force-locked design—no torsion-prone structure such as a separated construction of the bending head and mandrel carrier. Maintenance-free electromechanical drive for the bending axis. The control system's touch display enables easy and intuitive programming and operation of the machine. After the tube is loaded, it is fixed by a chuck on the carriage. This ensures precise positioning of the tube, allowing the creation of dimensionally accurate geometries. Standard equipment also includes geometry verification before the bending process: If the bending process is started from the wrong position, the machine will not allow it. This prevents incorrect operation. Optional additional features offer more convenience and increase output and thus the efficiency of the system. Data transfer from the optional TBS-3D tube calculation software (PC version) is done via USB stick or via FTP access from the computer to the machine control. USB or LAN connector (RJ45) are standard. Existing tube geometries can be easily and quickly converted, e.g., via the STEP format. Standard equipment: → Electromechanical drive for bending axis 2.2 kW → Rotation speed 2.9 rpm (=17°/s) → Left-hand bending direction → Bending angle resolution 0.1° → Max. bending radius 200 mm → Bending shaft diameter 50 mm → Electronic length measurement ±0.1 mm → Electronic torsion measurement ±0.1° → Manual stop system (length overtravel stops) → Manual indexing system (15° increments for torsion) → Three-jaw chuck to clamp the tube in the carriage → External control panel PLC Control: → 10.1" touchscreen → ETH 10/100, X2X Link, USB → Foot switch operation → Data transmission via (W)LAN or USB → Material database Unique graphical programming: Simple geometries can be calculated directly at the machine. The control system calculates the feed and bending angle directly after entering length and angle values. Hydraulics: → Hydraulic power 3 kW → Hydraulic tube clamping with adjustable clamping pressure → Programmable early mandrel retraction Lodpjw Sr Ucofx Ag Neah Options (available as additional equipment): → Variable bending speed via frequency inverter or servo motors → Automatic tool retraction (manual or controlled) → Pneumatic chuck → Automatic mandrel lubrication → Pneumatic stop system (length + torsion) → Mobile version (with castors) → Radius extension Sample image shows a similar machine

Condition: good (used), Year of construction: 2006, machine/vehicle number: 4806067, Offer 25059 Technical data: - Pipe bending capacity at 45 kg / mm² up to Ø 48 X 3.5 mm - Solid material up to 30 mm - Bending angle 0 - 180 ° - Largest average bending radius Rm 225 mm - Smallest inner bending radius Ri 10 mm - Drive 220 V / 1.7 Kw - Space requirement approx. W 400 x H 950 x D 600 mm - Weight approx. 100 kg Laodpfx Agsv Dux Do Nsh - with - Bending angle preselection - Digital bending angle display + bending angle fine adjustment - Bending tools, Ø ½“ R 67 mm, Ø 1“ R 67 mm,

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1990, machine/vehicle number: 260900101013, pipe diameter (max.): 42 mm, pipe length (max.): 3,000 mm, tube wall thickness (max.): 25 mm, bending radius (max.): 170 mm, No minimum price – guaranteed sale to the highest bidder! Application: Processing of formable tubes, rectangular tubes, round rods, and square tubes. TECHNICAL DETAILS Tube diameter: 42 mm Wall thickness: 25 mm Max. round steel diameter: 20 mm Square tube: 25 x 25 mm Max. internal bending radius: 20 mm Max. external bending radius: 170 mm Bending direction: left Tube feed length: 3,000 mm Control: RC 7000 software Programming: manual Operation: via control panel Lasdpfxjw T Sqgj Ag Neh MACHINE DETAILS Machine weight: 2.8 t Control cabinet dimensions: 800 x 700 x 2,000 mm Machine dimensions approx. (L x W x H): 5.1 x 0.7 x 2.0 m EQUIPMENT - Various bending tools for 25 mm tube - 12 assorted collets - Various auxiliary and clamping devices

Condition: new, Capacity, mm ----- 25 x 2 mm Radius, min/max ----- 10/100 mm Radius difference ----- 90 mm Bending speed/repeatability ----- 500º/s. ±0.05 Tube length ----- 1 350 ∞ mm Weight ----- 2200 kg Machine dimensions ----- 3.0 x 1.2 x 1.3 m Tube rotation ----- 0-850°/sec Length feeding ----- Standard 0-2 400 mm/sec Booster ----- 0-1 200 mm/sec Degree of tolerance ----- 0,05°/mm Bending head rotation ----- 0,75 sec Standard components conform to VDMA, ISO and DIN standards. OPTIONS * Online connection with CAD system and measuring machine * Automatic tube magazine with free programmable robot or loading arm Ljdjga T Exspfx Ag Neah arm * Weld seam detector and tube positioner electromagnetic or optic detection * Free radius bending * Simulation/Collision Control * Bed length extension

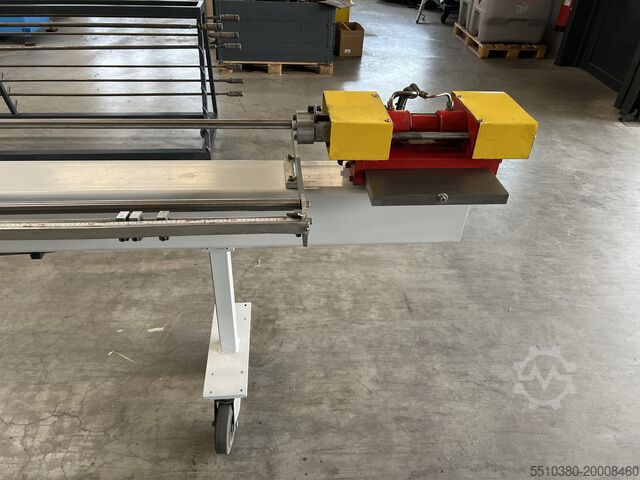

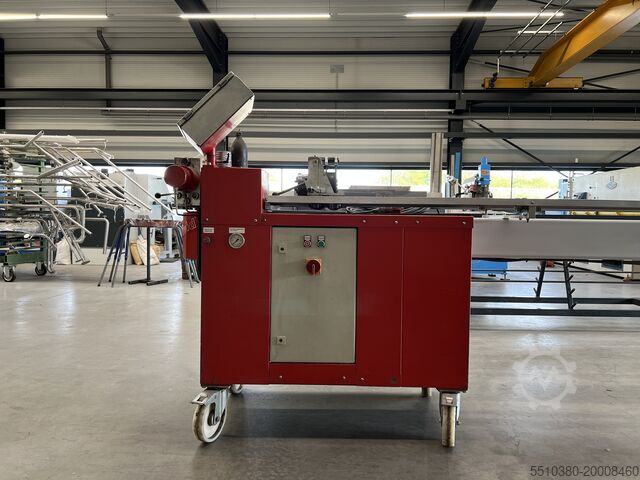

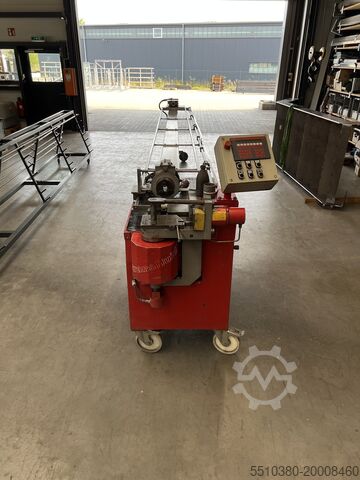

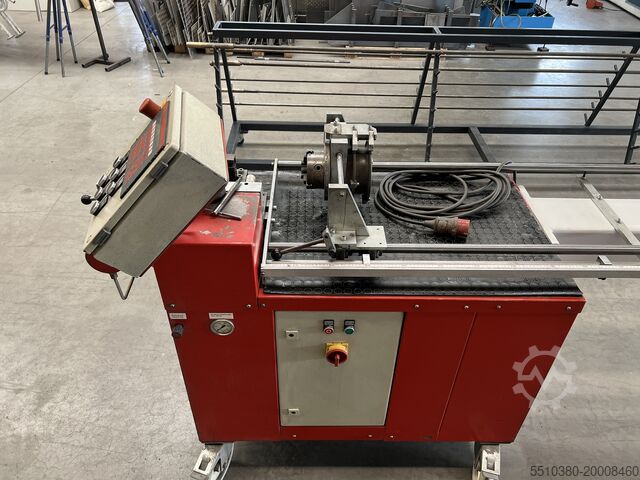

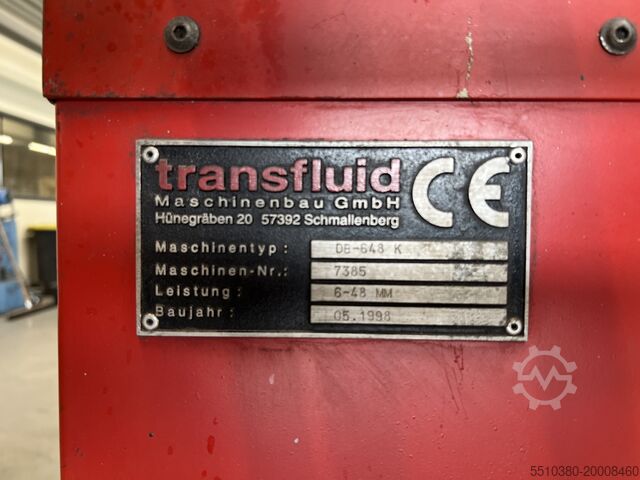

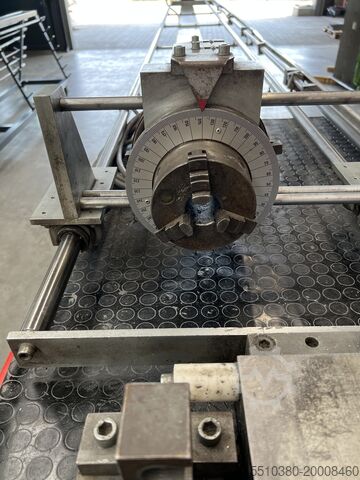

Condition: used, functionality: fully functional, Year of construction: 1998, machine/vehicle number: 7385, degree of automation: semi-automatic, actuation type: electric, controller manufacturer: Transfluid, controller model: IPU 20, pipe diameter (max.): 648 mm, pipe length (max.): 6,000 mm, tube wall thickness (max.): 3 mm, bending angle (max.): 180 °, bending radius (max.): 125 mm, bending radius (min.): 50 mm, working width: 6,000 mm, mandrel length: 5,500 mm, number of axes: 3, working height: 1,300 mm, table length: 7,000 mm, table width: 900 mm, table height: 1,300 mm, overall weight: 1,000 kg, total length: 7,000 mm, total width: 900 mm, total height: 1,300 mm, power: 5 kW (6.80 HP), input voltage: 400 V, input current: 25 A, input frequency: 50 Hz, type of input current: three-phase, oil tank capacity: 1,320 l, operating pressure: 200 bar, Equipment: documentation/manual, emergency stop, Bending software requires a new update. Bending mandrels are available, bending tools are not included. Lasdpexcxupofx Ag Noh

Condition: used, Tube bending machine, mandrel bending machine, bending machine for tubes and profiles Tube bending unit with SIEMENS servo motor and planetary gearbox Year of construction: 2003 Bending capacity: max. Ø 20 x 1 mm Bending radius: max. R 70 mm Bending angle: max. 200° - last used for round tube Ø 15.4 x 0.8 mm, R60 mm - Bending tools and bending jaws interchangeable - Bending tool drive via AC servo motor and Alpha spur gear, planetary gearbox - 2-part bending tool opens and closes via hydraulic stroke movement - MERKLE hydraulic round block cylinder, item 014445 for hydraulic tool opening - Pneumatic height adjustment of the bending jaw via Festo compressed air cylinder - without electrical control - without hydraulic unit Dimensions L/W/H 760 x 400 x 150 mm weight: approx. 60 kg good condition Removed from a functional special machine, tested before removal. Drive: Brushless permanent magnet servo motor SIEMENS Typ:1FK6061-7AF71-1EG0 Nominal torque = MO: 6.4 Nm Rated current = Io: 6.1 A Speed = n. max.: 5500 rpm - Brushless permanent magnet servo motor SIEMENS ----- 5 pieces available in right-hand version. 5 pieces available in left-hand version. The price quoted refers to 1 bending unit with servo motor. If required, we also sell individual assemblies of the bending unit. We also offer the electrical components for controlling the servo motor. We also offer hydraulic units. Lajdpfx Asd E A I Iog Neh

Condition: used, Year of construction: 2017, pipe diameter (max.): 80 mm, mandrel length: 4,500 mm, Mandrel bending machine S8004 ----- For the production of dimensionally accurate pipe geometries with bending radii of up to 1.5XD → maximum bending performance pipe 76 x 4 mm (400 N/mm²) → maximum bending performance pipe 60 x 60 x 3 mm (400 N/mm²) → maximum bending performance pipe 76 x 2.9 mm (stainless steel) → total connected load 7 kW → pipe length 4.5 mtr Robust and durable steel construction in a force-locking connection - no construction susceptible to torsion due to, for example, the split construction of the bending head and mandrel carrier. Maintenance-free electromechanical drive of the bending axis. The touch display of the control enables simple and intuitive programming and use of the system. After the pipe has been pushed on, it is fixed in the carriage by the chuck. This enables the pipe to be positioned precisely and thus the creation of dimensionally accurate geometries. The standard also includes checking the pipe geometry before the bending process: If the bending process is started in the wrong position, the machine does not give permission for this. This prevents incorrect operation. Optional additional features provide more convenience and increase the output and thus the efficiency of the system. Data is exchanged from the optional pipe calculation program TBS-3D (PC version) via USB stick or via FTP access from the computer to the machine control system. USB or LAN connectors (RJ45) are available as standard. Existing pipe geometries can be converted quickly and easily, for example, using the STEP format. Standard equipment: → Electromechanical drive of the bending axis 4 kW → Speed 2.9 rpm (=17°/sec.) → Bending direction left → Bending angle resolution 0.1° → Max. bending radius 200 mm → Bending shaft diameter 50 mm → Electronic length measurement ±0.1mm → Electronic twist measurement ±0.1° → Manual stop system (overtravel stops in length) → Manual locking system (15° in twist) → Three-jaw chuck for locking the pipe in the carriage → External control panel PLC control: → Touchscreen 10.1" → ETH 10/100, X2X Link, USB → Foot switch operation → Data transfer via network (W)LAN or USB → Material database Unique graphic programming: Simple geometries can be calculated directly on the machine. The control calculates the feed values directly after entering the length and angle and the bending angles. Hydraulics: → Hydraulic power 3 kW → Hydraulic pipe clamping with adjustable clamping pressure → Programmable early mandrel retraction Options (can be ordered as additional equipment): → Variable bending speed using frequency converters or servo motors → Automatic tool retraction (manual or controlled) Ljdpfx Aottah Rsg Nsah → Pneumatic chuck → Automatic mandrel lubrication → Pneumatic stop system (length + twist) → Mobile version (rollers) → Radius extension Pictures show new machine

Condition: good (used), Year of construction: 2003, Offer 24365 Ledowq I Epjpfx Ag Njah Technical data: - Bending performance tube at 45 kg/mm² up to Ø 60 X 4 mm - Solid material up to 45 mm - Bending angle 0 - 180° - Largest median bending radius Rm 171 mm - Smallest inner bending radius Ri 10 mm - Drive 400 V / 4 kW - Space requirement approx. W 400 x H 950 x D 600 mm - Weight approx. 100 kg - with preselection of bending angle - Digital bending angle display + fine adjustment of bending angle - Manual pipe twisting device - Bending tools 22 R 67 mm, 25 R 82 mm, 35 R 110 mm - Flat steel bending attachment

Condition: used, Mandrel Tube Bending Machine 42 Lasdpjwnrt Sefx Ag Noh Siegfried Volz Machine Tools Rüschebrinkstr. 151-153 D - 44143 Dortmund - Wambel

Condition: good (used), Year of construction: 1996, tube diameter 6 - 28 mm wall strength 2 mm Lodpfjvtgn Nsx Ag Noah bending radius min. 2 x D Control IPU 20 bending radius max. 5,0 x D mm bending angle max. 190 ° arbor length 3000 mm operating pressure 180 bar hydraulic motor 4 kW weight of the machine ca. 900 kg dimensions of the machine ca. 3,8 x 1,1 x 1,3 m Semi-automatic electro-hydr. mandrel tube bending machine with PLC control for 20 angles and display in the control panel for bending angle specification, angle detection and angle measurement via absolute value encoder, autom. tool plate reset, Turning device with digital display, hydr. quick chuck, aut. Mandrel lubrication, adjustable length stops. Operating modes: MANUAL and semi-automatic. Control buttons: hydraulics on / off, operating mode selection, clamp to / on, clamp forward / backward, mandrel forward / backward, bending forward / backward /, locking forward / backward, mandrel lubrication, turning device forward / backward, plate reset, length stop forward, emergency stop. The machine comes from a prototype construction and was only used a little until 2000. After that, the machines of this department were sold. However, the purchaser did not use the pipe bending machine and therefore it has only stood in the warehouse and has not worked since then ((original paint). Please notice that the price of a new machine today is over € 60.000,--. Machine dealer with own stock of 1600 m².

Condition: used, 3-roller bender Lajdpfx Aeuluhweg Njh Brand RAGACHE Type New Tube CP70 3 drive rollers diameter 232 mm Rectangle capacity Standard steel 60.0 mm Round capacity Standard steel 40.0 mm Capacity L Standard steel 70.0 mm Capacity U Standard steel 120.0 mm Capacity T Standard steel 60.0 mm Capacity I Standard steel 120.0 mm

Condition: used, Manual pipe bender, pipe bending device, mandrel bending machine Hand-held pipe bender, hand-held wire bending machine, bending machine Manufacturer: MEWAG Bending capacity: max. Ø 16 mm 1 bending tool Ø 15 mm with 25 mm bending radius 1 bending tool Ø 10 mm with 16 mm bending radius 1 bending tool Ø 8 mm with 9 mm bending radius 1 bending tool Ø 6 mm with 8 mm bending radius 1 bending tool Ø 5 mm with 8 mm bending radius - Rotating plate with degree markings - Scope of delivery as shown - Wooden box for storage Dimensions L x W x H: 570 x 480 x 145 mm Lasdpowhf Hfofx Ag Njh Weight: 43 kg Good condition

Condition: used, Year of construction: 2012, tube diameter 51 mm Laedpfx Agopunglj Neh wall strength 3 mm semi-automatic operated UZMA bending radius max. 225 mm bending angle max. 190 ° bending speed 35 ° / sec. mandrel length 3.100 mm engine output 5,5 kW voltage 380 V total power requirement 11,0 kW weight of the machine ca. 1,36 t dimensions of the machine ca. 4,20 x 1,60 x 1,20 m - Serial No.: 0144 - semi-automatic mandrel bending machine - bending angle is program controlled - length + twisting angle manually adjustable - digital display for twisting angle, length and bending angle - the following bending sets are included: 1.) R75 mm / Ø 20 mm 2.) R60 mm / Ø 25 mm 3.) R75 mm / Ø 30 mm 4.) R75 mm / Ø 40 mm 5.) R170 mm / Ø 50 mm 6.) R35 / flat Material 40 x 10 mm

Condition: as good as new (ex-display), Year of construction: 2024, machine/vehicle number: BB 60, Tube Bender BB 60 without mandrel with one set of tooling 60 mm radius ca. 175 mm with counter rollers - model BB 60 Lsdpfx Agjd Eywys Nsah - capacity up to 60 x 3,6 mm (mild steel) round tube mild steel - digital readout - bending angle programable - with foot pedal - bending speed 1 - 3 rpm - stepless speed - motor 3 KW 400 volt 50 hz 3 ph. - all shafts and necessary parts are heat treated and grinded - monoblock body CK 45 - weight 400 kg - 400 volt 50 Hz 3 ph.

Condition: excellent (used), functionality: fully functional, Year of construction: 1989, pipe diameter (max.): 1,600 mm, pipe length (max.): 3,000 mm, type of input current: three-phase, Equipment: documentation/manual, emergency stop, Hello, today I would like to offer the world's best machine for spiral tube production. This is not a 'Chinese' model, but an original Swiss SPIRO machine, model 1600. The machine is from the 1980s, equipped with an automatic cutting unit, known as a milling cutter. It comes with two tables, allowing production of segments up to 6 meters in length. Several spare parts are included. Interestingly, despite its age, spare parts are readily available. A key advantage is its simple design, free of unnecessary electronics. Additionally, I have some coils of sheet metal visible in the photo. Sale is based on invoice. For more details, please contact me by phone. Laedew Naxkopfx Ag Neh

Condition: new, Year of construction: 2025, machine/vehicle number: 1018, THE POWERFUL BENDING MACHINE FOR WORKSHOP AND ASSEMBLY. The compact and mobile bending machine enables precise and repeatable bending up to an outer diameter of 60 mm stationary and directly at the assembly site. A powerful three-phase motor and a precision gearbox provide a powerful drive. Optimum bending accuracy is achieved by position detection directly on the bending axis. The bending angle is set quickly and easily via a convenient, menu-driven user interface with touchscreen control, which guarantees even more intuitive operation. For more complex bending tasks, 100 bending programs can be stored, with an angle sequence of max. 8 bends per geometry. The multifunction control allows variable adjustment of the bending speed for forward and backward travel, and a parameterizable overbending function is provided to compensate for material springback. With the aid of the four material characteristics, the material is automatically overbent to the required bending angle, thus realizing an exact bending result. The "stationary tube and rotating tool" principle ensures low space requirements during bending. Sliding shoes are used for thin-walled tubes to achieve a wrinkle-free bending result and to bend bends with minimal deformations from e.g. stainless steel and copper tubes. With the PB20 profile bending attachment, flat, square and round bars can be bent without any problems.Extremely small bending radii are made possible with the KBV small bending attachment. POSSIBLE AREAS OF APPLICATION: - Plant engineering- Hydraulic piping - Meander bending- prototyping- Sanitary and heating construction TECHNICAL DATA: Bending capacity 6000S: Ø 6 to 50 x 4 mm alternating current 230 V Bending capacity 6000D: Ø 6 to 60 x 4 mm Bending capacity 6000DS: Ø 6 to 60 x 5 mm three-phase current 400 V Bending capacity 6000D: Ø 6 to 60 x 4 mm three-phase 400 V - Bending radius min/max: 36 mm/280 mm - Optional large bending radii up to 500 mm - Multifunction machine control Bending angle adjustment (0.1°) - Maximum bending angle 240 - Hexagonal shaft 40 mm for quick tool change - Safety foot switch with emergency stop - Weight 110 kg OPTIONAL ACCESSORIES: - Profile bender PB20 - for bending flat and square iron up to max. 100 x 10 mm, round iron up to max. 20 mm Lodpfxsng Ax Sj Ag Nsah - Roller bender RB43 - The RB43 is placed on the 6-edge shaft of the bending axis. By switching over to endless bending, the bending system acts as a drive unit. - Small bending device KBV - Special tool according to specification OUR SERVICE FOR YOU ON SITE: - Welcome to the test production in our house in the demo room - Consultation-information meeting at your site - Consultation and handling as leasing/financing purchase via - Service contracts, maintenance at your site

Condition: new, Year of construction: 2025, THE PRECISION 3-ROLL BENDING MACHINE When developing the compact and mobile horizontal bending machine, the focus was clearly set on the production of dimensionally accurate coils such as handrails for spiral staircases. This is the supreme discipline, since two mutually influencing variables (radius and pitch) must be combined in a bend to form a dimensionally accurate geometry. The interaction of tube calculation on the PC, implementation on the bending machine, and control via the measuring equipment with final correction of the bending values ensure accurate bending. By simple and few inputs into the PC tube calculation program, the local printer provides a printout and supports the calculation of all necessary bending and correction data to operate the machine. A new powerful drive concept allows infinitely variable adjustment of the bending speed, requiring only a 230 V (AC) connection. Hardened steel tools as well as hard plastic tools that are gentle on the surface are available for selection. To ensure optimum feed even with tight bending radii, all three bending shafts are driven. The drive concept also proves its worth in tough daily use on the flat, when bending tubes and profiles. Customers of the 4800, 5000 and 6000 bending system have the option of purchasing the roller bending unit without the drive. The roller bending unit with the designation RB43, can be adapted to the bending systems 4800, 5000 and 6000 via the bending shaft. In this case, the machines act as a drive unit. POSSIBLE APPLICATIONS: - Handrails/bottom rails for spiral staircases - Large tubular profile bends - General metal construction TECHNICAL DATA: - Bending capacity Ø 10 to 60 mm - bending radius min: 300 mm at Ø 42,4 mm - Bending direction right and left Ledpfxeng A R So Ag Njah - Digital bending adjustment for radius and pitch - Safety foot switch with emergency stop function - Maintenance-free robust three-phase motor - Construction site suitable 230 V connection - Weight 280 kg OPTIONAL ACCESSORIES: - Support roller - for stabilization - Lifting roller - to produce controlled slope - MGR - measuring device to determine the correct radius - MGV - measuring device to determine the correct slope based on torsion - MPW - PC calculation program to determine the correct bending values - RB4303 - universal bending tool for profiles up to 60 mm height - Tools for special profiles OUR SERVICE FOR YOU ON SITE: - Welcome to the test production in our house in the demo room - Consultation-information meeting at your site - Consultation and handling as leasing/financing purchase via - Service contracts, maintenance at your site

Condition: new, Year of construction: 2025, THE PRACTICAL HAND BENDING DEVICE: The compact, mobile design allows precise and repeatable bending in the vice. Drive is provided by a screw-in handle. A lockable adjusting ring ensures repeatable bending. The exchange of the plug-in tools is conceivably simple. The principle of "stationary tube and rotating tool" allows bending with the smallest possible footprint. For thin-walled tubes, sliding shoes are used for crease-free bending in order to produce bends with the least possible deformation from, for example, stainless steel and copper tubes. The optional version with a hexagonal mount allows the drive force of the 3000 and 6000 bending systems to be used in addition to the vise. For this purpose, the KBV is simply placed on the bending shaft of the machine. POSSIBLE APPLICATIONS: - Hydraulic piping - prototype construction - Sanitary and heating construction TECHNICAL DATA: - Bending capacity Ø 6 to 18 mm - Manual bending angle limitation - Maximum 180º bending result OPTIONAL ACCESSORIES: Lsdpfeng Amksx Ag Noah - KBV with hexagonal fixture for bending on model 3000 or 6000 - Machine case - Length stop OUR SERVICE FOR YOU ON SITE: - Welcome to the test production in our house in the demo room - Consultation and information meeting at your site - Consultation and handling as leasing/financing purchase via the company JUTEC - Service contracts, maintenance at your site
