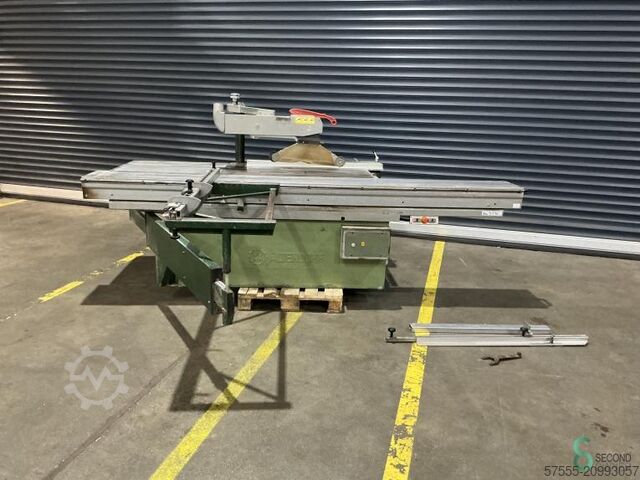

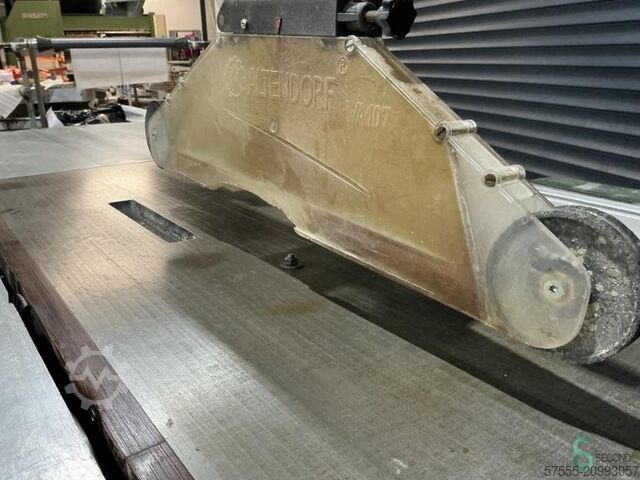

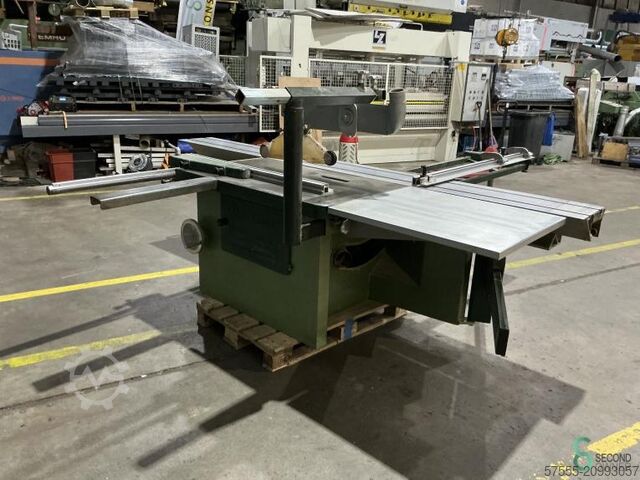

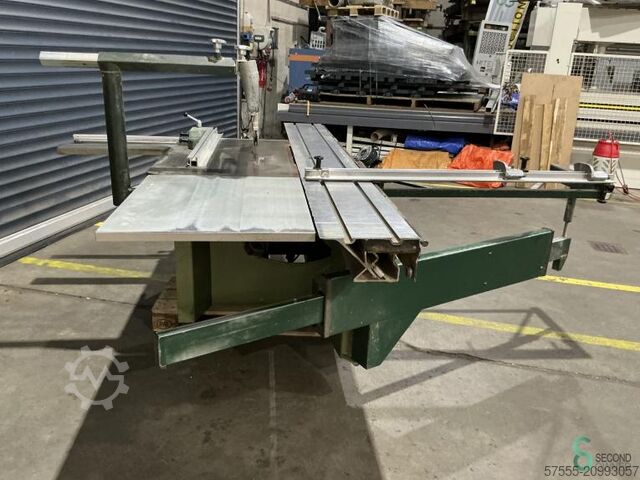

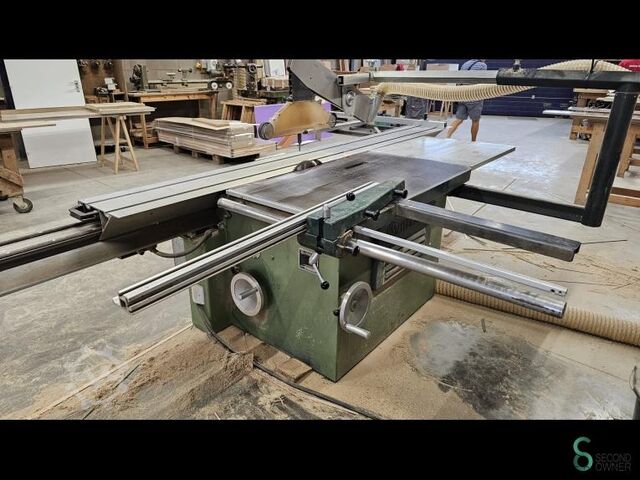

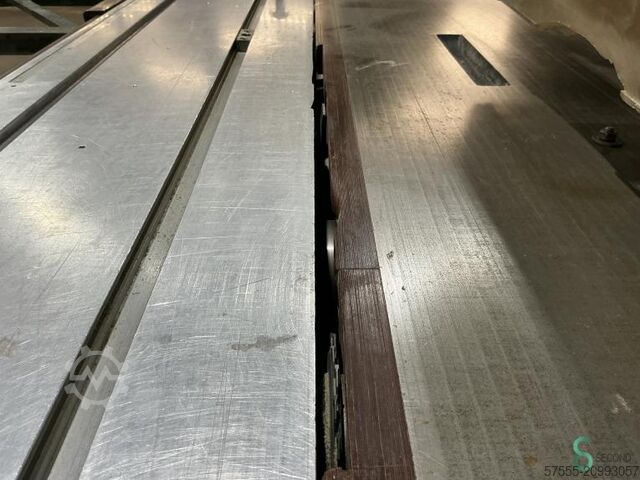

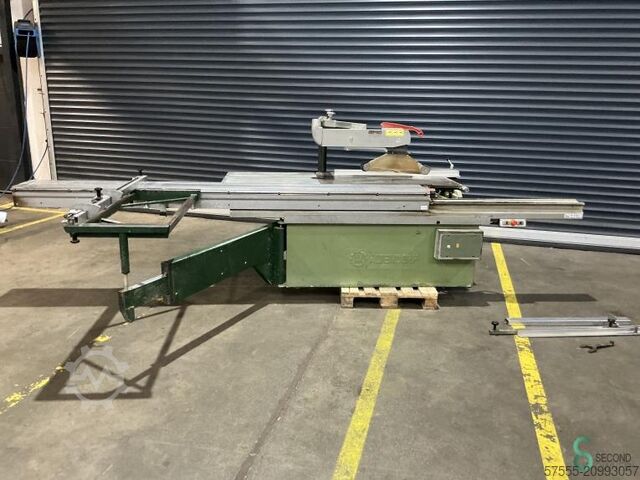

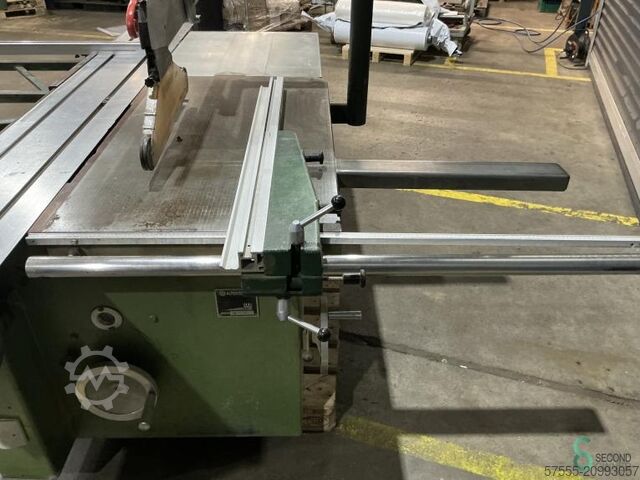

Condition: used, Year of construction: 1978, total length: 3,400 mm, total width: 1,850 mm, total height: 1,600 mm, - Year: 1978 - Documentation available: No - CE certificate present: No - Serial number: 78-11-11 - Roller table length [mm]: 3200 - Table width [mm]: 1070 - Arbor saw blade diameter [mm]: 35 - Dust extraction nozzle diameter [mm]: 115 - Controlled axes: Cutting height, Scoring unit height - Options: Scoring unit - Spindle speed: - └ Max. spindle speed [rpm]: 4000 - Voltage [V]: 380 - Transport dimensions: 3400mm x 1850mm x 1600mm (l x w x h) - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels Ijdjyazbbopfx Addotb

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, machine/vehicle number: 0-250-05-2654, travel distance X-axis: 3,950 mm, travel distance Y-axis: 1,943 mm, travel distance Z-axis: 400 mm, controller model: HOMATIC-2000 IPC, No reserve price – guaranteed sale to the highest bidder! The machine is equipped with a C-axis! TECHNICAL DETAILS Travel distances X-axis: 3,950 mm Y-axis: 1,943 mm Z-axis: 400 mm Vertical drilling unit X-direction Drill spindles: 16 Z-stroke: 60 mm Drilling depth: max. 38 mm Ijdpfxex Sqm Se Addstb Rotational direction: clockwise/counterclockwise Speed: 1,500 - 5,900 rpm Drive: 1.5 kW Drill chuck: d= 10 mm Total drill length: 70 mm Drill diameter: max. 20 mm (15 spindles), 1 spindle up to 25 mm, max. 35 mm (1 reinforced spindle) Spindle spacing: 32 mm (15 spindles) Spindle type: individually controllable Extraction: central Vertical drilling unit Y-direction Drill spindles: 15 Z-stroke: 60 mm Drive: 1.5 kW Rotational direction: clockwise/counterclockwise Speed: 1,500 - 5,900 rpm Drill chuck: d= 10 mm Drilling depth: max. 38 mm Total drill length: 70 mm Drill diameter: max. 20 mm, 1 spindle up to 25 mm Spindle spacing: 32 mm (15 spindles) Spindle type: individually controllable Arrangement: Y-direction Horizontal drilling unit X-direction Drill spindles: 4 Drilling depth: max. 38 mm Drilling height Z-direction: 38 mm Rotational direction: counterclockwise Speed: 4,800 rpm Drill chuck: d= 10 mm Total drill length: 70 mm Drill diameter: max. 20 mm Spindles: individually controllable Horizontal drilling unit Y-direction Drill spindles: 2 Drilling depth: max. 38 mm Drilling height Z-direction: 38 mm Rotational direction: clockwise Speed: 4,800 rpm Drill chuck: d= 10 mm Total drill length: 70 mm Drill diameter: max. 20 mm Spindle type: individually controllable Router motor Drive power: 7.5/10 kW (S1/S6 duty cycle) Speed range (stepless): 750 - 18,000 rpm Cooling: liquid recirculation cooling Bearings: hybrid bearings (ceramic) Extraction: central Tool changer magazine Magazine positions: 30 tool positions Tool weight: max. 5 kg Tool change time: approx. 8 - 10 seconds MACHINE DETAILS Control: HOMATIC-2000 IPC Liquid recirculation cooling: 18,000 l/min Power: 7.5 / 10 kW S1/S6 operation EQUIPMENT Integrated CNC axis (360° rotational) Torque support Main spindle (motor power 7.5 / 10 kW, HSK F63) Workpiece support system 1,500 mm Workpiece console K-table 1,500 mm Gantry extension Y-direction 120 mm Compressed air connection strip with quick couplers Extraction hood for additional router motor Router 5 kW with Hydro quick-release clamping system Left-side safety guard with door Safety tread mat 3,250 mm Control cabinet left Note: For further details regarding the machine’s equipment, please refer to the attached documents.

Condition: ready for operation (used), Year of construction: 2006, operating hours: 17,716 h, functionality: fully functional, machine/vehicle number: 0144, travel distance X-axis: 1,200 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 675 mm, controller model: Heidenhain iTNC 530, TECHNICAL DETAILS X-axis travel: 1,200 mm Y-axis travel: 600 mm Z-axis travel: 675 mm Work spindle speed: 30 - 8,000 rpm Tool holder: ISO B 40 Table size: 1,220 x 620 mm T-slots: 18 T-slots: 5 x 18 mm T-slot spacing: 100 mm Table load capacity: 1,700 kg Control system: Heidenhain iTNC 530 Iodpfx Ajx Trpqeddjtb Feed rate X / Y / Z: 3,000 mm/min Rapid traverse X,Y / Z: 24 / 20 m/min MACHINE DETAILS Voltage: 3 x 400 V AC + PE, 50/60 Hz Control voltage: 24 V DC Connected load: 16 kW Weight: 8,000 kg Operating hours Control on: 44,842 h Machine on: 36,513 h Program run: 15,882 h Drives on: 31,655 h Spindle on: 17,716 h

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2023, load capacity: 2,500 kg, throat depth: 2,500 mm, empty load weight: 713 kg, construction height: 3,350 mm, pivoting range: 360 °, Column Slewing Crane M25-2.5 TECHNICAL DETAILS Load capacity: 2,500 kg Jib outreach: 2,500 mm Height: 3,350 mm Slewing range: 360° Outreach: 2,500 mm Underside of jib: 2,980 mm Overall height: 3,350 mm Bolt circle diameter: 530 mm Flange outside diameter: 610 mm Beam flange width: 150 mm Minimum approach dimension (Aa): 420 mm Internal approach dimension (Ai): 820 mm Support column length: 1,530 mm MACHINE DETAILS Weight: 713 kg Electrical Data Operating voltage: 400 V Frequency: 50 Hz Control voltage: 48 V EQUIPMENT Electric travel trolley Electric chain hoist Lifting capacity: 2,500 kg Lifting height: 4 m Lifting speed: 4 / 0.7 m/min Crane trolley Motorized travel trolley Flange width range: 138–195 mm Flange width: 150 mm Travel speed (max.): 10 m/min Travel speed (min.): 3 m/min MACHINE DETAILS Travel motor (trolley) Power: 0.3 kW Rated current: 1.2 A Itodpfx Adsx Nvtlsdeb Starting current: 4.2 A Hoist Hoist motor power: 3.6 kW Hoist motor rated current: 8.2 / 4.3 A Hoist motor starting current: 39 / 6.7 A Electrical Data Operating voltage: 400 V Frequency: 50 Hz Control voltage: 48 V

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2023, machine/vehicle number: 10000987990, total height: 5,300 mm, total length: 30,000 mm, total width: 8,900 mm, load capacity: 3,200 kg, lifting height: 4,450 mm, Up for auction is a Konecranes overhead crane with 2 bridges, each offering a lifting capacity of 3.2 t. TECHNICAL DETAILS Lifting capacity: 3,200 kg Span: 8,900 mm Lifting height: 4.45 m Hoisting speed: 3.9 m/min (ASR 1.2 m/min) Trolley travel speed: 20 m/min, infinitely variable Crane travel speed: 40 m/min, infinitely variable MACHINE DETAILS Number of bridges: 2 Number of trolleys: 2 Dimensions & Weight Dimensions (L x W x H): 30,000 x 8,900 x 5,300 mm Trolley weight: 230 kg Crane total weight without trolley: 1,300 kg Electrical Data Operating/Control voltage: 400 V / 48 V, 50 Hz Isdpfx Asx Nvrzeddetb Rated power: 3.0 kW EQUIPMENT Runways Radio remote control Conductor rails Overload protection Load spectrum memory Signal horn Pre- and limit switches for trolley and crane travel (slow/stop) Guide rollers to reduce skewing forces Buffer extension to compensate for guide rollers

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2017, machine/vehicle number: 11690446, load capacity: 4,000 kg, lifting height: 6,530 mm, TECHNICAL DETAILS Span: 9.9 m Crane lifting capacity: 4,000 kg Lifting height: 6.53 m Lifting speed at full load: 3.2 m/min Lifting speed at partial load: min. 3.0 m/min up to max. 7.5 m/min Trolley travel speed: 20 m/min Crane travel speed: 40 m/min MACHINE DETAILS Weights Trolley weight: 390 kg Crane weight without trolley: 1,750 kg Classification Crane class: 3U4/Q2, EN 13001-1 Iedpfxox Nvpgo Addjtb Hoist mechanism group: 4.3 + 4.4 m / ISO M6 Crane girder mechanism group: 16 m / M5 Electrical data Power supply: 400 / 48 V / 50 Hz Rated output: 3.3 kW EQUIPMENT Radio control Overload protection Load spectrum memory Pre- and end-limit switches for crane and trolley travel Remote control type “Mini Joystick” Spare transmitter Storage cabinet Spare battery Charging station Signal horn Hook collision protection Hook center-of-gravity alignment Manual crane hook tracking Safety conductor line incl. main disconnect switch and power supply Clampable holding brackets Riser cable (fixed installation) to be provided by customer

Condition: ready for operation (used), Year of construction: 1991, functionality: fully functional, working width: 1,500 mm, sheet thickness (max.): 1 mm, TECHNICAL DETAILS Itsdpfox I Egrjx Addsb Sheet width: 1,500 mm Sheet thickness: 1.5 mm

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 762 mm, travel distance Y-axis: 460 mm, travel distance Z-axis: 460 mm, controller model: OSP-P200M, rotational speed (max.): 15,000 rpm, TECHNICAL DETAILS Travel X-axis: 762 mm Travel Y-axis: 460 mm Travel Z-axis: 460 mm Spindle speed range: 50 - 15,000 rpm Rapid traverse X-axis: 40 m/min Ijdpex I Ecyjfx Addetb Rapid traverse Y-axis: 40 m/min Rapid traverse Z-axis: 32 m/min Tool magazine: 32 positions MACHINE DETAILS Control: OSP-P200M Main drive motor: 22 kW Dimensions & Weight Required space (L x W x H): 2,850 x 2,810 x 2,750 mm Machine weight: 7,200 kg EQUIPMENT Chip conveyor Internal coolant supply Standard filtration unit

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2002, controller model: Cybelec DNC 1200, bending force (max.): 250 t, working width: 3,550 mm, distance between stands: 3,000 mm, overall weight: 18,500 kg, TECHNICAL DETAILS Press force: 250 t Bending length: 3,550 mm Distance between uprights: 3,000 mm MACHINE DETAILS Controlled axes: y1, y2, x, r, z1, z2, back gauge tilt Control unit: Cybelec DNC 1200 Dimensions & weight Footprint (L x W x H): approx. 4,300 x 2,750 x 3,750 mm Machine weight: approx. 18,500 kg Itsdpfjx I Ebiox Addjb EQUIPMENT Two-hand foot switch Lasersafe Fisseler Hydraulic tool clamping top and bottom Die shifting Hydraulic crowning Support arms 1 set of upper and lower tools Safety guard

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1989, controller model: Cybelec DNC 60, bending force (max.): 50 t, working width: 2,050 mm, Equipment: foot remote control, No reserve price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Press force: 50 t Bending length: 2,050 mm MACHINE DETAILS Controlled axes: Y1, Y2, X, R Control unit: Cybelec DNC 60 Weight: 7,000 kg EQUIPMENT Foot pedal Hydraulic upper tool clamping 2 manually adjustable backgauge fingers Tooling Iedpfx Adox I D E Hsdotb
