Used Fehlmann Vertical Machining Center for sale (68,610)

Condition: new, Year of construction: 2025, table length: 900 mm, table width: 450 mm, number of spindles: 1, spindle speed (min.): 8,000 rpm, table load: 500 kg, VMC 650 CNC machining center, milling machine with CNC system VMC 650 machining center is a multifunctional equipment that allows you to perform milling, drilling, thread cutting, and turning operations in automatic mode (if these options are available in the machine). The VMC 650 milling machine can have 16- or 24-position tool magazine. Depending on the customer's wishes, the milling machine can be equipped with a GSK, Siemens or Fanuc CNC system. It is possible to optionally add a Y-axis drive. As a very convenient additional option, we recommend installing a chip conveyor that will save you time when working with the equipment. Technical parameters: Worktable size 900x450mm Maximum workpiece weight 500 kg Movement along the axes X/Y/Z 800/450/500 mm Maximum distance from the spindle to the table surface 120-620 mm Motor power 5.5-7.5 kW Maximum spindle speed 8000 rpm Spindle type BT40 Positioning accuracy ±0.008/300 mm Repeatability ±0.005 mm Machine dimensions 300022752550 mm Machine weight 4000 kg It is also possible to supply CNC milling machines, machining centers with other table sizes: VMC 850 table 1000x500 mm VMC 855 table 1000x550 mm Codpfx Aexc I Dgec Nerb VMC 1060 table 1200x600 mm VMC 1160 table 1200x600 mm VMC 1275 table 1300x700 mm VMC 1370 table 1400x700 mm VMC 1580 table 1600x800 mm VMC 1680 table 1700x800 mm VMC 1890 table 2000x900 mm

Condition: ready for operation (used), Year of construction: 2013, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 520 mm, travel distance Z-axis: 550 mm, controller model: Heidenhain iTNC 530, spindle speed (max.): 10,000 rpm, The machine spindle was replaced in 2022! TECHNICAL DETAILS Traverse path X-axis: 800 mm Traverse path Y-axis: 520 mm Traverse path Z-axis: 550 mm Spindle type: SK40 Spindle speed: 10,000 rpm Tool changer: 24-position Table size: 950 x 520 mm MACHINE DETAILS Control system: Heidenhain iTNC 530 Dimensions & Weight Dimensions (LxWxH): approx. 2.60 x 2.60 x 2.70 m Weight: 6,800 kg Operating Hours Machine on-time: approx. 47,000 h Program run time: approx. 5,700 h Spindle: approx. 4,800 h Crodpfx Aey E Hqtoc Njb EQUIPMENT IKZ (internal coolant supply) Hexagon probe Note: NC clamps and tool holders are not included in the offer.

Condition: ready for operation (used), Year of construction: 2001, operating hours: 6,023 h, functionality: fully functional, travel distance X-axis: 1,020 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 510 mm, spindle speed (max.): 8,000 rpm, number of axes: 4, TECHNICAL DETAILS Travel X-axis: 1,020 mm Travel Y-axis: 510 mm Travel Z-axis: 510 mm Table length: 1,150 mm Table width: 500 mm Tool holder: BT40 Main spindle power: 11 kW Max. spindle speed: 8,000 rpm MACHINE DETAILS Control: CNC Number of axes: 4 Power: 15 kW Dimensions & Weight Dimensions (L x W x H): 3,500 x 2,000 x 2,500 mm Net weight: 5,000 kg Csdpoy Hh Iiofx Ac Nsrb Transport packages: 1 Operating hours: 6,023 h EQUIPMENT Chip conveyor External cooling Tool magazine

Condition: defective spare-parts repository (used), Year of construction: 2005, operating hours: 38,534 h, functionality: not functional, machine/vehicle number: 29310001024, travel distance X-axis: 750 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 560 mm, controller model: Heidenhain iTNC530, rotational speed (max.): 18,000 rpm, No reserve price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Travel X-axis: 750 mm Travel Y-axis: 600 mm Travel Z-axis: 560 mm Worktable size: 950 x 650 mm Table load: 1,000 kg Spindle speed: 18,000 rpm Number of axes: 3 Tool changer: 30 positions Tool holder: HSK63 MACHINE DETAILS CNC control: Heidenhain iTNC530 Dimensions & Weight Dimensions (L x W x H): 3,500 x 3,000 x 3,200 mm Transport dimensions (L x W x H): 3,500 x 3,000 x 3,200 mm Weight: 10.2 t Cjdpsy Ib H Iofx Ac Norb Operating hours Spindle hours: 38,534 h Operating hours: 98,381 h Note: DMG has measured the clamping force on the machine, which is so low that there is a risk of the tool falling out. The machine has suffered spindle damage. There are various leaks, for example at the chip conveyor or in the door area.

Condition: defective spare-parts repository (used), Year of construction: 2003, operating hours: 30,434 h, functionality: not functional, machine/vehicle number: 1114 000402 3, travel distance X-axis: 1,060 mm, travel distance Y-axis: 710 mm, travel distance Z-axis: 710 mm, controller model: Heidenhain iTNC530, rotational speed (max.): 10,000 rpm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS X-axis travel: 1,060 mm Y-axis travel: 710 mm Z-axis travel: 710 mm Working area: Ø800 NC rotary table Spindle speed: 10,000 rpm Number of axes: 5 Tool changer: 30 stations Tool holder: HSK63 MACHINE DETAILS Control: iTNC530 Dimensions & Weight Machine dimensions (L x W x H): 4,080 x 4,490 x 3,117.5 mm Transport dimensions (L x W x H): 3,500 x 2,500 x 2,410 mm Weight: 9.7 t Operating hours Spindle hours: 30,434 h Operating hours: 66,001 h Credpjy Ib A Nsfx Ac Nob Note: The machine temperature rises immediately, and in the past there has even been smoke. The machine has spindle damage. Various cable insulations are worn.

Condition: ready for operation (used), Year of construction: 2006, operating hours: 32,790 h, functionality: fully functional, travel distance X-axis: 2,032 mm, travel distance Y-axis: 750 mm, travel distance Z-axis: 750 mm, table load: 3,000 kg, spindle speed (max.): 6,000 rpm, TECHNICAL DETAILS Travel X-Axis: 2,032 mm Travel Y-Axis: 750 mm Travel Z-Axis: 750 mm Max. workpiece height: 870 mm Max. table/workpiece load: 3,000 kg Table width: 800 mm Csdpfxey Hkhrj Ac Norb Table length: 2,240 mm Spindle speed: 40 – 6,000 rpm Spindle taper: SK 50 Standard spindle power: 18.5 kW Standard torque: 759 Nm Increased spindle power: 26 kW Increased torque: 1,067 Nm MACHINE DETAILS Control system: MAZATROL Dimensions & Weight Dimensions (L x W x H): 5,685 mm x 4,096 mm Weight: 14,000 kg Operating hours: 32,790 h EQUIPMENT Measuring probe (manufacturer: Renishaw) Chip cart 47 SK50 tool holders, including approximately 25 Weldon holders Emulsion cleaning unit

Condition: ready for operation (used), Year of construction: 2000, operating hours: 23,574 h, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 560 mm, controller model: Siemens Sinumerik 840D, spindle speed (max.): 8,000 rpm, The following machine components have been renewed: - Motor & pump of the hydraulic system - Hydraulic and pneumatic hoses (partially) - Control cabinet LT module replaced - Drum of the Knoll system TECHNICAL DETAILS Cedjy Nbunjpfx Ac Norb Travel distance X-axis: 600 mm Travel distance Y-axis: 560 mm Travel distance Z-axis: 560 mm B-axis: 360 x 0.001° (60 rpm) Spindle speed: 8,000 rpm Table size: 6 pallets, each 500 x 400 mm Table width: 400 mm Table length: 500 mm Table load capacity: 350 kg Working feed rate: 1 - 60,000 mm/min Rapid traverse: 60 m/min MACHINE DETAILS CNC control model: Siemens Sinumerik 840D Total length: 7,000 mm Total width: 5,000 mm Coolant supply: 50 bar Coolant system capacity: approx. 1,100 L Motor power: 13 kW / 20 kW Torque: 124 / 191 Nm Total power requirement: 20 kW Dimensions & Weight Space requirement (L x W): 7 x 5 m Machine weight: approx. 16,000 kg Operating hours Power-on time: approx. 48,804 h Spindle operating hours: total 23,574 h EQUIPMENT - Documentation/Manual - Steplessly adjustable spindle speed - Chip conveyor - Knoll cooling unit with drum filter (30/40/50 bar via M-command) - Tool measurement: Renishaw probe - Tool breakage monitoring in the working area - Pallet storage (4 positions) - Pallet sequence operation - Fully enclosed work area in accordance with UVV - Network capability - Technical documents & layout plan

Condition: ready for operation (used), Year of construction: 2016, operating hours: 9,956 h, functionality: fully functional, machine/vehicle number: 17211, travel distance X-axis: 650 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 680 mm, controller model: Siemens Sinumerik 840 D solution Line, spindle speed (max.): 18,000 rpm, TECHNICAL DETAILS X-axis travel: 650 mm Y-axis travel: 650 mm Z-axis travel: 680 mm Table width: 400 mm Table height: 30 mm Table length: 500 mm Table load capacity: 500 kg Max. workpiece height: 850 mm Max. pallet load: 500 kg Pallet changer: 2 pallets, automatic Change time: approx. 8 s Tool magazine: 60 tools Spindle speed (max.): 18,000 rpm Spindle motor power: 32,400 W MACHINE DETAILS Control system: Siemens Sinumerik 840 D Solution Line Dimensions & Weight Dimensions (L x W x H): approx. 5,150 x 2,800 x 3,025 mm Crodpfxsy Nbt De Ac Njb Weight: approx. 12,800 kg Noise emission: 80 dB(A) according to EN ISO 3744 Coolant supply: 80 bar Operating hours Total operating hours: 27,412 h Automatic operation: 11,155 h Spindle hours: 9,956 h EQUIPMENT Documentation/manual Chip conveyor Siemens spindle diagnostics & remote diagnostics (Teamviewer) Energy-efficient system with regenerative feedback Standby mode for energy savings Direct drive NC rotary table 6-channel clamping hydraulics (90 bar) Increased spindle torque for high-performance machining Torque support Central coolant supply system Renishaw OMP60 optical touch probe Tool breakage control Pallet sequence operation Crane infeed/outfeed software Signal light for operating states Work area/machine equipment: shower nozzle, cleaning pistol, vortex nozzle, emission extraction interface Foot switch for air nozzle Documentation: fully digital (PDF)

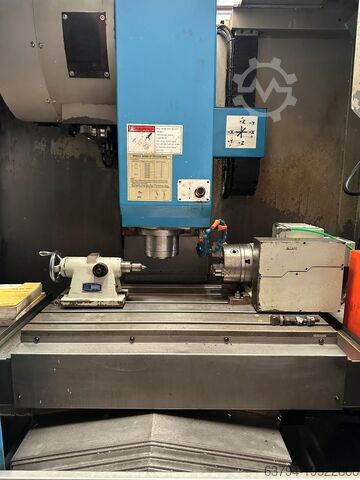

Condition: excellent (used), Dugard Eagle 850VMC (ML946E06), Fanuc Oi, 4th Axis & Tailstock, Toolchanger, Year 2011 X / Y / Z travel: 850×520×510mm Table size: 1,000×510mm Max table load: 500kg Spindle taper: BT40 Crodpfjwx Hlwex Ac Neb Spindle speed: 80–8,000rpm; Spindle power: 11kW continuous, 15kW peak Rapid traverse: X30m/min, Y30m/min, Z24m/min; cutting feedrates up to 10000mm/min Machine footprint/weight: approx. 2.30×2.12×2.58m; 5.5tonnes

Condition: excellent (used), Hurco VM20i Vertical Machining Centre (2014) Travels X: 1,016 mm Y: 508 mm Z: 508 mm Table size: 1,168 × 508 mm Max load: 1,800 kg T-slots: 5 × 18 mm Spindle Taper: SK40 / CAT40 Max speed: 10,000 rpm Power: 15 kW Torque: 99–102 Nm Weight: 4,150 kg Footprint: 3.7 m × 3.0 m Height: 2.5 m Csdpfx Ajy Nzw Aec Njrb Additional Features: Year 2014 4th Axis & Tailstock Reishaw Probe Tooling

Condition: ready for operation (used), Year of construction: 2011, Feeler QMP-23A 5 Axis Vertical Machining Centre Model: QMP-23A Fanuc Series Oi-MD Control Remote Electronic Hand Wheels 5 Axis Trunnion Table Crodpfx Acoygct Ej Neb Travels: X: 580mm (48m/min) Y: 420mm (48m/min) Z: 510mm (48m/min) Spindle Nose to Table Surface: 80 – 590mm Spindle Centre to Column Surface: 510mm Table Surface to Floor 820mm Table Centre to Column Surface: 245 – 665mm GANRO TR-150S (TRS Range) Y Axis Tilting Rotary Table 150mm Capacity YOM: 2015 *For sale with Jet Machinery Ltd* Stock No: 79020 Serial No: VKC064 Price: £24,950.00 + VAT Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details. Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.

Condition: good (used), Year of construction: 2007, Traverses X Y Z: 1270 x 660 x 635mm, Table 1321 x 584mm, Spindle Speed 0 – 7500rpm, Spindle taper BT 40, Spindle Motor 20Hp, Crjdjy Eyauopfx Ac Njb HAAS Control, 20 Station tool change, coolant

Condition: good (used), Year of construction: 2016, Traverses X Y Z: 610 x 508 x 610mm, Table 762 x 508mm, Crsdpfoy Ex Haex Ac Njb Spindle speed 40 – 8000 rpm, Spindle taper CAT40, 24 ATC, Rapid feedrate 24/30m/min, Spindle motor power 12/9kW, Low volt light, Hurco control, coolant.

Condition: excellent (used), Year of construction: 2020, Traverses X Y Z 3048 x 1016 x 762mm, Table size 3048 x 711 mm, Maximum workpiece weight 1814 kgs Credpfx Acey Emyue Nob Spindle speed 8,100rpm, Spindle taper BT40, Motor 30HP, Haas control, 30 station ATC

Condition: used, Year of construction: 2010, Mazak VTC820/30 3-Axis Machining Centre. S/No. 200131 (2010) with Mazatrol Matrix Control, X/Y/Z Travels 3000/800/720mm, Table 3500mm x 820mm, Spindle Speed 18,000rpm, Spindle Taper BT40, B Axis Swivel Head +/- 110, Removable Centre Partition. Country of Origin: United Kingdom Codpfjy Ib Ryox Ac Nsrb Please Note: There are no loading facilities on site, dismantling and loading will be at the cost of the purchaser. Location: These lots are located in Birmingham & Wolverhampton, UK. Please Note: There are no loading facilities on site, dismantling and loading will be at the cost of the purchaser.

Condition: used, Year of construction: 2010, Mazak VTC 800/30SR 5-Axis Machining Centre. S/No. 215592 (2010) with Mazatrol Matrix Control, X/Y/Z Travels 3000/800/720mm, Table 3500mm x 820mm, Spindle Speed 18,000rpm, Spindle Taper BT40, B Axis Swivel Head +/- 110. Country of Origin: United Kingdom Please Note: There are no loading facilities on site, dismantling and loading will be at the cost of the purchaser. Location: These lots are located in Birmingham & Wolverhampton, UK. Please Note: There are no loading facilities on site, dismantling and loading will be at the cost of the purchaser. Codpfxey Ib N Ns Ac Nerb

Condition: used, Year of construction: 2009, Doosan Mynx 750/50 4 Axis Vertical Machining Centre with Fanuc Series 21i-MB CNC Control, Kitagawa MR320RAE04 4th Axis Unit 310mm 3 Jaw Chuck, Table Size 1600mm x 750mm, 40 Tool ATC, BT50 Spindle Taper, Filtermist FX7002 Oil Mist Extractor, Kaukan Chiller Unit, Profluid MCF 20 Coolant Pressure Filter Unit, Machine Weight 13500kg. S/No. MYNX 7500373 (2009) Includes Work Bench, Vice and Various BT50 Spindle Tool Holders. Country of Origin: Korea Csdpfoy Ic Dusx Ac Norb Location: This lot is located in Birmingham, UK. A charge of £550 for dismantling and loading onto suitable transport will be automatically added to your invoice should you be successful in purchasing this item. Blocking and securing will be at the cost of the purchaser.

Condition: excellent (used), Year of construction: 2002, HAAS VF10 X AXIS 3048 MM Y AXIS 813 MM Z AXIS 760 MM TABLE WEIGHT MAX 1800 KGS 3 AXIS HAAS CONTROL Csdpfx Aoy Epkmec Nsrb THIS IS ALL THE DETAILS I HAVE AT THE MOMENT MORE WILL FOLLOW CHEAP MACHINE - MUST BE LOADED FROM SITE AND STRAIGHT ON TO NEW DESTINATION . MORE PHOTOS AND A VIDEO IS AVAILABLE

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, travel distance X-axis: 5,500 mm, travel distance Y-axis: 525 mm, travel distance Z-axis: 380 mm, Model: COMET ISOLA ES381 V06 Year: 2004 Control: ISAC Codpfx Aoyx Hn Ssc Norb ‘X’ axis Stroke: 5500mm ‘Y’ axis Stroke: 525mm ‘Z’ axis Stroke: 380mm Spindle Taper: ISO 40 Spindle Speeds: 24,000 RPM

Condition: not inspected (used), Year of construction: 2004, functionality: unexamined, machine/vehicle number: 10651-7, travel distance X-axis: 600 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 300 mm, table load: 800 kg, spindle speed (max.): 42,000 rpm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Travel distance X-axis: 600 mm Travel distance Y-axis: 450 mm Travel distance Z-axis: 300 mm Rapid traverse X-axis: 30 m/min Rapid traverse Y-axis: 30 m/min Rapid traverse Z-axis: 30 m/min Maximum spindle speed: 42,000 rpm Spindle taper: HSKE40 Number of spindles: 1 Table width: 405 mm Table length: 405 mm Max. table load: 800 kg Number of tool magazine slots: 26 MACHINE DETAILS Control system model: RMS6, version 3.18 Cjdjy Nzuhepfx Ac Norb Input voltage: 400 V Dimensions & Weight Dimensions (L x W x H): 4,210 x 2,350 x 2,600 mm Weight: approx. 7,000 kg EQUIPMENT Documentation/manual Infinitely variable spindle speed control Chip conveyor Blum laser 3D tool setter Hirschmann 9000 zero-point clamping system Electronic handwheel Extor extraction system

Condition: used, Year of construction: 2019, functionality: fully functional, Equipment: chip conveyor, 2019 Brother Speedio M140 X2 (5 Axis 4+1) Plus 2019 Brother Feedio. Brother M140 CNC Machining Centre – 5 Axis – Available Immediately. The Brother M140 CNC machining centre is a compact, high-speed 5-axis machine designed for precision component manufacturing. Built in 2019, this machine offers excellent productivity with a high-speed spindle, 22 tool capacity and through-spindle coolant, making it ideal for subcontract machining environments. The machine has a full service history and is available immediately for inspection. Machine Details Machine: Brother M140 CNC Machining Centre Year: 2019 Control: Brother C Control Axis Configuration: 4+1 / 5 Axis Tool Capacity: 22 Tools Spindle: 16,000 rpm Face & Taper Through Spindle Coolant: 35 Bar CTS Crodpfx Acjy Ewf Ue Nsb Equipment & Options Rear exit swarf conveyor NOP pumps for washdown and flood coolant Bag filtration system Air bench mist extraction Additional Information Full service history High-speed machining capability Feedio Robotic Machine Tending System with ABB 6 Axis Robot – Available Immediately The Feedio robotic machine tending system is an automated loading and unloading solution designed to improve productivity and reduce manual handling in machining environments. Built in 2019, this system is equipped with a 6-axis ABB robot and twin-head loading capability, allowing efficient automated part handling. The system includes 4 metre conveyors and is suitable for integration with CNC machines for fully automated component loading and unloading. System Details System: Feedio Robotic Machine Tending System Year: 2019 Robot: 6 Axis ABB Robot Conveyor Length: 4 Metres Loading System: Twin Head Load / Unload Features Automated machine loading and unloading Twin-head handling for increased efficiency 6-axis robotic flexibility Integrated conveyor system for part flow Ideal for CNC production automation This system is well suited for subcontract machining environments looking to increase automation and production efficiency. For further information, pricing, or to arrange an inspection, please get in touch.

Condition: used, functionality: unexamined, Hurco VMX60T vertical machining centre Crsdey Duv Uspfx Ac Nob

Condition: good (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 450 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 300 mm, feed length X-axis: 450 mm, feed length Y-axis: 400 mm, feed length Z-axis: 300 mm, nominal power (apparent): 12 kVA, controller manufacturer: Fanuc, controller model: Oi-MC, workpiece weight (max.): 200 kg, total height: 2,460 mm, total length: 2,100 mm, total width: 1,980 mm, table width: 320 mm, table length: 720 mm, table load: 200 kg, overall weight: 2,000 kg, spindle speed (max.): 10,000 rpm, spindle nose: BT40, number of spindles: 1, number of slots in tool magazine: 12, tool diameter: 75 mm, tool weight: 6,000 g, input voltage: 400 V, type of input current: three-phase, Equipment: rotational speed infinitely variable, 🟦 2007 Dugard Eagle 450XP CNC Vertical Machining Centre | Fanuc Oi-MC | 12 ATC 🔧 Machine Details Manufacturer: Dugard Model: Eagle 450XP Year: 2007 Type: CNC Vertical Machining Centre (VMC) Control: Fanuc Series Oi-MC Condition: Good 💡 Description 2007 Dugard Eagle 450XP CNC Vertical Machining Centre equipped with Fanuc Oi-MC control, offering reliable and precise machining performance. This compact VMC is ideal for precision engineering, toolmaking, and general machining applications, combining high speed, accuracy, and a small footprint. The 12-station tool changer and rigid tapping make it a versatile and efficient machine for a wide range of jobs. ⚙️ Technical Specifications Table Size: 700 x 320 mm Max Table Load: 200 kg 📏 Travels X Axis: 450 mm Y Axis: 400 mm Z Axis: 300 mm ⚡ Spindle Spindle Speed: 10,000 rpm Spindle Taper: BT40 Csdpfey Ittmex Ac Njrb 🔄 Tool Changer Type: Carousel ATC Stations: 12 Max Tool Diameter: 75 mm Max Tool Weight: 6 kg Tool Change Time: 6 seconds ⚙️ General Data Machine Size (L x W x H): 1980 x 2100 x 2460 mm (approx) Weight: 2,000 kg 🧠 Features Compact high-speed machining centre Rigid tapping capability Fully enclosed splash guarding Heat exchanger for electrical cabinet Reliable Fanuc CNC control (industry standard) Compact footprint – ideal for smaller workshops Notes: *Specifications are given in good faith but not guaranteed*

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 650 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 500 mm, rapid traverse X-axis: 45 m/min, rapid traverse Y-axis: 45 m/min, rapid traverse Z-axis: 45 m/min, controller manufacturer: Heidenhain, controller model: iTNC 530, table width: 280 mm, table length: 280 mm, table load: 300 kg, rotary table diameter: 280 mm, coolant supply: 80 bar, spindle nose: HSK-A63, number of spindles: 1, number of slots in tool magazine: 189, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, This HERMLE C30 U is still currently in production and will be available from week 42. The machine is still in daily use for extremely high-precision machining and is also in excellent condition, having always been perfectly maintained by HERMLE NL. The complete maintenance history is available after purchase. (Viewing on site is possible by appointment) Additional options & accessories: - Extended tool magazine (ZM 157) - Pallet system RS1 (KUKA robot) including pallets and Soflex control system Credpfx Aey Ib Dajc Nsb - NC rotary table Ø280 mm - Chip conveyor - 6-fold pass-through - A-axis position eccentric - Internal coolant supply (IKZ) (40 - 80 bar) - Conveyor belt filter for IKZ - Chip trolley 450L - Blow-off device - Air blast through the spindle - Electronic heat compensation iTNC - Electronic handwheel - Renishaw probe - Oil mist extraction Weight & dimensions: C30 U: 10,000 kg, RS1: 4,000 kg, ZM175: 2,500 kg Setup dimensions: approx. 6.5 × 4.5 m, floor space: ≈ 29 m²

Condition: used, Year of construction: 2013, x-travel 635 mm y-travel 510 mm z-travel 460 mm control Sinumerik 840 D SL Siemens turning speed range - main spindle 20 - 10.000 min/-1 power capacity - main spindel 13 / 9 kW tool taper SK 40 DIN 69871 max. Torque 83 / 57 Nm tension force 8 kN table surface area 790 x 560 mm number of T-slots 4 + 1 T-slot - distance 100 mm T-slot - width 4x 14H12 / 1x 14H7 mm max. table load 600 kg table height over floor 720 mm distance spindle nose and table 120 - 580 mm number of toolpositions 30 pos. Max. mould width 80 / (130) mm max. tool length 250 mm max. tool weight 6 kg max. total weight 80 kg change-time tool to tool 1,6 sec change-time chip to chip 6,0 sec rapid traverse 30 m/min feed speeds 1 - 20.000 mm/min Feed force max. 5 kN total power requirement 28 kVA weight of the machine ca. 3,8 t dimensions of the machine ca. 3,5 x 4,0 x 2,7 m CNC - MachiningCenter Vertical DECKEL MAHO - DMC 635 V New Design - ShopMill Crodpfxjym Dz Ro Ac Neb - WITHOUT perforated plate - WITHOUT clamping device - WITHOUT tools
