Used Weinig Angular Window Machining Centre for sale (75,490)

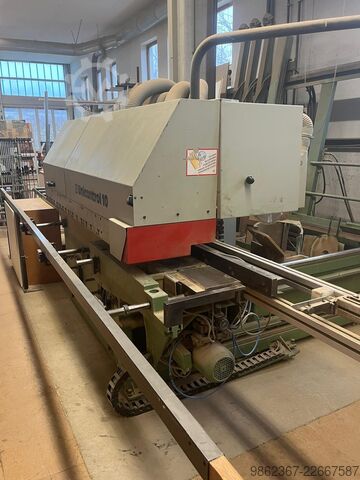

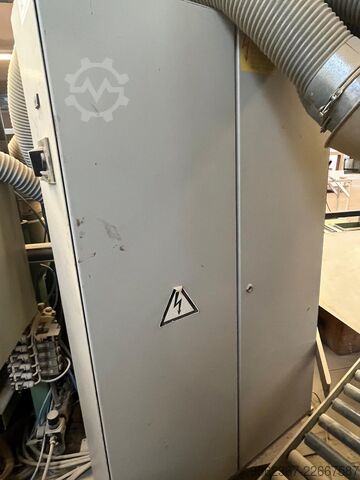

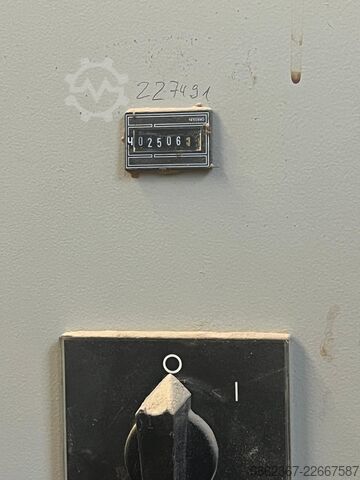

Condition: used, Year of construction: 1988, operating hours: 2,506 h, functionality: fully functional, machine/vehicle number: 032-230, We are offering this Unicontrol 10 window manufacturing machine from Michael Wenig AG. Kjdpfx Acjzx Emdjpjnc It is in used condition, but fully functional. Year of manufacture: 1988, machine number: 032-230. Including control cabinet! Comes with three complete sets of tools from Leitz. - IV68 insert cutter with standard profile - IV68 cornice profile for listed buildings - Tools for wood and aluminum windows The following tools are included (as seen in the pictures): 1x slot cutter, vertical and 1x horizontal 1x slot frame, horizontal 1x tenon cutter, vertical, bottom and 1x top 1x cornice profile slot cutter, horizontal 1x tenon cutter, vertical 7 slot cutters 1x milling head frame, left/right/ top 1x milling head frame, bottom 1x milling head cutter, left/right/ top 1x milling head cutter, 2-wing, vertical 1x milling head cutter, bottom 1x milling head cutter, aluminum, for clipping 1x frame milling head, aluminum, for clipping 1x glass bead cutter, profile, standard 1x glass bead cutter, profile, cornice 1x roller shutter bead cutter It was decommissioned due to lack of space. Further information is available upon request. Stored in a weatherproof location in 96231 Bad Staffelstein - Uetzing. Collection at your own expense, including loading. We are happy to help, but due to the weight and the necessary loading equipment, we cannot take over the loading and transport and cannot provide any guarantee. Private sale. Old, used machine. No warranty, return, or guarantee claims.

Year of construction: 1998, condition: ready for operation (used), An angular system for Weinig window and door production is available. Max. tool outside diameter: 320mm, max. tool flight circle: 232mm, slotted spindle length: 640mm, profiling and synchronized spindle length: 285mm-320mm, control: Siemens WS400. Including complete tooling and style window. Documentation available. Knedjtq U A Ijpfx Acpsc

Condition: used, Year of construction: 2002, machine/vehicle number: 96.164, functionality: unexamined, overall weight: 3,000 kg, spindle diameter: 40 mm, number of spindles: 6, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Number of spindles: 6 Spindle 1 Spindle type: Bottom Spindle diameter: 40 mm Spindle 2 Spindle type: Right Motor power: 11 kW Spindle diameter: 40 mm Spindle 3 Spindle type: Left Ksdpfx Aoz Nir Recpenc Spindle diameter: 40 mm Spindle 4 Spindle type: Top Motor power: 11 kW Spindle diameter: 40 mm Spindle 5 Spindle type: Top Motor power: 7.5 kW Spindle diameter: 40 mm Spindle 6 Spindle type: Bottom Motor power: 7.5 kW Spindle diameter: 40 mm Infeed table length: 945 mm Diameter of feed rollers: 140 mm Conveyor motor: 14 kW Conveyor drive: Cardan shaft drive Tool type: Standard Lubrication system: Manual MACHINE DETAILS Diameter of extraction nozzle: 140 mm Voltage: 400 V Fuse: 63 A Dimensions & Weight Dimensions (L x W x H): 4,100 x 2,100 x 2,400 mm Empty weight: 3,000 kg Transport packages: 1 EQUIPMENT Tools for Spindle 1 Tools for Spindle 2 Tools for Spindle 3 Tools for Spindle 5 Tools for Spindle 6 NOTE Spindle 1 The brake is weak. The counter for the height adjustment is defective. Spindles 2 and 3 – shared motor The brake is defective. The height adjustment of Spindle 2 is very stiff and seized. The counters for the height and width adjustment of Spindle 2 are defective. The counters for the height and width adjustment of Spindle 3 are defective. Spindle 4 The spindle can only be turned with great difficulty; the bearings are defective. The height adjustment is seized. Spindle 5 The counter for the height adjustment is defective. Spindle 6 The width adjustment is seized, and the corresponding counter is defective. The motor emits a humming sound, presumably caused by the brake. Other defects The drive belts for spindles 1 and 6 are in very poor condition. The switch on the front of the machine for adjusting the table height is defective. The pressure reducing valve and the moisture separator need to be repaired or replaced. The lubrication pump is defective and needs to be repaired or replaced. The mechanism for speed regulation is defective and seized. The rubber coupling elements for the height adjustment are defective. Conclusion Due to the defects listed above, the machine could not be put into operation for testing purposes.

Condition: used, Manufacturer: WEINIG Type: UC6 Year of manufacture: 1997 Condition: untested Machine description/technical data WEINIG UNICONTROL6 window manufacturing system including Oertli tool set IV68 and IV77 wood + wood/aluminum (all cutting drawings available upon request) Screen control for 99 window types. 1 type can contain up to 8 different parts, each with 2 end profiles and 2 longitudinal profiles. Manufacturing possibilities: Individual parts, double parts, frame-wise, series production, edge profiling Control of tool positions (longitudinal and transverse machining) via selector switch on the control panel Transverse machining: - electronic length stop for wood lengths up to 2,600 mm, with auxiliary stop for wood lengths up to 3,600 mm, with slot table that moves along and has separate control -Studio window setup: Swiveling length stop ± 60° with electronic digital display and pneumatic clamping Sliding counter rail Special pressure pad for the production of angled parts Cut-off saw 3 kW Axial adjustment manually with mechanical digital display Laser guide for cut-off saw to detect the section Cut-off saw pneumatically controlled, mortise dimension adjustable via mechanical numerical display Mortise and slot spindle 11 kW (standard 7.5 kW) Tool clamping length: 320 mm Number of tools: 4 x 80 mm Axial adjustment: 240 mm Electronic spindle brake Longitudinal machining: 7 feed rollers in the infeed and 5 in the outfeed, high/low controlled for faster and shorter edge profiling process Synchronous spindle (vertical right) 7.5 kW Before the profiling spindle for splinter-free edge profiling Profiling spindle 11 kW (standard 7.5 kW) Number of tool positions: 4 x 80 mm, pneumatically controlled Axial adjustment: pneumatic Mechanical spindle brake Knodpfx Aezx Smqocpsc Profile milling unit (horizontal above) 3 kW After the profiling spindle, radially controlled to 2 positions and axially controlled to 3 positions Mechanical spindle brake Profile milling unit (vertical right) at the end of the machine 3 kW Radially controlled to 2 positions and axially controlled to 3 positions Plunge automation: The plunging in/out at the beginning/end of the wood is controlled via 2 adjustable limit switches. Plunge tolerance ± 3 mm. Mechanical spindle brake Return conveyor to the operator including identification function for further processing Partial renewal of pneumatic hoses and extraction hoses in the machine required! Price in €: on request VAT: exclusive Availability & Location Location: Greater Freiburg area Available: promptly after dismantling Inspection: in operating condition / in operation Price in €: on request

Condition: used, The machine is for sale together with all tools as shown in the pictures. Kodpfey Rumtex Acpjnc

Condition: excellent (used), WEINIG Window Production Line, Unicontrol 6, S/N 035-823, year 1997 Crosscut saw, pneumatically indexed (3 kW) with laser alignment light Slotting spindle 50 x 320 mm for 4 tools at 80 mm each – 11 kW motor Parallel spindle 50 x 120 mm – 7.5 kW motor Longitudinal profiling spindle 50 x 320 mm for 4 tools at 80 mm each – 11 kW motor Fitting spindle, pneumatically indexed, 40 x 160 mm – 3 kW motor Saw/grooving spindle, horizontal top, pneumatically indexed – 3 kW motor Feed speed adjustable from 6–12 m/min – 1.1 kW motor Screen control for 99 window types Support bar for muntin production, pneumatically indexed Knsdpfxjy Dud Ee Acpsc Studio window setup with digital angle display Length stop up to approx. 3,500 mm Corner jointing unit with support rail Return conveyor to operator side Machine complete with operating manuals, circuit diagrams, spare parts lists LEITZ tool set, IV-78 THE SYSTEM IS IN VERY GOOD TECHNICAL AND COSMETIC CONDITION Delivery: EXW Delivery time: Prompt by arrangement Inspection: By appointment Payment: Upon notification that the goods are ready for dispatch Subject to prior sale and errors excepted.

Condition: used, Profiling milling machine with 2 profiling spindles, hardware milling unit, and sanding unit Technical data and equipment 1. Power supply and compressed air * Electrical connection: 3-phase, 380 V, 50 Hz * Compressed air requirement: approx. 13 NL/min * Operating pressure: 8 bar * Compressed air quality: according to Pneurop 6611 2. Profiling spindle 1 * Spindle arrangement: right * Drive power: 11 kW * Speed: 7,000 RPM * Direction of rotation: clockwise and counterclockwise * Spindle diameter: 40 mm * Effective length: 252 mm * Max. tool diameter: 230 mm Vertical positioning: * U-shaped movement of the profiling spindle * Pneumatic cylinder with 120 mm stroke * 2 tool positions * Position detection via limit switches Horizontal positioning: * Pneumatic forward and backward movement * Position detection via limit switches * Automatic plunge function with adjustable plunge speed for tear-free milling * Protective and extraction hood with extraction nozzle Ø 140 mm 3. Profiling spindle 2 * Spindle arrangement: right * Drive power: 11 kW * Speed: 7,000 RPM * Direction of rotation: counterclockwise * Spindle diameter: 50 mm * Effective length: 272 mm * Max. tool diameter: 230 mm Vertical positioning: * U-shaped movement of the profiling spindle * Pneumatic cylinder with 90 mm stroke * 3 tool positions * Position detection via limit switches Horizontal positioning: * Pneumatic forward and backward movement * Position detection via limit switches * Protective and extraction hood with extraction nozzle Ø 140 mm 4. Hardware milling unit EG * Spindle arrangement: right * Drive: Three-phase motor, 3 kW * Speed: 6,000 RPM * Spindle diameter: 30 mm * Effective length: 47 mm Positioning: * Vertical positioning: not available * Horizontal positioning: pneumatic forward and backward movement * Position detection via limit switch (rear position) * Protective and extraction hood with extraction nozzle Ø 80 mm 5. Stop system * 1. Stop in front of profiling spindle 1: * Manual chip removal * Quick adjustment via parallelogram guide * 2. Stop between profiling spindle 1 and 2: * Pneumatically adjustable chip removal Kedpfx Aez S Nrpjcpenc * 3. Stop behind profiling spindle 2: * Fixed stop 6. Sanding unit * Sanding unit with automatic infeed and outfeed 7. Feed device * Roller spacing (center to center): 130 mm * Roller diameter: 110 mm * Roller width: 50 mm * Feed device can be swiveled away * Pneumatic control of the working stroke 8. Support rail for edge milling * Rail length: approx. 3,000 mm * Adjustment range forward: approx. 100–600 mm

Condition: used, WEINIG UNIVAR 10 automatic rebating machine from a UC-Matic window production line, not in working order. Technical data: - Year of manufacture: 1997 Kedpfx Ajztv A Secponc

Condition: used, WEINIG UNITEC 10 tenoning and slotting machine from a UC-Matic window production line, not in working order. Knsdpfx Acoztv Axspec

Condition: used, The automatic profiling machine Weinig Type Univar 10 is designed for profiling and rebating windows, doors, individual components and similar workpieces with circumferential profiles. Its mechanisation enables single-person operation, making the machine suitable for efficient processing in window and door manufacturing. Technical data: - Year of manufacture: 1998 Knodpfx Ajztv Eascpoc - 1. Profiling spindle – Motor: 11 kW - 1. Profiling spindle – Spindle diameter: 50 mm - 1. Profiling spindle – Clamping length: 320 mm - 1. Profiling spindle – Stroke: 4 x 80 mm - 1. Profiling spindle – Design: hydraulic - 1. Profiling spindle – Synchronisation device - 2. Profiling spindle – Motor: 11 kW - 2. Profiling spindle – Spindle diameter: 50 mm - 2. Profiling spindle – Clamping length: 320 mm - 2. Profiling spindle – Stroke: 4 x 80 mm - 2. Profiling spindle – Design: hydraulic

Condition: excellent (used), Year of construction: 1998, I sell the window production set: 1pc. tenoning profiling centre Weinig Unitec 10 1pc. profiling automat centre Weinig Univar 10 Year 1998. Kedpfxjfzzhyo Acponc Moulding heads OERTLI. Available immediately. Total price 17.000 euro. Condition very good !

Condition: good (used), Year of construction: 2007, Technical characteristics : - Max machinable length 3200 mm - Minimum machinable length 200 mm - Maximum width 200 mm - Minimum width 40 mm - Maximum workpiece height 130 mm - Depth with max Ø to tenon 320 mm: 105 mm - Tenoning carriage speed min / max 0/100 m / min - Min / max profiling speed: 3/15 m / min Kodpjt R T Hcsfx Acpsnc Tenoning: 1- end cut saw 5.5 hp (4 kW) Saw Ø 400 mm 2- tenoning router Counter bearing 50 x 620 mm 15 hp (11.3 kW) Max tool Ø 320 mm Axle stroke 575 mm Automatic splinter guard 3- tenoning router Counter bearing 50 x 620 mm 15 hp (11.3 kW) Max tool Ø 320 mm Axle stroke 575 mm Automatic splinter guard Vertical positioning with continuous axis 4- Digital angular adjustment clamp Profiling: 5-: router to be profiled on the right Shaft 50 x 320 mm 10 hp (7.5 kW) Ø tools 130/240 mm Axle stroke 280 mm Time-delayed anti-shattering intervention during calibration Double direction of rotation Vertical and horizontal positioning with continuous axis 6-: router to be profiled on the right Shaft 50 x 320 mm 10 hp (7.5 kW) Ø tool 130/240 mm Axle stroke 280 mm Vertical and horizontal positioning with continuous axis 7-: router to be profiled on the right Shaft 50 x 320 mm 10 hp (7.5 kW) Ø tool 130/240 mm Vertical and horizontal positioning with continuous axis 8-: close-out recovery group Vertical and horizontal positioning with continuous axis Device for extracting the shutter 9-: lower horizontal shaft for groove Vertical and horizontal positioning with continuous axis 88.5 hp (66.4kW) 10-: digital guide 11-: Return of parts to the operator NO TOOLS AVAILABLE OBTAIN ADDITIONAL PHOTOS NOTE: SUBJECT TO CHANGES IN TECHNICAL DATA

Condition: used, machine/vehicle number: 005583, X axis working area: 3680 mm Y axis working area: 2040 mm Working Table: Flat table Main Electrospindle power: 13 KW Number of controlled axes: 3 axes Knedpfx Acsz S T Ubepec Total number of drilling spindles: 11 Total number of tool changer positions: 12

Year of construction: 2008, operating hours: 24,663 h, condition: ready for operation (used), functionality: fully functional, working width: 2,200 mm, machine/vehicle number: 0-241-06-7504, TECHNICAL DETAILS Saw blade overhang: 125 mm Main saw motor: 18 kW Feed rate: 1–150 m/min Max. clamping width: 2,200 mm FEEDING SYSTEM Lift table dimensions: approx. 4,300 × 2,200 mm Lift table load capacity: 7 t MACHINE DETAILS Operating hours: approx. 24,663 h (as of 05.10.2023) EQUIPMENT Automatic panel feeding system Lift table feeding system Longitudinal/cross-cutting unit Knedpfx Acozxgf Uspoc Roller conveyor and transport system

Condition: excellent (used), Year of construction: 1995, MACHINE CONNECTED, WORKING IN GOOD CONDITION, POSSIBILITY OF TESTING - INCLUDED IN THE TOOL SET The Weinig UC 10 combined mortise, tenon and rebate machine for the flexible production of various windows, elements and doors without changing tools. Frame-by-frame production, serial or one-piece. - Units: Ksdpfelc N N Uex Acponc 1. Cross cut saw: ø 40 mm, 3 kW 2nd tenoning and slotting spindle: clamping length: 320 mm, ø 50 mm, stroke: 8 x 80 mm, 11 kW 3rd profiling spindle 1: clamping length: 320 mm, ø 50 mm, stroke: 4 x 80 mm, 11 kW 4th profiling unit, horizontal from above, 3 kW, ø 40 mm, clamp length: 40 mm 5th profiling spindle 2: clamping length: 320 mm, ø 50 mm, stroke: 4 x 80 mm, 11 kW 6th profiling unit, vertical right, 3 kW, ø 40 mm, clamp length: 160 mm - Studio window unit - Slat conveyor with conveyor belt for automatic return transport to the operator - NC axis: feed height adjustment - Milling package THE MACHINE HAS 3 SETS OF TOOLS FOR WOODEN WINDOWS - PROFILES 68/78/92

Condition: used, Year of construction: 2013, A versatile and flexible NC controlled machining centre suitable for a variety of machining operations including hinge recessing, lock slots, handle holes, key slots and euro grooves etc. Programming is extremely simple thanks to the colour graphic touch screen controller using pre-installed electronic macros. As standard the machine is equipped with one milling head that automatically moves for either vertical or horizontal machining. It also has interpolation of the axis. Specification Axis capacity - X 2800mm, Y 180mm, Z 150mm. (2400mm X capacity when optional drilling head fitted). 1 x ER32 collet for milling cutter 16mm max. dia. Max working table dimensions - 3000x618mm X axis positioning speed 35m/min. Y axis / Z axis positioning speed 6m/min. Retractable pneumatic positioning stops 2 off - on front of table Adjustable pneumatic workpiece clamps x 3 - mounted on rear of table. Left hand side ref. stop. Front table extension supports x 2 Router motor power 3.3kw. Router motor RPM 0-18,000 rpm. Touch screen controller - Elco Power 1000. Dust extraction outlet x 1 80mm dia, 2 x 100mm dia CE side and rear safety guards with front light curtain. With following options fitted : - Pneumatic tool change ISO 30 - Drilling unit with ER25 collet. - Extended Y axis stroke 400mm Knjdpfxozzwg Ue Acpsc - Increased clamping capacity 200mm. Year - 2013 CE Compliant Serial Number - 22170

Condition: used, machine/vehicle number: 006279, X axis working area: 3100 mm Y axis working area: 1250 mm Working Table: Flat table Number of controlled axes: 3 axes Total number of drilling spindles: 11 Total number of tool changer positions: 8 Knedsz S T T Repfx Acpjc

Condition: reconditioned (used), Tenoning spindle 1 St. Number of milling agregates 4 St. Spindle diameter 50 mm control Weinig, PC-Nexus Weinig Unicontrol 6 with NC spindles ----- Machine will be cleaned and completely checked before delivery Technical data summary (please enquire about any additional accessories included) Item 1: Cross-cut saw ----- > Electronic cross-cut saw, infinitely adjustable horizontally > Number of tools: 1 piece > Spindle speed: 2,800 rpm > Spindle diameter: 40 mm > Max. tool diameter: 400 mm > Motor power: 3.0 kW > Laser aiming light for detecting the saw section > NC length stop, mounted on slot table included Positioning of the cross-cut saw integrated in the control system. > Length 3500 mm Item 2: tenoning spindle ----- > Number of tools: variable, infinitely variable adjustment NC axis > Tool clamping length: 320 mm > Vertical spindle stroke: variable, infinitely variable adjustment 254 mm NC axis > Spindle speed: 3500 rpm > Spindle diameter: 50 mm > Max. tool diameter: 320 mm > Motor power: 11 kW Item 3: 1st profiling spindle (synchronous spindle and counter-rotation) > Position: vertical right > Number of tools: 1 pc. > Tool clamping length: 120 mm > Spindle speed: 6000 rpm > Spindle diameter: 50 mm > Max. tool flight circle: 232 mm > Motor power: 7.5 kW Item 4: 2nd profiling spindle ----- > Position: vertical right > Number of tools: variable, infinitely variable adjustment NC axis > Tool clamping length: 320 mm > Vertical spindle stroke: variable, infinitely variable adjustment 254 mm NC axis > Spindle speed: 6000 rpm > Spindle diameter: 50 mm > Tool flight circle max.: 232 mm > Motor power: 11 kW 2 feed rollers opposite the spindle, axially pneumatically controlled, 2 positions Rung guide consisting of: Guide ruler in the stop (area of ??synchronous spindle), Rung support bar from above in the area of ??profile milling unit vertical right and profiling spindle. Pos. 5: Profile milling unit horizontal top ----- > Clamping length: 40 mm > Spindle diameter: 40 mm > Motor power: 3.0 kW > Speed ??5,850 rpm > Tool flight circle max. 130 mm > Axial adjustment range 30 mm, 8 positions using pneumatic turret > Radial adjustment range 125 mm, 8 positions using pneumatic turret Pos. 6: 3rd profiling spindle (fitting spindle) ----- > Position: vertical right > Tool clamping length: 160 mm > Axial adjustment range 115 mm, 8 positions using pneumatic turret > Radial adjustment range 100 mm, 8 positions using pneumatic turret > Spindle speed: 5,850 rpm > Spindle diameter: 40 mm > Max. tool flight circle: 210 mm > Motor power: 3.0 kW Other features ----- > online-capable > rebating device for tear-free rebating Knsdpovu Hfqsfx Acpec > double parts package > return conveyor for 1-man operation: tilting belt > screen control > inclined window device > electronic angle display for inclined windows > industrial PC, PC control/NEXUS > Weinig type production program > without processing tools No original images available yet. Images show identical machines from our archive. ----- Price of the above-mentioned machine upon request! ----- Optional with additional charge: EUR 6.500,00 Note on used tools: We currently have used...

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, machine/vehicle number: 1160235, SPECIFICATION Table size 1370mm x 620mm X axis traverse 1016mm Y axis traverse 660mm Z axis traverse 635mm Spindle nose to table 102 – 737mm Spindle BT40 Spindle speeds 0-12,000rpm Spindle motor 22.4kW Rapid feed rate 18m/min Toolchanger capacity 30+ 1 tools Approximate weight 7750Kg   MACHINE EQUIPPED WITH: - Haas CNC Control Swarf auger High speed machining Co-ordinate rotation and scaling Rigid tapping Ksdpezz Ndrsfx Acponc Filtermist extraction system Programmable coolant nozzle Lighting Guarding

Condition: used, machine/vehicle number: 008507, X axis working area: 5020 mm Y axis working area: 1380 mm Knjdszvwnbopfx Acpsc Working Table: Pod and Rail Main Electrospindle power: 15 KW Number of controlled axes: 3 axes Total number of tool changer positions: 16

Condition: excellent (used), Tenoning spindle 1 St. Number of milling agregates 4 St. Spindle diameter 40/50 mm Weinig Unicontrol 6 ----- Machine will be checked in our factory before delivery! Technical Data Summary (Please inquire about any additional accessories included) Item 1: Cut-off saw ----- > Number of tools: 1 pc. Kedpfx Acjxtvgkepsnc > Spindle speed: 2,800 rpm > Spindle diameter: 40 mm > Maximum tool diameter: 400 mm > Motor power: 3.0 kW > Laser guide light for identifying the saw cut CNC-controlled length stop ----- > Length: 3,600 mm > Electronic length stop including positioned cut-off saw Item 2: Tenoning spindle ----- > Number of tools: 3 (stroke 2 x 100 mm) or 4 (Stroke 3 x 80 mm) > Tool clamping length: 320 mm > Pneumatic vertical spindle stroke: 240 mm for wood thicknesses 68 - 92 mm > Spindle speed: 3000 rpm > Maximum tool swing diameter: 320 mm > Spindle diameter: 50 mm > Maximum tool diameter: 360 mm > Motor power: 11 kW Item 3: 1. Profiling spindle (co-rotation and conventional) ----- > Position: vertical right > Number of tools: 1 pc. > Tool clamping length: 120 mm > Spindle speed: 6000 rpm > Spindle diameter: 50 mm > Maximum tool swing diameter: 232 mm > Motor power: 7.5 kW Item 4: 2. Profiling spindle ----- > Position: Vertical right > Number of tools: 3 (stroke 2 x 100 mm) or 4 (stroke 3 x 80 mm) > Tool clamping length: 320 mm > Pneumatic vertical spindle stroke: 240 mm for wood thicknesses 68 - 92 mm > Spindle speed: 6000 rpm > Spindle diameter: 50 mm > Maximum tool swing diameter: 232 mm > Motor power: 11 kW 2 axially indexed feed rollers opposite the profiling spindle, for the production of narrow, short parts (e.g., glass-dividing muntins) Munch guide consisting of: Munch support strip from above in the area of ??the vertical right-han d profile milling unit and profiling spindle. Item 5: Horizontal top profile milling unit ----- > Clamping length: 40 mm > Spindle diameter: 40 mm > Motor power: 3.0 kW > Spindle speed: 5,850 rpm > Maximum tool swing diameter: 130 mm > Axial travel: 52 mm, indexed in 2 positions > Radial travel: 125 mm, indexed in 2 positions Item 6: 3rd profiling spindle (fitting spindle) ----- > Position: Vertical right > Tool clamping length: 160 mm > Axial travel: 90 mm, indexed in 3 positions > Radial travel: 100 mm, indexed in 2 positions > Spindle speed: 5,850 rpm > Spindle diameter: 40 mm > Maximum tool swing diameter: 210 mm > Motor power: 3.0 kW Further features ----- > Electric feed height adjustment including mechanical digital display and manual feed bar clamping > Rebating device for tear-out-free rebating > Double part package > Return conveyor for 1-person operation: swivel conveyor > Screen control > Angled window device > Electronic angle display for angled windows > Industrial PC with Windows PC control/NEXUS Extraction nozzle diameter: ----- Crosscut saw 80 mm Tenoning spindle 140 mm Profile spindle 1 140 mm Profile spindle 2 140 mm Grooving device from above 80 mm Hardware spindle 120 mm -----...

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, type of input current: three-phase, travel distance X-axis: 1,020 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 510 mm, workpiece weight (max.): 800 kg, number of slots in tool magazine: 30, controller manufacturer: Fanuc, total height: 2,700 mm, total length: 4,080 mm, total width: 2,400 mm, overall weight: 7,000 kg, table length: 1,200 mm, table width: 510 mm, controller model: Oi-MC, coolant supply: 15 bar, spindle motor power: 15,000 W, number of spindles: 1, rapid traverse Z-axis: 30 m/min, rapid traverse X-axis: 36 m/min, rapid traverse Y-axis: 36 m/min, spindle nose: BT40, spindle speed (max.): 12,000 rpm, table load: 800 kg, Equipment: chip conveyor, rotational speed infinitely variable, Doosan NM510 Vertical Machining Centre Machine Type: 3 Axis Vertical Machining Centre Year: 2008 Control: Fanuc Series Oi-MC Condition: Very Good Knedov Iq Ezspfx Acpjc Includes Swarf Conveyor Chiller MCF20 Coolant Filter Autolube 6 x Tool Holders Notes Vice and clamping block in photos not included Technical Specifications Table Size: 1200 x 510mm Table Load: 800kg Travel (X-Axis): 1020mm Travel (Y-Axis): 510mm Travel (Z-Axis): 510mm Max Spindle Speed: 12,000rpm Spindle Power: 18.5/15/11kW Spindle Taper: BT 40 Rapid Traverse (X/Y/Z): 36/36/30m/min Tool Storage Capacity: 30 tools Tool Change Time (T-T/C-C): 1.7/3.5sec Machine Dimensions: 4080 x 2400 x 2700mm Machine Weight: 7,000kg Notes: *Specifications are given in good faith but not guaranteed*

Condition: used, Year of construction: 1998, Window manufacturing system Manufacturer: Weinig Type: Unicontrol 10-5 Year of manufacture: 1998 Technical data Working width: 40 - 220 mm Working height, longitudinal machining: 40 - 100 mm Working height, transverse machining: 40 - 100 mm (80 mm counterpiece height) Workpiece length, longitudinal machining: min. 220 mm + 2 x tenon length Workpiece length, transverse machining: min. 275 mm + 1 x tenon length at 320 mm tool diameter Feed (transverse machining) Motor power: 0.3 kW Feed speed: 3 - 25 m/min Workpiece clamping: by means of 2 clamping jaws Length stop: with scale and magnifying glass for frame or sash outer dimensions Counterpiece: pneumatically controlled - 4 positions - (not for studio windows) up to a wood height of max. 80 mm Double part package: For single or double part feeding. With transverse separation and retention system 1. Wood (lying against the stop) Wood width: 55 - 90 mm 2. Wood Wood width: 130 mm Feed (longitudinal machining) Motor power: 2.2 kW Kedpfx Ajzuyxgjcponc Feed speed: 4 - 18 m/min (continuously variable via frequency converter) Feed roller spacing: 100/120 mm Feed roller width: 30/50 mm Feed roller diameter: 95 mm Machining units Cut-off saw Motor power: 3 kW Spindle diameter: 40 mm Spindle speed: 2800 rpm Tool circle diameter: max. 400 mm Adjustment, axial: pneumatically controlled against a 4-position turret 1. Tenon and mortise spindle Motor power: 11 kW Spindle diameter: 50 mm Spindle speed: 3250 rpm Tool circle diameter: max. 320 mm Tool clamping length: 320 mm Adjustment, axial: 240 mm Number of tools: 4 x 80 mm Axial adjustment: hydraulic 1. Profiling spindle Motor power: 11 kW Spindle diameter: 50 mm Spindle speed: 6000 rpm Tool diameter: max. 232 mm Tool zero circle diameter: 130 to 140 mm Tool clamping length: 320 mm Adjustment, axial/radial: 240/80 mm Number of tool positions: 4 x 80 Axial adjustment: hydraulic 2. Profiling spindle Motor power: 11 kW Spindle diameter: 50 mm Spindle speed: 6000 rpm Tool diameter: max. 232 mm Tool zero circle diameter: 130 to 140 mm Tool clamping length: 320 mm Adjustment, axial/radial: 240/80 mm Number of tool positions: 4 x 80 mm Axial adjustment: hydraulic 2 Mechanical spindle brake for profiling spindle 3 Mechanical spindle brake for cut-off saw and profiling and sawing units Profiling milling unit (horizontal, top) before the last profiling spindle radially controlled to 2 positions axially controlled to 2 positions Motor power: 3 kW Spindle diameter: 40 mm Spindle speed: 5850 rpm Tool circle diameter: 130 mm Tool clamping length: 40 mm Adjustment, axial: 52 mm Adjustment, radial: 125 mm Profiling milling unit (vertical, right) at the end of the machine radially controlled to 2 positions axially controlled to 2 positions Motor power: 3 kW Spindle diameter: 40 mm Spindle speed: 5850 rpm Tool circle diameter: 210 mm Tool clamping length: 160 mm Adjustment, axial: 90 mm Adjustment, radial: 100 mm Length, tenon and mortise spindle with 640 mm tool clamping length (instead of 320 mm spindle) Motor power: 15 kW Spindle speed: 2925 rpm Number of tool positions: 8 x 80 mm Adjustment, axial: 560 mm Laser alignment light for cut-off saw for detecting the section Studio window configuration Swiveling length stop +/- 60 with electronic digital display and pneumatic clamping Sliding counter rail Special pressure pad for angled part production Limitation: Wood thickness max. 120 mm At -60 position: Workpiece width max. 110 mm with 80 mm tenon length, or max. 150 mm with counter profili

Condition: excellent (used), Year of construction: 2000, I sell the window angular centre SCM Multiflex. Moulding heads VIVALDI EU68mm. Cutting + Tenoning spinde right side / Tenoning side. 2 pcs. Profiling spindles + glass strip cutting machine left / Profiling side. Knedehw Dfyjpfx Acpoc Available immediately.

Condition: used, Year of construction: 1999, Tenoning spindle 1 St. Number of milling agregates 4 St. Spindle diameter 50 mm Weinig Unicontrol 6 with NC-controlled spindles ----- The machine was in daily operation until September 2026, at which point it was professionally dismantled and placed into storage at our facility. Summary of Technical Specifications (Please inquire regarding any additional accessories that may be included) Pos. 1: Cross-cut saw ----- > Electronic cross-cut saw, horizontally infinitely adjustable > Number of tools: 1 > Spindle speed: 2,800 rpm > Spindle diameter: 40 mm > Max. tool diameter: 400 mm > Motor power: 3.0 kW Knsdsz S N Hmjpfx Acpjc > Laser alignment light for identifying the cut line > NC-controlled length stop, mounted on the tenoning table; positioning of the cross-cut saw is integrated into the control system. > Length 3500 mm Item 2: Tenoning and slotting spindle ----- > Number of tools: variable, infinitely adjustable via NC axis > Tool clamping length: 320 mm > Vertical spindle stroke: variable, infinitely adjustable (254 mm) via NC axis > Spindle speed: 3500 rpm > Spindle diameter: 50 mm > Max. tool diameter: 320 mm > Motor power: 11 kW Item 3: 1st profiling spindle (climb-cut and conventional-cut capable) ----- > Position: vertical, right-hand side > Number of tools: 1 > Tool clamping length: 120 mm > Spindle speed: 6000 rpm > Spindle diameter: 50 mm > Max. tool cutting circle diameter: 232 mm > Motor power: 7.5 kW Item 4: 2nd profiling spindle ----- > Position: vertical, right-hand side > Number of tools: variable, infinitely adjustable via NC axis > Tool clamping length: 320 mm > Vertical spindle stroke: variable, infinitely adjustable (254 mm) via NC axis > Spindle speed: 6000 rpm > Spindle diameter: 50 mm > Max. tool cutting circle diameter: 232 mm > Motor power: 11 kW Item 5: Horizontal profiling milling unit (top-mounted) ----- > Clamping length: 40 mm > Spindle diameter: 40 mm > Motor power: 3.0 kW > Speed: 5850 rpm > Tool cutting circle diameter max. 130 mm > Axial adjustment range: 2 positions > Radial adjustment range: 2 positions Pos. 6: 3rd profiling spindle (fitting/hardware spindle) ----- > Position: vertical, right-hand side > Tool clamping length: 160 mm > Axial adjustment range: 3 positions > Radial adjustment range: 2 positions > Spindle speed: 5,850 rpm > Spindle diameter: 40 mm > Max. tool cutting circle: 210 mm > Motor power: 3.0 kW Additional features ----- > Network-ready (online-capable) > Rebating device for splinter-free rebating > Package for processing double-part components > Return conveyor system for one-man operation: slat conveyor > Screen-based control system > Device for angled (non-rectangular) windows > Electronic angle display for angled windows > Industrial PC, PC-based control system (NEXUS) > Excludes machining tools Includes 1 set of Stehle IV68 timber window tools ----- Price for the above-mentioned machine available upon request! ----- Optional (at additional cost): EUR 6,500.00 Note regarding used tools: We currently have used "Gold" brand tools in stock (Stock No. #2790). These are window tool sets for IV78 timber and IV78 timber/aluminum systems. They ...
