Used Cazeneuve Hby 590 for sale (21)

Condition: used, TECHNICAL DETAILS Tjdpfey A Tknex Anlob - Distance between centers : 1800 [mm] - Max. diameter on bench : 583 [mm] - Machining diameter between centers : 280 [mm] - X/Z stroke : 255 / 1710 [mm] - Quill diameter : 100 [mm] - Quill stroke : 295 [mm] MAIN SPINDLE - Spindle nose : A1-8" - Spindle passage : 80 [mm] - Spindle speeds : 0 - 2500 [rpm] - Spindle power : 18.4 [kW] POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 3.600 x 1.700 [mm] - Machine height : 1.820 [mm] - Machine weight : 2.700 [kg] EQUIPMENT - CN Conversational CAZENEUVE NUM Power - LCD control screen - Multifix Quick-Change Turret - Coolant tank - Chuck 3 jaws - Tool holder set

Condition: new, Maximum turning diameter: 1,100 / 1,800 mm Turning diameter over bed: 538 mm Turning diameter over slide: 300 mm Spindle mounting: DIN 55026 Spindle bore: 82 mm Spindle speeds: max. 3,000 rpm Drive power: 12/30 kW Machine weight: 2,700 / 3,000 kg Todpfx Aezrluuenljb

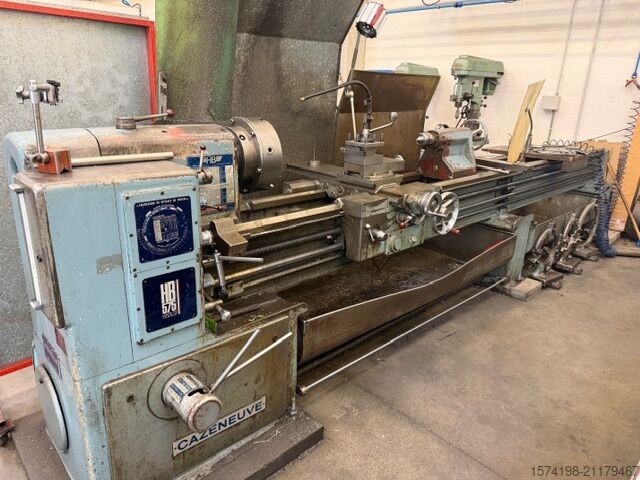

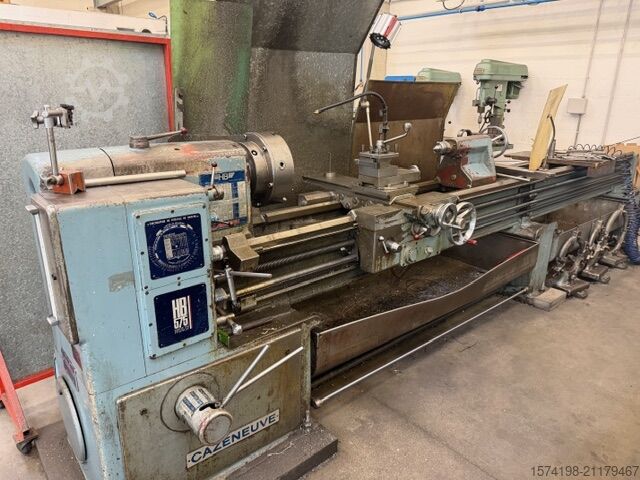

Condition: used, Parallel Lathe CAZENEUVE type HB 575 Between points: 2000 mm Maxi Ø on bench: 575 mm Maxi Ø over saddle: 300 mm Spindle diameter: Ø 51 mm Rotation: from 20 to 1600 RPM Turret TRIPAN 411 3-jaws chuck Ø 200 mm Tedpfx Ajzwfdmenlob Spindle motor: 15 CV ThreadingsMetric + Whitworth Tailstock CM5 Lubricant tank Lubricant pump Supplied with 3 TRIPAN tool holders Voltage: 380 V Length: 3500 mm Width with tank: 1500 mm Total height: 1400 mm Weight: approx 3 T

Condition: excellent (used), Year of construction: 1998, CAZENEUVE CT 200 CNC lathe Tsdpfx Asy S T N Aonleb CNC NUM control Year 1998

Condition: good (used), Cazeneuve CNC lathe with NUM CT200 control and tailstock. Todpezndv Nefx Anlsb

Condition: good (used), Cazeneuve HB500 lathe Todpfx Aezndwaenlob

Condition: good (used), Year of construction: 2006, CAZENEUVE OPTICA 360 CNC - NUM - 2006* *CNC training/production lathe – Very recent for an Optica – CE marked* *1. Identification* Make: CAZENEUVE S.A. - Pont-Évêque Model: OPTICA 360 Serial Number: 5055 Year: 2006 - CE Marking Control: NUM Distance between centers: 750 mm Spindle bore: Ø 54 mm *2. Why this 2006 model?* It is one of the last Optica 360 models produced. Therefore: 1. *NUM Control*: Reliable, parts and service are still provided by NUM. It is the standard in France. 2. *Year 2006*: Less wear, more modern electronics than models from the 90s. 3. *3 Cazeneuve modes*: Manual / Training / CNC. Ideal for a general mechanical workshop or vocational school. 4. *Robust*: Cast iron bed, 7.5 kW. You can switch from machining brass to pre-treated materials without any issues. *Condition*: Very clean for a 2006 machine. Original white/blue paint, no damage. Machine is on blocks, stored in a dry place. Can be seen powered on. *3. Technical Specifications* Characteristic | Value Ø over bed | 360 mm Ø over carriage | 200 mm Distance between centers | 750 mm Spindle bore | Ø 54 mm Spindle nose | A2-5 Spindle power | 7.5 kW Spindle speed | 50 to 3500 rpm Control | NUM 1020 / 1050 *Specify if you know which one* Weight | ~2300 kg *4. Included Equipment* - 3-jaw chuck Ø 200 - Rotating tailstock CM4 - Full splash guard with door safety interlock Tedszc Ul Sopfx Anljb - Operator panel + NUM screen - Lighting - Cazeneuve technical documentation + NUM schematics - Basic tooling

Condition: used, TECHNICAL DETAILS - Distance between centers : 700 [mm] - Max. diameter on bench : 380 [mm] - Machining diameter between centers : 200 [mm] Tjdpfx Aozqgyvsnlsb - X/Z stroke : 180 / 610 [mm] MAIN SPINDLE - Spindle nose : A1-6" - Spindle passage : 54 [mm] - Spindle speeds : 0 - 3000 [rpm] - Spindle power : 11 [kW] - TAILSTOCK - Type of cone : CM4 - Quill diameter : 60 [mm] - Quill stroke : 140 [mm] POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 1.950 x 1.320 [mm] - Machine height : 1.820 [mm] - Machine weight : 2.000 [kg] EQUIPMENT - SIEMENS Conversational CNC - LCD control screen - Multifix Quick-Change Turret - Coolant tank - Chuck 3 jaws

Condition: refurbished (used), functionality: fully functional, CAZENEUVE Lathe HB 500 x 1500 Tsdpfsy D Hv Tjx Anlob Brand: CAZENEUVE Model: HB500 Distance between centers: 1,500 mm Center height: 200 mm Max turning diameter over bed: 500 mm Max turning diameter over cross slide: 448 mm Max turning diameter over carriage: 220 mm Spindle bore: 40.5 mm Tailstock taper: MT5 Max cross slide travel: 280 mm Number of spindle speeds: 18 Power: 10 HP Spindle speed: from 40 to 3,200 rpm Dimensions (L x W x H): 2,905 x 1,175 x 1,295 mm Weight: 1,950 kg

Condition: not inspected (used), Year of construction: 1984, spindle bore: 81 mm, turning length: 2,000 mm, capacity: 2000 x 725 mm diameter on transverse slide: 400 mm Tsdpfx Ajzpza Ionlsb spindle bore: 81 mm weight: 3100 kg

Condition: ready for operation (used), Year of construction: 2003, turning diameter over cross slide: 200 mm, turning length: 750 mm, turning diameter: 360 mm, spindle bore: 54 mm, spindle speed (max.): 3,000 rpm, rotational speed (max.): 3,000 rpm, overall weight: 1,600 kg, Order number Spindle bore 54 mm, maximum speed 3000 rpm Capacity 750x360 mm Tedpfox H R Ulsx Anlsb 200 mm on the carriage Multifix turret type B

Condition: ready for operation (used), Year of construction: 1991, turning diameter over cross slide: 300 mm, spindle bore: 51 mm, turning diameter: 575 mm, center width: 1,000 mm, Heidenhain 2-axis control system External electrical cabinet Capacity: 1000 x 575 mm, spindle bore: 51 mm Ladner chuck Tsdszh U Ayopfx Anljb Multi-fix turret

Condition: used, total length: 3,600 mm, total width: 1,300 mm, total height: 1,400 mm, Colour: Green Empty weight: 3.500 kg - Documentation available: No - CE certificate present: No - Drive system: Conventional - Centre height [mm]: 335 - Swing over bed [mm]: 670 - Carriage turning diameter [mm]: 670 - Distance between centres [mm]: 2000 - Bed width [mm]: 510 - Spindle bore [mm]: 83 Tedszhwbxjpfx Anlob - Min. spindle speed [rpm]: 16 - Max. spindle speed [rpm]: 1250 - Options: Fixed steady, Three-jaw chuck - Transport dimensions: 3600mm x 1300mm x 1400mm (l x w x h) - Transport weight [kg]: 3500kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: like new (used), Various steady rests for lathes, brand: CAZENEUVE, types: HB 800, HB725, MAXICA, HBX 360. Follow rest for Cazeneuve HB725. Various other brands also available. More information upon request. Price on request, shipping possible. Sales price excluding VAT, invoiced. Tedpfxjy Ep I Ee Anljb

Condition: ready for operation (used), Year of construction: 1984, spindle bore: 37 mm, turning diameter: 360 mm, center width: 750 mm, spindle speed (max.): 3,000 rpm, Visue Newall 2 axes Capacity: 750x360 mm Spindle bore: 37 mm Tsdpfxsyimzvs Anlob Variable spindle speed up to a maximum of 3000 rpm

Year of construction: 2013, condition: good (used), Swing over bed 380 mm Distance between centers 700 mm Spindle speeds -2500 rpm Control: SIEMENS Optica Misc. accessories Tjdpshp Razefx Anleb MARCELS MASCHINEN CH

Condition: reconditioned (used), CAZENEUVE HB 575 x 1500 Lathe Distance between centers: 1,500 mm Center height: 250 mm Swing over bed: 575 mm Swing over cross slide: 525 mm Swing over carriage: 300 mm Spindle bore: 51 mm Tailstock taper: MT5 Max cross slide travel: 305 mm Number of spindle speeds: 18 Power: 10 Hp Spindle speed: from 32 to 1,600 rpm Electrical cabinet Dimensions (L x W x H): 2,905 x 1,175 x 1,345 mm Weight: 2,050 kg New Heidenhain DRO Multifix tool post – Fixed steady rest New 2-axis Heidenhain DRO Todpfsx Ebwfjx Anlsb

Condition: refurbished (used), functionality: fully functional, CAZENEUVE HB 725 x 2000 Lathe Distance between centers: 2000 mm Center height: 315 mm Tsdpfx Aoy Ncuvjnlob Max. turning diameter over bed: 725 mm Max. turning diameter over saddle: 670 mm Max. turning diameter over cross slide: 400 mm Spindle bore: 81 mm Tailstock taper: MT6 Max. cross slide travel: 400 mm Number of spindle speeds: 18 Power: 18 HP Spindle speed: 20 to 1,600 rpm Dimensions (L x W x H): 3,640 x 1,270 x 1,355 mm Weight: 3,100 kg

Condition: new, Center distance: 2,000 – 4,000 mm Swinging diameter over bed: 740 mm Tsdpfx Anezrlvxolsb Swinging diameter over carriage: 460 mm Spindle mounting: DIN 55026 Spindle bore: up to Ø 140 mm Spindle speed: max. 2,300 rpm Drive power: 13/32 kW Machine weight: 5,000 – 7,000 kg

Condition: excellent (used), Maximum machinable diameter above the bed: 575 mm Maximum machinable diameter above the slide: 525 mm Maximum machinable diameter above the small cross slide: 300 mm Distance between centers: 2000 mm Spindle passage diameter: 51 mm Number of spindle speeds: 18 Spindle speed range: 32 to 2500 rpm Todswlgdyepfx Anljb Bed width: 400 mm Maximum cross slide travel: 305 mm Maximum upper slide travel: 140 mm Maximum tailstock travel: 150 mm Overall dimensions: 3405 x 1175 x 1345 mm Machine weight: 2200 kg

Condition: new, Maximum distance between centers: 700 mm Swinging diameter over bed: 390 mm Swinging diameter over carriage: 200 mm Tedpfozrluhjx Anljb Spindle mount: DIN 55026 Spindle bore diameter: 54 mm Maximum spindle speed: 4,000 rpm Drive power: 11/22 kW Machine weight: 2,000 kg
