Used Flour Mills for sale (9,619)

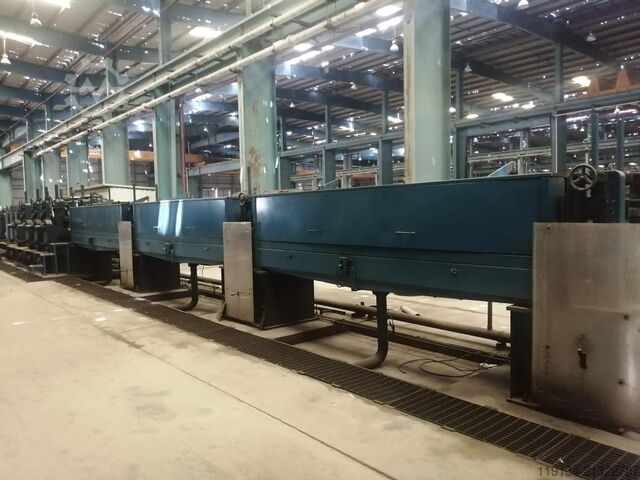

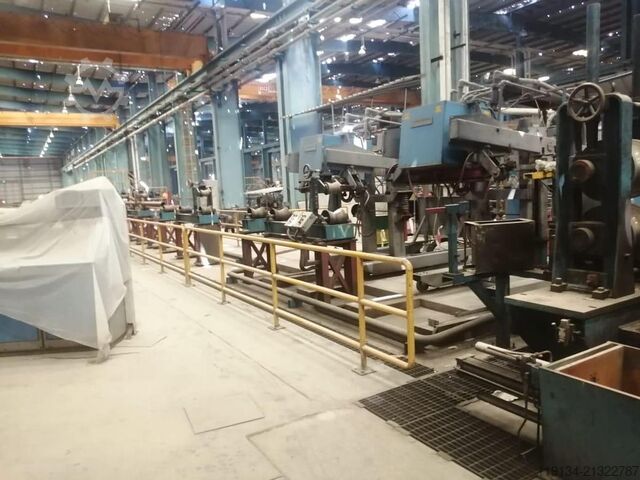

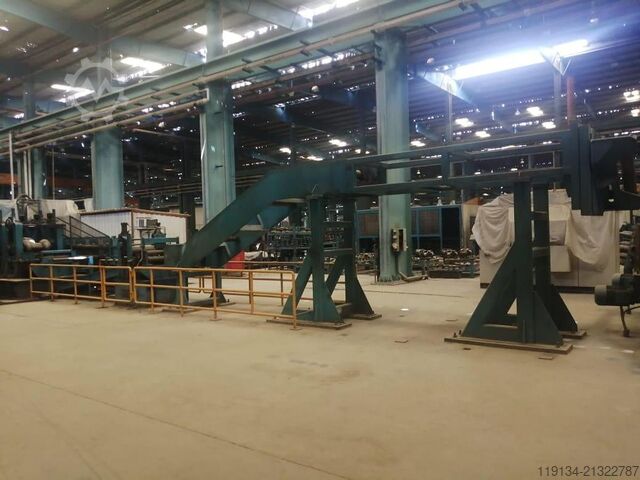

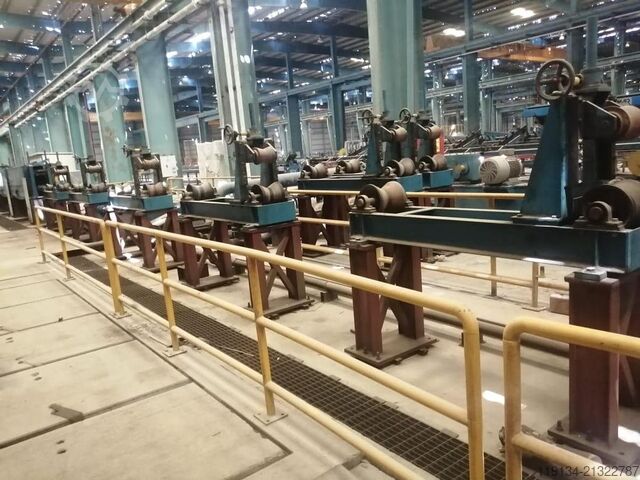

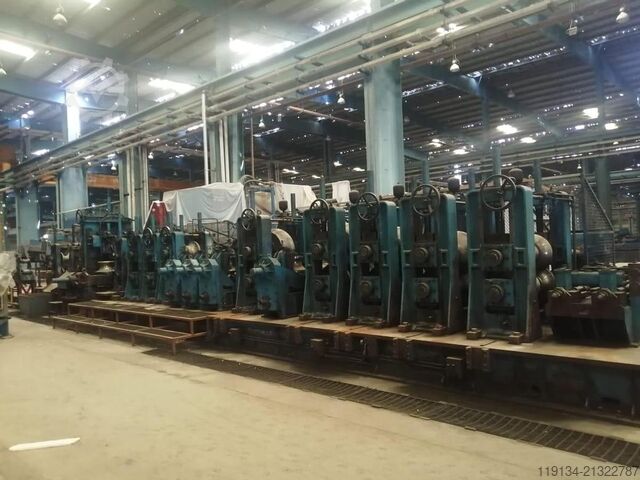

Condition: used, TUBE MILL OTO MILLS 219.10 The OTO MILLS 219.10 is a heavy-duty tube mill, characterized by its rigid mechanical construction and its integration of high-tier industrial components, making it a stable continuous, high-quality industrial production line. Technical specifications · Manufacturer: OTO MILLS · Tube diameter: 88.9 - 219 mm · Square: 90x90 - 200x200 mm. · Rectangular: 20x60 - 250x150 mm. · Thickness: 2.5 - 10 mm. · Speed: Max. 80 m/min · Coil weight: Max. 16 Ton · Tube length: 6 - 12 m Scope of supply · Entry line · OTO 219.10 forming and sizing system · Cutoff and runout system · Electrical and electronic parts · Hydraulic system · Tooling · Thermatool HF welder cfi 600 kw · Double seam annealer (500 kw x 2) – Thermatool · Online Eddy current – Foerster · Semi-automatic packaging machine · Tube inside scarfing system – Alpha Metall Tube diameter: 88.9 - 219 mm Nsdeym Dbdspfx Afajcn Square: 90x90 - 200x200 mm. Rectangular: 20x60 - 250x150 mm. Thickness: 2.5 - 10 mm. Coil weight: Max. 16 Ton Tube length: 6 - 12 m Speed: Max. 80 m/min

Condition: used, OTO MILLS Strip Joiner Ncodpfx Aoymatvsfaon 100% automatic butt-welding unit GG566 - Complete automatic joining and welding process - Strip exit table with encoder - Motorized strip exit Pinch-roll OTO Mills 100% automatic butt-welding unit: GG566

Condition: used, Complete entry line, made by OTO MILLS - Double Decoiler with bottom/top hold-down roll - Strip peeler & Pinch-roll - Automatic strip joiner - Extra-sized horizontal accumulator Scope of supply includes: Double Uncoiler AD508SD - Double hydraulic expansible mandrel - Hydraulic Mandrel rotation - Hydraulic Uncoiler rotation/lock - Hydraulic Uncoiler traverse for alignment - Brake pneumatically-operated disc OTO Mills Pinch-Roll and flattener PRS566 - 3+2 rolls - Hydraulic roll positioning OTO Mills 100% automatic butt-welding unit GG566 - Complete automatic joining and welding process Ncsdpfx Aoymatijfasn - Strip exit table with encoder - Motorized strip exit Pinch-roll OTO Mills Horizontal Accumulator - Heavy Duty horizontal accumulator - Motorized Feeding Pinch-roll – 106 KW - Rotating table with Main motor 106Kw - Approx. 6,5 meter external table - Exit strip guiding Turret OTO Mills Tube diameter: 76,1 - 168,3 mm Material thickness: 2 - 6.3 mm Double Uncoiler: AD508SD Pinch-Roll and flattener: PRS566 100% automatic butt-welding unit: GG566 Accumulator: Heavy Duty horizontal accumulator

Condition: used, OTO MILLS ACCUMULATOR HA506RT Strip size up to 500mm x Max. 6.0mm Working range · Strip width: Max. 500mm · Thickness: 1.5 – 6.3mm · Material: HR, Galvanized, Pickled Horizontal Accumulator · Heavy Duty horizontal accumulator · Motorized Feeding pinch-roll · Pinch-roll motor and transmission DC 106 KW · External ring rotating table · Main motor rotating table DC 106Kw · Approx. 6 meter external table with vertical rolls Nodpfxoymarxj Afajcn · Inner ring Strip passage · Strip Passage tower · Top and bottom strip guiding rolls Control panel · 1 panel for control of the accumulator Strip width: Max. 500mm Thickness: 1.5 – 6.3mm Material: HR, Galvanized, Pickled

Condition: used, OTO MILLS Double decoiler with bottom/top hold-down roll Nodpjymadzjfx Afajcn Model AD508SD Scope of supply includes: - Double hydraulic expansible mandrel - Hydraulic Mandrel rotation - Hydraulic Uncoiler rotation/lock - Hydraulic Uncoiler traverse for alignment - Brake pneumatically-operated disc OTO Mills Mandrel: Double hydraulic expansible mandrel Mandrel rotation: Hydraulic Uncoiler rotation/lock: Hydraulic Uncoiler traverse for alignment: Hydraulic Brake pneumatically-operated disc: OTO Mills

Condition: used, OTO MILLS Vertical accumulator FLOOP FR321 The FLOOP OTO FR321 is a vertical strip accumulator designed to ensure a continuous and stable strip feeding process in welded tube mills and roll-forming lines. Its system allows the accumulator to be filled both while the line is running and while it is stopped, significantly reducing coil change time. It is a robust and reliable solution for high-speed production environments. Technical specifications Manufacturer: OTO MILLS Model: OTO FR 321 Nsdpfx Asyl Un Sjfaocn Strip thickness: 1.0 – 4.0 mm Strip width: 38 – 325 mm Yield strength: 270 – 400 N/mm² Maximum line speed: 160 m/min Maximum loading speed: 500 m/min Accumulation capacity (depending on thickness): up to 600 m Maximum strip elongation: 15 % Pinch-roll drive power: 75 kW Scope of Supply Complete OTO MILLS FLOOP FR321 vertical accumulator Existing mechanical spare parts Set of spare parts for conversion to AC drive (currently operating on DC) Strip thickness: 1.0 – 4.0 mm Strip width: 38 – 325 mm Yield strength: 270 – 400 N/mm² Maximum line speed: 160 m/min Maximum loading speed: 500 m/min Accumulation capacity (depending on thickness): Up to 600 m Maximum strip elongation: 15 % Pinch-roll drive power: 75 kW

Condition: used, Tube mill OTO 101.3 Manufacturers: OTO MILLS, SEUTHE & THERMATOOL The line is in operation and inspection during production is possible. The line is complete with: - OTO MILLS Entry line with Double uncoiler, Strip joiner & Strip accumulator - CANTI-SAG Forming, Sizing line & Turks heads TWL RS90 - THERMATOOL HF welder CFI 300kW - SEUTHE Flying saw TS90 - ATTL Automatic packaging unit - ITIPACK Strapping unit - OSU Metallization Technical data: - Diameter range: 32 – 101 mm - Squares: 20 x 20 - 70 x 70 mm - Rectangular: 40 x 20 - 80 x 50 mm - Thickness: 0.8 – 3.0 mm - Tube Length: 4 – 10 m - Voltage: 380 / 50 VAC / Hz - Direction: Left - Right - Material: Carbon steel – Hot rolled, pickled, galvanised, cold rolled - Tensile: 330 – 520 N/mm2 - Coil Weight: 2x6.000 Kg - Coil Width: 50 – 250 mm - Coil ID: 508 – 610 mm - Coil OD: 1100 – 2000 mm Scope of supply: 1. Entry line OTO MILLS with Double uncoiler, Strip joiner & Strip accumulator 2. Forming, Sizing line & Turks heads 3. THERMATOOL 300kW welder 4. Fume exhaust system 5. Cooling tunnel 6. Detwister unit Nedpfx Afoyl Uicoaecn 7. Flying saw Seuthe 8. Roll way 9. Automatic packaging machine 10. Itipack strapping machine 11. Electrical System 12. Pneumatic System 13. Hydraulic Systems Tube diameter: 32 - 101 mm Squares: 20 x 20 - 70 x 70 mm Rectangular: 40 x 20 - 80 x 50 mm Thickness: 0,8 - 3,0 mm Tube Length: 4 – 10 m Direction: Left - Right Material: Carbon steel – Hot rolled, pickled, galvanized, cold rolled Tensile: 330 – 520 N/mm2 Coil Weight: 2x6.000 Kg Coil Width: 50 – 250 mm Coil ID: 508 – 610 mm Coil OD: 1100 – 2000 mm

Condition: used, OTO MILLS Complete tube mill 168.7 With top of the range equipments OTO MILLS line, EUROLLS rolling, THERMATOOL welding, MAIR packaging machine, BLISSENBACH internal deburring, etc. COMPLETE Tube Mill 168.7 with: 1. OTO MILLS Entry line 2. OTO MILLS 168.7 Forming and sizing system 3. OTO MILLS Cutoff and runout system 4. Electrical and electronic parts 5. Hydraulic power units 6. EUROLLS Complete sets of tooling & spares 7. THERMATOOL HF welder CFI500 kW 8. FOERSTER Online eddy current 9. COTIMPI End facing unit | 6m to 12m length 10. COTIMPI 280 Bar hydro testing unit 11. FOERSTER Offline eddy current: Main bed with drive unit; Testing devices 12. MAIR Automatic packaging machine – Mps Rh200/D/6/Sl 13. BLISSENBACH Tube inside scarfing system – Tube Range I.D. 45 To 165mm Tube diameter: 60,3 – 168,2 mm Square sections: 50x50 – 140x140 mm Rectangular sections: 60x40 – 160x100 mm Thickness: 2,0 – 7,1 mm Tube length: 3 - 12 m Speed: 90 m/min Entry line: OTO MILLS Forming and sizing system: OTO MILLS 168.7 Cutoff and runout system: OTO MILLS Complete sets of tooling & spares: EUROLLS HF Welder: THERMATOOL 500 kW Online eddy current: FOERSTER Ncedpfx Asxv Aacefasn End facing unit: COTIMPI 6m to 12m length Bar hydro testing unit: COTIMPI 280 Offline eddy current: FOERSTER Automatic packaging machine: MAIR Tube inside scarfing system: BLISSENBACH | Tube Range I.D. 45 To 165mm

Year of construction: 2018, condition: refurbished (used), Flying cutoff unit TCC 120/168, made by OTO MILLS Recently revamped Complete flying cutoff unit including: - Accelerator (carriage transmission) - Main carriage motor - Cutoff unit TCC120 with base with linear guides, cutting head, clamping unit and support for tube at exit side - Control panel RENEWED - Electrical cabinet RENEWED - Hydraulic group - Cable chain - All existing documentation, manuals, drawings Specifications: - Type of saw : Friction - Material thickness : 1 –6 mm - Standard tube length : 3 –12 m Njdpfovtpp Nsx Afaocn - Diameter range : 42 –168 mm - Square tubes : 40x40 –130x130 - Rectangular tube : 50x30 –180x80 - Max. speed : 120 m/min - Length tolerance : +/-2 mm Round tube diameter: 42 – 168 mm Square tube diameter: 40×40 – 130×130 mm Rectangular tube diameter: 50×30 – 180×80 mm Material thickness: 1 – 6 mm Tube length: 3 – 12 m Type of saw: Friction Length tolerance: +/-2 mm Max. speed: 120 m/min

Condition: like new (used), Dough mixer Nedpfx Afex N Efqeascn With paddle Kemper The machine has 2 speeds Bowl and mixer made of stainless steel Mobile unit on wheels Automatic timer Capacity: 180 liters / 120 kg of dough or 75 kg of flour

Condition: like new (used), Spiral dough mixer Capacity: 100 kg of flour 160/180 kg of dough Diosna Ncedpfsx N Ed Tex Afasn Container volume: 260 liters Electrical power: 380V / 50Hz / 3N/PE Two timers Two speeds Rewind option Half cover with safety switch Wheels with brakes

Condition: used, Tube forming mill OME 320x8mm (A3782) Tube forming mill OME 320x8mm (A3782) for tube production of 323mm maximum diameter and 8mm maximum wall thickness Make: Ome (Italy) Material: HR, CR, Galv Condition: New Tube Diameter: 168mm – 323mm Wall Thickness: 2mm – 8mm Direction: L-R Speed: 35 meters per minute FORMING MILL Pass N. 1 Driven Forming # 1 Pass N. 2 Driven Forming # 2 Pass N. 3 Driven Forming # 3 Pass N. 4 Driven Forming # 4 Pass N. 5 Driven Forming # 5 Pass N. 6 Driven Forming # 6 Pass N. 7 Side Idle Forming Pass N. 9 Driven Forming # 7 Pass N. 10 Side Idle Forming FIN-PASS SECTION, SINGLE POINT ADJUSTMENT Pass N. 11 Driven Fin Pass # 1 Pass N. 12 Side Idle Fin Pass Pass N. 13 Driven Fin Pass # 2 Pass N. 14 Side Idle Fin Pass Pass N. 15 Driven Fin Pass # 3 Pass N. 16 Driven Fin Pass # 4 SIZING SECTION Pass N. 26 Driven Sizing # 1 Pass N. 27 Driven Sizing # 2 Pass N. 28 Driven Sizing # 3 NDT Prueftechnik Pass N. 29 Driven Sizing # 4 Pass N. 30 Driven Sizing # 5 STRAIGHTENING AND SQUARING SECTION Pass N. 31 Idle Turkshead #1 Roll holder plates NOT available Pass N. 32 Idle Turkshead #2 Roll holder plates NOT available Pass N. 33 Idle Turkshead #3 Roll holder plates NOT available Nedpfjq Ul Rvsx Afaecn Pass N. 34 Idle Turkshead #4 Roll holder plates NOT available Tables and tools for rolls change ABB Motors Costamasnaga Reducers Centralized lubrication system Hydraulic Power Unit Complete Mill Portion Automation with diagrams (OTO MILLS/Elletre 2013) Complete hydralic system Fume and Vapors exhaust system with extraction hoods (EUROFILTER) Complete Zinc exhaust system (DONALDSON)

Condition: used, Year of construction: 2000, functionality: limited functionality, overall weight: 3,000 kg, total length: 1,500 mm, total width: 700 mm, total height: 600 mm, input voltage: 380 V, type of input current: three-phase, year of last overhaul: 2010, Joint Strip Oto Mills (strip splicer), equipment suitable for splicing strips at the entry of the rollformer accumulator. Ncedpfx Afexmaa Ijaen

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, machine/vehicle number: 460045, spindle speed (max.): 5,000 rpm, overall weight: 7,500 kg, controller model: SIEMENS SINUMERIK 840D, Equipment: chip conveyor, TECHNICAL DETAILS Turret Number of spindles: 2 Number of turrets: 3 Number of positions turret 1: 10 Number of positions turret 2: 10 Tool holder: VDI 25 Lower turret head Number of positions: 10 Rotational speed: 6,000 rpm Power of driven tools: 8 kW Main spindle C-axis (resolution): 0.001° Max. spindle speed: 5,000 rpm Spindle power: 27 kW MACHINE DETAILS Control: SIEMENS SINUMERIK 840D Connection: 50 Hz 3x 400 V Ncodpjyhn Nzsfx Afaen Total power requirement: 43 kW Dimensions & Weight Dimensions (L x W x H): 3,200 x 2,100 x 2,100 mm Machine weight: 7,500 kg EQUIPMENT Chip conveyor Foot pedal

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, machine/vehicle number: 370483, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, spindle speed (max.): 5,000 rpm, controller model: HEIDENHAIN TNC 124, TECHNICAL DETAILS Travel X-axis: 600 mm Travel Y-axis: 400 mm Travel Z-axis: 400 mm Table length: 800 mm Table width: 425 mm Ncodpfxoyhnmte Afaen Max. workpiece weight on table: 250 kg Distance between vertical spindle and table: 560 mm Spindle taper: SK 40 Max. spindle speed: 5,000 rpm Swiveling range vertical milling head: ± 90° Feed rates: up to 2,000 mm/min Rapid traverse X-axis: 10 m/min Rapid traverse Y-axis: 10 m/min Rapid traverse Z-axis: 8 m/min Vertical quill stroke: 60 mm MACHINE DETAILS Control: HEIDENHAIN TNC 124 Connection: 50 Hz 3x 400 Volt Milling spindle motor: 5.5 / 7 kW Total power consumption: 15 kVA Dimensions & Weight Machine weight: approx. 1,800 kg Dimensions (L x W x H): 2,100 x 1,800 x 2,050 mm EQUIPMENT Rigid angle table Electronic handwheel Heidenhain probe Vertical milling head Full splash guard cabin Coolant system Machine lamp

Condition: ready for operation (used), Year of construction: 2009, operating hours: 27,745 h, functionality: fully functional, machine/vehicle number: NT320110134, turning length: 1,045 mm, turning diameter: 600 mm, travel distance X-axis: 685 mm, travel distance Y-axis: 125 mm, travel distance Z-axis: 1,075 mm, The offer includes a comprehensive tool package (see attachment; an Excel table can be provided on request)! An inspection checklist for 2025 is also included. TECHNICAL DETAILS Maximum workpiece swing diameter: 600 mm Swing diameter over cross slide: 600 mm Maximum distance between centers: 1,255 mm Maximum machining diameter at tool spindle: 600 mm Maximum turning length: 1,045 mm Bar capacity: 65 mm Axes X-axis tool spindle: 685 mm Y-axis tool spindle: ±125 mm Nsdjyml Eqspfx Afaocn Z-axis tool spindle: 1,075 mm B-axis swivel range: ±120° X-axis turret 2: 130 mm Z-axis turret 2: 970 mm Main spindle Maximum speed: 5,000 rpm Gear stages: 2 Spindle nose: JIS A2-6 Spindle bore: 73 mm Indexing: min. 0.0001° Inner bearing diameter: 120 mm Counter spindle Maximum speed: 5,000 rpm Gear stages: 2 Spindle nose: JIS A2-6 Spindle bore: 73 mm Indexing: min. 0.0001° Inner bearing diameter: 120 mm Tool spindle (Turret 1) Maximum speed: 12,000 rpm Maximum tool length: 200 mm Maximum tool weight: 4 kg Tool change time: 1.25 s MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 3,765 x 2,966 x 2,765 mm Weight: 15,800 kg Operating Hours Power-on hours: 131,963 h Operating hours: 68,391 h Spindle hours: 27,745 h

Condition: ready for operation (used), Year of construction: 2008, operating hours: 29,709 h, functionality: fully functional, machine/vehicle number: NT320GE0052, turning length: 1,045 mm, turning diameter: 600 mm, travel distance X-axis: 685 mm, travel distance Y-axis: 125 mm, travel distance Z-axis: 1,075 mm, The machine's tool spindle was replaced in 2022! The offer includes a comprehensive tooling package (see attachment; an Excel tool list can be provided upon request)! TECHNICAL DETAILS Maximum workpiece swing diameter: 600 mm Swing diameter over cross slide: 600 mm Maximum distance between centers: 1,255 mm Maximum turning diameter with tool spindle: 600 mm Maximum turning length: 1,045 mm Bar capacity: 65 mm Travel paths X-axis (tool spindle): 685 mm Y-axis (tool spindle): ±125 mm Z-axis (tool spindle): 1,075 mm B-axis (swivel range): ±120° X-axis (turret 2): 130 mm Z-axis (turret 2): 970 mm Main spindle Speed: max. 5,000 rpm Gear stages: 2 Spindle nose: JIS A2-6 Spindle bore: 73 mm Indexing: min. 0.0001° Bearing inner diameter: 120 mm Counter spindle Speed: max. 5,000 rpm Gear stages: 2 Spindle nose: JIS A2-6 Spindle bore: 73 mm Indexing: min. 0.0001° Ncedpfx Afoymlvvoaon Bearing inner diameter: 120 mm Milling spindle (turret 1) Speed: max. 12,000 rpm Maximum tool length: 200 mm Maximum tool weight: 4 kg Tool change time: 1.25 s MACHINE DETAILS Dimensions (L x W x H): 3,765 x 2,966 x 2,765 mm Weight: 15,800 kg Operating hours Power-on hours: 138,593 h Operating hours: 66,865 h Spindle hours: 29,709 h

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,270 mm, travel distance Z-axis: 1,500 mm, controller model: Heidenhain 530, Equipment: chip conveyor, TECHNICAL DETAILS X-axis travel: 3,000 mm Y-axis travel: 1,270 mm Z-axis travel: 1,500 mm Spindle speed: up to 4,000 rpm Tool holder: SK50 MACHINE DETAILS Ncsdpfx Asymcu Asfaen Control: Heidenhain 530 Internal cooling: 22 bar EQUIPMENT Diagonal milling head with 2.5 x 2.5 indexing Longitudinal chip conveyor

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, turning length: 2,000 mm, spindle speed (max.): 1,000 rpm, travel distance Z-axis: 2,000 mm, overall weight: 40,000 kg, turning diameter over bed slide: 1,270 mm, controller model: Fanuc Serie 18i-TB, TECHNICAL DETAILS Turning length: 2,000 mm Swing diameter over bed: 1,550 mm Swing diameter over cross slide: 1,270 mm Spindle speed: 1,000 rpm Spindle diameter at front bearing: 240 mm Spindle bore: 185 mm Spindle power: 37/30 kW Bar capacity: 165 mm Travel in longitudinal direction (Z-axis): 2,000 mm Cross travel: 685 mm Rapid traverse speed X-axis: 10 m/min Nsdeylwl Tspfx Afaecn Rapid traverse speed Z-axis: 12 m/min MACHINE DETAILS CNC control: Fanuc Series 18i-TB Dimensions & Weight Dimensions (L x W x H): 9,800 x 3,695 x 5,292 mm Machine weight: approx. 40 t EQUIPMENT 12-position turret

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: 1110013, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,600 mm, travel distance Z-axis: 1,500 mm, table load: 6,000 kg, spindle diameter: 110 mm, TECHNICAL DETAILS X-axis travel: 2,000 mm Y-axis travel: 1,600 mm Z-axis travel: 1,500 mm Drilling spindle diameter: 110 mm Clamping surface of the table: 1,250 x 1,600 mm Table load capacity: 6,000 kg MACHINE DETAILS Ncsdpfx Afsylwrtsajn Control: Heidenhain TNC 426M Note: The tools shown in the images are not part of the sale or included in the scope of delivery.

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, DOOSAN PUMA 240 MB FANUC CONTROL YEAR 2008 COLLET CHUCK + COLLETS TAILSTOCK MAX TURNING DIA 350 MM MAX TURNING LENGTH 440 MM BAR WORKING DIA 65 MM 6000 RPM SPINDLE 12 POSITION TURRET DRIVEN TOOLS BARFEED EXCELLENT CONDITION Ncsdoympb Aepfx Afaon

Condition: used, Webster Bennett 48 Inch Elevating Rail CNC Vertical Borer. Nodpfx Aoymc Ipjfajcn Serial Number 6644-1 Chuck manual 48 inch, supplied with jaws Hydraulic turret Fanuc 18i -T Control. Swarf conveyor Air conditioning Unit on Electrical Panel. 1250mm (approx. ) under tool to table.

Condition: excellent (used), Year of construction: 2022, Turning diameter 376mm, turning length 760mm, bar capacity 76mm, Y axis -/+ 52.5mm, C axis 0.001 degrees on both spindles, 12 station turret, 22KW Motor, Main spindle 4000rpm, sub-spindle 4500rpm, Ncsdpfjyll Txex Afaen 3 jaw chucks, swarf conveyor, tool setter,

Condition: excellent (used), feed length X-axis: 700 mm, feed length Y-axis: 350 mm, feed length Z-axis: 475 mm, travel distance X-axis: 700 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 475 mm, spindle speed (max.): 1,500 rpm, spindle speed (min.): 25 rpm, quill stroke: 100 mm, table length: 1,510 mm, table width: 350 mm, Cincinnati 2MK Horizontal Mill with Universal Vertical Head Model: 2MK Table Atea: 1510 x 350mm (60” x 14”) Longitudinal Travel: 700mm Cross Travel: 350mm Vertical Travel: 475mm Spindle Taper: 50 INT Spindle Speeds: 25 – 1500 RPM Machine with: Horizontal Arbor & Arbor Support Angular Double Swivel Head Nsdpfxsygk Drs Afaecn

Condition: excellent (used), Year of construction: 2018, swing over cross-slide 808mm, Maximum cutting diameter 430mm, Maximum cutting length 1260mm, Bar capacity 102mm, Spindle speed 3,000rpm, milling speed 10,000rpm, Ncedpoyk Slrefx Afajn Main spindle power 25Kw, C axis 0.001 degrees, Y axis -/+ 60mm, 12 station turret. Celos-Fanuc control, equipped with Toolsetter, swarf conveyor, 3 jaw chuck, Parts catcher
