Used Schechtl Max 310 for sale (13)

Condition: new, Year of construction: 2025, • efficient, quiet and powerful mechanical machine • fast processes as in the case of MAX and MAB machines • Possibility to make omega profiles without additional tools • 1 top bar 20°, radius 1 mm, 66/24 mm • 1 bending bar 10/68 mm and 24/68 mm • operating pedal • soft start of the bending beam Bdodolbimajpfx Aczok • mechanical stop with a working length of 6-1000 mm • 32 A plug + 5 m power cord for EU • supply voltage: 3 x 400 V, 50 Hz for EU Thickness of bent sheet 1.5 mm steel sheet for 3000 mm length

Condition: new, Year of construction: 2025, • efficient, quiet and powerful mechanical machine • fast processes as in the case of MAX and MAB machines • maximum free space for material bending thanks to the F-geometry for the bending beam • Possibility to make omega profiles without additional tools Bedslbilvjpfx Aczjdk • 1 top bar 20°, radius 1 mm, 66/24 mm • 1 bending bar 10/100 mm and 24/100 mm • operating pedal • soft start of the bending beam • mechanical stop with a working length of 6-1000 mm • 32 A plug + 5 m power cord for EU • supply voltage: 3 x 400 V, 50 Hz for EU Thickness of bent sheet 1.5 mm steel sheet for 3000 mm length

Condition: new, Year of construction: 2026, Quick reverse movement, high cutting capacity with low power Strong steel welded frame structure Maintenance-free guides and bearings. Operating pedal, safety buttons Bdedpfx Ael Exypoczek Front material support up to 920 mm 5m 32Amp cable to power the machine CE certificate Automatic stop with digital position readout, length 0 - 750 mm with pneumatic sheet support system with rear material pick-up compressed air connection required min. 6 bar

Condition: new, Year of construction: 2026, MBM series machine • easy start-up in the engine efficiency class Bdodpswf Hghsfx Aczek • designed for smooth and efficient one-person operation • produce complete profiles in one operation and repeat them exactly at any time • Wear-free and maintenance-free direct eccentric drive Standard equipment: • 1 sharp rail 20°, radius 1 mm, offset, 66/24 mm for the pressure beam • 1 insert rail 68/10 mm and 68/24 mm for the bending beam • Motorised rear stop 6-750 mm • foot switch • 16 A connection plug with 5 m cable (within the EU) • connection voltage: 3 x 400 Volt, 50 Hz (within the EU)

Condition: excellent (used), Schechtl UK 100/S with backgauge - Capacity: 1.50 mm steel (higher for aluminium, copper and zinc) - Working length: 1000 mm - With quick-release clamping system - With foot pedal Bodpfox Akraox Aczodk - With backgauge - With segment tray for storage

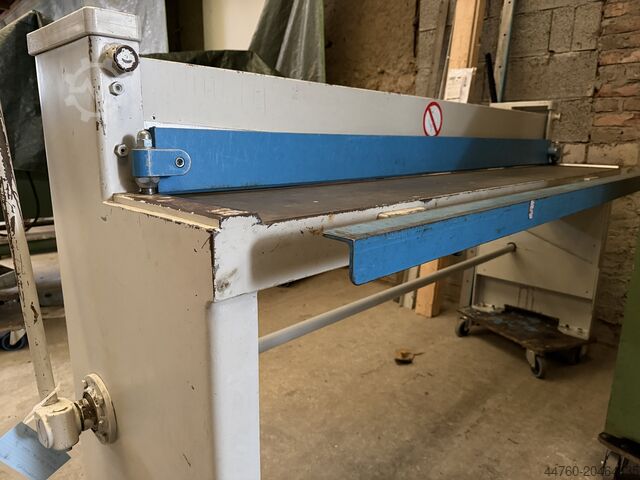

Condition: good (used), Good day, we are offering here a set from private acquisition: Folding machine Schechtl KSV 200 – 1.5 mm – 2 m – aluminium up to 2 mm and stainless steel approx. 1 mm. Guillotine shear Schechtl HT 200 – 1.25 mm – 2 m Depth stop 500 mm Bedpfexuu Hxox Aczsdk If additional accessories are required, a wide range is available on site – from depth stops to pipe bars or beading tools, Eckold hand tools, and more.

Condition: used, functionality: fully functional, Year of construction: 2010, machine/vehicle number: MA 5726, control type: CNC control, degree of automation: semi-automatic, actuation type: mechanical, working width: 2,040 mm, sheet thickness steel (max.): 2 mm, sheet thickness stainless steel (max.): 1 mm, sheet thickness aluminum (max.): 4 mm, overall weight: 2,030 kg, total length: 2,986 mm, total width: 1,903 mm, power: 2.6 kW (3.54 HP), input voltage: 400 V, input current: 4 A, input frequency: 50 Hz, Equipment: documentation/manual, emergency stop, foot remote control, For sale: Schechtl Folding Machine MAX 200/CNC S-Touch We offer you the opportunity to acquire a high-quality folding machine from Schechtl. This powerful machine is ideal for anyone engaged in sheet metal working and seeking the highest precision and efficiency. Bodpfsxzp Anjx Aczjdk Product details: - Model: Schechtl MAX 200/CNC S-Touch - Year of manufacture: 2010 - Condition: used - Technical specifications: Bending length: 2,000 mm Steel: 2.5 mm Aluminum: 4.0 mm Stainless steel: 1.5 mm Weight: 2,030 kg

Condition: used, Guillotine Shear, Sheet Metal Shear SCHECHTL Type SMT 100 Machine No. 4307 Year of manufacture: 1991 Cutting length: 1030 mm Cutting thickness: 3.5 mm Table area: 1040 x 380 mm Working height: 840 mm Drive power: 3 kW Power supply: 400 Volt, 50 Hz - Mechanical sheet hold-down - Electric foot switch - Simple back gauge, 750 mm with handwheel adjustment - Front pull-out table extension with transverse rail, extendable by 350 mm - SICK safety light curtain at the rear of the machine as reach-in protection - Rear support table beneath the back gauge for sheet metal cut-offs Required space (L x W x H): 1700 x 1400 x 1150 mm Bdsdexk Th Hopfx Aczjk Transport dimensions on pallet (L x W x H): 1800 x 1450 x 1290 mm Weight: 700 kg Very good condition

Condition: used, Year of construction: 2010, gebraucht 2010 080065 prompt, Zwischenverkauf v Deutschland 29800 € 1 2040 mm 3 mm 2 mm 4.5 mm Motorisch 1.5 kW 1.1 kW Bsdpjwiri Asfx Aczsdk 3060 mm 1650 mm 1500 mm 2730 kg 750 mm 140 mm 50 °/sek CNC control ECT (Schneider Magelis) - Input of bending angle, depth stop dimension, lifting height, folding, precut - max. 36 bending angles can be saved per set - max. 510 sets can be saved - comfortable 7.5" color touch TFT monitor - Power mode for material-friendly operation - Soft start of the bending beam and the depth stop - Visual user guidance in the event of faults (diagnosis center) - Selection of different languages ??such as German, English ... CNC back gauge - Back gauge range 6 - 750 mm - Drive via belt - 6 stop fingers - support plates with brushes Sectioned goose neck rail height 75 mm Additional 10 mm rail on the bening beam Flat rail R 1 mm Flat rail R 2 mm Mechanical drive via gear brake motor Upper beam drive via double eccentric Foot pedal Operating instructions in German with CE declaration of conformity

Condition: ready for operation (used), Year of construction: 1955, gr. Working width: 2040 mm for sheets up to: 1 mm Bjdpfx Ajtgf Nkeczedk Weight: approx. 680 kg Space requirement: 2650 x 650 x 1180 mm

Condition: good (used), You are bidding here on a machine set from Schechtl with a capacity of 3mm. Machine Specifications: Schechtl MAB - Bending length: slightly over 2 meters - Sheet thickness: 3mm steel, more for aluminum - Optional: new boxed segment set; used set with significant wear is included free of charge (the machine was used in a training workshop) - Current new price: see pictures - Hand and foot operation - Optional: back gauge and additional rails Guillotine Shear MSB 200 - Cuts 3mm steel, significantly more for aluminum - Cutting length: slightly over 2 meters - Front gauge - Back gauge: 750 mm - Optional: sheet metal tray Free loading available New price for such a set is approx. €80,000 net (without accessories) You will receive an invoice with VAT shown Shipping can be arranged upon request Free loading as shown in the photos Bdjdpfoxqmmijx Aczek Inspection and test run available by appointment – please call 0175 248 1975. Payment in cash upon collection; if you need anything else, feel free to call me – thank you Collection should occur within 8 days after the end of the auction. Location: 97249 Eisingen (3 minutes from the motorway) Item numbers: 251007 and 251008

Condition: good (used), You are bidding here on a branded plate shear from the well-known German manufacturer Schechtl. Device features: Shear model: MSB 200 Cuts, as specified on the nameplate, up to 3 mm steel — capable of cutting significantly more in aluminium Working length: slightly over 2 m Manual backgauge: 750 mm Side/angle gauge Foot pedal operation Weight: approx. 1.3 t Current new price (net): see pictures You will receive an invoice with VAT shown separately Bodpfx Acowfzztjzedk Shipping can be arranged upon request; forklift is available Free loading as shown in the pictures Inspection and test are possible by appointment by phone Payment in cash upon collection. If you need anything else, please call me — thank you! Collection should take place within 8 days after the end of the auction. Item number

Condition: good (used), I offer here a set from Schechtl Bdodpfsudbzmox Aczsk Folding bench KS with foot closer and guillotine shear HT 150 Both have a capacity of 1.5mm iron - aluminum significantly more Working length a little over 1.5m Plate shears with depth stop guillotine shears with high quality front support with blade (optional spare blade available)
