Used Weinig Unimat for sale (551)

Condition: used, Year of construction: 1998, Four-sided planing machine Manufacturer: Weinig Type: P 23 E Year of manufacture: 1998 Technical data - Working width: 230 mm Gjdpfx Adjzuzfuo Reui - Working height: 8-120 mm - Number of spindles: 5 (top, right, left, bottom, top) - Spindle speed: 6000 rpm - Feed rate: 5-24 m/min - Total connected power: approx. 25 kW - Infeed table: approx. 2000 mm - Weight: approx. 2500 kg Note: The technical data and descriptions are copies of the original order confirmation. The information provided is for informational purposes only and is not binding.

Condition: excellent (used), mount diameter: 50 mm, tool diameter: 50 mm, tool length: 330 mm, Tool presetting device WEINIG Opticontrol Swing diameter: 0 - 300 mm Tool length: 0 - 330 mm Shank diameter: 50 mm Gusdpfxsz Eu Uzo Ad Rei

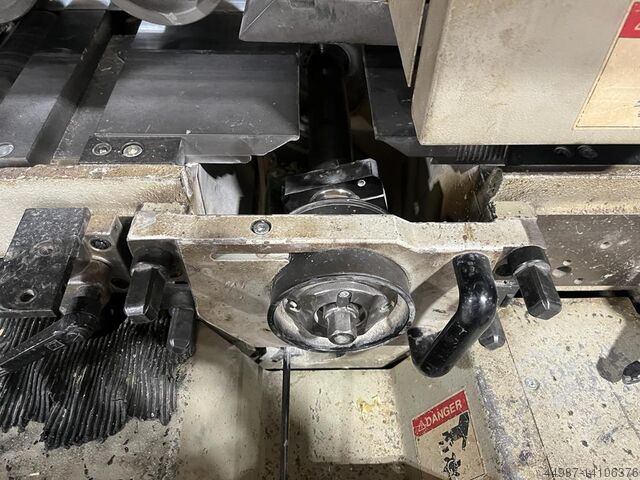

Condition: excellent (used), Year of construction: 2005, machine/vehicle number: 102940, WEINIG HYDROMAT H23 ELECTRONIC FEED FREQUENCY CONTROLLED. FEED MOTOR 22 KW 50MM SPINDLES WORKING WIDTH MAX. 230 MM WORKING HEIGHT MAX. 160 MM SHORT INFEED WITH 220MM TOP FEED ROLLERS BOTTOM 15KW 6,000 RPM, OUTBOARD BEARING, JOINTER READY RIGHT 11KW 6,000 RPM JOINTER READY LEFT 15KW 8,000 RPM JOINTER READY RIGHT 11KW 8,000 RPM JOINTER READY LEFT 15KW 8,000 RPM, JOINTER READY TOP 18.5KW 6,000 RPM OUTBOARD BEARING, JOINTER READY BOTTOM 11 KW 6,000 RPM OUTBOARD BEARING, JOINTER READY (STRAIGHT JOINTER) + OUTBOARD BEARING TOP 18.5KW 8,000 RPM OUTBOARD BEARING, JOINTER READY (STRAIGHT JOINTER) + OUTBOARD BEARING BOTTOM 22 KW 6,000 RPM OUTBOARD BEARING, JOINTER READY 12X TOP FEED ROLLERS (2X 220MM + 10X 140MM) Gujdoz N Sznopfx Ad Rji 7X BOTTOM FEED ROLLERS POSSIBLE TO ADD ADDITIONAL STRAIGHT / PROFILE JOINTERS AS NEEDED AUTOMATIC LUBRICATION SYSTEM FULL DOCUMENTATION INCLUDED MACHINE LENGTH 5.2M

Condition: good (used), Year of construction: 2010, RAIMANN Econorip 310 multi-saw - German production - CE marking - Quickfix disc sliding system - year of production 2010 TECHNICAL PARAMETERS: - cutting height 110 mm - cutting width 340 mm - engine power 22 kW - adjustable feed on the inverter - electric shaft height adjustment - electric adjustment of the pressure height - spindle in the Quickfix system (the possibility of changing the dimensions without the need for tools) - track diameter max 350 mm - spindle diameter 65 mm Gsdpfx Aoh Tm Alsd Roui - sleeve diameter 80 mm - four upper pressure rollers - four rows of anti-jet pawls - boot for short elements - max width of the element 700mm - minimum element length 300 mm - central lubrication - diameter of the stub pipe 250 mm - ruler Machine dimensions: 190x185x165 cm weight 1800 kg

Condition: good (used), Raimann K12 Multi-blade saw Chain with spike Chain width 430mm Cutting height approx. 120mm Gsdpsd Scdqofx Ad Reui Includes various accessories.

Condition: used, Twin band saw Raimann B110 Duo Roll diameter 1100 mm Roll width 100 mm Gujdpsdfc Shsfx Ad Rji Feed rate 0-40 m/min

Condition: ready for operation (used), Year of construction: 1990, functionality: fully functional, operating hours: 4,452 h, cutting height (max.): 120 mm, cutting depth: 340 mm, main saw diameter: 380 mm, Raimann KR 310 E 340/120 multi-saw with movable disc - manufactured in Germany - year of manufacture 1990 - DTR - number of hours 4452 h TECHNICAL PARAMETERS: - track width 340 mm - cutting height max 120 mm - cutting height with movable disc 85 mm - engine power 30 kW - minimum length of the element 700 mm - width of table 740 mm - feed regulated on inverter 6-48 m/min - three rows of pawls - possibility to mount a bush - sleeve diameter 80 mm - length of fixed sleeve 190 mm - electrical adjustment of cutting height - electrical adjustment of shaft height Guedpfx Aerhig Eed Rsi - four top pressure rollers - automatic central lubrication - laser - ruler - spigot diameter 250 mm Overall dimensions of the machine 250x200x220 cm weight 2000 kg

Year of construction: 2000, condition: excellent (used), Weinig High-Mech A4 bundling system Bundle forming packaging unit possible to combine with other Weinig outfeed handling systems available from stock such as buffers and stackers. Guedpfxeq Rvrbj Ad Rji Consisting of 1. Weinig 815-300 high speed bundling unit 2. Weinig 812-200 outfeed roller conveyor with crossfeed 3. Control panel with Siemens S7-300 CPU

Year of construction: 1995, condition: excellent (used), The line consists of the following components: 1) Weinig Profimat 23 milling machine 2) KOCH T-100-B belt conveyor (250x4550) 3) Weinig Uniplan milling machine 4) KOCH T-100-B belt conveyor (250x7050) 5) KOCH SF-3 tenoning machine 5a) Lower belt conveyor for waste (at the tenoning machine, 300x6050) 5b) Side belt conveyor for waste (at the tenoning machine, 300x1800) 6) KOCH T-100-B belt conveyor (250x5020) 7) KOCH T-100-A belt conveyor (300x3050) 8) KOCH T-100-B belt conveyor (300x3500) Gsdpfx Adehm Exds Roui 9) KOCH T-100-B belt conveyor (300x4530) 10) Weinig U2G milling machine 11) KOCH belt conveyor (250x4050) The line has been used for very few hours and is in like-new condition. The production year of the machines that make up the line is 1995. In addition, I am including a complete set of Leitz milling cutters for each machine, suitable for a Euro 68 profile window. The cost of a new line is currently over 1 million euros.

Condition: used, functionality: fully functional, Setting gauge from Weinig Spindle: 40 mm Tool flight circles: 80 - 300 mm Clamping length: 310 mm Guodpfx Ajxxprwed Rsi

Condition: excellent (used), Weinig Powermat 400 four-sided planer max. planing width: 230mm max. planing height: 160mm 6 heads 2 vertical heads with powerlock 2 final horizontal heads with powerlock Spindle 1 - 7.5KW Spindle 2-3 - 11KW Spindle 4 - 11KW Spindle 5 - 11KW Spindle 6 - 7.5KW Powercom control system 40mm spindles feed rate via inverter, adjustment range: 5-30m/min Robust planer from WEINIG, Guodpfx Adezg Axge Roi machine inspected, well-maintained, in very good condition.

Condition: excellent (used), Year of construction: 1980, machine/vehicle number: 1193-1003, 6 heads stepless feed speed adjustment electric pressure beam adjustment manual table lubrication head adjustment in two axes Gsdpfx Adoytkche Rjui

Condition: used, functionality: fully functional, Length min.-max. 1800 - 6100 mm Guodpfxsytxvce Ad Rji Stack cross section max. 1100 x 1200 mm 4 elevator arms, 4 carrying arms and 4 lifting arms Drive motors 4 kW, 1,4 kw and 1,1 kw. Offer includes: belt conveyor with kickers ( planer outfeed ) and cross conveyor Overall dimensions with conveyors: W5500 / L7900 / H- 2000

Condition: used, Weinig Powerlock L=240 Z=2 head with rebate cutter below Type 536, diameter 93 mm 536.095.04 Centrolock reversible knife system Z2 Guedezdq Htspfx Ad Rsi Mounting: PowerLock HSK Length: 240 mm Price: 425 Euro

Condition: good (used), Weinig Hydromat H 23 Profiling Jointer Gjdpfjzwwi Uex Ad Rjui

Condition: excellent (used), Year of construction: 2001, operating hours: 9,089 h, functionality: fully functional, machine/vehicle number: 94250, WEINIG HYDROMAT H23 ELECTRONIC FEED FREQUENCY CONTROLLED (8 – 60 M/MIN). FEED MOTOR 15 KW 50MM SPINDLES WORKING WIDTH MAX. 230 MM WORKING HEIGHT MAX. 160 MM SHORT INFEED WITH (GROOVED FEED GUIDANCE, SEE USES AND BENEFITS HIGHLIGHTED BELOW) BOTTOM 7.5KW 6,000 RPM RIGHT 7.5KW 6,000 RPM LEFT 7.5KW 6,000 RPM JOINTER READY RIGHT 7.5KW 6,000 RPM LEFT 7.5KW 6,000 RPM JOINTER READY TOP 11KW 6,000 RPM OUTBOARD BEARING, JOINTER READY BOTTOM 7.5KW 6,000 RPM OUTBOARD BEARING, JOINTER READY TOP 7.5KW 6,000 RPM OUTBOARD BEARING, JOINTER READY BOTTOM 11 KW 6,000 RPM OUTBOARD BEARING, JOINTER READY 12X TOP FEED ROLLERS 6X BOTTOM FEED ROLLERS CNC ADJUSMENT OF 1ST BEDPLATE FROM CONTROL PANEL POSSIBLE TO ADD ADDITIONAL STRAIGHT / PROFILE JOINTERS AS NEEDED FULL SOUND ENCLOSURE AUTOMATIC LUBRICATION SYSTEM FULL DOCUMENTATION INCLUDED EXHAUST MANIFOLD INCLUDED MACHINE LENGTH 5.2M POSSIBLE TO OFFER MECHANISATION IF NEEDED POSSIBLE TO OFFER MECHANISATION SPECIFICALLY FOR SHORT LENGTH FEEDING AND STACKING IF NEEDED Grooved Feed Guidance, Core Functions & Benefits: The longitudinal grooves milled directly into the bedplates work in conjunction with custom bottom cutterhead knives or grooving cutters. The initial cutter cuts matching grooves into the underside of the raw stock, registering it securely to the bed's grooves to keep short or cupped boards running straight without drifting off the fence. Friction & Resin Relief: Standard flat bedplates create significant surface drag when feeding wet, sap-rich, or resinous timber (like pine, fir, or green hardwood). The channels reduce overall contact area, lowering friction and preventing suction/sticking. Debris & Pitch Clearance: Sawdust, wood resin, and pitch buildup can cause uneven heights or feeding jams. Grooves act as evacuation paths, allowing fine dust and pitch to fall away from the main bearing surface. Wax/Lubricant Distribution: When paired with an automatic or manual bed lubrication system (such as table lubrication pumps), the grooves help distribute wax/oil evenly across the table rather than letting it wipe away on the first board. Common Applications Short Stock Processing: Ideal for running short pieces (such as parquet components, drawer sides, or short moulding blanks) that would otherwise struggle to maintain parallel alignment against the side fence. Godez Dnt Ijpfx Ad Reui Cupped or Unseasoned Wood: Prevents cupped or warped boards from rolling or twisting as they hit the vertical and horizontal cutter spindles. High-Speed Feed Lines: Reduces the strain on feed rollers and drive systems by lowering bed drag during continuous industrial runs.

Condition: used, Year of construction: 2008, WEINIG OptiControl 970090 tool measuring station, net price €7,650 Specifications: Tool diameter min. 90 Tool diameter max. 300 mm Godpfx Aozvpw Iod Reui Tool length 0 - 240 mm Radial measuring range (radius) 150 mm Non-contact measurement of tool dimensions, radius (R) and height (H), with display on electronic digital displays. Electronic digital displays providing information on tool radius and height. HSK63 tool holder for PowerLock tools. NEW: PowerLock adapter HSK63, shank D=50 x 260 mm.

Condition: used, WEINIG motor / CNC drive as a used spare part for woodworking machines. Gusdoztvtqspfx Ad Rei

Condition: used, Second-hand control cabinet, a Weinig Univar 10, suitable as a source of spare parts or for building a new control cabinet. Guodpfx Aoztvtwjd Rji Contents include, amongst others: EMC PA10A513 Interbus Moeller PKZM Schaffner FN351-25-33 Lenze EVF8216-E Setzermann SS6E3/5 Siemens 3TD43 Individual parts available on request

Condition: excellent (used), Year of construction: 2009, LEADERMAC SPEEDMAC 923SP Gujdpfozv S Ddjx Ad Roi SPINDLES: 9 X 50MM X 6000 RPM BOTTOM (11 KW) - OUTBOARD BEARING RIGHT (11 KW) - LEFT (11 KW) - RIGHT (11 KW) - PROFILE JOINTER LEFT (11 KW) - PROFILE JOINTER TOP (15 KW) - OUTBOARD BEARING BOTTOM (22 KW), TOP (15 KW) - OUTBOARD BEARING + STRAIGHT JOINTER BOTTOM (15 KW) - OUTBOARD BEARING + STRAIGHT JOINTER WORKING WIDTH: 230 MM, HEIGHT: 160 MM. MAX FEED SPEED 60M/MIN (POSSIBLE TO INCREASE IF NEEDED) STRAIGHT JOINTERS. PROFILE JOINTERS. CNC POSITIONING ON SPINDLES 3, 5, 6, 8 CONNECTION: 380 V / / 50 HZ 400 AMPS. FULL DOCUMENTATION INCLUDED.

Condition: excellent (used), Year of construction: 2001, operating hours: 9,089 h, functionality: fully functional, machine/vehicle number: 94250, WEINIG HYDROMAT H23 ELECTRONIC FEED FREQUENCY CONTROLLED (8 – 60 M/MIN). FEED MOTOR 15 KW 50MM SPINDLES WORKING WIDTH MAX. 230 MM WORKING HEIGHT MAX. 160 MM SHORT INFEED WITH (GROOVED FEED GUIDANCE, SEE USES AND BENEFITS HIGHLIGHTED BELOW) BOTTOM 7.5KW 6,000 RPM RIGHT 7.5KW 6,000 RPM LEFT 7.5KW 6,000 RPM JOINTER READY RIGHT 7.5KW 6,000 RPM LEFT 7.5KW 6,000 RPM JOINTER READY TOP 11KW 6,000 RPM OUTBOARD BEARING, JOINTER READY BOTTOM 7.5KW 6,000 RPM OUTBOARD BEARING, JOINTER READY TOP 7.5KW 6,000 RPM OUTBOARD BEARING, JOINTER READY BOTTOM 11 KW 6,000 RPM OUTBOARD BEARING, JOINTER READY 12X TOP FEED ROLLERS 6X BOTTOM FEED ROLLERS CNC ADJUSMENT OF 1ST BEDPLATE FROM CONTROL PANEL POSSIBLE TO ADD ADDITIONAL STRAIGHT / PROFILE JOINTERS AS NEEDED Gsdpfxsz Eznue Ad Rjui FULL SOUND ENCLOSURE AUTOMATIC LUBRICATION SYSTEM FULL DOCUMENTATION INCLUDED EXHAUST MANIFOLD INCLUDED MACHINE LENGTH 5.2M POSSIBLE TO OFFER MECHANISATION IF NEEDED POSSIBLE TO OFFER MECHANISATION SPECIFICALLY FOR SHORT LENGTH FEEDING AND STACKING IF NEEDED Grooved Feed Guidance, Core Functions & Benefits: The longitudinal grooves milled directly into the bedplates work in conjunction with custom bottom cutterhead knives or grooving cutters. The initial cutter cuts matching grooves into the underside of the raw stock, registering it securely to the bed's grooves to keep short or cupped boards running straight without drifting off the fence. Friction & Resin Relief: Standard flat bedplates create significant surface drag when feeding wet, sap-rich, or resinous timber (like pine, fir, or green hardwood). The channels reduce overall contact area, lowering friction and preventing suction/sticking. Debris & Pitch Clearance: Sawdust, wood resin, and pitch buildup can cause uneven heights or feeding jams. Grooves act as evacuation paths, allowing fine dust and pitch to fall away from the main bearing surface. Wax/Lubricant Distribution: When paired with an automatic or manual bed lubrication system (such as table lubrication pumps), the grooves help distribute wax/oil evenly across the table rather than letting it wipe away on the first board. Common Applications Short Stock Processing: Ideal for running short pieces (such as parquet components, drawer sides, or short moulding blanks) that would otherwise struggle to maintain parallel alignment against the side fence. Cupped or Unseasoned Wood: Prevents cupped or warped boards from rolling or twisting as they hit the vertical and horizontal cutter spindles. High-Speed Feed Lines: Reduces the strain on feed rollers and drive systems by lowering bed drag during continuous industrial runs.

Condition: good (used), Year of construction: 2010, functionality: fully functional, milling height: 180 mm, WEINIG NKT Dovetail Grooving Line – Double Unit DP20 An industrial dovetail grooving and gluing machine – developed for maximum precision and efficiency. Technical specifications: Wood input length: min. 130 mm | max. 1000 mm Wood output length: min. 3700 mm | max. 7400 mm (half lengths possible!) Wood cross-section: min. 20 x 40 mm | max. 80 x 180 mm Cutter diameter: 370 mm Dovetail design: Vertical / Horizontal, 10/11 dovetails, 3.8 mm pitch Glue application: 2-sided, PVAC white glue Connection power: 80 kW Note: The machine is currently disassembled and is in our warehouse. An inspection is possible by appointment. Scope of supply: WEINIG NKT Double Unit DP20 including control unit Integrated gluing station for 2-sided application Operating manual & documentation Hydromat 17B (7 spindles) General information Manufacturer: Weinig AG Model: Hydromat 17B // 7 spindles (various tools) Type: High-performance profiling milling machine / planing and rabbeting machine Year of manufacture: 1989 Operating voltage: 380 V / 50 Hz Bottom-Right-Left-Right-Left-Top-Bottom table, fixed Description Heavy-duty, high-performance planing and rabbeting machine made of vibration-damping and torsion-resistant cast iron components in a modular system. Designed for precise and economical woodworking with high continuous output. Mechanical feed, adjustable in the range of 5 – 35 m/min, feed motor 5.5 kW (7.5 HP). Surfacing table 2 m long, quick adjustment available. Chip removal for surfacing and jointing spindles, adjustment range 10 mm each. Technical data • Feed speed: 5 – 35 m/min, mechanical • Feed motor: 5.5 kW / 7.5 HP • Operating voltage: 380 V / 50 Hz Gjdsz E Awqspfx Ad Roui • Table length: 2000 mm • Adjustment range of chip removal: 10 mm (surfacing and jointing side) • Machine design: Without counter bearing, in high-performance design

Condition: new, functionality: fully functional, Weinig Hydromat 4300 NEW / UNUSED EQUIPMENT Working Width: 30 – 300 mm (with tool diameter 203 – 250 mm) Working Height: 10 – 120 mm (with tool diameter 203 – 250 mm) 50mm spindles 6,000 RPM Bottom Horizontal Spindle Motor: 75 kW, 6000 RPM. CNC radial adjustment and positioning. Fully automatic straight jointer. Hydro Lock counter-bearing. Top Horizontal Spindle Motor: 75 kW, 6000 RPM. CNC radial & axial adjustment and positioning. Fully automatic straight jointer. Hydro Lock counter-bearing. Right Vertical spindle Motor: 37 kW, 6000 RPM. CNC radial & axial adjustment and positioning. Fully automatic straight jointer. Left Vertical spindle Motor: 37 kW, 6000 RPM. CNC radial & axial adjustment and positioning. Fully automatic straight jointer. Top Horizontal Spindle Motor: 55 kW, 6000 RPM. Segmented pneumatic pressure shoe with MarathonPower coating CNC radial & axial adjustment and positioning. Fully automatic straight jointer AND profile jointer Hydro Lock counter-bearing. Bottom Horizontal Spindle Motor: 55 kW, 6000 RPM. CNC radial & axial positioning. Adjustable and lockable table plates. Table plates with wood insert. Additional pressure shoe with wood insert for ripping operations. Max sawing height 65 mm with 100 mm flange diameter. Fully automatic straight jointer. Rotaplan pressure plate above bottom spindle. Hydro Lock counter-bearing. Feedworks Short 1.5 m infeed table with heavy 4-roller feed system 6x powered top feed rollers 11kW each (250mm). 5x bottom bed feed rollers 11kW each. (121kW total feeding power) Continuously variable electronic feed speed: 30 – 300 m/min. CNC controlled up/down feed movement positioning. Freewheel gearboxes on 4x roller feed system 250mm x 300mm wide Other information Frequency inverter drive for spindle startup/shutdown. Operating Voltage: 400 V (380-420 V range), 50 Hz; Control Panel mounted on a swivel arm. Separate control cabinet located 2.5 m from planer. Air conditioning unit for switch cabinet to prevent inverters overheating. Gusdpfx Adjz S Uaxe Rsi Integration for third-party mechanization. WEINIG Machine Control (WMC): 21.5" multi-touch screen. MarathonPowerCoating PLUS special wear-resistant table coating. Automatic lubricant pump with 30L tank. Remote Support / VPN Diagnosis Network. Internal workpiece monitoring system. Safety Enclosure: Full soundproof/safety housing Slide-away anti-kickback guard for ripping.

Condition: excellent (used), Raimann KS 310 BV edger multisaw - year of manufacture 1995 - German production - DTR - two movable discs TECHNICAL PARAMETERS: - track width 340 mm - cutting height max 120 mm - engine power 30 kW - disc diameters 250/360 mm - Possibility to put on a shoe - electric height adjustment - feed continuously adjustable 11-38 m / min - power of the feed motor 1.5 kW - two movable discs - three lasers - max element width 1000 mm - minimum element length 600 mm with a shoe 400 mm - four upper pressure rollers - spindle diameter 65 mm - sleeve diameter 80 mm Guodpfx Adjir Eubo Rji - spigot diameter 250 mm Dimensions 230x220x230 weight 2500 kg

Condition: used, Weinig brand moulding machine, Unimat U17N model with 7+1 axes, 170 mm axis length, with ruled table, cardan shaft drive. Axle composition: Bottom, right, left, right, top, bottom, left, universal. Guedpfx Aepfp Elod Rji Axle motor power: 4+4+5.5+5.5+7.5+5.5+5.5+7.5 Kw. Towing motor power 4 Kw raises and lowers 0.75 Kw.
