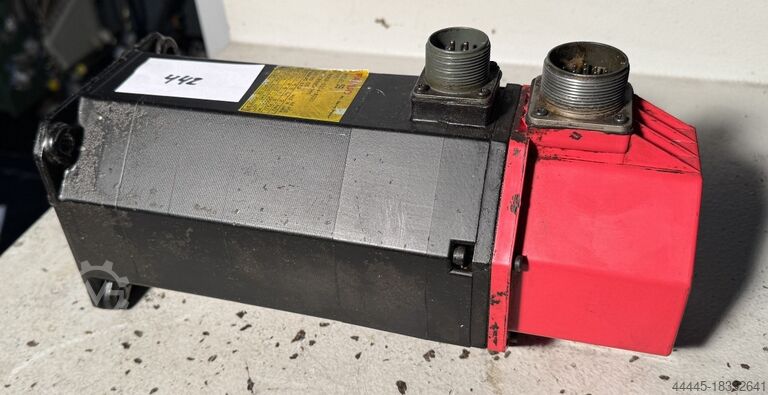

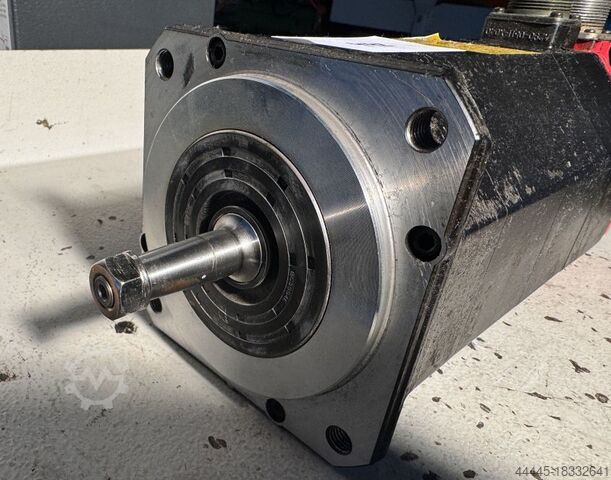

Motor

Fanuc A06B-0314-B031

Condition: used, Year of construction: 1987, x-travel 500 mm y-travel 380 mm z-travel 300 mm Control FANUC total power requirement 12 kW weight of the machine ca. 2300 kg dimensions of the machine ca. m Godpfx Anst Hw H Eolsuc

Year of construction: 1990, condition: ready for operation (used), Travel X/Y/Z: 400mm/300mm/495mm, spindle center table distance: 25mm-325mm, spindle nose table distance: 125mm-620mm, rapid traverse: 24m/min, feed rate: 5m/min, spindle type: ball screw, spindle diameter: 36mm, speed: 6000rpm, spindle power: 5.5kW, spindle mount: BT40. Tool slots: 30, tool change time: 2.5s, clamping time: 7s, max. tool diameter/length: 110mm/250mm, max. tool weight: 8kg. Table dimensions X/Y: 315mm/315mm, table angle: 7.5°, table clamping force: 3400kg, max. workpiece weight: 150kg. Dimensions X/Y: approx. 1900mm/2300mm, weight: approx. 4500kg, control: Fanuc 0-M, operating hours: 732h, piece counter: 172776. Including cooling lubricant system and tool magazine with 30 places. Documentation available. On-site inspection is possible. Gusdpfx Anot Nhmzolsc

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, Standard Specifications of the Machine Table: Working area: 305 x 305 mm Max. workpiece volume: Ø 500 mm x 560 mm Max. table load: 250 kg Travel: X-axis: 510 mm Y-axis: 510 mm Z-axis: 490 mm Rotary axis: 0.001° – 360° Distance table top – spindle center: 40 - 550 mm Distance table center – spindle nose: 100 - 590 mm Spindle: Spindle taper: NST No. 40 Spindle speed: 20 – 20,000 rpm Drive: 4-step gearbox (2 mechanical, 2 electric) Max. torque: 157 Nm Gjdpsw Al Tbjfx Anljuc Feed: Rapid traverse X, Y, Z-axis: 50,000 mm/min Rapid traverse 4th axis: 9,000°/min 90° rotation of 4th axis: 0.6 seconds Cutting feed X, Y, Z-axis: 40,000 mm/min Tools: Tool positions: 40 Tool selection: direct, bi-directional Tool holder: BT (SK) 40 Max. tool diameter: 95 mm (150 mm if adjacent positions are empty) Max. tool length: 300 mm Max. tool weight: 10 kg Tool change time (tool-to-tool): 1.7 seconds Tool change time (chip-to-chip): 5.0 seconds Motors: Spindle motor (30 min./continuous operation): 11.0 kW AC Tool changer motor: 400 W AC Coolant system motor: 1,200 W AC Pallet: Pallet change time: 6.0 seconds Other: Power supply: 25 kVA, 200V AC, 3-phase Air supply: 5 bar, 330 l/min Dimensions: Machine height: 2,940 mm max. Footprint with chip conveyor: 3,492 mm x 3,173 mm Weight: 9,900 kg Control: Fanuc 16iMB Standard Accessories Spindle with 20,000 rpm and 4-step gearbox (2-speed gear drive, 2-speed electronic gear) 2-Point spindle bearing compensation within 0.005 mm (IAC System 1) Big-Plus spindle (contact in taper and face) Automatic spindle taper cleaning with compressed air Through-spindle coolant at 15 bar with separate pump Spindle bearing lubrication system (air-oil mixture) Spindle cooler Automatic lubrication of axis ballscrews in X, Y, and Z axes Automatic high-speed tool changer with 40 tool stations Fixed tool position: each tool is independently coded by the machine and identified in the magazine Original Kitamura tool wait-release function via pre-selection of the T-code Automatic 180° pallet changer (2 stations) Coolant pump 1,200 W Double-deck chip conveyor with 2 chip belts for coarse and fine chips, with filter system Lower chip flushing with separate 1,200 W pump Fully enclosed guard Automatic central lubrication of guideways Air FRL unit (filter, regulator, lubrication) Hydraulic power unit with tank Work light Cycle end lamp Tapping without compensating chuck 4 free M-functions, M20 – M23 Swiveling control panel Portable handwheel RS 232C interface PCMCIA interface Door interlock Emergency stop at tool magazine Manual index switches at tool magazine Self-diagnostic function

Condition: good (used), Year of construction: 1990, CNC machining center Manufacturer: MORI SEIKI Type: Partner M300 A-1 Year of manufacture: 1990 Control: FANUC O-M Travel distances: X/Y/Z: 400 x 300 x 495 mm Guodjt Rg E Sjpfx Anlsc Distance between spindle center and pallet table (Y-axis): 25 – 325 mm Distance between spindle nose and pallet table (Z-axis): 125 – 620 mm Rapid traverse: 24 m/min Feed rate up to 5 m/min Spindle: Ball screw: 36 mm diameter Feed drives FANUC AC X/Y-axis Model 5, Z-axis Model 10 Main spindle speed: 100 – 6000 rpm Main spindle motor: AC 5.5 kW Main spindle taper: BT 40 Pallet: Pallet size: 315 x 315 mm Pallet indexing angle: 7.5 degrees Indexing accuracy: + / - 2 sec. Repeatability: + / - 1 sec. Pallet clamping force: 3,400 kg Maximum workpiece weight: 150 kg Automatic tool changer: Number of tools: 30 Tool change time: 2.5 sec. Collet clamping time: 7 sec. Maximum tool diameter: 110 mm Maximum tool length: 250 mm Maximum tool weight: 8 kg Special accessories: Work end display with warning light Magazine for 30 tools Operating hours display Tool life monitoring Coolant system Work area lighting Weight: approx. 4,500 kg Footprint: 1,900 x 2,300 mm 3626

Condition: used, Year of construction: 2004, x-travel 510 mm Gujdpjym D Auefx Anlec y-travel 355 mm z-travel 405 mm table surface area 786 x 355 mm control Kitamura spindle turning speed range 150 - 15.000 U/min spindle taper SK 30 table load 240 kg rapid traverse X/Y/Z axis 50/50/36 m/min ATC 20 Pos workpiece diameter at full load 70 mm tool diameter if 2 vacant positions 100 mm tool length - max. 200 mm weight of tools max. 2 kg total power requirement 15 kVA weight of the machine ca. 4 t dimensions of machine L x W x H 2,4 x 2,1x 2,63 m

Condition: excellent (used), Year of construction: 2005, Manufacturer: Quaser Model: MV 204 P II / 10 Year of manufacture: 2005 Control: 4-axis CNC control Fanuc 18 M Condition: Very good condition TECHNICAL DATA Travel (X): 1020 mm (Y): 600 mm (Z): 610 mm Worktable: 1200 x 700 mm Automatic tool changer Number of tools: 36 Tool holder (DIN 69871 A): SK 40 Chip-to-chip time: 2.4 sec Drive power (100% duty cycle): 18 kW Spindle speed range: 20 - 10,000 rpm Guodpfxoy Sk Nae Anljc Rapid traverse speed: 32/32 m/min Dimensions (L x W x H): 3.6 x 2.5 x 2.8 m Weight: 8,500 kg Options: CNC rotary table Large tool magazine 10,000 rpm Through-spindle coolant (IKZ) 20 bar Oil cooler
