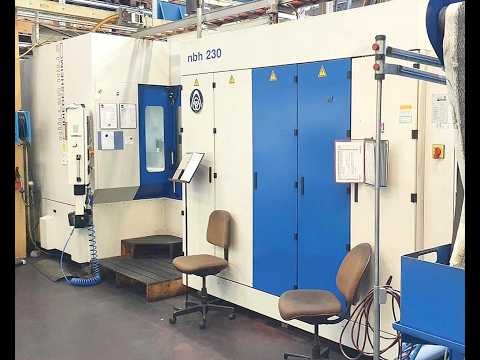

Horizontal machining center
Hüller Hille NBH 230

Year of construction
2003
Condition
Used (fully functional)
Location
Zürich Switzerland
  Observe auction

Machine data

Machine type:
Horizontal machining center
Manufacturer:
Hüller Hille
Model:
NBH 230
Machine number:
A.100765.01
Year of construction:
2003
Condition:
ready for operation (used)
Functionality:
fully functional

Technical details

Travel distance X-axis:
1,200 mm
Travel distance Y-axis:
1,000 mm
Travel distance Z-axis:
1,200 mm
Controller model:
SIEMENS SINUMERIK 840 D
Spindle speed (max.):
6,000 rpm

Provision

Location:
Zürich, Switzerland Switzerland – Distance: about 1,216 km
Availability:
as of end of auction
Delivery conditions:
EXW
Costs for dismantling & loading:
Pick up at location:
free
Shipping costs:

Description

The machine spindle was overhauled in 2015!

TECHNICAL DETAILS

Travel X-axis: 1200mm
Travel Y-axis: 1000mm
Travel Z-axis: 1200mm

Spindle speed: 25 - 6,000 rpm
Max. torque: 900 / 1130Nm

Number of tables: 2
Max. interference circle: 1200mm
Table rotation speed: 15 rpm
Table clamping torque: 10,000 Nm
Tilt moment: 29,000 Nm
Distance between spindle nose and table: 130mm

Pallet dimensions: 800 x 630 mm
Pallet change time: 16s
Transport weight: 1200kg

Number of tool stations: 250
Max. tool diameter: 125mm
Diameter with free adjacent stations: 250mm
Max. tool length: 650mm
Max. tool weight: 40kg
Tool change time: 2.5 - 4.5s
Average chip-to-chip time: 7 - 9s
Tool holder: SK 50 DIN69871

Feed rate: 1 - 36,000 mm/min
Rapid traverse: 36 m/min

MACHINE DETAILS

Control: SIEMENS SINUMERIK 840 D

Dimensions & Weight
Dimensions (L x W x H): 10,000 x 6,000 x 3,800 mm
Machine weight: approx. 30,000 kg

Operating hours: approx. 100,000 h (The machine operated in 2-shift plus ghost shift mode. The previous owner estimates the operating hours over 20 years of use at approximately 100,000 hours).

EQUIPMENT
Direct measurement by glass scales
Coolant unit 1250 l
Pressure booster pump 11 bar (coolant)
Through-spindle coolant 25/50 bar (IKZ)
Blow-out device for spindle taper
Paper filter system
Chip conveyor
Pallet changer
2 pallets
Set of tool holders
Coolant / mist extraction unit
Probe



The listing was translated automatically. Translation errors are possible.

Payment processing

Closing costs:
18 %
Terms of payment:
100 % prepayment
Payment methods:
Vorkasse Überweisung IconBank transfer
Mastercard LogoVisa LogoCartebleue LogoKlarna LogoiDEAL | Wero Logo
Invoicing will be in the amount of the highest bid plus any dismantling/loading costs and shipping costs as well as the closing costs and statutory VAT.
