Used Deckel Feinbohrkopf for sale (673)

Condition: good (used), Drilling and milling head for lid milling machine Isdpfx Aov U A S Hsgpjbd

Condition: ready for operation (used), Year of construction: 2008, General Data Measurements width 2930 mm Measurements depth 3210 mm Measurements height 2900 mm Machine weight 9200 kg Control Unit Brand HEIDENHAIN Model iTNC 530 Main Drive Spindle speed range 28000 rpm Spindle motor power 38/28 kW Tool taper HSK-A63 Number of axis 5 Movement X-Axis Movement 450 Y-Axis Movement 600 Z-Axis Movement 400 Iodpfx Ajxn U A Hjgpobd Table Outer length 400 mm Outer width 400 mm Number of tslots 5 Distance between 63 mm Media Chip conveyor Yes Internal cooling Yes Additional Equipment Tool Storage Capacity: 30 tools /Max Tool Weight: 6 kg / Max Tool Diameter: 80 mm / Max Tool Length: 250 mm Graphite Dust Collector Heidenhain Touch Probe TS 649 3D Quick Set for 5-Axis Calibration This 5-axis DMG DECKEL MAHO HSC 55 linear vertical machining centre was manufactured in 2008. Consider the opportunity to buy this DMG DECKEL MAHO HSC 55 linear vertical machining centre if you are looking to get high quality milling capabilities. Contact us for more information about this machine. Application Types Milling

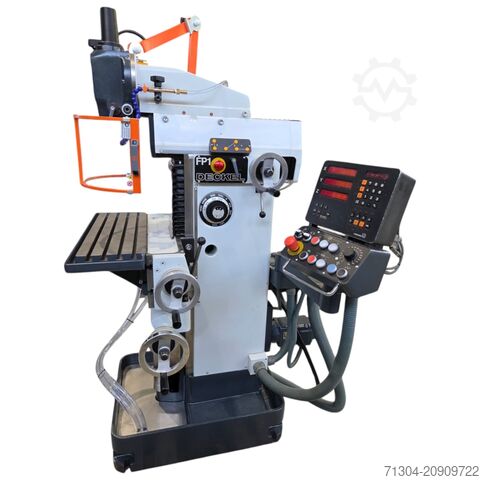

Condition: ready for operation (used), functionality: fully functional, travel distance X-axis: 300 mm, travel distance Y-axis: 150 mm, travel distance Z-axis: 340 mm, spindle speed (max.): 2,000 rpm, table length: 600 mm, table width: 200 mm, rotational speed (max.): 2,000 rpm, overall weight: 650 kg, input voltage: 400 V, Manufacturer: Deckel Model: FP-1 Condition: Used Stock number: 00213 Table size (LxW): 600x200 mm X-axis travel: 300 mm Y-axis travel: 150 mm Z-axis travel: 340 mm Max. spindle speed: 2000 rpm Spindle taper: ISO40 Automatic feed: X-Z Machine dimensions (LxWxH): 1100x1100x1600 mm Ibedpfx Agjxw Ua Dsped Weight: 650 kg

Condition: good (used), Year of construction: 2005, functionality: fully functional, Technical details x-travel 1040 mm y-travel 600 mm z-travel 500 mm Control Heidenhain iTNC 530 table surface area 1250 x 600 mm table load 600 kg tool taper SK 40 spindle turning speed range 1 - 8000 U/min max. torque on the spindle (S1/S6) 140/200 Nm feed range 40000 mm/min rapid power traverse in X-and Z direction 70 m/min rapid motion - y-axis 40 m/min spindle drive (100/40 % ED) 13/19 kW total power requirement 39 kVA weight of the machine ca. 8,9 t Additional information Operating hours 70278 Spindle hours 23335 Please note the enclosed geometry measurement report with the tool pull-in force measurement. Equipment: CNC control Heidenhain iTNC 530 Electronic handwheel Heidenhain HR 410 Motor spindle with increased torque Direct path measuring system in Y-Z axis Preparation for measuring probe 30-station tool changer, tool diameter 100/140 mm, length 300, weight 7 kg ROTOCLEAR Production package 2 Isdpfx Agjxwuu Iepebd Internal coolant supply through the spindle 20 bar Coolant system with paper belt filter Cooling device blown air through the spindle center selectable via M function Chip conveyor Bed flushing Linear drive in the X-axis Operating mode 4 Program check with extended manual intervention Machine documentation Transport dimensions: 4100 x 2500 x 3000 mm

Condition: like new (used), Year of construction: 2013, operating hours: 39,945 h, functionality: fully functional, travel distance X-axis: 450 mm, travel distance Y-axis: 580 mm, travel distance Z-axis: 400 mm, controller manufacturer: Heidenhain iTNC 530, total height: 2,900 mm, total length: 5,500 mm, total width: 2,650 mm, spindle speed (min.): 28,000 rpm, coolant supply: 40 bar, Year of construction: 2013 CNC controller: Heidenhain iTNC 530 Axes X-axis travel mm: 450 Y-axis travel mm: 580 Z-axis travel mm: 400 C-axis degrees: 360º (0,0001) A-axis degrees: +10 / -110º Feed rates m/min: 80 Rapid traverse m/min: 80 Acceleration in the axes m/s2: 13 Milling/turning table nc: Number of pallets: System 3R (21 pallets type GPS 240, 30pallets type GPS 120 and 24 pallets type ITS50) Table dimensions mm: baseplate for root pallet Maximum workpiece size (D x H) mm: for pallet GPS 240 (275x275x200mm); for pallet GPS 120 (150x150x200mm) and for pallet ITS50 (ø70x200mm) Max. workpiece weight kg: 150 (pallet + workpiece) Isdpfxexv Av Ro Agpsbd Spindle Spindle speed rpm: 28000 Spindle drive power kW: 35/25 (40%ED/cont) Cooling Cooling through the Spindle Center bar: 40 Tank capacity: 600 Tool system Tool holder: HSK-A 63 Tool magazine slots: 120 Tool changer: Double gripper Equipment Electronic Handwheel Chip conveyor Infrared probe Internal cooling lubricant supply Rotating inspection windows Rinsing gun blowing air through spindle center selectable via M-function Laser tool measurement for measuring tool length and diameter 3D quickSET Arrangement for external pallet management Accuracy package Internal coolant supply Electrical cabinet active cooling unit Spindle active cooling unit Toolholders are not included Tools are not included Paper band filter Machine running times Under power: 62983 Spindle Working: 39945 Rated power kVA: 60 Basic machine dimensions / weight Length mm: 5500 Width mm: 2650 Height mm: 2900 Weight kg: 9500 + system 3R

Condition: used, Year of construction: 2002, x-travel 1100 mm y-travel 710 mm z-travel 710 mm Control Heidenhain iTNC 530 Number of working hours ca. 79.360 h Iedpfx Aoxgicfjgpjbd spindle hours ca. 34.555 h In our opinion, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Subject to changes and errors in the technical data and information, as well as subject to prior sale!

Condition: used, Year of construction: 1985, machine/vehicle number: 294, x-travel:400 mm y-travel:190 mm z-travel:310 mm table clamping surface:280 x 750 mm Reach of the vertical spindle:115-575 mm feed steps:16 feed range:11,2-355 mm/min tool taper:SK 40 speed steps :16 Isdpfsvcf Hpox Agpobd speeds::56-1800 min-1 total power requirement:2,2 kW dimensions of the machine ca.:1550 x 1250 x 2000 mm weight of the machine ca.:1200 kg

Condition: good (used), Year of construction: 2002, HEIDENHAIN TNC 430 control Spindle speed 20–9,000 rpm Travels X = 500, Y = 400, Z = 400 mm Tool holder SK 40 16-station tool changer Rotary table with B and C axes Clamping surface Ø 700 x 500 mm Iodpfjwglfxsx Agpsbd Max. table load 200 kg Infrared probe for workpiece measurement

Condition: used, Year of construction: 1999, x-travel 800 mm y-travel 700 mm z-travel 600 mm NC-rotary table ø 900 x 630 mm spindle taper SK 40 spindle turning speed - stepless 20 - 12.000 U/min feeds x/y/z -stepless 20 - 10.000 mm/min rapid travel x/y/z 24 m/min control HEIDENHAIN, TNC 426 NC-rotary table - speed - max. 10,7 U/min NC-rotary table - feed - 3600 °/min table load capacity max. 800 kg no. of tools in magazin 30 tool diameter if 2 vacant positions 160 mm tool diametre at full load 100 mm tool length - max. 315 mm weight of tools max. 10 kg total power requirement 44 kVA = 5 axis (simultan) machining center Ibjdpfxjw Eyhfs Agped - NC rotary table = C-axis - univ. milling head = B-axis Accessories: 30 tool fixtures, electron. hand panel, chip conveyor, coolant with filtration

Condition: good (used), Year of construction: 2007, functionality: fully functional, Technical details x-travel 1150 mm Iodpsxwutdsfx Agpebd y-travel 710 mm z-travel 710 mm table surface area 1500 x 800 mm table load 800 kg tool taper SK 40 spindle turning speed - stepless 20 - 12000 U/min feeds -stepless- 0 - 30000 mm/min main drive motor 15 / 10 kW weight of the machine ca. 10,5 t Additional information 5-Axis Universal Machining Center Equipment: CNC-control HEIDENHAIN iTNC 530 (5-axis simultaneous) NC rotary table (4th-axis), diameter 800 mm, integrated into the fixed table Controlled milling head (B-axis), swivel range -120/+30 deg. ATC 32-positions (2 x 16) Chip conveyor Coolant system for external cooling, no internal cooling

Condition: like new (used), Year of construction: 2000, operating hours: 33,831 h, travel distance X-axis: 1,250 mm, travel distance Y-axis: 880 mm, travel distance Z-axis: 800 mm, controller model: '3D contouring control Millplus, workpiece weight (max.): 1,000 kg, total length: 7,000 mm, total width: 3,500 mm, overall weight: 3,902 kg, spindle speed (min.): 18,000 rpm, spindle motor power: 15,000 W, Year of construction: 2000 CNC controller: '3D contouring control Millplus Axes X-axis travel mm: 1250 Y-axis travel mm: 880 Z-axis travel mm: 800 C-axis degrees: 360º (0,001) Feed rates m/min: 40 Rapid traverse m/min: 40 Milling/turning table nc: Number of pallets: 1 Table dimensions mm: Ø1000 Max. workpiece weight kg: 1000 max. torque Nm: 7900 Spindle Ibedpfxjxvrbie Agpsd Spindle speed rpm: 18000 Spindle drive power kW: 15/10 (40%ED/cont) Cooling Tank capacity: 600 Tool system Tool holder: CAT 40 Tool magazine slots: 60 Tool changer: Doeble gripper Equipment Electronic Handwheel Chip conveyor Internal cooling lubricant supply Rotating inspection windows Rinsing gun Preapared for RENISHAW sonde Accuracy package Ready for internal cooling (40/80 bar) Paper band filter Machine running times Under power: 33831 Spindle Working: 6328 Rated power kVA: 55 Basic machine dimensions / weight Length mm: 7000 Width mm: 3500 Height mm: 3902

Year of construction: 2001, condition: used, Price: On request Milling machine, VMC Model: CNC Manufacturer: DMG / Deckel MAHO Type: DMU60T Year of manufacturing: 2001 Control: Heidenhain Working-hours: 26266 Travel: 630x560x560mm Spindle-speed: 10.000 rpm Table-dimensions: 1000x600mm Spindle-take: ISO40 Max. Workpiece-weight: 400kg Incl. Filter Interlit SK200-760 Incl. Automatic toolholder Incl. Documents Ibedpfx Aewng H Hjgpod Incl. Video available Machine-weight: 6700kg Machine-dimensions: 3500x2400x2200mm - Year: 2001 - Documentation available: No - CE certificate present: No - Drive system: CNC Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: ready for operation (used), Year of construction: 2005, operating hours: 5,873 h, Control Unit Brand HEIDENHAIN Main Drive Ibedpfx Agjxwzywepsd Number of axis 5 This 5-axis DMG Deckel Maho DMU 60 monoBlock was manufactured in 2005. It features a B-axis and rotary table attachment, 3D probe, and MillPlus IT CNC control system. With 5873 operating hours and 1397 spindle hours, it also includes a minimum quantity lubrication system. If you are looking to get high-quality milling capabilities, consider the DMG Deckel Maho DMU 60 machine we have for sale. Contact us for more information about this machine. Application Types Milling

Condition: used, x-travel 400 mm y-travel 250 mm Ibsdjxu Nxpopfx Agped tool taper ISO 40 turning speeds 40 - 3.150 U/min table dimensions 630 x 300 mm table load 150 kg In our assessment, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools, and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Technical data and specifications are subject to change without notice and errors. Prior sale is reserved.

Condition: used, Year of construction: 1999, x-travel 600 mm Iodpfx Agotqqmhspebd y-travel 525 mm z-travel 500 mm table surface area 1000 x 543 mm spindle taper SK 40 spindle taper DIN 69871 spindle turning speed - stepless 20 - 12.000 U/min feed X/Y/Z-axis 20 - 10.000 mm/min rapid traverse X/Y/Z axis 18 / 18 / 15 m/min table load max. 350 kg control HEIDENHAIN MillPlus milling-head swivable +/- 90 ° total power requirement 26 kVA weight of the machine ca. 4,2 t dimensions of machine L x W x H 2,95 x 2,1 x 2,26 m Accessories: various tool fixtures, coolant

Condition: good (used), Year of construction: 1992, functionality: fully functional, Technical details x-travel 300 mm y-travel 160 mm z-travel 290 mm table surface area 210 x 600 mm table load max. 200 kg tool taper SK 40 spindle turning speed range (16) 40 - 2000 U/min feeds -stepless- 5 - 500 mm/min rapid traverse 1,2 m/min spindle motor 1,5 / 1,9 kW total power requirement 9,5 kVA weight of the machine ca. 730 kg dimensions of the machine ca. 2000 x 2200 x 1655 mm Additional information The machine is in very good condition and comes from a research centre. Equipment: 3-axis active digital readout made by Heidenhain TNC 113 Fixed angle table Ibsdpexwui Sefx Agpsd Coolant equipment Kelch mounting block Machine vise Counterholding device for the horizontal spindle

Condition: like new (used), Year of construction: 2005, operating hours: 48,898 h, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, controller manufacturer: Heidenhain iTNC 530, workpiece weight (max.): 2,000 kg, total height: 3,400 mm, total length: 6,000 mm, total width: 4,500 mm, rotational speed (min.): 30 rpm, overall weight: 15,800 kg, spindle speed (min.): 18,000 rpm, number of slots in tool magazine: 40, Year of construction: 2005 CNC controller: Heidenhain iTNC 530 Axes X-axis travel mm: 1000 Y-axis travel mm: 1000 Z-axis travel mm: 1000 C-axis degrees: 360º (0,001) A-axis degrees: 130º B-axis degrees: 0-190º Feed rates m/min: 60 Rapid traverse m/min: 60 Milling/turning table nc: Number of pallets: 1 Table dimensions mm: Ø1100x900 Max. workpiece weight kg: 2000 Table rotation speed rpm: 30 Spindle Spindle speed rpm: 18000 Isdpsxur Sxofx Agpebd Cooling Cooling through the Spindle Center bar: 40 Tank capacity: 980 High-pressure bar: 40-80 Tool system Tool holder: HSK-A 63 Tool magazine slots: 40 Tool changer: Double gripper Equipment Electronic Handwheel Chip conveyor Infrared probe Rinsing gun blowing air through spindle center selectable via M-function Laser tool measurement for measuring tool length and diameter 3D quickSET Ready for internal cooling (40/80 bar) Paper band filter Machine running times Under power: 144180 Spindle Working: 48898 Rated power kVA: 65 Basic machine dimensions / weight Length mm: 6000 Width mm: 4500 Height mm: 3400 Weight kg: 15800

Condition: ready for operation (used), Year of construction: 2000, Available immediately from Swiss toolmaking: 5-axis milling machine Deckel Maho Type DMU 35 M Year of manufacture: 2000 Ibsdpfxsxw Rzws Agpsd CNC control: Heidenhain TNC 310 M Electronic handwheel Table: 400 x 280 mm Table load up to 100 kg Travels X/Y/Z: 350/240/340 mm Infinitely variable spindle speeds: 0 – 5000 rpm Taper: SK 40 Rapid traverse: 5 m/min Servo drives for X/Y/Z axes Rotation range: 360 degrees Table clamping plus 105° / minus 150° Weight: 2 tons Includes holders, hydraulic vice Price: EUR 5,500 plus VAT ex location.

Condition: ready for operation (used), Year of construction: 1994, General Data Machine weight 9100 kg Measurements height 3000 mm Dimensions Machine Length 3700 mm Main Drive Number of axis 3 Spindle Speed 8000 RPM Tool taper SK 40 Movement X-Axis Movement 1000 mm Z-Axis Movement 500 mm Y-Axis Movement 800 mm This 3-axis DECKEL DC 100V vertical machining centre was manufactured in 1994. It features a Dialog 112 control, a worktable of 1,250 x 800 mm, and a tool magazine with an automatic changer holding approximately 30 positions. The spindle operates at up to 8,000 rpm. Consider the opportunity to buy this DECKEL DC 100V vertical machining centre. Contact us for more information about this machine. Ibedpfoxwzyksx Agpjd Application Types Milling

Condition: used, Year of construction: 1998, functionality: fully functional, DECKEL MAHO - DMU 50 T Offer Details Stock number: 1039-9277 Type of machine: Universal Machining Centre Manufacturer: DECKEL MAHO Model: DMU 50 T Year of manufacture: 1998 Control: TNC 426M Heidenhain Location: D-59302 Oelde, Germany Country of origin: Germany Delivery time: by arrangement Freight terms: ex site Additional information: CNC Universal Machining Centre DECKEL MAHO - DMU 50 T - 5 axes (3 + 2) - Swivel rotary table with angle display (axes B+C manual via handwheel) WE OFFER YOU: Iodpfx Agoxt Eyyepebd - Workshop-tested machines - Free loading onto truck - NO auction fees - Delivery possible (at extra cost) - Unloading and commissioning (at extra cost) Technical Details Travel (X-axis): 500 mm Travel (Y-axis): 400 mm Travel (Z-axis): 400 mm Control: TNC 426M Heidenhain Main spindle: - Speed range (main spindle): 20 – 9,000 rpm - Drive power (main spindle): 9 / 13 kW - Max. torque: 57 / 82 Nm - Tool interface: ISO 40 DIN 69871 Swivel rotary table: - Table size: 700 x 500 mm - Swivel angle (B): 105° (-10°/+95°) manual - Rotary axis (C): 360° manual - Max. table load: 200 kg - Number of T-slots: 7 - T-slot pitch: 63 mm - T-slot width: 14H7 mm - Center bore: 30H7 mm Tool changer: - Tool magazine positions: 16 - Tool holder: ISO 40 DIN 69871 - Max. tool length: 290 mm - Max. tool weight: 6.0 kg - Max. total tool load: 50 kg Feeds: - Feed rate: max. 10,000 mm/min - Rapid traverse: 12 m/min - Programming increment: 0.01 mm Total power consumption: 17 kW Machine weight approx.: 3.2 t Space requirement approx.: 4.0 x 4.0 x 2.5 m Equipment - Documentation - Chip tray - Coolant system - B-axis manual - C-axis manual - Swivel rotary table - Tool changer (16 positions) - Electronic handwheel - Operating Mode 4

Condition: used, Year of construction: 2008, x-travel 750 mm y-travel 600 mm z-travel 520 mm tool taper SK40 control i-TNC 530 weight of the machine ca. ca. 9 t DMGDMU 70 Built in 2008 5-axis universal milling machine DMU 70 Iedexv Ealepfx Agpsbd Travel range X/Y/Z 750/600/520 mm 24 m/min rapid traverse Spindle speed 14,000 rpm Tool holder SK 40 according to DIN 69871 Tool changer 30 magazine slotsTool measurement Blum laserInfrared probe Heidenhain TS 640 Control Heidenhain iTNC 530

Condition: good (used), Year of construction: 2000, Ref. -No.: 10468 Manufacturer: DECKEL MAHO Type: DMU 80 Ibedpfx Agsxvw Hqsped Year of construction: 2000 Control: Heidenhain Millplus Storage location: Halberstadt Country of origin: Japan Machine-No.: 111xxxxx X-Travel: 800 mm Y-Travel: 700 mm Z-Travel: 600 mm Number of T-slots: 9 / 14 Clamping Area: Ø 900 x 630 mm T - slot spacing: 63 mm Tool Taper: SK 40 Tool changer: 30 Spindle Speed: 12.000 RPM Max. Torque: 2659 Nm Operating hours: 67.452 H Center hole: Ø 50 mm Holding torque: 4500 Nm Max. rotation of the table top: 10,7 rpm Feed: 3600 °/min. Resolution of the measuring system: 0,001 ° NC rotary table: 800 kg NC swivel rotary table: 600 kg Further information: - Clamping table 900 x 630 mm - Chip conveyor, sheet metal technology - Belt filter system, manufacturer Interlit - Type SK 200-760 - Oil mist separator - Set of tool holders, - Workbenches - 2x 6 drawers - Vise - Jaw width 125 mm - Roller shutter cabinet with 1 door The machine can be viewed under power by arrangement.

Condition: like new (used), Year of construction: 2015, operating hours: 26,156 h, travel distance X-axis: 600 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 600 mm, controller manufacturer: Siemens 840D, workpiece length (max.): 850 mm, workpiece diameter (max.): 630 mm, workpiece weight (max.): 500 kg, total height: 3,100 mm, total length: 4,150 mm, rotational speed (min.): 1,200 rpm, spindle speed (min.): 12,000 rpm, Year of manufacture: 2012 CNC Control: Siemens 840D Axes X-axis travel (mm): 600 Y-axis travel (mm): 700 Z-axis travel (mm): 600 C-axis indexing (degrees): 360° (0.001) B-axis indexing (degrees): -30°/180° (0.001) Feed rates (m/min): 60 Rapid traverse (m/min): 60 Axis acceleration (m/s²): 6/6/5 NC Milling/Turning Table: Number of pallets: 2 Pallet dimensions (mm): Ø630 Max. workpiece size (D x H) mm: Ø630x850 Max. workpiece weight (kg): 500 Table rotation speed (rpm): 1200 Spindle Max. spindle speed (rpm): 12,000 Spindle drive power (kW): 35/24 (40% duty cycle / continuous) Spindle torque (Nm): 111/77 Cooling Coolant supply through spindle (bar): 40 Tank capacity (liters): 980 Tool system Tool holder: HSK-A 63 Number of tools in magazine: 60 Tool changer type: Double gripper With free adjacent positions (mm): 120 Ibedsxuiibepfx Agpod With occupied adjacent positions (mm): 80 Max. tool length (mm): 450 Max. tool weight (kg): 15 Chip-to-chip time (sec.): 4 Equipment Electronic handwheel Chip conveyor Infrared probe Rotating viewing windows Rinsing gun Operating mode 4 Compressed air through spindle selectable via M-function NC rotary swivel table 3D quickSET MPC – Machine Protection Control Machine running hours: Power-on hours: 26,156 Spindle working hours: 16,472 Base machine: Dimensions/Weight Length (mm): 4,150 Height (mm): 3,100 Weight (kg): 10,000

Condition: ready for operation (used), Year of construction: 1982, functionality: fully functional, Universal Tool Milling Machine DECKEL FP4 NC Year of manufacture: 1982 CNC control: GRUNDIG CONTOUR Technical specifications: X-travel 600 mm Y-travel 500 mm Z-travel 500 mm Spindle mount: SK40 Ijdpoxw Uqcjfx Agpobd Speed range: 18 - 6300 rpm Distance from table center to column: 515 mm Table load: 350 kg Direct travel measurement, resolution: 0.001 mm Floor space requirement including safety area: 3600 x 4900 mm Main drive: 8 kW regulated asynchronous motor Drive power: 9 kW Machine weight approx.: 3.5 tons Space requirement approx.: 2.4 x 2.3 x 2.3 m Mechanics: good Visual condition: good Machine can be inspected with power on

Condition: ready for operation (used), Year of construction: 2007, Control Unit Brand SIEMENS Model 840D Control Main Drive Number of axis 4 Additional Equipment NC dividing head EA 410 TS 640 measuring probe Coolant/air blast switch Flushing gun for chip removal Electronic handwheel – Operating mode 4 This 4-axis DECKEL DMC 835 V was manufactured in 2007. It features an NC dividing head EA 410, manual tailstock, and a TS 640 measuring probe. Additional highlights include a coolant/air blast switch, flushing gun for chip removal, and an electronic handwheel. This machine is complete with accessories. If you are looking to get high-quality milling capabilities consider the DECKEL DMC 835 V machine we have for sale. Contact us for more information. Iodpfsxv E Amsx Agpobd Application Types Milling
