Used Gildemeister Gmx for sale (223)

Condition: good (used), Center height 260 mm Trestle holder MK 4 Quill stroke 100 mm This hydraulic tailstock comes from a GILDEMEISTER CT 40 CNC slant-bed lathe. Fig. similar Nodpforalkmox Ahzjlb Siegfried Volz Machine Tools Rüschebrinkstr. 151-153 DE - 44143 Dortmund-Wambel

Condition: excellent (used), Year of construction: 2006, operating hours: 8,513 h, functionality: fully functional, machine/vehicle number: 8042942323C, We are offering this refurbished Gildemeister CTX 310 V4 CNC SIEMENS 840 D SHOPTURN CNC turning and milling center, year of manufacture 2006. Nledpfxoyvfq So Ahzjb Serviced and prepared for transport Extensive tool accessories included, such as tool cabinets and measuring devices Year of manufacture: 2006 Weight: 3950 kg Maximum spindle speed: 6000 rpm Connected load: 26 kVA Max. connection current: 35 A Current: 38 A Mains voltage: 400 V Frequency: 50/60 Hz Control voltage: 230 V Control power consumption: 150 W Internal voltage: 24 V If you have any questions or need more information, please feel free to send us a message or call us.

Condition: used, Year of construction: 2004, functionality: fully functional, machine/vehicle number: 8038938456C, turning length: 450 mm, turning diameter over cross slide: 505 mm, turning diameter: 202 mm, spindle motor power: 10,000 W, spindle speed (max.): 6,000 rpm, spindle bore: 51 mm, Gildemeister CTX 310 Heidenhain Turn+ Nljdpfxewk E Uzo Ahzjb The machine its full functional, but have some miner isue.

Condition: excellent (used), Year of construction: 1973, 3 Gildemeisters AS32-6 in good state for sale Different separate spare parts available, among which a new tapping device, a new bronze crown wheel for the main drive, a cross drill device, several gripping spindles for processing the rear of product and several other spare parts Nsdped S E Itjfx Ahzelb €12.500 per Gildemeister

Condition: ready for operation (used), Year of construction: 2007, operating hours: 23,567 h, functionality: fully functional, spindle speed (max.): 5,000 rpm, travel distance X-axis: 165 mm, travel distance Y-axis: 80 mm, travel distance Z-axis: 678 mm, bar passage: 70 mm, controller model: Fanuc 310i, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS X1 travel: 165 mm Y1 travel: 80 mm (+50/-30 mm) Nedpfx Ahex Af Dkozelb Z1 travel: 678 mm X2 travel: 165 mm Z2 travel: 640 mm Main spindle Max. speed: 5,000 rpm Max. bar capacity: 70 mm Draw tube bore: 75 mm Torque: 191 Nm Power: 20 kW Sub-spindle Max. speed: 5,000 rpm Draw tube bore: 42 mm Torque: 108 Nm Power: 17 kW Turret 1 & 2 Tool stations per turret: 12 live Live tools: 4,000 rpm MACHINE DETAILS Control: Fanuc 310i Number of controlled axes: 8 Dimensions & Weight Machine dimensions: 4,400 mm x 2,000 mm x 2,300 mm Machine weight: 8.8 t Chip conveyor weight: 750 kg Operating Hours Automatic mode: 23,567 h Power-on hours: 51,273 h EQUIPMENT Chip conveyor 2 x collet chucks Parts conveyor Extraction unit Bar feeder FMB Turbo 8-80 / 3200

Condition: ready for operation (used), Year of construction: 2005, operating hours: 68,410 h, functionality: fully functional, machine/vehicle number: 4903-0234, number of spindles: 6, spindle speed (max.): 2,700 rpm, bar diameter (max.): 42 mm, turning diameter: 42 mm, Equipment: bar feeder, Placing a bid constitutes an obligation to collect the item by the deadline of 15/11/2025! The following machines are also being sold exclusively via auction from the same location: Gildemeister GM 42-6, Year 2005: Listing ID A20302860 Gildemeister GM 42-6, Year 2004: Listing ID A20303020 Gildemeister GM 42-6, Year 2011: Listing ID A20303110 Gildemeister GM 42-6, Year 2007: Listing ID A20303190 Gildemeister GM 42-6, Year 2007: Listing ID A20303265 TECHNICAL SPECIFICATIONS Max. turning diameter: 42 mm Main spindle speed: 500–2,700 rpm Number of spindles: 6 Number of side slides (cross slides): 4 Number of tool spindles: 6 Number of tool positions: 12 Max. bar diameter for round material: 42 mm Max. bar key width for hexagonal material: 36 mm Max. bar side length for square material: 29 mm Max. bar stroke in one station: 130 mm Max. bar stroke in two stations: 260 mm Max. stroke radial slides: 52 mm Radial slide adjustment, fore/aft: ±20 mm Max. stroke axial slides: 72 mm Max. rapid traverse speed: 9.6 m/min Max. stroke tool spindles: 120 mm Adjustment, fore/aft: 10 mm Nedpfxexnxnyj Ahzjlb MACHINE DETAILS Dimensions & Weight Dimensions (L × W × H): 4,550 × 1,680 × 2,050 mm Dimensions (L × W × H, with bar feeder): 6,035 × 1,680 × 2,050 mm Weight: 9,800 kg Weight with bar feeder: 10,000 kg Main motor Rated power main motor: 22 kW Main motor speed: 1,455 rpm Coolant tank capacity: 750 L Operating hours: 68,410 h EQUIPMENT Bar magazine (length: approx. 3,000 mm) Work tables Additional accessories

Condition: ready for operation (used), Year of construction: 2011, operating hours: 40,724 h, functionality: fully functional, machine/vehicle number: 8018030323B, number of spindles: 6, spindle speed (max.): 2,700 rpm, bar diameter (max.): 42 mm, turning diameter: 42 mm, Equipment: bar feeder, Submitting a bid obligates you to collect the item on time, no later than 15.11.2025! The following machines are also being sold exclusively via auction at the same location: Gildemeister GM 42-6, year 2005: Search ID A20302860 Gildemeister GM 42-6, year 2004: Search ID A20303020 Gildemeister GM 42-6, year 2007: Search ID A20303190 Gildemeister GM 42-6, year 2005: Search ID A20303220 Gildemeister GM 42-6, year 2007: Search ID A20303265 TECHNICAL DETAILS Max. turning diameter: 42 mm Main spindle speed: 500–2,700 rpm Number of spindles: 6 Number of cross slides: 4 Number of tool spindles: 6 Number of tool stations: 12 Max. bar diameter for round stock: 42 mm Max. bar AF for hex stock: 36 mm Max. bar side length for square stock: 29 mm Max. bar feed per station: 130 mm Max. bar feed across two stations: 260 mm Max. radial slide travel: 52 mm Radial slide adjustment, fwd/rev: ±20 mm Max. axial slide travel: 72 mm Max. rapid traverse speed: 9.6 m/min Max. tool spindle travel: 120 mm Adjustment, fwd/rev: 10 mm MACHINE DETAILS Dimensions & Weight Dimensions (L × W × H): 4,550 × 1,680 × 2,050 mm Dimensions (L × W × H, with bar feeder): 6,035 × 1,680 × 2,050 mm Weight: 9,800 kg Weight with bar feeder: 10,000 kg Main motor Rated power main motor: 22 kW Main motor speed: 1,455 rpm Coolant tank capacity: 750 L Nsdpfx Asxnxkhohzelb Operating hours: 40,724 h EQUIPMENT Bar feeder (length: approx. 3000 mm) Work tables Additional accessories

Condition: ready for operation (used), Year of construction: 2007, operating hours: 57,860 h, functionality: fully functional, machine/vehicle number: 4903-0261, The submission of a bid obligates the buyer to collect the item by the deadline of 15.11.2025! The following machines are also being sold exclusively via auction from the same location: Gildemeister GM 42-6, Year 2005: Listing ID A20302860 Gildemeister GM 42-6, Year 2004: Listing ID A20303020 Gildemeister GM 42-6, Year 2011: Listing ID A20303110 Gildemeister GM 42-6, Year 2007: Listing ID A20303190 Gildemeister GM 42-6, Year 2005: Listing ID A20303220 TECHNICAL DETAILS Maximum turning diameter: 42 mm Main spindle speed: 500–2,700 rpm Number of spindles: 6 Number of cross slides: 4 Number of tool spindles: 6 Number of tool positions: 12 Nsdpfjxnxqbsx Ahzjlb Max. bar diameter for round stock: 42 mm Max. across flats for hexagonal stock: 36 mm Max. side dimension for square stock: 29 mm Max. bar stroke at one station: 130 mm Max. bar stroke at two stations: 260 mm Max. travel of radial slides: 52 mm Radial slide adjustment, forward/backward: ±20 mm Max. travel of axial slides: 72 mm Max. rapid traverse speed: 9.6 m/min Max. travel of tool spindles: 120 mm Adjustment, forward/backward: 10 mm MACHINE DETAILS Dimensions & Weight Dimensions (L × W × H): 4,550 × 1,680 × 2,050 mm Dimensions (L × W × H, with bar feeder): 6,035 × 1,680 × 2,050 mm Weight: 9,800 kg Weight with bar feeder: 10,000 kg Main motor Rated power of main motor: 22 kW Main motor speed: 1,455 rpm Coolant tank capacity: 750 L Operating hours: 57,860 h EQUIPMENT Bar feeder (length: approx. 3,000 mm) Work tables Additional accessories

Condition: ready for operation (used), Year of construction: 2005, operating hours: 69,287 h, functionality: fully functional, machine/vehicle number: 4903-0238, number of spindles: 6, spindle speed (max.): 2,700 rpm, bar diameter (max.): 42 mm, turning diameter: 42 mm, Equipment: bar feeder, Placing a bid obligates you to collect the machine by the deadline of 15.11.2025! The following machines are also being sold exclusively via auction from the same location: Nsdpfx Aoxnxapshzelb Gildemeister GM 42-6, year 2004: Search ID A20303020 Gildemeister GM 42-6, year 2011: Search ID A20303110 Gildemeister GM 42-6, year 2007: Search ID A20303190 Gildemeister GM 42-6, year 2005: Search ID A20303220 Gildemeister GM 42-6, year 2007: Search ID A20303265 TECHNICAL DETAILS Max. turning diameter: 42 mm Main spindle speed: 500–2,700 rpm Number of spindles: 6 Number of side slides (cross slides): 4 Number of tool spindles: 6 Number of tool positions: 12 Max. bar diameter for round material: 42 mm Max. bar width across flats for hexagon material: 36 mm Max. bar width across flats for square material: 29 mm Max. bar stroke in one station: 130 mm Max. bar stroke in two stations: 260 mm Max. stroke radial slide: 52 mm Radial slide adjustment, fore/aft: ±20 mm Max. stroke axial slide: 72 mm Max. rapid traverse speed: 9.6 m/min Max. tool spindle stroke: 120 mm Adjustment, fore/aft: 10 mm MACHINE DETAILS Dimensions & Weight Dimensions (L × W × H): 4,550 × 1,680 × 2,050 mm Dimensions (L × W × H, with bar feeder): 6,035 × 1,680 × 2,050 mm Weight: 9,800 kg Weight with bar feeder: 10,000 kg Main Motor Rated power: 22 kW Main motor speed: 1,455 rpm Coolant tank capacity: 750 L Operating hours: 69,287 h EQUIPMENT Bar magazine (length: approx. 3,000 mm) Work tables Additional accessories

Condition: ready for operation (used), Year of construction: 2004, operating hours: 46,942 h, functionality: fully functional, machine/vehicle number: 4903-0208, number of spindles: 6, spindle speed (max.): 2,700 rpm, bar diameter (max.): 42 mm, turning diameter: 42 mm, Equipment: bar feeder, Submission of a bid obligates the buyer to collect the item on time, no later than 15/11/2025! The following machines will also be sold exclusively via auction from the same location: Gildemeister GM 42-6, Year 2005: Listing ID A20302860 Gildemeister GM 42-6, Year 2011: Listing ID A20303110 Gildemeister GM 42-6, Year 2007: Listing ID A20303190 Gildemeister GM 42-6, Year 2005: Listing ID A20303220 Gildemeister GM 42-6, Year 2007: Listing ID A20303265 TECHNICAL DETAILS Max. turning diameter: 42 mm Main spindle speed: 500–2,700 rpm Number of spindles: 6 Number of cross slides: 4 Number of tool spindles: 6 Number of tool positions: 12 Max. bar diameter for round stock: 42 mm Max. across flats for hexagonal stock: 36 mm Max. width for square stock: 29 mm Max. bar feed per station: 130 mm Max. bar feed over two stations: 260 mm Max. radial slide travel: 52 mm Radial slide adjustment, forward/backward: ±20 mm Max. axial slide travel: 72 mm Max. rapid traverse speed: 9.6 m/min Max. tool spindle travel: 120 mm Adjustment, forward/backward: 10 mm MACHINE DETAILS Dimensions & Weight Dimensions (L × W × H): 4,550 × 1,680 × 2,050 mm Dimensions (L × W × H, with bar feeder): 6,035 × 1,680 × 2,050 mm Weight: 9,800 kg Weight with bar feeder: 10,000 kg Main Motor Main motor rated power: 22 kW Main motor speed: 1,455 rpm Nlodpfx Aexnxgpohzjb Coolant tank capacity: 750 L Operating hours: 46,942 h EQUIPMENT Bar magazine (length: approx. 3,000 mm) Work tables Additional accessories

Condition: ready for operation (used), Year of construction: 2007, operating hours: 55,585 h, functionality: fully functional, machine/vehicle number: 4903-0266, number of spindles: 6, spindle speed (max.): 2,700 rpm, bar diameter (max.): 42 mm, turning diameter: 42 mm, Equipment: bar feeder, Placing a bid obliges you to collect the machine by the deadline of 15.11.2025! The following machines are also being sold exclusively via auction from the same location: Gildemeister GM 42-6, Year 2005: Listing ID A20302860 Gildemeister GM 42-6, Year 2004: Listing ID A20303020 Gildemeister GM 42-6, Year 2011: Listing ID A20303110 Gildemeister GM 42-6, Year 2005: Listing ID A20303220 Gildemeister GM 42-6, Year 2007: Listing ID A20303265 TECHNICAL DETAILS Max. turning diameter: 42 mm Main spindle speed: 500–2,700 rpm Number of spindles: 6 Number of side slides (cross slides): 4 Number of tool spindles: 6 Number of tool positions: 12 Max. bar diameter for round material: 42 mm Max. bar across flats for hexagonal material: 36 mm Max. bar side length for square material: 29 mm Max. bar stroke at one station: 130 mm Max. bar stroke at two stations: 260 mm Max. radial slide travel: 52 mm Radial slide adjustment, forward/back: ±20 mm Max. axial slide travel: 72 mm Max. rapid traverse speed: 9.6 m/min Max. tool spindle stroke: 120 mm Adjustment, forward/back: 10 mm MACHINE DETAILS Dimensions & weight Dimensions (L × W × H): 4,550 × 1,680 × 2,050 mm Dimensions (L × W × H, with bar feeder): 6,035 × 1,680 × 2,050 mm Weight: 9,800 kg Njdjxnxm Aopfx Ahzelb Weight with bar feeder: 10,000 kg Main motor Rated output of main motor: 22 kW Main motor speed: 1,455 rpm Coolant tank volume: 750 L Operating hours: 55,585 h EQUIPMENT Bar magazine (length: approx. 3,000 mm) Work tables Further accessories

Condition: good (used), Year of construction: 2008, 1 used CNC turning/milling center Gildemeister type TWIN 65 RG 2 year 2008 with Siemens 840 D Maximum turning length (travel in the Z axis) 650 mm Maximum turning diameter over bed 250 mm Maximum length of travel in the X-axis 300 mm Maximum feed speed X-axis 30 m/min Maximum feed speed Z axis 30 m/min Maximum main spindle power 35 kW Spindle diameter 65 mm Minimum main spindle speed 20 1/min Maximum main spindle speed 5000 1/min Lathe length 7000 mm Lathe width 4700 mm Nodpeq T I Izofx Ahzelb Lathe height 2500 mm Lathe weight 10 t Machine equipment Y axis Irco loading magazine ILS RBK 1200 mm Workpiece pick-up device Technical data Errors excepted Please note that the machine is sold without chucks, as these remain with the seller!

Condition: ready for operation (used), Year of construction: 2005, 1 unit of used CNC lathe with driven tools and Y-axis. Siemens control. Nlsdewz Sgfspfx Ahzjb

Condition: good (used), Year of construction: 1999, Gildemeister MF Twin 65, year of manufacture 1999, Siemens 840 D control, travel X/Z 190/555 mm, 1 x Y axis +/- 40 mm, 2 turrets with 12 stations each, driven tools, VDI 30 toolholder, C axis, spindle speed up to 6,000 rpm, max. bar passage up to 65 mm, bar feeder is included but is no longer installed on the machine. Nsdpfx Aheyiab Aozolb

Condition: excellent (used), Swing over bed 212 mm Distance between centers 750 mm Spindle speeds 10-4'000 rpm Nledpjud Nb Isfx Ahzeb Control: HEIDENHAIN Manual Plus Misc. accessories MARCELS MASCHINEN CH

Condition: used, Year of construction: 2011, Lathes Travel distance X: 270 mm Travel distance Y :120 mm Travel distance Z: 1200 mm turning length: 1135 mm max. turning diameter: 700 mm max. circulation diameter: 340 mm max. turning moment: 680 NM range of revolutions till: 4000 rpm Control: DMG powered tools Powered tools: 50 Scrapper chip conveyor Short bar loader magazine IRCO ILS-RBK 100/16 Various main spindle reduction sleeves NC-controlled workpiece removal device Conveyor belt for transporting the workpieces out of the machine Coolant system 8/20 bar with immersion cooler Coolant spray gun Nlsdpfxowwv Ife Ahzjb Chip conveyor Oil mist extraction system Control cabinet cooling unit (up to 40 °C) 4-color signal light, connection for bar loader magazine Main spindle as integrated spindle motor ISM 102 Counter spindle as integrated spindle motor ISM 76 Easy-Tool Monitor Approx. 40 various quick-change collets size 100 (entire stock) Pneumatic changeover device Ø 100 mm Approx. 50 various tool holders, static and driven (entire stock) Installation elements Documentation

Year of construction: 2008, condition: ready for operation (used), Main spindle: max. bar capacity: 65mm, draw tube bore: 75mm, collet holder diameter: 160mm, centering chuck diameter: 175mm, spindle nose: 140mm, max. speed: 5000/min, nominal torque (S1): 150Nm, nominal power (S1): 22kW. Counter spindle: draw tube bore: 45mm, centering chuck diameter: 175mm, spindle nose: 140mm, max. speed: 5000/min, nominal torque (S1): 100Nm, nominal power (S1): 16.8kW. W2 axis counter spindle: travel: 690mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. X1 axis: travel: 165mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. Z1 axis: travel: 220mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. X2 axis: travel: 165mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. Z2 axis: travel: 150mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. X3 axis: travel: 165mm, max. speed: 40m/min, max. acceleration: 10m/s², nominal thrust (S1): 2400N. Z3 axis: travel: 678mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. Y3 axis: travel: 80mm (+50/-30), max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. Workpiece unloading (UA-WA): max. unloading weight: 4daN, max. unloading diameter: 70mm. Total number of tool stations: 12, tool holder diameter: 30mm, driven positions: 12, max. speed of driven tools: 4000/min, nominal torque (S1-n = 0/min): 17Nm, nominal power (S1-n = 4000/min): 2.9kW, control: Siemens 840D, operator panel: ErgoLine, screen: color TFT 19 inch, number of spindles (C-axes): 2, number of axes: 10, number of channels: 4. Operating hours: 70,035h power on, 48,657h in production, machine operates with cutting oil. With documentation and Bar Loader FMB Turbo 8-80 XT 3200. An on-site inspection is possible. Nlodpfxsyln Eke Ahzeb

Condition: excellent (used), CNC vertical lathe Gildemeister CTV 250 Working area: Chuck diameter: 250mm X-axis: 800mm Z-axis: 300m Spindle head: 170 h5 Spindle diameter in the front bearing: 120mm Spindle bore: 79mm C-axis Number of work stations: 12 Nljdpfx Ahevuqm Sozob Videos available!!

Condition: excellent (used), Year of construction: 2007, CNC Lathe GILDEMEISTER CTX 420 Linear 2007 Siemens 840 D Technical specifications: * Turning length: 600 mm * Turning diameter: 680 mm * Spindle bore: 79 mm Nodpfsw Slfbox Ahzolb * Spindle speed: 5000 rpm * Spindle power: 25 kW * Chip conveyor: Yes * Variable spindle speed: 5000 rpm Main spindle with bar capacity: Ø 65 mm Self-centering Autoblock chuck: Ø 250 mm

Condition: used, Year of construction: 2007, Number of controlled spindles (C axes): 2 Number of controlled axes: 8 Number of channels: 3 Max. bar diameter: 65 mm Bore in tie rod: 75 mm Chuck diameter: 175 mm Spindle nose: 140 mm Max. speed: 5,000 rpm Nominal torque: 191 Nm Nominal power: 20 kW DATA FOR THE W2 AXIS OF THE COUNTER SPINDLE Stroke: 690 mm Rapid traverse: 30 m/min Max. acceleration: 5 m/s² Nominal force: 2,400 N X1 AXIS DATA Stroke: 165 mm Rapid traverse: 40 m/min Max. acceleration: 10 m/s² Nominal force: 2,400 N Z1 AXIS DATA Stroke: 678 mm Nlsdeydfq Iopfx Ahzob Rapid traverse: 30 mm Max. acceleration: 5 m/s² Nominal force: 5,000 N Y1 AXIS DATA Stroke: 80(+50/-30) mm Rapid traverse: 30 m/min Max. acceleration: 5 m/s² Nominal force: 5,000 N X2 AXIS DATA Stroke: 165 mm Rapid traverse: 30 m/min Max. acceleration: 5 m/s² Nominal force: 5,000 N Number of tool stations: 12 Tool holder diameter: 30 mm Driven stations: 12 mm Max. speed of driven tools: 4,000 rpm

Condition: used, Year of construction: 2006, Lathe DMG Gildemeister CTX 210 Nlsdpfx Ahjyhlzujzob Year of manufacture: 2006

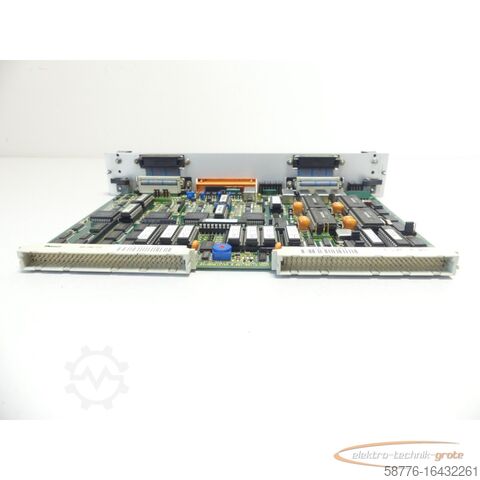

Condition: used, CNC control, numeric control, from GILDEMEISTER GDM 65/2A GILDEMEISTER type Eltropilot EP20 GD-2A year of manufacture 1989 Order: 150 299 Ser. No.: 0.854.183 Mains connection: 220 VAC 50 Hz Nsdpfx Ahoh Ecnajzslb Rack with 20 module places - 11 Built-in modules Dimension W x H x D 480x 260 x 220 mm Weight approx. 7 kg The control comes from a lathe Gildemeister GDM 42/2A. Further components from the Gildemeister can be found under stock no: 60343, 60346, 60347

Condition: excellent (used), Year of construction: 2003, functionality: fully functional, CNC Lathe Manufacturer: Gildemeister Njdpoxc Uq Tsfx Ahzolb Model: CTX 420 linear V3 Year of Manufacture: 2003 Control Unit: Heidenhain Plus IT Swing diameter over bed: 680 mm Swing diameter over cross slide: 565 mm Cross travel: 260 mm Longitudinal travel: 635 mm Drive power (40/100%): 25/37 kW Speed range: 20 – 5000 rpm Weight approx.: 6500 kg Equipment: Driven tools: 12 stations Tool turret: 12-position Sauter turret VDI 30 Partly hollow clamping chuck Tailstock Automatic quill travel Quill taper: Mk 5 Chip conveyor Measuring arm Oil mist extraction unit Subject to prior sale and errors.

Condition: used, Year of construction: 2008, Working area Circulation dia. above bed slide way cover: 680mm Circulation dia. above cross guide cover: 565 mm Facing traverse: 324 mm Longitudinal path: 600 mm Main spindle Spindle nose dia: 170 h5 / 220 h5 mm Bar dia. Max: 65 / 90 mm Spindle nose dia. in front bearing: 120 / 150 mm Spindle boring: 79 / 110 mm Chuck dia: 200 / 250 / 315 mm Drive rating S1 100% duty cycle: 25 / 33 kW Rotational speed range: 5000 / 4000 r.p.m Max. torque S1 100% duty cycle: 270 / 375 Nm Salient rotational speed: 900 / 850 r.p.m C axis (main spindle) Rotational speed: 250 r.p.m Stopping torque: 200 Nm Division accuracy: 0,025 deg. Compound slide X/Z/Y Facing traverse X: 260 / 1852 mm Longitudinal path Z: 635 / 6202 mm Ball spindle Z (dxh): 40x15 mm Vertical path Y: ±40 mm Ball spindle Y (dxh): 40x5 mm Rapid traverse speed X/Y/Z: 60/15/45 m/min Feed force X/Y/Z: 3,5/7/7 kN Tool holder Number of tool stations: 12 Tool mounting cylinder shaft (DIN 69880): 40 mm Tool disk, axial tool holder pitch circle dia: 370 mm Number of driven tools: 12 Drive rating max. 100% duty cycle: 4,9 kW Torque 100% duty cycle: 10,5 Nm Rotational speed range: 4500 r.p.m Tailstock Tailstock traverse path: 580 mm Tailstock force: 8 kN Tailstock mounting: MT 5 Rapid traverse speed Z2: 6 m/min Part accuracy for positioning: =/< 10 mm Hydraulic Contents: 40 l Pump capacity: 2,2 kW Max. pressure: 80 bar Pressure for clamping unit, tailstock: 10-60 bar Coolant unit Contents: 210 l Pump capacity: 1,7 kW Feed rate at 6 bar: 20 l/min Electrical energy requirement Connected rating: 50 kVA Operating voltage: 400 V Frequency: 50 Hz Fuses (slow blow/VDE 0100) perm: 80 A Voltage fluctuations at 400 V: 6% - 10% Machine dimensions Dimensions (LxWxH) with chip conveyor: 4350/2460/2080 mm Weight without chip conveyor/chip bath: ca. 6.000 kg Workplace based constant noise pressure level: - (DIN 45635 part 1-04.85 (ISO 3740-1980), measured as a chip removing cycle as per DIN 45635 Nledpfx Asya Iirohzeb part 1601-07.78): 77 db (A) - in idle running as per DIN 45635 part 1601-07.78: 78 db (A)

Condition: used, Year of construction: 2008, weight of the machine ca. 8,8 t dimensions of the machine ca. 4500x1990x2300 mm Number of controlled spindles (C axes): 2 Number of controlled axes: 8 Number of channels: 3 Max. bar diameter: 65 mm Bore in tie rod: 75 mm Chuck diameter: 175 mm Spindle nose: 140 mm Max. speed: 5,000 rpm Nominal torque: 191 Nm Nominal power: 20 kW DATA FOR THE W2 AXIS OF THE COUNTER SPINDLE Stroke: 690 mm Rapid traverse: 30 m/min Max. acceleration: 5 m/s² Nominal force: 2,400 N X1 AXIS DATA Stroke: 165 mm Rapid traverse: 40 m/min Max. acceleration: 10 m/s² Nominal force: 2,400 N Z1 AXIS DATA Stroke: 678 mm Rapid traverse: 30 mm Max. acceleration: 5 m/s² Nominal force: 5,000 N Y1 AXIS DATA Stroke: 80(+50/-30) mm Rapid traverse: 30 m/min Max. acceleration: 5 m/s² Nominal force: 5,000 N X2 AXIS DATA Stroke: 165 mm Nedpfxjyat Hvo Ahzjlb Rapid traverse: 30 m/min Max. acceleration: 5 m/s² Nominal force: 5,000 N Number of tool stations: 12 Tool holder diameter: 30 mm Driven stations: 12 mm Max. speed of driven tools: 4,000 rpm Translated with (free version)
