Used Holz Her Sprint 1315 for sale (177)

Condition: used, Year of construction: 2014, For inquiries: Gbedsx Huhcepfx Aayst Zoltán Utasi +36 30 205 7380 • motorized pressure bridge adjustment • Electrical system for stepless feed 400 V / 50 Hz, 2.2 kW • “Control PPC 221 – with 8.4'' VGA color display” High-performance control with very simple operation • Edging pre-milling unit 1802, 400 V (2 x 2.0 kW, 200 Hz, 12,000 rpm) with 2 milling units for pre-milling the panel edge • Cutter, diamond Ø 70 x 64 x 30 mm, Z2, left-hand rotation For pre-milling unit 1801 / 1802 • Cutter, diamond Ø 70 x 64 x 30 mm, Z2, right-hand rotation For pre-milling unit 1801 / 1802 • Edge feeding unit 1903 SYNCHRO automatic transport of rolls and strip material • Glue application station Glu Jet GJ301 automatic (2.3 kW, 50 Hz) • Pressure unit 1913 pneumatic first roller driven, 2 additional pressure rollers with pneumatic individual control • Cut-off unit 1918 (60 mm) pneumatic (2 x 0.45 kW, 12,000 rpm) pneumatically swivelable 0/10° • Multifunction milling unit 1827 pneumatic (2 x 0.65 kW, 200 Hz, 12,000 rpm) • Vertical tracing rollers manual manual adjustment of the vertical tracing roller by 0.1 mm for milling edge overhang, e.g. for plastic edges • Cutter, diamond Ø 56 / 60 mm, Z = 2, R = 2.0 mm, left-hand rotation Diamond-coated, solid tool with CM technology (LEUCO system) with integrated chip extraction, patented ProLock-E • Cutter, diamond Ø 56 / 60 mm, Z = 2, R = 2.0 mm, right-hand rotation Diamond-coated, solid tool with CM technology (LEUCO system) with integrated chip extraction, patented ProLock-E • Corner copying unit 1832 (1 x 0.35 kW, 200 Hz, 12,000 rpm), for edge thickness up to 3 mm • Cutter, diamond Ø 53 mm x 10 mm x 16 mm, Z = 3, R = 2 mm, with CM technology (LEUCO system) with integrated chip extraction, for profiling unit 1832 • Scraper unit 1929 pneumatic including pneumatic adjustment (separately for top and bottom) • HW reversible knives for scraper holder 1929 / 1927 R = 2.0 mm (2 pcs required) • Flat scraper unit 1964 Removing glue residue for a clean glue joint. • Buffing unit 1940 (2 x 0.12 kW, 50 Hz, 1400 rpm) For final cleaning and edge polishing. With 2 textile discs, swivel range 0–5°

Condition: used, Year of construction: 2019, Used machine Year of manufacture: 2019 Video available at: Base machine - Dynestic 7535-R Automatic 12.7 Dynestic table For classic nesting machining with wear plate Machining length: 3700 mm Working direction: from right to left Machine frame in welded construction with ground and hardened prism guides for the traversing carriage, aggregate head and consoles Traversing carriage in gantry design Rack and pinion drive, helical, in X and Y direction, Ball screw spindles Z-axis for precise positioning Technical data: Machining dimensions: Max. load on nesting table X = 3700 mm Y = 2200 mm Max. travel distances X = 5295 mm Y = 2935 mm Z = 565 mm Max. clearance height DYNESTIC table Z = 250 mm from the top of the table (without wear plate) Maximum programmable speed Vector speed: 128.0 m/min X = 80 m/min, Y = 100 m/min, Z = 25 m/min 4-stage extraction hood with pneumatic height adjustment and viewing window Voltage 400 V, 50/60 Hz CONTROL: Dual-core processor Operating system: Windows XP 80 GB hard drive / 1 GB RAM RJ45 network connection 10/100 Base-T Fast Ethernet US keyboard and Microsoft IntelliEye mouse (optical) CD-ROM / CD-RW drive (CD burner) Remote maintenance Integrated network card for data transmission of control and program data. Data transmission via high-speed internet connection Requirement: High-speed internet connection to the machine. DYNESTIC table Solid, continuous machining table with grid spacing, continuous grooves in X and Y direction, Groove spacing: 50 mm with 25 meters of sealing cord for securing the wear plate 1 machining field with stop strips / stop Height: 30 mm, pneumatically lowerable 2 stop strips in Y direction and 1 stop in X direction on the right (when viewed from the front of the machine) Vacuum fields 1-circuit vacuum system Drilling unit 7881-R, 24 spindles Drive power 3.0 kW, incl. saw unit 18 vertical spindles individually selectable Arrangement in L-shape, 11+2 in X and 6 in Y direction 32 mm grid Max. drill diameter: 35 mm Total drill length: 70 mm from the mounting end (depending on plate thickness) Spindle extension stroke: 70 mm Rotation direction: alternating clockwise / counterclockwise n(max.) 1000 - 5710 min-1, infinitely variable Mount: M 10 thread - clearance fit 11 mm Gedpfxozt Twye Aayobt without tool, without mount 6 horizontal spindles 2 twin drill spindles in X direction (distance 32 mm between 1st and 2nd horizontal drill spindle) 1 twin drill spindle in Y direction Mount: M 10 thread, clearance fit 11 mm Total drill length max. 70 mm from the mounting end without tool, without mount Pressure booster, increases the standard pressure from 6 to 8 bar 5-axis milling unit 7844, Power: 10.0 kW (S6) cardanic, C-axis rotatable +/- 360°, A-axis rotatable +/- 180° n(max.) = 0 - 24000 min-1, infinitely variable, max. power at 12000 min-1 to 24000 min-1 Liquid cooling (cooling unit included) with HSK-F 63 tool holder with right-hand thread (for right-hand cutting tools) with collet chuck with HSK shank Ceramic ball bearings (hybrid bearings) Tool weight max. 6 kg (incl. holder) Tools:

Condition: used, Year of construction: 2016, operating hours: 12,415 h, total height: 2,200 mm, total length: 9,050 mm, total width: 1,200 mm, Colour: White Weight: 4.800 kg - Year: 2016 - Documentation available: Yes - CE marking present: Yes - CE certificate present: No - Serial number: 109/1-606 - Operating hours: 12415 - Number of units [pcs]: 11 - └ 1st unit type: Pre-milling unit - - Tools available: Yes - └ 2nd unit type: Glue unit - └ 3rd unit type: Pressure rollers - - Type/Brand: 1914 - - Tools available: Yes - └ 4th unit type: Cap unit - - Type/Brand: KA701 - - Tools available: Yes - └ 5th unit type: Rough milling unit - - Type/Brand: 1828 - - Tools available: Yes - └ 6th unit type: Fine milling unit - - Type/Brand: FR701 - - Tools available: Yes - └ 7th unit type: Corner rounding unit - - Type/Brand: FF701 - - Tools available: Yes - └ 8th unit type: Radius scraping unit - - Type/Brand: ZK501 - - Tools available: Yes - └ 9th unit type: Flat scraping unit - - Type/Brand: 1856 - - Tools available: Yes - └ 10th unit type: Brushing unit - - Type/Brand: ES701 - - Tools available: Yes - Min. edge band thickness [mm]: 3 - Max. edge band thickness [mm]: 20 - Min. panel thickness [mm]: 8 Gjdpfx Ajzhrlfoayobt - Max. panel thickness [mm]: 60 - Max. panel width [mm]: 65 - Min. panel length [mm]: 180 - Max. panel length [mm]: 250 - Min. feed speed [m/min]: 10 - Max. feed speed [m/min]: 25 - Feed speed control: Continuously adjustable - Glue system: Glue pot - Options: Return transport - Voltage [V]: 400 - Current consumption [A]: 45 - Transport dimensions: 9050mm x 1200mm x 2200mm (l x w x h) - Transport weight [kg]: 4800kg - Transport packages [pcs.]: 2 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: used, Year of construction: 2010, total height: 2,580 mm, total length: 5,500 mm, total width: 1,500 mm, Weight: 1.500 kg - Year: 2010 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: 161/1-10 - Number of units [pcs]: 7 - └ 1st unit type: Pre-milling unit - - Tools available: Yes - └ 2nd unit type: Glue unit - └ 3rd unit type: Pressure rollers - - Tools available: Yes - └ 4th unit type: Cap unit - - Tools available: Yes - └ 5th unit type: Rough milling unit - - Tools available: Yes - └ 6th unit type: Corner rounding unit - - Tools available: Yes - └ 7th unit type: Flat scraping unit - - Tools available: Yes - Voltage [V]: 400 - Current consumption [A]: 38.85 - Fuse [A]: 50 - Transport dimensions: 5500mm x 1500mm x 2580mm (l x w x h) - Transport weight [kg]: 1500kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT Gbodpeyu Tkksfx Aayot VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: used, Year of construction: 2011, total height: 1,730 mm, total length: 6,100 mm, total width: 1,440 mm, Colour: Grey Weight: 2.500 kg - Year: 2011 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: 5/1-107 - Number of units [pcs]: 9 - └ 1st unit type: Pre-milling unit - - Tools available: Yes - └ 2nd unit type: Glue unit - └ 3rd unit type: Pressure rollers - - Tools available: Yes - └ 4th unit type: Cap unit - - Tools available: Yes - └ 5th unit type: - - Tools available: Yes - └ 6th unit type: Corner rounding unit - - Tools available: Yes - └ 7th unit type: Radius scraping unit - - Tools available: Yes Godpfxjyf Dakj Aaysbt - └ 8th unit type: - - Tools available: Yes - └ 9th unit type: Flat scraping unit - - Tools available: Yes - Voltage [V]: 400 - Current consumption [A]: 21.9 - Fuse [A]: 50 - Transport dimensions: 6100mm x 1440mm x 1730mm (l x w x h) - Transport weight [kg]: 2500kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: used, Year of construction: 2009, total height: 1,700 mm, total length: 6,100 mm, total width: 1,450 mm, Colour: Cream Weight: 2.500 kg - Machine available from: 2026-01-19 - Year: 2009 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: 26 - Number of units [pcs]: 7 - └ 1st unit type: - - Tools available: Yes - └ 3rd unit type: - - Tools available: Yes - └ 4th unit type: - - Tools available: Yes - └ 5th unit type: - - Tools available: Yes - └ 6th unit type: Gjdpfx Aajx Aq Dpeyebt - - Tools available: Yes - └ 7th unit type: - - Tools available: Yes - Voltage [V]: 400 - Current consumption [A]: 39.5 - Fuse [A]: 50 - Transport dimensions: 6100mm x 1450mm x 1700mm (l x w x h) - Transport weight [kg]: 2500kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: excellent (used), Year of construction: 2010, Used machine in top condition – training machine – Year of manufacture: 2010 Digital display in Y Equipment and technical data Cutting length: 3300 mm Cutting height: 2200 mm (edge trimming height 2110 mm) Cutting depth: max. 60 mm Extraction: - Saw unit 120 mm - Lath grid 100 mm Workpiece support: - Sturdy plastic support for optimal stability, even for narrow workpieces. Gsdpozzfr Esfx Aayebt Tilting roller transport system: Manual for easy and material-friendly transport Locking: Manual, vertical and horizontal Feed: Manual, vertical and horizontal Circular saw blade: Diameter: 250 mm Saw motor: 4 kW at 5450 rpm, 400 V, 50 Hz Folding guide rail: incl. workpiece support for narrow parts with strip stop Dust extraction system in accordance with BG guidelines TRK (below 2 mg of fine dust / m³ of air) Availability: immediate Location: 54634 Bitburg - immediately available -

Condition: used, Year of construction: 2005, Second-hand machine Year of manufacture: 2005 Condition: Guide slightly worn, now only suitable for rough cutting Features and technical specifications: - Cutting length: 4,300 mm - Max. clearance height: 2200 mm - Max. trimming height: 2100 mm - Max. vertical scoring height: 2100 mm - Cutting depth: 80 mm - Motor: 5.5 kW - Saw blade speed: 4,500 rpm - Saw blade diameter: 300 mm - Extraction: 2 x 100 mm Gbsdpfx Aaezk N Hxjyot - Compressed air consumption: 60 NL/min Dimensions: 5620 x 1480 x 2990 Availability: at short notice Storage location: Flörsheim

Condition: used, Year of construction: 2011, Second-hand machine Year of manufacture: 2011 Condition: Machine fully overhauled and serviced Features and technical specifications: Feed speed: infinitely variable 10–18 m/min Edge Control 19 control system with 18.5-inch colour touchscreen Joint milling unit Edge feed Adhesive application station: Cartridge, feeler nozzle with automatic glue level adjustment Printing unit Trimming unit Multifunctional milling unit Copy milling unit Radius scraper unit Flat draw blade Polishing Workpiece thickness 6–60 mm Edge thickness 0.4–8 mm Min. workpiece width 60 mm Gbsdpfozk N Eujx Aayet Shortest workpiece length 180 mm Dimensions: 5300 x 1500 x 1600 mm Weight: 2,200 kg Location: 65439 Flörsheim Availability: at short notice

Condition: used, Year of construction: 2016, Used Machine Year of Manufacture: 2016 Condition: Overhauled by a Holz-Her specialist Features and Technical Specifications: - Base machine with manual pressure bridge adjustment - Extendable workpiece support, distance: 600 mm - FG 201 jointing unit with 2 milling heads, including 70 x 48 x 30 mm Z 2 diameter cutters - Edge feeder 1903, single-feed, automatic transport of roll and strip stock - Glu Jet GJ 301 gluing system with automatic glue height adjustment (probing nozzle) - With magazine for glue cartridges - Pneumatic pressure unit 1912-3; first roll driven with pneumatic immersion control - Trimming unit 1918, pneumatically swiveling 0–10 degrees Godpfszk N U Aex Aayebt - Multifunction milling unit 1827 MOT 4 with pneumatic package, including dia. cutters - Profile milling unit 1832 for corner copying with radius cutters - Scraper unit 1929 MOT 2 - Chip collection box - Surface scraper FK 701 - Polishing unit 1940 - New main heater - Minimum workpiece length (mm) 160 - Workpiece thickness (mm) 6–60 - Edge thickness (mm) 0.4–6 - Feed speed (m/min) 10 - Overall length (mm) 4930 - Weight (kg) 1420 Availability: available immediately Location: 63934 Röllbach

Condition: used, Year of construction: 1997, Second-hand machine Year of manufacture: 1997 Condition: well-maintained Features and technical specifications: Gbjdezk N Hrepfx Aayet Machine with PLC control Feed rate: 12/16 m/min Edge feeder for roll and strip material, automatic 1901 Glue application unit, cartridge 1906, with sensing nozzle Pneumatic pressure unit, motorised adjustment to edge thickness 1926 Trimming unit, twin-motor, pneumatically swivelling 1918 Rigid milling unit up to 30 mm, 1962 MOT 5 milling unit with multifunction capabilities: flush, radius, chamfer, 1966 Radius scraper 1927 Corner copying machine 1983 Surface scraper 1964 1944 sanding unit Blow moulding nozzles Technical specifications: Workpiece thickness min./max.: 6/60 mm Workpiece width min. 60 mm Minimum workpiece length: 140 mm Maximum gluing thickness: 13 mm Weight: 1,350 kg Machine dimensions: 5850 x 1000 x 1750 mm Location: Röllbach Availability: at short notice

Condition: used, Year of construction: 1990, Second-hand machine Year of manufacture: 1990 Features and technical specifications: - Automatic edge feeding - Cartridge gluing system - 4-roller pressure unit - Cross-cut saw unit - Flush milling unit Gedpezk N Amofx Aayobt - Combined milling unit for flush, chamfer and radius - Radius scraper blade - Sanding unit - Edge banding thickness 0.3–20 mm - Edge banding height: max. 66 mm - Edge banding length: min. 200 mm - Feed rate 8/16 or 12/24 m/min Availability: at short notice Storage location: 63934 Röllbach

Condition: used, Year of construction: 2001, Second-hand machine Year of manufacture: 2001 Condition: well-maintained Features and technical specifications: Cutting length 4,300 mm Cutting height 2,200 mm Gbedpfx Aszk Nm Ejayet Cutting depth 45 mm Motor: 3 kW Saw blade diameter 220 mm with SuperCut scoring device with automatic sliding grate Complete with length stop Includes strip stop Availability: at short notice Location: 63934 Röllbach

Condition: used, Model: HOLZ-HER 100 L-2 Cutting length: 5,300 mm Cutting height: 2,100 mm Power: 3 kW S1 / 4 kW S6 ED 40% Voltage: Y 380 V, 3~ 50 c/s Gbjdpjzt Dy Ssfx Aayjt Speed: 2840/3740/min Fully functional This saw is ideal for rough cutting. Availability: short notice Location: near Mannheim

Condition: good (used), Year of construction: 1994, workpiece height (max.): 60 mm, feed rate X-axis: 11 m/min, total length: 4,800 mm, overall weight: 1,000 kg, Edge bander HolzHer, model 1437 SE, very well equipped; cartridge adhesive station, flush trimming with two milling units, radius R=3mm, two additional units available for exchange, profile trimming, chamfering. Gedpfozzz Aajx Aaysbt

Condition: good (used), Year of construction: 1991, functionality: fully functional, power: 4 kW (5.44 HP), saw blade diameter: 315 mm, saw blade bore: 30 mm, total length: 5,200 mm, total height: 2,500 mm, overall weight: 800 kg, Equipment: CE marking, documentation/manual, saw blade guard, scorer, stationary panel saw HolzHer, model 1265 with scoring saw, cutting length 4200 x 2200 mm. Gedpfxjzzz D Rj Aayobt

Condition: good (used), Year of construction: 2010, functionality: fully functional, Used Holz-Her Cut 6120 - Year of manufacture: 2010 - Availability: End of September 2026 - Automatic cutting height adjustment - Scoring unit - Saw blade projection: 82 mm Gbedpfx Aaeziwqpeyot - Label printer - Cutting length: 4400 mm - Electronically controlled pressure beam and saw carriage for short cycles - Grooving program / motor-adjustable

Condition: used, Year of construction: 2009, 0,4-6 mm Workingpiece thickness from to 6-60 mm Total length 3516 mm Feed speed 10 m/min. Gbjdpfx Aaezy Sfcsyst Weight 850 kg

Condition: used, Year of construction: 2002, for coils and strip material from 0.4 - 15 mm max./min. board thickness 60/6 mm max. edge overhang 66 mm large magazine table, D = 820 mm transport chain with automatic lubrication blocking roller for shortest workpiece sequence safety/noise protection hoods central dust extraction connection, D = 160 mm, join milling cutters, D = 120 mm chip collection box, D = 100 mm equipped with: > Join milling cutters 1961 incl. DIA tools > memory-programmable screen control unit SPK 18000 (color screen) > Automatic edge magazine 1901 for coils and strip material > Glue station 1906 for cartridges + granules, including sensing nozzle > Pressing unit 1926, motor-driven > Saw hoods 1918 > Edge trimming unit 1920 > Radius cutter 1929 incl. chip collection box, pneumatic adjustment (separate for top and bottom) > Profile milling unit 1934 for longitudinal processing and corner copying (bottom + front edge) > Profile milling unit 1933 for longitudinal processing and corner copying (top + rear edge) > Flat cutter 1964, controlled by the application > Deburring unit 1944, incl. immersion control > Spraying device 1856 at the infeed and outfeed > Feed rate 12/16 m/min > Motor-driven bridge adjustment Gbsdpfx Asz Abppeayet > Infeed guide, motor-driven Length 7600 mm Width 1300 mm Height 2000 mm Weight 2800 kg

Condition: excellent (used), Excellent condition, only 600 operating hours, 1402 DS model. Godpfezzkh Eex Aayobt

Condition: used, Second-hand 4-roller feed unit with stand from HOLZ-HER, model ETZ, for feeding workpieces in woodworking. The machine is suitable for continuous feeding in various woodworking applications. Includes new rubber rollers. Gedpfx Aezymtzsayjbt Technical data: - Feed speed: 2–30 m/min

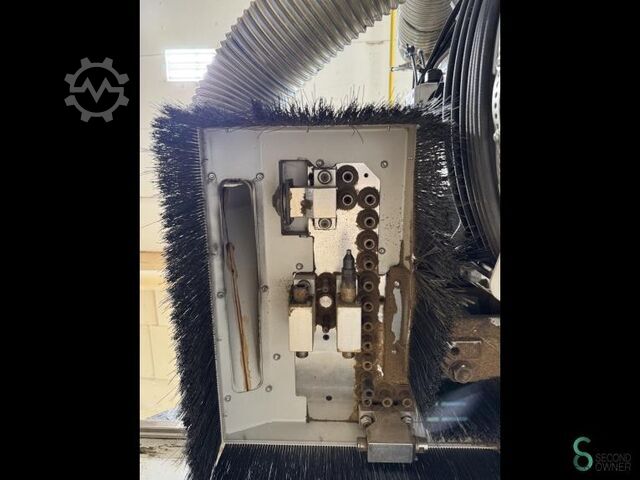

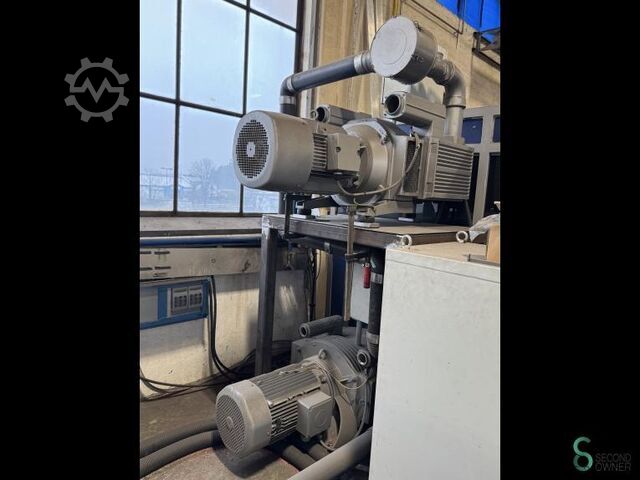

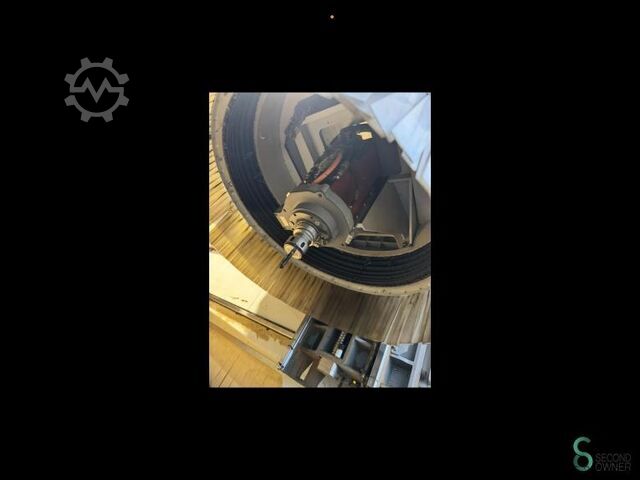

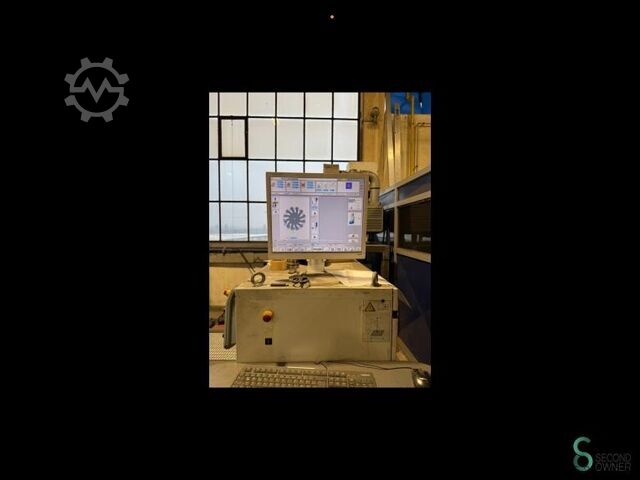

Condition: used, Year of construction: 2014, operating hours: 11,517 h, total height: 2,880 mm, total length: 10,000 mm, total width: 2,700 mm, Colour: White Empty weight: 6.000 kg - Year: 2014 - Documentation available: No - CE certificate present: No - Serial number: 070614/B/1-407 - Operating hours: 11517 - Number of milling spindles [pcs.]: 1 - └ Milling spindle 1: Gedpfox E Uk Usx Aayebt - - Number of controlled axes [pcs.]: 4 - - Main motor power [kW]: 10 - - C-axis present: Yes - Type milling table: Flat table - Drilling unit present: Yes - └ Motor power [kW]: 3.6 - └ Horizontal drill spindles [pcs.]: 6 - └ Vertical drilling spindles [pcs.]: 18 - Tool changer positions [pcs.]: 12 - System/software: TWINCAT - Safety feature: Safety mat, Enclosed fence - Vacuum pump present: Yes - └ Number [pcs.]: 2 - └ Brand: Becker - └ Year of manufacture: 2023 - └ Main motor power [kW]: 18.5 - └ Capacity [m³/h]: 600 - └ Vacuum pressure [bar]: 250 - └ Oil free: Yes - CNC documentation available: USB stick - Table length [mm]: 5150 - Table width [mm]: 1600 - Working range X [mm]: 7220 - Working range Y [mm]: 1580 - Z-axis working range [mm]: 180 - Voltage [V]: 400 - Transport dimensions: 10000mm x 2700mm x 2880mm (l x w x h) - Transport weight [kg]: 6000kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: used, Year of construction: 2019, Holz-Her Dynestic 7532 10.5 automatic CNC nesting machining center with Holz-Her Store-Master 5110 panel storage system Used machine Year of manufacture: 2019 Features and Technical Specifications: - Designed for classic nesting machining with a wear plate - Welded machine frame with ground and hardened prismatic guides for the traveling column, toolhead, and consoles - Gantry-style moving column - Rack-and-pinion drive, helical teeth, in the X and Y directions; ball screws in the Z direction for precise positioning - Machining dimensions: - Max. support area on nesting table: X = 3100 mm Y = 1560 mm - Max. travel ranges: X = 4695 mm Y = 2100 mm Z = 293 mm - Max. clearance height of DYNESTIC table Z = 100 mm from top edge of table (without wear plate) - Maximum programmable speed Vector speed: 128 m/min X = 80 m/min, Y = 100 m/min, Z = 25 m/min - DYNESTIC table: - Rigid, continuous machining table with grid markings - continuous slots in the X and Y directions - Slot spacing: 50 mm - Includes 25 meters of sealing cord for securing the wear plate - Vacuum fields: 1-circuit vacuum system - Drilling unit 7877: - 19 spindles - Drive power: 1.7 kW - 13 vertical spindles: - individually controllable - U-shaped arrangement - 5 in the X direction and 4 in the Y direction - 32 mm pitch - max. drill bit diameter: 35 mm - Total drill length: 70 mm from the mounting end (depending on panel thickness) - Spindle extension stroke: 70 mm - Rotation direction: Alternating clockwise and counterclockwise - n(max): 1000–4400 rpm, continuously adjustable - Mounting: M10 thread – 11 mm interference fit - Tool-free, without mounting adapter - 6 horizontal spindles: - 2 double drilling spindles in the X direction - 1 double drilling spindle in the Y direction - Mounting: M 10 thread, 11 mm interference fit - Total drill length: max. 63 mm from mounting end - Tool-free, without chuck Gbodpfx Aezlbrpsayjt - Milling unit 7842: - Power: 12.0 kW (S6) - n(max) = 1,000–24,000 rpm, continuously variable - Max. power at 12,000 rpm to 24,000 rpm - Air-cooled - With HSK-F 63 tool holder - With right-hand threaded nut (for right-hand rotating tools) - With collet chuck with HSK shank - Ceramic ball bearings (hybrid bearings) - Max. tool weight: 6 kg (including holder) - Tools: Milling and grinding tools, max. Ø 160 mm - Safety guarding in accordance with CE standards - Protective fencing on the sides and rear - Vacuum pump: 500 m³/h, dry-running - Operator safety via light curtains in the front area of the machine - Handheld control unit for remote control of the machine with the following operating functions: - Start/Stop of the machining program - Speed control of the machining cycles - Reset button - Manual feed/rapid traverse for all axes - Emergency Stop - CAMPUS V7 CAD/CAM software, 1 machine license consisting of: - CAMPUS NC-HOPS: - Graphical variant system with WOP and CAD/CAM features for creating part variants using macro technology - CAMPUS MT-Manager - CAMPUS Workcenter - CAMPUS DXF interface - Automatic centralized lubrication - Automatic lubrication according to defined lubrication intervals - Additional dust sealing via positive pressure in each guide carriage - Simultaneous lubrication: - for all linear guides in the X, Y, and Z directions - for all ball screws in the Y and Z di...

Condition: used, Year of construction: 2005, Second-hand machine Year of manufacture: 2005 Features and technical specifications: - Base machine 555 - Machining dimensions for contour milling: - X = 3514 mm - Y = 1544 mm - Maximum machining dimensions: - X = 3868 mm - Y = 1746 mm - Z = 325 mm - Workpiece support with 8 brackets, pneumatically clamped - Drilling unit 7968: - 18 vertical drilling spindles with 32 mm pitch Gbjdszk N Hlspfx Aayet - 12 in the X-axis and 6 in the Y-axis - available individually - T-shaped layout - max. drilling diameter 35 mm (depending on panel thickness) - Spindle extension stroke: 70 mm - Direction of rotation: alternating clockwise and anti-clockwise - n = 4725 rpm, infinitely variable - 2 horizontal drilling units in the X-direction, 1 horizontal drilling unit in the Y-direction - Sawing unit 7946: - Motor: 3.5 kW - 90° pneumatically swivelling - n = 5300 rpm - Tool holder A Ø = 200 mm, I Ø = 30 mm, B = max. 3.5 mm - Sawing/grooving in the X and Y directions - Milling unit 7935: - with 6 kW spindle, water-cooled - Milling unit 7982: - for lock case milling - Tool changer 7996: - 18-position magazine (turret) - Vacuum pump with a capacity of 140 m³/h - Handheld control unit - PC control system with TwinCAM WOP system - Siemens control system Availability: at short notice Storage location: 63934 Röllbach

Condition: used, Year of construction: 2013, Used Machine Year of Manufacture: 2013 Features and Technical Specifications: - Control system with 15-inch touchscreen - Pre-milling unit with 2 milling heads - Edge feeding unit - GluJet 301 glue application system: 2.3 kW, automatic glue height adjustment, sensing nozzle - Press unit: pneumatic - Crosscut unit: pneumatic - Diamond cutters (left and right): with CM technology - Corner copying unit with diamond cutters - Surface scraper - Sanding unit Gbedpfxszk N Dke Aayot - Extendable workpiece support - Motorized pressure bridge adjustment with NC axis via program control - Exhaust hoods for trimming unit - Multifunction milling unit: MOT 4 - Vertical feeler rollers: pneumatic - Pneumatic swivel mechanism for MOT 4 milling unit - MOT 2 planing unit with chip collection box - Spray system for the infeed and outfeed areas - Minimum workpiece length: 160 mm - Workpiece thickness: 6–60 mm - Edge thickness: 0.4–6 mm - Feed speed: 10 m/min - Overall length: 4930 mm - Weight: 1420 kg
