Used Universal Machine for sale (84,118)

Condition: used, Year of construction: 2000, grinding length 800 mm centre height 150 mm Control FANUC grinding wheel size max. 400 x 63 x 127 mm workpiece weight 120 kg engine output 7,5 kW turning speed range - grinding wheel 45 m/s m/s swivelling range +45/-15° Grad work piece spindle speed 22-313 / 51-750 U/min workpiece spindle swivable +/- 90 ° tailstock quill taper MT MK 4 x-travel 355 mm Iodsu Hag Nopfx Ah Ujbf z-travel 4,0 mm Working speed 0 + 7,5 m/min weight of the machine ca. 4,0 t dimensions of the machine ca. BTH 3,7 x 2,2 x 1,9 m -incl. Coolant system -incl. Lynette -incl. Sharpening diamond -incl. open Lynette -incl. 3 pieces of grinding discs -incl. 3 pieces of flanges -incl. Internal grinding spindle attachments

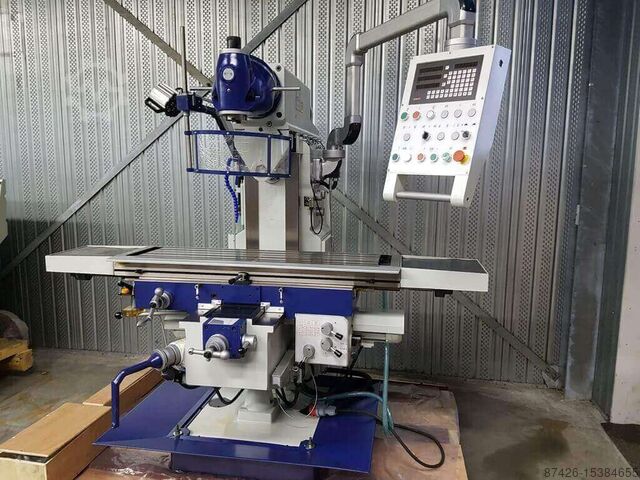

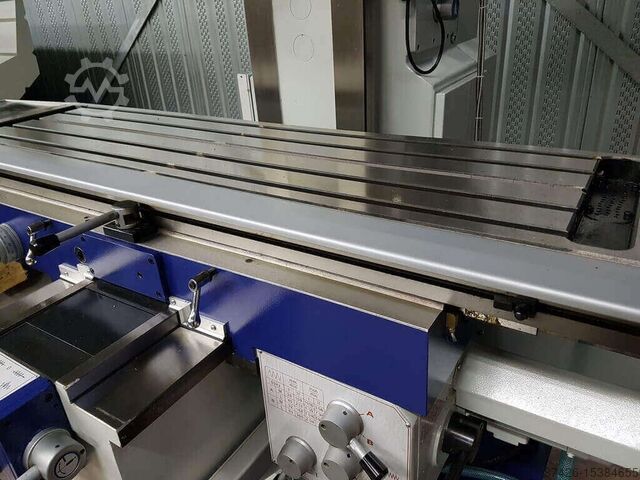

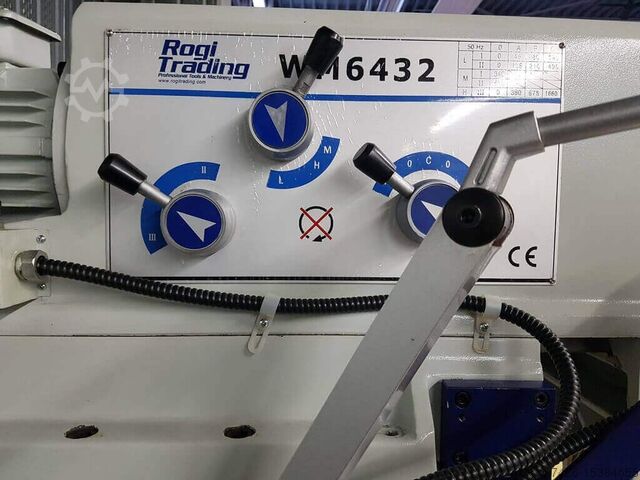

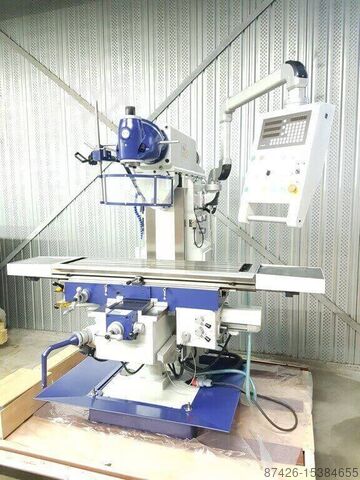

Condition: new, Drilling capacity steel ----- Ø 50 mm / (M16) Milling capacity finger cutters ----- Ø 25 mm max. Spindle milling capacity max. ----- Ø 125 mm Spindle mounting ----- ISO 40 Spindle head rotatable ----- 360 Vertical spindle speed ----- 45 - 1660 rpm (11) Distance vertical spindle table ----- 175-520 mm Traverse X axis ----- 750 mm Traverse Y-axis ----- 250 mm Traverse Z-axis ----- 400 mm Isdpfsga Twiox Ah Ujbf Number of feeds ----- 9 Table feed X axis ----- 24-402 mm/min Table feed Y axis ----- 24-402 mm/min Z axis travel ----- 660 mm/min Work table ----- 1270 x 260 mm T-slot size/number/distance ----- 14 mm / 3 / 63 mm Max. loadable weight ----- 250 kg Motor capacity ----- 2.2 KW / 400V Weight ----- 1400 KG INCLUDED * 3-axis digital readout SINO * Luxury control panel * LED lighting * Cooling system * Central lubrication * Milling cutter 32 mm * CE cover * ISO40 collet holder including collets * Various tools

Condition: used, Technical details: grinding diameter: 550 mm grinding length: 2600 mm centre height: 250 mm Ibodpfx Aew Rktboh Ujf swing diameter: 500 mm grinding wheel diameter: 750mm,Breite 80mm , Bohrung 304,8mm mm coolant device: 90 l/min weight of the machine ca.: 8,2 t dimension machine xH: 6,4 x 2,2 x 1,9 mm Final balance balancing device Tailstock with cylinder error correction Digital display X=0.001 - Z=0.01 Radius device 2-10 mm *

Condition: used, Year of construction: 1980, Technical details: x-travel: 850 mm y-travel: 280 mm z-travel: 355 mm spindle taper ISO: SK 45 / SK 45 spindle head swivable left - right: je 90° ° range of revolution per miute: 28 - 1400 / 18 step U/min distance table/horizontal spindle: min.: 60 / max.: 180 mm table surface area: 1070 x 270 mm table load: 1000 kg table swivelling +/-: je 45° Grad feed:: X+Y: 16 - 800 und Z: 5 - 250 mm/min total power requirement: 8,0 kW machine weight approx.: 3100 kg dimension machine xH: 2,1 x 1,8 x 2,15 m dimensions electric cabinet: L: 0,8 x B: 0,45 x H: 1,65 m clamping surface area: 315 x 1250 mm Horizontal beam adjustment manual 650 mm Ijdpsu Ndf Isfx Ah Uobf mounted on table: clamping head with 3-jaw chuck Ø 200 mm with inner jaws, center height 165 mm Coolant system Hand crank Milling arbor Ø 22 x 620 mm with form cutter 80 x Ø 8 mm *

Condition: used, Year of construction: 1991, Technical details: x-travel: 1050 mm y-travel: 600 mm z-travel: 650 mm range of revolution per miute: 40 - 1720 / 12 step U/min Ibedpjva Hd Rsfx Ah Ujf spindle taper: SK 50 spindle head swivable left - right: 90° re/li und 45° = 360° ° distance spindle nose and table: 0 - 600 mm table surface area: 1700 x 470 mm feed continuous: X/Y= 15 - 625 + Z= 7,5 - 312 mm rapid traverse Z-axis: 1250 mm/min. rapid traverse:: X/Y: 2500 mm/min. total power requirement: 11,1 kW weight of the machine ca.: 2500 kg machine dimensions LxWxH: ca. 2,45 x 2,0 x 2,85 m Equipment: with Huron universal milling head coolant system control panel machine feet Accessories Machine vice (jaw width 120mm) *

Condition: used, Technical details: Ibjdpfx Ahjva Hfhs Usf x-travel: 700 mm y-travel: 250 mm z-travel: 200 mm spindle taper ISO: SK40 range of revolution per miute: Spindel 32 - 2000 / 18 step U/min spindle head swivable left - right: 90 ° table surface area: 1000x400 mm weight approx.: k.A. kg dimension machine xH: 1,6 x 1,2 x 1,9 m with vise *

Condition: used, Year of construction: 1982, Technical details: grinding diameter: 350 mm grinding length: 1000 mm centre height: 225 mm grinding length: max. 1600 mm centre distance: 1540 mm Iedpfxow Rktzs Ah Ujbf spindle bore: 38 mm max. swivability: 90 ° weight of the machine ca.: 6,0 t dimension machine xH: 4,4 x 2,45 x 2,3 mm Machine with CNC package and DFU connection Multi-range measuring head for interrupted surface Tailstock with cylinder error correction Final balance balancing device *

Condition: used, Year of construction: 2004, Technical details: x-travel: 1500 mm y-travel: 1000 mm z-travel: 1000 mm control for program: TNC 530 spindle hours: noch nicht bekannt h milling head speed: 1: 30 bis 930 und 2: 930 bis 4000 / steples U/min tool taper: horiz./vertical: SK 50 (DIN 69871/Din 69872 Form A) max. torque on the spindle: 1000 Nm spindle head swivable left - right: 90 ° feed: 1 - 6000 mm/min feed power: 30 kN kN rapid traverse: 15 m/min Number of tools: 1 St. table clamping surface LxW: 1600 x 800 mm table load: 40 kN kN voltage: 400 V / 50 HZ V total power requirement: 42 kW Weight approx.: 15,2 t dimension machine xH: 3,1 x 4,7 x 2,6 m dimensions: Kühlfilter: 1,9 x 1,6 x 1,4 mm space requirements approx. LxWxH: ca. 38,5 m² m² compressed air: 6,3 bar Ibsdpfou Nc Rijx Ah Uof Applications: Milling, drilling; tapping, boring. with direct coded length measuring systems the guideways of the 3 axes are on flat guideways CTS and external cooling Milling head position controlled +/-90° milling spindle nominal drive power 22 kW with integrated hydraulic power unit up to 100bar operating pressure with coolant unit with filtration, with high pressure pump 60 bar (internal cooling), nominal delivery 20 l/min. and low pressure pump 4 bar (external cooling) as well as spray gun Hinged belt chip conveyor DGS, type SSF 600 P50 Accessories: Measuring probe SK40 Reference tool SK40 Milling head SEMPUCO *

Condition: used, Year of construction: 1996, Technical details: x-travel: 600 mm y-travel: 450 mm z-travel: 400 mm control: Heidenhain TNC 425 spindle taper ISO: SK 40 DIN 69871 quill stroke vertical: 75 mm distance between column - table edge: 190 (fest) vertikal mm spindle head swivable left - right: 90° Vertikal-Spindel ° distance between table/spindle: min./max.: 165/565 Vertikal-Spindel mm distance between table/spindle: min./max.: 165/565 Horizontal-Spindel mm turning speed range: 20 ... 4500 U/min tool changer with: 32 tools (Typ HTC 32) feed:: 1 ... 5000 mm/min Table dimensions: 850x440 mm table swivelabel +/-: nein = starr ° table load: 500 kg total power requirement: 15 kW weight approx.: 3500 kg dimension machine xH: 2,5 x 3,0 x 2,1 m dimensions electric cabinet LxWxH: 1,6 x 0,6 x 1,7 m Universal Milling and Drilling Machine Equipment: - cooling tank capacity 100 litres, flow rate 16 l/min Iedpfxou Nc T Ro Ah Ujbf - control panel with jib length arm - hand wheel control unit - 8 pieces machine base The machine can be demonstrated under power. i.D. *

Condition: used, Year of construction: 1992, Technical details: x-travel: 600 mm y-travel: 400 mm z-travel: 420 mm spindle taper ISO: SK 40 control: Heidenhain TNC 360 quill stroke vertical: 75 mm turning speed range: 20 ... 4000 U/min spindle head swivable left - right: 90° links / rechts ° feed:: X/Y/Z: 1...6000 mm/min. feed:: X/Y: 7 m/min. + Z: 6 m/min. Table dimensions: 900 x 460 mm table load capacity: 400 kg weight approx.: 2300 kg dimension machine xH: 4,0 x 3,8 x 2,0 m total power requirement: 13 kW Equipment: - separated production cell Iedsu Nc U Iopfx Ah Uebf - coolant system - control panel with swivel-mounted boom - measuring probe SK 40 Heidenhain TS 120 - oil collecting basin *

Condition: used, Technical details: x-travel: 200 mm y-travel: 450 mm z-travel: 460 mm control: Siemens 802S base line spindle taper ISO: ER 32 Ibodpou Ndcaefx Ah Uof spindle head swivable left - right: nein ° turning speed range: 150 - 8600 U/min feed:: X/Y/Z: 2000 - stufenlos mm/min table surface area: 750 x 210 mm interface: 232 total power requirement: 3 kVA weight approx.: 760 kg dimension machine xH: 1,9 x 1,2 x 2,1 m Table movement: X-axis: 200mm and Y-axis: 450mm spindle vertical Z-axis: 460mm max. tool holder milling cutter: Ø 20mm drilling capacity ST: Ø 13mm max. distance spindle-table: 470mm Equipment: Manual control unit cooling system central lubrication machine interior lighting Machine feet *

Condition: used, Year of construction: 1970, Technical details: x-travel: 1000 mm y-travel: 320 mm z-travel: 350 mm spindle taper ISO: MK4 / SK50 Ibjdpfsu Ndgfex Ah Uef spindle head swivable left - right: 90 ° Distance rear edge of table to column guideway: min.: 45 / max.: 365 mm throat: 270 mm distance spindle center to table: min. 50 / max. 400 mm range of revolution per miute: 31,5 - 1.600 / 18 step U/min feed:: 25 - 1120 horizontal und 8,3 - 416 vertical mm/min rapid traverse : 3000 horizontal / 1000 vertikal m/min clamping surface area: 1340 x 320 mm machine weight approx.: 3000 kg dimension machine xH: 2,2 x 2,8 x 1,7 m Coolant system 2x counter bearing arbor holder Ø 18 / Ø 60 mm and other accessories in the tool cabinet. i.D. *

Condition: used, Year of construction: 1976, Technical details: x-travel: 815 mm y-travel: 400 mm Ibjdju R Uk Rspfx Ah Ujf z-travel: 410 mm range of revolution per miute: 67 - 2300 / 8ste U/min feed continuous: 0,04; 0,08; 0,2 mm/U quill stroke vertical: 130 mm spindle taper: SK40 spindle head: drehen: 90° links/rechts spindle head: ausfahrbar: 315 mm spindle head swivable left - right: 40° vor / zurück ° distance spindle nose and table: max. 450 mm distance spindle center to column: min./max.: 170 / 600 mm table surface area: 1120 x 255 mm total power requirement: ca. 1,17 kW weight of the machine ca.: 1100 kg machine dimensions LxWxH: ca. 1,7 x 1,6 x 2,2 m dimensions of hydaulic: L: 550 x B: 330 x H: 800 mm Machine table feed 15 - 230 mm/min. via 12 steps Equipment: Sauter workpiece holder with 2 stations (Ø 125 mm and Ø 32 x 26 mm journals), hydraulic operation Coolant system Control panel; hand crank *

Condition: used, Year of construction: 1989, Technical details: x-travel: 300 mm y-travel: 300 mm z-travel: 400 mm control: Contour 3 Bahnsteuerung spindle taper ISO: SK 40 spindle head swivable left - right: 90 ° quill travel: 60 mm range of revolution per miute: 40 - 4000 / 21 step U/min feed:: 2 - 3600 mm/min rapid traverse : 4000 mm/min Table dimensions: 620 x 390 mm Ibsdpou Nc Twofx Ah Uef clamping table: Winkeltisch mm table load: 0,45 t total power requirement: 12,5 kVA machine weight approx.: 1400 kg dimension machine xH: 1,5 x 2,1 x 2,0 m dimensions electric cabinet: 1,8 x 0,8 x 1,1 m Operation via control panel Grundig electronic with extension arm equipment: - cooling with pump - manual-control unit with steering wheel - machine illumination Machine can be demonstrated under power. *

Condition: used, Technical details: travel -y axis: Schlitten auf Balken: 200 mm spindle taper ISO: SK 40 spindle head swivable left - right: je 90° ° quill stroke: 80 mm turning speed range: 90 - 900 / 5 step U/min distance table - lower edge spindle: min./max.: 50 / 400 mm table surface area: Anbaufläche:760 x 200 mm table surface area: Spannfläche: 630 x 200 mm max. table load: 100 kg x-travel: Tisch längs: 320 mm z-travel: Tisch vertical 350 mm table swivelabel +/-: re/li je 30° distance table - lower edge spindle: min./max.: 50 / 400 mm feed:: Tisch: stufenlos 14 - 71 mm/min total power requirement: 4,0 kW weight approx.: 1.200 kg dimension machine xH: 1,3 x 1,5 x 1,8 m Equipped with Heidenhain DRO for X and Y travel Iedpfxsu Ndb As Ah Uobf Swiveling work spindle The feed works via variator gear. The table is swivelable. Spindle speeds operate in 3 levels via gears and in 2 levels electrically. Cooling device diverse tool holders SK40 Der Fräsbalken ist um ca. 350mm ausfahrbar. The machine vise is not included in the delivery scope (see picture), but can be purchased additional! *

Condition: used, Year of construction: 1998, Technical details: x-travel: 820 mm y-travel: 280 mm z-travel: 410 mm spindle taper ISO: SK 40 distance table/horizontal spindle: min. 30 / max. 440 mm cross rail adjustment - horizontal: 650 mm range of revolution per miute: 40...2000 / 18step U/min swival range +/-: bei 90°: 360° und bei 45°: 360° Grad clamping surface area: 1120 x 250 mm table swivable approx.: 45° rechts / links feed:: X/Y: 12,5 - 830 + Z: 5,2 - 260 mm/min rapid traverse: X/Y: 2500 und Z: 1040 mm/min. total power requirement: 10 kW machine weight approx.: 2000 kg dimension machine xH: 2,2 x 1,8 x 1,7 m Ausstattung: 2x Gegenlager Ø 55mm Ibjdpfx Ahsva Ei So Uof Kühleinrichtung: Pumpe und Zuführung Bedienung über 3-Wege Messsystem ACU-Ride und Bedientafel Maschinenfüße *

Condition: used, Technical details: x-travel: 600 mm y-travel: 300 mm z-travel: 360 mm range of revolution per miute: max horiz. 40- 2000 U/min spindle taper: vert. / horiz. SK 40/ SK40 range of revolution per miute: max zul. 40 - 2000 U/min feed:: 2-3600 mm/min quill travel: 80 mm Table dimensions: 810 x 420 mm total power requirement: 3 KVA machine weight approx.: 1300 kg Ibodpfx Asu U E T Ijh Uef dimension machine xH: 1,8 x 1,35 x 1,95 m Milling machine with shaping head joint length 32-80mm with 10 x double strokes, 24-285 strokes/min Heidenhain 3-axis displays *

Condition: used, Year of construction: 1975, Technical details: x-travel: 300 mm y-travel: 350 mm z-travel: 350 mm quill stroke vertical: 60 revolution per minute: 40 - 2000 U/min feed:: 12,5 - 500 / 18 step mm/min. tool taper: SK 40 headstock adjustment: schwenkbar 90° rechts/links mm headstock adjustment: Y-Weg: 175 mm table surface area: 600 x 285 mm distance spindle nose and table: min./max.: 50 / 400 mm distance spindle center to column: min./max.: 170 7 345 mm total power requirement: 1,6 kW weight of the machine ca.: 0,8 t dimension machine xH: 1,4 x 1,1 x 1,7 m Spindle vertical tool holder SK 40 Quill stroke 60 mm Speed 40 - 2000 rpm with 18 transmission steps Spindle horizontal Tool holder SK 40 Speed 40 - 2000 rpm with 18 transmission steps Equipment: 3-way display Heidenhain Ibsdpfxeu T Navo Ah Uof Coolant system *

Condition: used, Technical details: balancing body max.: 800 kg balancing body diameter: 1250 mm Balancing revolution per minute: 190 - 3600 U/min bed length: 2600 mm voltage: 380 V/Hz drive power: 7,5 kw Weight approx.: 1,5 t dimension machine xH: 3,5 x 1,7 x 2,0 m dimensions electric cabinet: B:650 x T:250xH:800 mm Horizontal balancing machine The balancing machine is used to measure and balance the static or dynamic unbalance of rotors. Isdpju Upp Tefx Ah Uobf Balancing body weight max. 800 kg with equal load distribution, i.e. 400 kg per bearing pedestal Power transmission by means of cardan shaft Bearing journal Ø min./max.: 16-95 / 95-180 mm Bearing distance center distance min. 125 mm and shaft end bearing center max. 2070 mm Measured speed: 1st gear = 190 - 650 rpm. 2nd gear = 400 - 1250 rpm 3rd gear = 700 - 2100 rpm. 4th gear = 1200 - 3600 rpm. 2 pick-up blocks whose displacement is manual over the entire bed Schenk measuring device with digital display and some accessories, e.g. many rotor shafts with different Ø and different rotor mounts, please ask! *

Condition: used, Year of construction: 1996, Technical details: x-travel: 600 mm y-travel: 450 mm z-travel: 400 mm tool taper: IBAG SKI 25 control: Heidenhain TNC 425 quill stroke vertical: nicht bekannt mm turning speed range: 2400 - 24.000 U/min feed:: 1 ... 5000 m/min m/min table surface area: 850 x 440 mm table swivelabel +/-: starr ° table load: 500 kg tool holder / places: 32 places für IBAC SKI 25 weight approx.: 3600 kg dimension machine xH: 2,5 x 3,0 x 2,1 m dimensions electric cabinet: L:1550 X B:550 x H:1700 mm Universal Milling and Drilling Machine - with IBAG high frequency spindle type HF 100A-30/24 - milling spindle taper Tool taper IBAG SKI with IBAG tightening bolt - cooling tank, capacity 16 l/min and 100 litre capacity Ibodpfeu Nc Uhsx Ah Uef Accessories: - 3-D push-button Heimer - Vertical head Hermle - Tool holders according to availability i.D. *

Condition: used, Year of construction: 1984, Technical details: Isdpou Ndcyofx Ah Usbf x-travel: 950 mm y-travel: 255 mm z-travel: 250 mm spindle taper ISO: 40 / MK 4 range of revolution per miute: 45 - 2000 / 12 step U/min headstock swivable +/-: 90° vertikal = 90° rechts/links ° headstock swivable +/-: 45° vertical = 90° rechts/links ° feed:: (table) Tischvorschub: X/Y: 16 - 132 mm/min feed:: (table) Tischvorschub: Z: 8 - 66 mm/min clamping table: 1200 x 300 mm total power requirement: 5,4 kW kW machine weight approx.: 1,7 kg dimension machine xH: 1,6 x 2,0 x 2,0 m The spindle head can be swung out. Equipment: with coolant system with cooling water collecting tray Accessories div. milling cutters and milling shafts (comparable in the photo) *

Condition: used, Year of construction: 1977, Technical details: x-travel: 450 mm y-travel: 200 mm z-travel: 400 mm spindle taper ISO: SK 30 distance table/horizontal spindle: max. 400 mm cross rail adjustment - horizontal: 400 (manuell) mm range of revolution per miute: horizontal: 30 - 1275 / 18 step U/min spindle taper: horiz.+vertikal: SK30 distance between table/spindle: vertikal: max. 430 mm quill travel: 60 mm swival range +/-: 90° Grad range of revolution per miute: Vertikalspindel: 50 - 215 / 18 step U/min clamping surface area: 860 x 240 mm table swivable approx.: 45° feed:: 0 - 1.000 / steples mm/min rapid traverse: 2.000 mm/min. total power requirement: 6,0 kW machine weight approx.: 3100 kg dimension machine xH: 1,6 x 1,6 x 1,9 m Coolant device 3-way DRO Heidenhain control panel Ibodpfx Ahevc Awfj Uef Accessories see photo *

Condition: used, Year of construction: 1992, Technical details: x-travel: 800 mm y-travel: 550 mm z-travel: 500 mm spindle taper ISO: SK 40 control: Philips 532 quill stroke vertical: 80 mm turning speed range: 0-600 und 600-4000 steples U/min feed:: 1 - 3000 mm/min. rapid traverse: 6 m/min table surface area: 1100 x 600 mm table feed: 1 - 3000 /stufenlos mm/min switched on hours: 82194 h total power requirement: 9,6 (12 kVA) kW weight approx.: 4200 kg dimension machine xH: 2,9 x 2,2 x 2,5 m The machine is located in the technical department. further technical data: - vertical adjustment table (z-axis) 500mm - Headstock throat depth: min./max.: 200 / 750 mm Equipment: Ijdpfx Ahju Nda Ee Uebf -coolant tank with pump -Manual control unit (hand operated) -linear measuring system Heidenhain *

Condition: used, Year of construction: 1985, Technical details: Ibodou Ndcmepfx Ah Usf x-travel: 485 mm y-travel: 385 mm z-travel: 380 mm control: Contour 1 Bahnsteuerung spindle taper ISO: SK 40 spindle head swivable left - right: 90° ° quill travel: 80 mm milling head vertical adjustable: 150 ( y-Achse) mm range of revolution per miute: Spindel vertical: 50 - 2.500 / 18 step U/min feed:: X/Y/Z: 2 - 1000 steples mm/min rapid traverse : X/Y/Z: 2000 mm/min revolution per minute: horizontal: bis 1.000 U/min Table dimensions: 460 x 800 mm table load: 0,4 t total power requirement: 9,5 kVA machine weight approx.: 1900 kg dimension machine xH: 2,35 x 2,2 x 2,0 m -Equipment: - Operation via control panel Grundig elektronic with boom - Cooling with pump - machine lighting - Linear interpolation, circular polarization in XY and XZ planes - quick chuck - manual control unit *

Condition: used, Year of construction: 1977, Technical details: x-travel: 1050 mm y-travel: 500 mm z-travel: 500 mm spindle taper ISO: SK40 spindle head swivable left - right: 90 ° quill travel: 180 mm range of revolution per miute: 36 - 1800 / 18 step U/min feed:: X+Z: 0,3 - 1800 mm/min Ibjdpfx Aeu Ndd Reh Usf feed:: Y: 0,3 - 900 mm/min. rapid traverse : X/Z: 1800 / Y: 900 mm/min table surface area: 1200 x 550 mm total power requirement: ca. 10 kW machine weight approx.: 4400 kg dimension machine xH: 3,1 x 2,5 x 2,2 m Console design with tilting, tilting and swiveling table, as well as adjustable vertical milling head. Machine with 3-axis digital readout (with resolution 0.01mm) with feed and individual drive of all three axes stepless feed X-axis: Support lengthwise = 700mm; univ. milling table lengthwise 350mm = total lengthwise: 1050mm Accessories: Comparable with the pictures *
