Used Wintersteiger Jack 150 for sale (7)

Condition: used, Year of construction: 2019, functionality: fully functional, machine/vehicle number: AN2018080, total length: 12,860 mm, total width: 4,806 mm, type of input current: three-phase, input voltage: 400 V, feed length X-axis: 3,000 mm, working width: 350 mm, power: 25 kW (33.99 HP), TRC 1500 – Timber Repair & Cosmetic Machine Technical Description • System Overview • Process Workflow System Overview The Wintersteiger TRC 1500 is a fully automated industrial system designed to detect, repair defects in wooden boards. It combines advanced 3D scanning, high-pressure thermoplastic injection technology to deliver consistent, high-quality repairs at production speed. Defects are repaired with thermoplastic filling material using injection and application units. No filling material is wasted thanks to the precise calculation of the filling quantity and precision injection. the edges can also be filled. Key Features • Automated 3D laser triangulation defect detection • High-pressure thermoplastic injection for durable repairs • Precision finishing unit for cosmetic perfection • Independent melt temperature zones with 8 kg tank • Closed glycol-water cooling system for controlled solidification • Ethernet-based control system with remote maintenance • Unlimited product profiles and intuitive scanner interface Product Range (Workpiece Specifications) Length 500–3000 mm Width 100–350 mm Thickness 3–30 mm Production speed upto 10 m/min – depending on number and sizes of defects Filling System – Injection & Application Units • Injection Unit: • 3-axis positioning (X/Y servo-driven, Z pneumatic) • Pressure-regulated melt feed • High-pressure injection • Application Unit: • 3-axis control • Fine finishing of repaired areas Faulty Spot Eye Scanner • 3D laser triangulation and high-speed camera system. • Detects defects from approx. 1 mm depth • Automatic height adjustment • 2D + 3D measurement • Adjustable parameters for wood types Melting Unit • 8 kg tank • Independent temperature zones • Integrated piston pump for constant pressure Cooling Unit • Closed glycol-water circuit • Stable temperature control Control System Gsdpfjx Dmdhex Afwstt • Ethernet-based communication with remote maintenance • Access to PLC, scanner, servo drives • Energy-efficient regenerative drive technology Scanner Software • Processes 3D light-section profiles • Calculates defect volume and coordinates • Unlimited product programs • Intuitive operator interface High-Pressure Injection Process 1. Melting of thermoplastic material 2. Pressure and temperature regulation 3. Targeted injection into defect 4. Immediate cooling 5. Minimal surface residue • Benefits: • Low material usage • Excellent adhesion • No alteration of surrounding wood structure System Architecture • Melting unit • Heated hoses • Injection head • Cooling plate • Cooling unit with supply/return flow

Year of construction: 2009, operating hours: 1,629 h, condition: excellent (used), functionality: fully functional, Technical Description – Wintersteiger DSG Sonic Gtodpex Avzyjfx Afwot Main Features: - Designed for thin-cutting of boards and panels in lamella/parquet production. - High-precision blade guidance without tolerances (no "play"), ensuring improved cutting accuracy. - Symmetrical saw frame construction provides uniform blade tensioning. - Revolutionary drive concept with servo-controlled precision feed. - High stroke frequency of the saw frame: 550 strokes/minute. - Modular and ergonomic design: split construction for easy access and simple maintenance. DSG Sonic — Maximum element cutting height: - For 380 mm saw: cutting height 30–88 mm (or 45–88 mm, depending on configuration) - For 420 mm saw: cutting height 30–128 mm (or 45–128 mm) - For 500 mm saw: cutting height 80–210 mm (or 45–210 mm) - For 550 mm saw: cutting height 80–254 mm (or 45–254 mm) Machine specifications and requirements: - Machine weight (basic unit): approx. 3,000 kg - Dust extraction/exhaust: two connections required — Ø 120 mm and Ø 150 mm; extraction capacity: approx. 3,200 m³/h (air velocity ~ 30 m/s). - Compressed air pressure: minimum 6 bar; air consumption: approx. 200 l/min. - Lubrication: central lubrication system with guideway monitoring. - Machine year: 2009 - Operating hours: 1,629 - Condition: very well maintained.

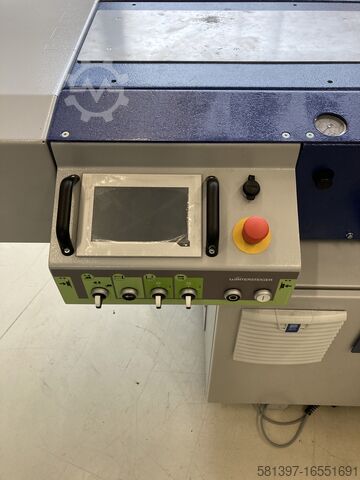

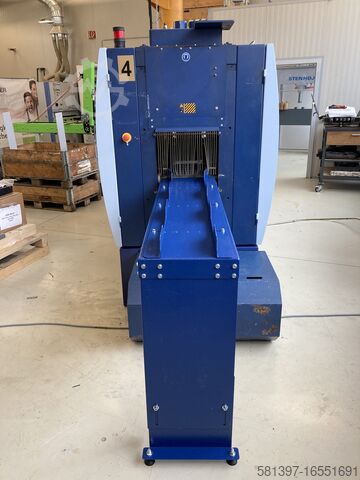

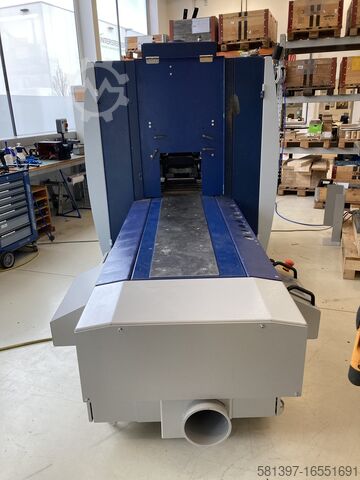

Condition: refurbished (used), Year of construction: 2002, operating hours: 23,000 h, functionality: fully functional, machine/vehicle number: GSO-1513, total length: 3,840 mm, total width: 1,230 mm, total height: 2,600 mm, type of input current: AC, input voltage: 400 V, feed rate X-axis: -2,000 m/min, working width: 200 mm, warranty duration: 12 months, power: 29.5 kW (40.11 HP), DSG-200 for slat production Machine has been completely overhauled and brought up to date in terms of control technology - this guarantees the supply of spare parts. Very robust machines - feed system is controlled by servo motors. Machine is equipped with 2 saw frames - transport system channel or side center ruler module Gtsdpst Hd Enjfx Afwjt Cutting height - 250mm Saw blades, machine and service from Wintersteiger

Year of construction: 2006, condition: used, - cutting height (mm): 200 Godpfsm E Uf Asx Afwjtt - Cutting width (mm:) 200

Year of construction: 2009, operating hours: 214 h, condition: like new (used), functionality: fully functional, Thin-Cutting Frame Saw DSG Sonic – Wintersteiger Model / Type: DSG Sonic Year of Manufacture: 2009 Condition: EXCELLENT, only 214 operating hours Technical Specifications 🔹 Cutting and Block Parameters: - Feed speed: approx. 1.7 m/min - Saw frame stroke: 210 mm - Stroke frequency: approx. 550 strokes/min - Cutting heights depending on saw length: - Saw length 380 mm: Cutting height 30–88 mm (with Air Jet and magazine), 45–88 mm (with double planer) - Saw length 420 mm: Cutting height 30–128 mm, 45–128 mm - Saw length 500 mm: Cutting height 80–210 mm, 45–210 mm - Saw length 550 mm: Cutting height 80–254 mm, 45–254 mm - Block lengths: - Basic machine: +185 mm - With magazine: 250–1700 mm - With double planer: +250 mm - Block height variation: ±0.5 mm - Cutting width with side fence: 140 mm 🔹 Additional Technical Data: - Cutting width with center fence: 2 × up to 60 mm - Optional channel width: 2–4 × 15–60 mm - Minimum lamella thickness (depending on wood type and cutting height): >1.5 mm - Kerf thickness (material loss): from 0.9 mm Blade lifespan (depending on wood): approx. 40 hours 🔩 Machine Weight: Basic unit: 3000 kg 🔉 Noise Levels (hearing protection required): At 1 m from the machine: - Idle: 97 dB(A) - Cutting: 99 dB(A) At the operator's workstation: - Idle: 85 dB(A) - Cutting: 88 dB(A) 🌬️ Extraction and Compressed Air Requirements: Dust extraction: Two connections: Ø 120 mm and Ø 150 mm Capacity: 3200 m³/h (30 m/s) Compressed air: - Minimum pressure: 6 bar - Consumption: 200 l/min Lubrication: Centralized system with guide monitoring ⚡ Electrical Data: Gsdpfx Ajw Dp Ufjfwjtt - Power supply: L1, L2, L3 + PE - Power cable cross-section: up to 16 mm² - Control cable: 2 × 1.5 mm²

Year of construction: 1999, condition: used, The DSG 200 vertical sawmill is an ideal option for carpentry shops specializing in furniture and wood flooring, it is efficient and performs effectively. A used Wintersteiger mini wood sawmill is a very good investment, a big plus of this machine is that it doesn't take up as much space as standard devices of this type, and at the same time it is great for processing raw material. It is used for cutting individual pieces and fitting them to the appropriate size. Operation of this device is not particularly complicated and can be learned quickly. The biggest advantage of our sawmill is its rich equipment, which includes, first of all, a saw sprinkler system, controlled from the panel, which allows precise cutting of wet raw material. It has an independent control for adjusting the height of the upper rollers, which makes it possible to set the height of cut faster. Pneumatic pusher to assist the feed TECHNICAL DATA: -Total power 27.3 kW -Air Jet system motor 2.3 kW -Siemens control panel -Propulsion up to 2m/min -Stroke of traction frame 210 mm -Stroke count 400/min -Cutting height, continuously (steplessly) adjustable on our frame 45-250 mm -Maximum cutting height possible is 400 mm ! -Cutting width with side pressure 80-205 mm -Block length min. 250 mm -Lam thickness from 1.5 mm - depending on the type of wood and cutting height -Blades used : 0,9-1,1 mm -depending on cutting height -Length approx. 5000 mm -Width approx. 1300 mm -Height approx. 2600 mm -Weight : 5000 kg Pneumatic pusher to assist the feed We add to the machine: -complete large saw frame , -small saw frame, -frame pins, -clamps for stretching the frame, -saw attachments, -wet cutting saws, -dry cutting saws , -a set of top pull rollers, - 4 pcs of bottom pull rollers, Gtsdpotvm Hdofx Afwjt -complete sliders, -frame yokes, -pocket cutting guides , -loading magazines, -DTR documentation -electrical diagram

Condition: like new (used), Year of construction: 2019, functionality: fully functional, Micro Grinder HT BSB 2019 (used). The machine has seen very little use. It has 30 operating hours. Band Saw Blade Sharpening Machine with Wet Grinding Unit Gtjdsxcf H Sepfx Afwet Machine voltage: 3x380-415V/50Hz Each saw blade is sharpened individually. However, the through-feed grinding system enables time-saving and precise sharpening of the saws. The advancement of the saw blade takes place directly at the saw tooth, compensating for minor errors in the saw blade and saving valuable stellite. The very robust grinding spindle and blade clamping allow a clean, fine grinding pattern with minimal grinding wheel wear. Easy switching between the built-in bow tooth and pointed tooth cams is possible. Blades of varying thickness can be easily centered using the integrated dial gauge. The wet grinding unit ensures an especially fine finish and preserves the grinding wheel, with the tank integrated into the machine base. Technical data: - Grinding wheel diameter: 150 mm - Tooth pitch: 5 – 25 mm - Tooth height: 3 – 15 mm - Blade width: 50 – 80 mm - Blade length: any - Feed rate: approx. 25 teeth/min - Grinding time: approx. 10 min/band - Grinding motor: 0.65 kW - Feed motor: 0.12 kW - Weight: approx. 280 kg
