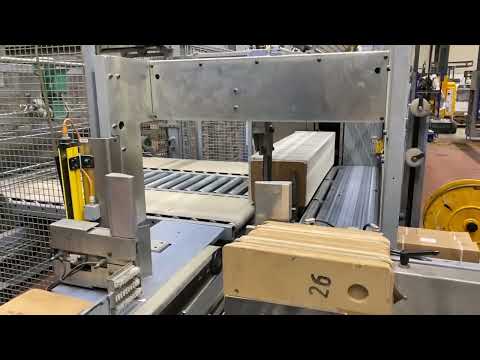

Log stacker with palletizer

RECMI HD 1200

Year of construction: 2002, condition: good (used), bar length: 600 - 1.200 mm Sheet size: max 490 x 320 mm; min 220 x 150 mm Mechanical cycle time: min 24 s Effektive cycle time: min 30 s infeed height: adjustable 250 - 550 mm Log delivery height: 1.150 mm Paper weight (grammage): max 40 - 130 g/qm Electric supply: 400/50 V/Hz/A Air requirement (6 bar): 5 m³/h Weight: 4.100 kg (approx.) Equipment delivery Gedpfjq Ul S Tjx Ab Ujkf • delivery left • automatic wood inserter palletizer • pallet dispenser • transport rollers

Year of construction: 2006, condition: used, Gaemmeler KL 540 Compensating Stacker with attached blocking device VM 500 The compensating stacker KL 540 is equipped with the proven Gaemmerler LiftPack technology. The KL 540 is suitable for bundle heights up to 300 mm. Nummerous options allow to meet the individual customer requirements. Condition: cleaned and ready for production Technical Data: Cycle time ≥ 1,5 sec. (depending on the copy) ≥ 1,2 sec. with Servo pusher (depending on the copy ) Pagination 4 – 96 Heatset / Gravure Formats A 105 – 330 mm (with rear-eject 105 – 310 mm) B 140 – 500 mm Gedpfjh Nrh Uox Ab Uskf D max. 560 mm Layer height max. 200 mm Bundle height max. 300 mm Weight: 1.500 kg approx. Gaemmerler VM500 blocking unit Cycle time: (approx. 6.7 sec) per pack with a pack height of 300 mm and a blocking time of 2 sec. The cycle time per pack increases when the blocking time is increased and the pack height is reduced. The cycle time is also strongly influenced by the output speed of the compensating stacker and thus by the product (surface, format). Sizes: Width: 140 to 500 mm - 5.5" to 19.7" Length: 105 to 330 mm - 4.13" to 13" Pile height: 55 to 400mm - 2.16 to 15.7" Inlet height: 890 mm - 35" Outlet height: 890 mm - 35" Connected load: 16A (2KW, 380/480 Volt, 3 phases, neutral) Air requirement: 1000 standard l/min, 6 bar; unoiled, dry air Weight: approx. 500 kg

Condition: good (used), Size max 510 x 305 x 60 mm Size min 140 x 100 x 3 mm Cover size max 642 mm Cover size min 203 mm Speed max 12.000 c/h Gedsd R Ecpepfx Ab Uekf Equipment gathering machine • 18 stations • 18 feeders 3661-210 SF intermediate elements • spiral race away • jogging element perfect binder • 25 clamps • clamp pitch 24" • milling and roughening station • hot melt spine gluing unit • hot melt side gluing unit • premelter • SF stream cover feeder • SF cover nipping and pressing station • lay down device

Condition: used, Year of construction: 1989, Sammelhefter / Saddle Stitcher Müller Martini 335Year 1989 7 Feeder Type 306 Umschlaganleger / Cover Feeder Type 344.0400 Heftstation / Stitching unit Bravo Plus Typ 335.0401 Dreischneider / Three Knife Trimmer 890.8400 Kreuzleger / Compensating Counter Stacker 2 Compressors - Manuals all included Online-Video-Inspection by Skype-Video We would be very pleased with your visit - more machines on Stock Available Immediately - Can be inspect On Stock Emskirchen / Nürnberg - Can be test Gkedpfxeq Rhx So Ab Uef

Condition: good (used), Shrink tunnel from a German manufacturer: Gkedoh U A I Rspfx Ab Usf -Tunnel opening approximately 500 x 200 mm. -Temperature adjustable up to 250 degrees and transport speed up to 25 m / min. -Choice of fixed or co-rotating tunnel bars. -By means of deflectors, the hot air streams at the top and in the middle can be adjusted separately. -Bottom air can be switched on separately. -The machine can be pushed or fixed in place by means of lockable castors.

Year of construction: 2001, condition: ready for operation (used), Built in 2001 Gkodedyky Tjpfx Ab Uef Size min 102 x 152 x 7 mm max 320 x 470 x 64 mm Speed max up to 15.000 Prod./h Table height 876 mm

Year of construction: 1999, condition: good (used), Built in: 1999 Capacity (A4 stacks packaged): max 20 - 24 Pakete/min Gkododym Srjpfx Ab Uof Capacity ( A4 stacks loose): max 16 - 20 Pakete/min Pallet height (incl. pallet): max 1.600 mm Pallet size : max 1.200 - 1.200 mm Size: max 420 x 307 x 320 mm Size: 148 x 110 x 50 mm Equipment: • infeed and buffer section • turntable • infeed table • automatic palletizer • roller track for full pallets • intermediate cardboard slip sheet hopper • pallet dispenser

Condition: good (used), Year of construction: 2006, machine/vehicle number: 81224, Mosca RO-M-P4 strapping machine, built in 2006, machine number 81224, in good condition, available immediately We have 9 more Mosca machines in stock If you are interested, we would be happy to inform you about other machines in our company. You are welcome to view the machine in our company by prior appointment Gksdpfovx Rgaex Ab Uof

Year of construction: 2004, condition: ready for operation (used), Built in: 2004 Format range width: 200-420 mm Gedpfxod N S Ade Ab Ujkf Length: 200-420 mm Height: 30-400 mm Speed: bundles/min 25 Pakete/min Width of film: max 550 mm Film thickness: 12-80 mµ Diameter of film reel: max 350 mm

Year of construction: 1988, condition: used, 480 x 325mm; 14,000c/h; Godpfx Aebnczbsb Ujkf 7 stations 6 feeders 279 Card gluer 1 folder feeder 1529 Stapling station 300 Trimmer
