Offset printing pressShinohara
Fuji 52IIP
Machine data
- Machine type:
- Offset printing press
- Manufacturer:
- Shinohara
- Model:
- Fuji 52IIP
- Machine number:
- 20216035
- Year of construction:
- 1989
- Condition:
- ready for operation (used)
- Functionality:
- fully functional
- Operating hours:
- 3,500 h
Price & Location
- Location:
- Ekkersrijt 3106, 5692 CC Son en Breugel, Nederland
Technical details
- Color channels:
- 2 kleuren met keertrommel ook 1/1
- Paper weight (min.):
- 30 g/m²
- Paper weight (max.):
- 350 g/m²
- Paper width (min.):
- 148 mm
- Paper width (max.):
- 520 mm
- Paper height (min.):
- 102 mm
- Paper height (max.):
- 360 mm
- Total length:
- 2,800 mm
- Total width:
- 1,250 mm
- Total height:
- 1,690 mm
- Space requirement length:
- 2,800 mm
- Space requirement width:
- 1,250 mm
- Space requirement height:
- 1,690 mm
- Counter reading (black):
- 11,500,000
- Type of input current:
- three-phase
- Input current:
- 16 A
- Input voltage:
- 200 V
- Equipment:
- documentation/manual
Details about the offer
- Listing ID:
- A18729131
- Update:
- 15.03.2025
Description
High-quality "heavy duty" B3 (35x50cm) 2-colour offset machine for high-quality streak-free printing due to typical constructive qualities;
The turning device is in excellent condition.
Cast-on dense molecular cast iron axles with affinity for oil (pressure lubrication) run in RG12 cast bronze 12 bearings, very durable and very good sliding properties. As a result, these machines print beautiful surfaces and halftones without the notorious shock stripe.
We have had a lot of experience with this brand and this machine type in particular since 1991 and can deliver all parts from stock to our customers.
For the complete specification see the PDF files at the bottom of this advertisement page.
If desired, this machine can be completed with an impression, numbering and perforating unit installed by us (foldable) for an additional charge of € 1500,-- (optional)
Some specs:
Maximum production speed 11,000 sheets/hour with clean and weather printing 9,000 sheets/hour
Paper size: minimum 148x105mm, maximum 520 x 360mm
Maximum printing surface 500 x350mm
Plate size 510 x 410 to 420 mm
Paper thickness 0.04 to 0.4 mm
4 ink plate rollers and 2 damp plate rollers (molton dampening)
Gjdov Nwgnjpfx Ab Uekf
Staffing insert
Height of the stack in the insert 900 mm
Height of the stack in the delivery 450 mm

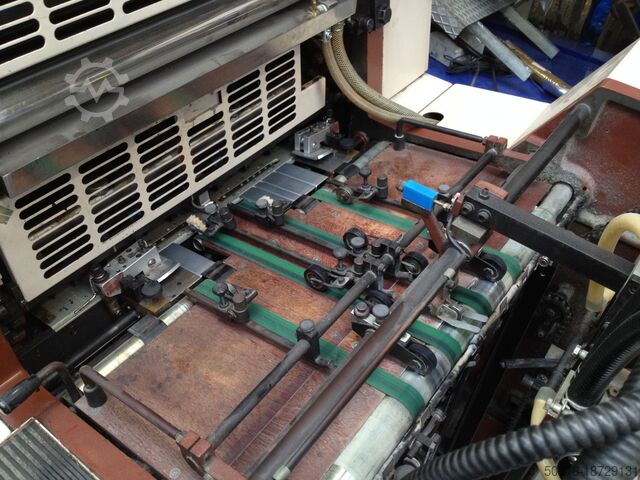

Chain delivery with 3 gripper bars with hardened gripper tips and carbide coated gripper seats (also with pressure cylinder)
Power consumption 4.75 kW
Built-in circulation pump and water tank for damp work
Dimensions L x W x H = 2800 x 1250 x 1690 mm
Net weight 3,560 kg
Machine is supplied with oil drip plate
Input voltage is 3 x 200/220/230 VAC or via the supplied transformer 3 x 380/400/415 VAC
The listing was translated automatically. Translation errors are possible.
