Milling machining centers - universal

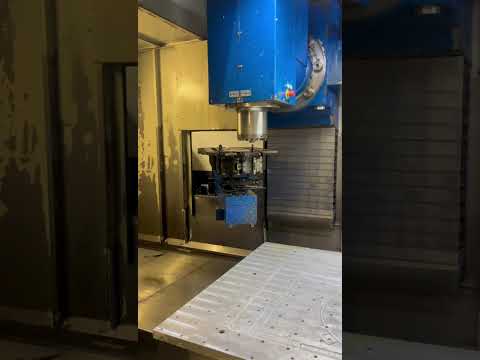

SHW UniSpeed 3

Year of construction: 2017, condition: ready for operation (used), - USED - TRAVELLING COLUMN CNC MILLING MACHINE WITH AUTOMATIC A/B-AXIS HEAD LONGITUDINAL TRAVEL: 3500 mm TRANSVERSAL TRAVEL: 1100 mm VERTICAL TRAVEL: 1500 mm Ndjdpfx Ahewla Hze Ujf RAPID FEEDS L-T-V: 40 m/min TABLE SIZE: 3800 x 1000 mm HEAD: A/B AXIS AUTOMATIC ; MILLESIMAL POSITIONING ; ISO 50 ; 5000 rpm; 34 kW TOOL MAGAZINE: CHAIN-TYPE ; 40 POS CONTROL UNIT: HEIDENHAIN TNC 640 HIGH PRESSURE COOLANT: 40 Bar WEIGHT: 35020 Kg OVERALL DIMENSIONS: 8760 x 4950 x 3780 mm ACCESSORIES: SWARF CONVEYOR ; LASER TOOL SETTER ; TOUCH PROBE ; PORTABLE HANDWHEEL

Year of construction: 2023, condition: new, - modern ergonomic design - manual test with analogue Measuring Clock (Reading accuracy 0.2 HR) - easy to use and quick test process - Height Capacity approx. 185mm - Hepth Capacity approx. 160mm - Dimensions 545x182x755mm Test loads: 60 / 100 / 150kg Test method: HRA/HRB/HRC Standard delivery: - Hardness tester - V-Anvil - Flat Anvil Ø150mm - Flat Anvil Ø50mm - Ball Indenter 1/16" with ball Nodpfx Aepbbc Hsh Uedf - Diamond indenter 120° Rockwell - Spindle protection - Accessory case

Year of construction: 2001, condition: used, Max. pressure: 500t, max. operational temperature: 370°C, oil heated, oil cooled, with a secondary cycle for recirculation of heating output, was overhauled in 2014. Ndodpsdwf Dbofx Ah Uef

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, Controller FANUC Series 18i-MB Table size 1300 x 650 mm Table load 1500 kgs X travel 1100 mm Y travel 650 mm Z travel 600 mm Spindle speed 12000 rpm Tool holder type MAS BT40 ATC magazin 30-fold Weight 7200 kgs Dimensions LxWxH = 3100 x 2300 x 3100 mm Features, accessories - Chip conveyor - Coolant unit - Spindle cooler Ndedpfxsuu Rzre Ah Usf - CTS - Manuals Very good condition.It will be sold because of liquidation of production.

Condition: excellent (used), Year of construction: 2018, drilling depth: 1,250 mm, total length: 8,100 mm, total width: 6,300 mm, total height: 4,300 mm, workpiece weight (max.): 7,000 kg, overall weight: 31,000 kg, travel distance X-axis: 1,600 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 1,100 mm, spindle speed (max.): 6,000 rpm, drill diameter: 36 mm, 4 side complete machining Nedpfx Aevn Sv Uoh Ujdf Swivel drilling and milling unit DCM Dynamic Collison Monitoring CAM model QCK (Quick Check Kinematics) Transfer bore cycle (380-382) 90 Bar IKZ Coolant system Extra ATC Tower 24 position (4 x 6) HSK 63 Double ballscrew construction Clear tank 1650 L and Waste tank 1300 L Chip conveyor Max. drill Ø steel: 36mm Drilling depth: 1250mm X - Travel: 1600mm Y - Travel: 1250mm Z - Travel: 1100mm W - Travel: 1600mm Table load: 7000 Table size L x W / or ø:1500 x 1100mm Spindle taper: HSK-63Mk Power on spindle: 23kW Speeds/ranges: 6000rpm Length: 8100mm Width: 6300mm Height: 4300mm Weight: 31000kg

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, machine/vehicle number: 538518/1, Dear interested party, Nedpfx Ahsumv Als Ujdf You will find all the data on the plant in the photos and in the PDF files. The plant can be viewed by appointment. We will be happy to answer any further questions you may have.

Condition: refurbished (used), Machine totaly reconditioned With DRO Center height 175 mm Distance between centers 1000 mm Grinding wheel 400 x 50 x 127 mm + 225 x 20 x 76.2 mm Ndjdpfx Aowhk Uujh Usf Grinding wheel speeds 1'500-2'200 rpm With internal grinding attachement Misc. accessories MARCELS MASCHINEN AG

Condition: good (used), Year of construction: 2008, Traverses X Y Z: 3000 x 1300 x 2000mm, Table 2000 x 1600mm, table load 13,000 kgs, B axis 360 degrees, Heidenhain iTNC530, ISO SK50 spindle taper, 5,000rpm Spindle Speed, 60 station toolchanger, coolant, Interlocked guards. Nsdpfx Ajvz A Rioh Uodf

Condition: excellent (used), functionality: fully functional, Year of construction: 2014, Machine in excellent condition!! Standard specification: welded steel construction 3 drive rollers horizontal and vertical working position shafts made of improved special steels digital reading portable control panel work instructions Optional equipment: Technical data: Nodpfx Ahor Ddurs Uedf shaft diameter: Ø100 mm roller diameter: Ø315 mm working speed: 7 m/min engine power: 7.5 kW machine length: 2000 mm machine width: 1450 mm machine height: 1700 mm machine weight: 3650 kg

Condition: excellent (used), Year of construction: 2012, travel distance X-axis: 8,000 mm, travel distance Y-axis: 3,100 mm, travel distance Z-axis: 1,600 mm, feed rate X-axis: 25,000 m/min, feed rate Y-axis: 25,000 m/min, feed rate Z-axis: 25,000 m/min, spindle speed (max.): 4,000 rpm, table length: 8,000 mm, table width: 2,500 mm, table load: 15,000 kg, Chain ATC Tool changer 80 positions Rotary table 1500 x 1500 with V-Axis 1500 mm Table load 15.000 Kg Optional Box table 3500 x 1000 x 1000 mm Under power X-Axis: 8000mm Nedpfexm Sudox Ah Usdf Y-Axis: 3100mm Z-Axis: 1600mm Table Length: 8000mm Table Width: 2500mm Table load: 15000 Power on spindle: 43kW Spindle speeds: 4000Rpm Spindle Taper: 50ISO/Bt/Mk Feed rate X-Axis: 25000mm/min. Feed rate Y-Axis: 25000mm/min. Feed rate Z-Axis: 25000mm/min. Control: iTNC530 Millinghead auto-index:2.5 x 2.5° Length: 14000mm Width: 6000mm Height: 6000mm Weight: 68000kg
