Commercial vehicles Semitrailers Working platform semitrailers
Listing
Essen
814 km
Working platform semitrailer
ES-GE3-Achs-Sattelanhänger, Bordwände
Call
Condition: new, maximum load weight: 32,155 kg, overall weight: 39,000 kg, axle configuration: 3 axles, total width: 2,550 mm, Equipment: ABS, You can find our complete stock of vehicles, including those available immediately and at short notice, on our website.
Excerpt from the equipment list. Full specifications available on request.
Chassis:
* Welded construction made from high-quality steel profiles with thru-profile cross members. Designed for high point loads.
Coupling device:
* Fifth wheel plate with 2-inch kingpin
Underrun protection:
* According to EC regulations, bolted design
Side guard:
* According to EC regulations
Landing legs:
* 2 x 12 t landing legs with compensation foot and single-sided operation on the right in direction of travel
Axles:
* 3 x 9 t air suspension axle assembly, SAF brand, with disc brakes approx. 430 x 45 mm, wheel fixing mid-centered ET120, ABS, total air suspension lift approx. 180 mm, of which lift approx. 110 mm and lower approx. 70 mm
* Air suspension operated via hand control valve with stop function
Steering:
* Last axle forcibly steered by linkage
Axle lift:
* First axle liftable, with fully automatic, load-dependent lift control
Brake system:
* Two-line compressed air brake system according to EC regulations with EBS and RSS, automatic load-dependent control, spring actuators as parking brake, anti-mix couplings fixed to front cross member, without connecting line to motor vehicle
* Wabco brand
Tyres:
* Sixfold, 385/65 R22.5 160J on rim 11.75 x 22.5 ET 120 - brand at our discretion. Incl. tire pressure monitoring system, tire pressure display in cab (pre-installed by chassis manufacturer)
Njdjy Auhzopfx Agyolc
Mudguards:
* According to EC regulations, 1/4 PVC mudguards in front of and behind axle assembly
Load securing:
* 9 pairs of folding lashing rings, evenly distributed (tensile force approx. 8.0 t)
* 8 pairs of folding lashing rings, evenly distributed (tensile force approx. 2.5 t)
* Drilled holes in outer frame every approx. 500 mm for lashing straps (straps can be hooked in with closed drop sides, beveled outer frame)
Stake pockets:
* 10 pairs of stake pockets in the outer frame, evenly distributed
* 4 rows of stake pockets across the loading platform
* Plug-in stakes: 20 galvanised tubular stakes approx. 80/50 mm, total length approx. 1,000 mm
* Magazine for 20 plug-in stakes on the inside of the front wall
Front bulkhead:
* Reinforced steel bulkhead, fixed, interior covered with approx. 9 mm phenolic plywood floor (approx. 1,250 mm high)
Floor:
* Approx. 28 mm Z-hardwood floor, recessed into the outer frame
Side walls:
* 4 x 250 mm side walls and rear wall made of anodised aluminium hollow sections, foldable and removable, removable Kinnegrip stakes
* Side wall and stake magazine under the chassis
* Left and right insertion rails for side walls and stakes
Lighting system:
* According to EC regulations, 24 Volt with multi-chamber lights, LED side marker lights, LED position lights front white, LED outline marker lights at rear, license plate lights
* 1x 15-pin and 2x 7-pin plug sockets on front cross member
Equipment:
* Two wheel chocks with holders
* Warning signs according to ECE 70
* Work spotlight on lamp bracket (operated via reverse gear)
* Holder for rotating beacon at rear, incl. beacon
* 2 x stainless steel toolboxes, approx. 600 x 500 x 500 mm
Paintwork:
* Chassis and front bulkhead sandblasted, primed and coated in a single colour
* Chassis: hot-dip galvanised + RAL colour of choice
* Front bulkhead: RAL colour of choice
* Side walls: anodised aluminium
* Top stakes front bulkhead: hot-dip galvanised
* Hubs: KTL blac
Listing
Essen
814 km
Working platform semitrailer
ES-GE3-Achs-Ballastauflieger
Call
Condition: new, maximum load weight: 39,070 kg, overall weight: 45,000 kg, axle configuration: 3 axles, total width: 2,540 mm, Equipment: ABS, You can find our complete inventory of immediately and short-term available vehicles on our website.
Partial list of features. Full equipment details available upon request.
Chassis:
* Welded construction made of high-quality steel profiles with continuous profile cross-members, designed for high point loads
* Outer frame as UNP profile
* Fifth wheel plate approx. 8 mm, underride guard nose approx. 700 mm wide
Coupling device:
* 2-inch kingpin (also prepared for 3.5-inch)
Underrun protection:
* According to EC regulations, bolted design
Side underrun protection:
* According to EC regulations
Landing gear:
* 24 t landing legs with single-sided operation (approx. 66 t test load), Jost Modul CH (Heavy Duty) S-foot
Axles:
* 3 x 9 t air suspension axle units, brand SAF, with disc brakes approx. 430 x 45 mm, ABS, hub-piloted with 10-lug ET 120, total air suspension stroke approx. 200 mm (approx. 140 mm lift, approx. 60 mm lower), control via rotary slide valve with detent, with RTR function
* Switch for second ride height (+ approx. 50 mm) on the holder of the lift/lowering device
* Smartboard/TIM/Infocenter, without TPMS display
Lift axle:
* First axle liftable, with fully automatic load-dependent lift control, start aid via button in driver's cab (15-pin socket PIN12). Button in cab not included in delivery
Brake system:
* Two-line compressed air braking system according to EC regulations with EBS and RSS, automatic load-dependent control, spring actuators as parking brake, non-interchangeable coupling heads permanently mounted on the front cross beam, without connecting line to the tractor, brand Wabco
Tyres:
* 6 units, 385/65 R22.5 160J on 11.75 x 22.5 rims (brand at our discretion), ET 120
* Basic tyre pressure monitoring, connected to the CAN-bus system of the EBS
* Tyre pressure monitoring display in driver's cab (prepared by the tractor manufacturer)
Mudguards:
* According to EC regulations, PVC mudguards (half-shells) over all axles
* Anti-spray mud flaps
Load securing:
* 8 pairs of hook plates welded into the outer frame (traction approx. 3 t)
* 6 pairs of lashing rings on the side of the outer frame, evenly distributed (traction approx. 10 t)
Stake pockets/stakes:
* 5 pairs of stake pockets recessed in the outer frame, approx. 90 x 90 x 4 mm
* 3 pairs of stake pockets recessed in the loading floor, approx. 90 x 90 x 4 mm
* 10 plug-in stakes made of galvanized square tubing, approx. 80 x 80 x 4 mm, with bottom stop
Front wall:
* Bolted front wall, approx. 1,200 mm high, metal plated
Stake magazine:
* Magazine for plug-in stakes inside the front wall
Floor:
* Approx. 28 mm hardwood floor recessed in the outer frame, with galvanized omega steel profiles
Lighting system:
* According to EC regulations, 24V with multi-chamber lights, LED side marker lights, LED position lights (white, front), LED outline marker lights (rear), license plate lights
* 1x 15-pin and 2x 7-pin connectors on the front cross beam
Equipment:
Nlsdpjyz E T Sofx Agysc
* Warning sign according to ECE 70
* 2 LED work lights mounted on the lamp bracket (switched via reverse gear)
* Bracket for rotating beacon at the rear (incl. beacon)
* 1 foldable, extendable access ladder at the rear (without platform)
* 2 stainless steel toolboxes, approx. 450 x 450 x 450 mm, in front of the front wall
* Smart-Board with axle load display
* 2 LED work lights above the front wall, switchable via chassis frame switch
* 2 LED work lights at the height of the supports (switched via reverse ge
Listing
Petershagen
875 km
Working platform semitrailer
KRONEProfi Liner (SDP 27) MEGA
Call
Condition: new, maximum load weight: 30,250 kg, overall weight: 36,000 kg, axle configuration: 3 axles, loading space length: 13,620 mm, loading space width: 2,480 mm, total width: 2,550 mm, Year of construction: 2026, Equipment: ABS, Krone Profi Liner (SDP 27 MEGA)
Nledpfsn Hrtksx Agyec
_____
Details
? Loading area length: 13,620 mm
? Loading area width: 2,480 mm
? Fifth wheel height: 980 mm
? Multilock outer frame, universal load securing option every 100 mm
_____
Axles/Tires
? BPW axles
? Air suspension
? Wheelbase: 1,310 mm
? Brake discs (370 mm diameter)
? Wheel nuts with protective caps
? 1st axle as lift axle
? Tire monitoring system
? Odometer
_____
Attachments
? Toolbox
? 10 pairs of 81 x 81 mm stake pockets in the outer frame
? 15 pairs of Multi-Lash lashing rings
? 10 stake pockets, 81 x 81 mm, centered in the floor
? 12 insert stakes, total length approx. 1,950 mm
? 12 pillars, total length approx. 1,950 mm
? 30 mm thick, waterproof floor panel
_____
Accessories
? 2 overhead marker signs including marker light
? Pillar storage on the left side for 12 pillars
_____
Lighting
? Multifunctional taillights (Hella)
? 2 LED license plate lights
? LED side marker lights with flashing lights
? Rotating beacon (orange)
? Including 1 reversing light
_____
Paintwork
? Chassis: RAL 9005 - jet black
? Rims: natural silver
? Landing gear: RAL 9005 - jet black
? Axles: RAL 9005 - jet black
? Bulkhead: RAL 7035 - light gray

Get information now
+44 20 806 810 84
+44 20 806 810 84
List now
*per listing / month
Listing
Essen
814 km
Working platform semitrailer
FAYMONVILLEMAX Trailer MAX410 Ballastauflieger
Call
Condition: used, maximum load weight: 44,420 kg, overall weight: 53,000 kg, axle configuration: 3 axles, first registration: 04/2025, next inspection (TÜV): 04/2026, loading space length: 11,500 mm, total width: 2,540 mm, Equipment: ABS, You can find our complete vehicle inventory, including immediately and short-term available vehicles, on our website.
Excerpt from the equipment list. Full specifications available upon request.
Cargo Area:
* Cargo deck with approximately 30 mm thick hardwood floor
* 9 pairs of folding lashing rings (LC 10,000 daN)
* 10 pairs of stake pockets in the outer frame for approx. 100 x 50 mm plug-in stakes
Landing Legs:
* Hydraulic landing legs
Tyres:
* Tyres 385/65 R 22.5 – MICHELIN MULTI High Load 164K
TPMS:
* TPMS tyre pressure monitoring system according to ECE R 141. Data transmission to the truck is via standardized EBS interface per ISO 11992. For correct display, the truck must be equipped to transmit and display this data.
Axles and Suspension:
* BPW axles, technical axle load 10,000 kg each; first axle hydro-mechanically steered, second fixed, third hydro-mechanically forced steering, mounted on turntable
* Air suspension with raise and lower valve
Braking System:
* WABCO braking system per EU regulations with EBS-E (4S3M), without connecting lines to the tractor unit
Electrical System:
* Electrical system per EU regulations, lighting 24 Volt ASPÖCK-NORDIK (ASS3)
* ASPÖCK-UNIBOX at the front connection bar with 24N, 24S & 15-pin sockets in accordance with ISO. 24N ISO-1185, 24S ISO-3731, 15-pin ISO-12098
Steel Structure:
* High-strength fine-grain steel construction
* Steel grades: S355J2+N/S355MC (yield strength 355 MPa); S690QL/S700MC (yield strength 690 MPa)
Painting:
* Entire steel structure automatically blast-cleaned after welding using a shot-blasting system
* Second blast cleaning with corundum for optimal coating adhesion
* HRM metallization of the entire vehicle chassis with ZINACOR 850 (85% zinc / 15% aluminum) for optimum corrosion protection
* Final coating with 2 layers of 2K topcoat, single color in RAL 9005 Deep Black per RAL system 841GL
* Rear section metallized and painted in RAL 9010 (Pure White)
* Rims painted silver-grey
Nledoyu Eu Iepfx Agyec
* Paint system tested by salt spray test to ISO 9227-NSS
* Sealant wax applied to cavities
Included Accessories:
* Cargo deck with approx. 30 mm thick hardwood floor
* 2” kingpin
* One galvanized steel front wall (EN12642-XL), approx. 1,200 mm high
* At galvanized front connection bar: DUOMATIC air couplings
* Storage for approx. 1,000 mm plug-in stakes in the center beam at the rear
* At gooseneck and rear plate, left and right, each with a holder for warning plates including socket
* White reflective tape according to EU regulations on sides and red at the rear
* 10 pairs of stake pockets for approx. 100 x 50 mm plug-in stakes in the outer frame of the cargo deck
* European reflective markers (red/yellow) on trailer rear
* Bracket for rotating beacon at the rear of trailer
* Mudflap at the rear of trailer
* Manual and documentation on USB stick
* Central lubrication system BEKAMAX (Pico) with standard grease NLGI-2 and removable pump guard
* 4 wheel chocks with holder at front wall
* Rear and front steering can be operated by cable remote control with push buttons, featuring axle single-track control (without installation in tractor unit)
* Electro-hydraulic power pack
* 6 pairs of galvanized plug-in stakes, approx. 100 x 50 mm, approx. 1,000 mm high
* 5 pairs of crosswise mounted stake pocket rails in load floor for approx. 100 x 50 mm plug-in stakes
* One INOX toolbox, approx. 1,200 x 460 x 55
Listing
Petershagen
875 km
Working platform semitrailer
KRONEProfi Liner SDP 27 Baustahltransporte -SOFORT-
Call
Condition: new, maximum load weight: 29,400 kg, overall weight: 36,000 kg, axle configuration: 3 axles, loading space length: 13,620 mm, loading space width: 2,480 mm, total width: 2,480 mm, total height: 2,000 mm, Year of construction: 2026, Equipment: ABS, Brand new Krone Profil Liner SDP 27 3-axle platform trailer
* Krone axles
* A-axle as lift axle
* mechanical support winches (12t)
* Tires: 385/65 R22.5
* 1x plastic tool box
* Pallet box for 24 Euro pallets
* Fifth wheel height: 1,150 mm
* Spare wheel holder
* Reinforced front wall
* MULTILOCK outer frame
* 6 pairs of heavy-duty lashing eyes
* Stake pockets on the side and in the middle
* Six extendable stake pockets on each side
* Six cable winches on each side for load securing
* 18 insert stakes
* 4 illuminated over-width signs
* ORANGE rotating beacon
Nedpfjvw Hlcox Agyslc
Example photos
We are happy to provide you with further information.
Listing
Legden
800 km
Working platform semitrailer
M&V no4g21 2.Achs-Plattform Lenkachse
Call
Condition: used, maximum load weight: 22,450 kg, overall weight: 29,000 kg, axle configuration: 2 axles, first registration: 07/2008, next inspection (TÜV): 11/2025, loading space length: 12,620 mm, loading space width: 2,500 mm, total width: 2,550 mm, total height: 2,710 mm, Equipment: ABS, The vehicle is on its way. More pictures & technical details will follow shortly.
* Stake pockets
* 2nd axle steered
----* Tire size: 385/65R22.5
* Permissible total weight: 29,000 kg
* Curb weight: 6,550 kg
* Overall length: 12,870 mm
* Axle distances: 1,900 mm
* Safety inspection due: expired
Njdpfeyl Rg Rox Agyolc
----Vehicle number: 11807----Subject to errors and prior sale----Advertising and various inscriptions have been digitally removed.-----We are happy to assist you with all formalities related to purchasing a vehicle. Simply let us know your requirements and suggestions, and we will take care of the rest. Among other services, we can offer you the following at an additional charge:----Trade-in of your old vehicle
TÜV/Safety inspection certification
Complete export processing
Financing arrangements
Application for export license plates
Vehicle transfer
Vehicle registration
Recovery and vehicle transport----
Your VTS Team
Listing
Essen
814 km
Working platform semitrailer
ES-GE4-Achs-Ballastauflieger
Call
Condition: new, maximum load weight: 56,570 kg, overall weight: 66,500 kg, axle configuration: > 3 axles, total width: 2,550 mm, Equipment: ABS, You can find our complete vehicle stock, with vehicles available for immediate and short-term delivery, on our website.
Extract from the equipment list. Full specification available on request.
Chassis:
* Chassis frame construction with welded longitudinal beams and through-running cross members
* Rear underrun bar approximately 700 mm wide
Nedpfx Aswx Dctogyjlc
* Fifth wheel plate at least 8 mm thick, fitted between the longitudinal beams
* Maximum cross member spacing 400 mm (for longitudinal floor installation)
* 3.5-inch kingpin according to SAE standard, replaceable
* Outer frame as UNP 200, open to the outside
Landing Gears:
* 24 t JOST - MODUL CH (Heavy Duty) telescopic landing gear with S-foot
Axles:
* 4 x 10 t SAF axles with large drum brakes
* 22.5 single tires
* Axle spacing approx. 1,700/1,810/1,810 mm
* Air suspension unit with 10 t load capacity each, lift and lower device with 1 rotary valve Knorr/Wabco
* Holder for lift and lower device, bolted design
Braking system:
* Smartboard/TIM/Infocenter at the lift/lower holder, additionally to the lift/lower valve, without battery (operable only with towing unit)
* Mount for light and brake at the front underrun bar, total height approx. 700 mm
* Basic version tire pressure monitoring, connected to CAN bus system of the EBS
* With double-release valve for brake and spring brake actuator
* Test port for brake cylinder pressure on the front right brake cylinder
* 1 red and 1 yellow coupling head each
* Lift and lower device mounted at rear left in driving direction
* EBS braking system by Wabco, EBS diagnostic via CAN bus (EBS plug), no external diagnostic cable!
Tyres:
* 8 x 445/65 R 22.5 – premium brand of our choice
* Centering rings
Lubrication:
* Grease nipple strips at the bogies and front steering, no central lubrication
Superstructure:
* Without body certificate according to DIN EN 12642 XL
* 2x LED work lights on top of front wall (facing rear), switch at lift/lower holder
* Front wall for platform design, heavy duty
* Side outline marking yellow, rear yellow
* Front wall approx. 800 mm high, with metal cladding, bolted
Lighting:
* 2x LED work lights fitted in lamp panel, controlled by reverse gear
* 2x LED work lights, controlled by reverse gear, one each side near the landing gear
* 2x LED reversing lights, one each side in front of first axle
* Lighting/wiring system, brand of our choice
* Number plate illumination
* The towing vehicle must supply sufficient power for the selected lighting (especially reverse light)
* Position lights front, bottom, white, one each side (LED)
* 24 volt lighting system with large multifunction light
* Flashing side marker lights (LED)
* 1x 15-pin and 2x 7-pin connections at the front via multifunction box
* EBS socket
* 1 pair of lane marker lights (LED)
Floor:
* Hardwood floor approx. 28 mm thick, alternately with galvanized omega steel profiles
Paint/Coating (no metallic finishes):
* Chassis painted in RAL color of your choice, front wall (steel construction) in RAL color of choice
* Axle hubs in chassis color
* Axles and landing gear black
* Wheels in aluminum/silver similar to RAL 9006
* Wheel nuts untreated
* Underrun protection painted RAL 9010 pure white (aluminum)
Accessories:
* Lifting device for 1st axle
* 9 lashing plates welded into the outer frame per side, lashing capacity max. 3,000 daN
* 12 RUD-SLP lashing points per side with
Listing
Essen
814 km
Working platform semitrailer
ES-GE3-Achs Sattelanhänger - Bordwände + CV
Call
Condition: new, overall weight: 43,000 kg, axle configuration: 3 axles, total width: 2,550 mm, Equipment: ABS, You can find our complete range of vehicles, including immediately and soon available units, on our website.
Equipment excerpt; full equipment details available on request.
Chassis:
* Welded construction made from high-quality steel profiles with through cross beams, designed for high point loads
* Underrun bar width approx. 700 mm
* Outer frame as UNP profile
* Fifth wheel plate approx. 8mm
* Neck height at front approx. 130 mm
Coupling device
* 2-inch kingpin
Rear underrun protection
* Bolted version, in compliance with EC regulations
Side underrun protection
* According to EC regulations, made of anodised aluminium profiles
Landing legs
* 2 x 12 t landing legs with compensating foot and single-side operation, RHS in direction of travel
Axles
* 3 x 9 t air suspension axle assemblies, disc brakes 22.5”
* Total stroke approx. 180 mm
* Lifting and lowering device via rotary slide valve
Braking system
Nledpfx Agsw U H Sbsysc
* Twin-line compressed air braking system to EC specifications, with EBS and RSS, automatic load-dependent control
* Spring chamber cylinders as parking brake
* Polarity-protected coupling heads permanently mounted on front cross member, without connecting line to towing vehicle
Tyres
* 6 off, 385/55 R22.5 160J on steel rim 11.75 x 22.5 ET 120, brand of our choice
* Tyre pressure monitoring system (TPMS) via EBS CAN bus
Mudguards
* According to EC regulations
Spare wheel holder
not included
Load securing
* 9 pairs of foldable lashing rings, evenly distributed, max. tensile force approx. 5.0 t
* 9 pairs of foldable lashing rings, evenly distributed, max. tensile force approx. 2.0 t
* Drill holes for attaching lashing straps every approx. 400–600 mm in the outer frame
Front wall
* Reinforced fixed steel structure, approx. 1,400 mm high
* Inner face lined with approx. 9 mm phenolic plywood (approx. 1,250 mm high)
Floor
* Approx. 28 mm Z-hardwood floor let into the outer frame with galvanised omega steel profiles
Lighting system
* In compliance with EC, 24 volt, with multi-chamber lights
* LED side marker lights
* Front white LED position lights
* Rear LED outline marker lights
* Number plate lights
* LED lane departure lights
* 1x15- and 2x7-pin plug connections at the front cross member
Equipment
* 2 wheel chocks with holders
* ECE 70 warning boards
* Bracket for rotating beacon, incl. rotating beacon
* 2 rubber buffers at the rear
* Foldable and extendable access ladder at rear right (without platform)
* 1 open perforated sheet metal box, transverse to direction of travel, approx. 600 x 450 x 2,430 mm, galvanised, behind the axles
Paintwork
* Front wall: RAL single colour as requested
* Chassis: hot dip galvanised
* Outer frame: hot dip galvanised + single RAL colour as requested
* Centre stanchions: single RAL colour as requested
* SSV: aluminium, anodised
* Rear underrun protection: white (RAL 9016 traffic white)
* Attachments: galvanised / KTL black
* Rims: silver
Conspicuity markings
* Complete set in yellow
Including special equipment
* First axle liftable, with fully automatic, load-dependent lift control
* 10 pairs of stanchion pockets in the outer frame, evenly distributed
* 4 rows of stanchion pockets across the loading area
* 20 stanchions made of galvanised tube 80/50, total length approx. 1,200 mm
* Magazine for 20 removable stanchions inside the front wall
* 5 x 25 side walls and rear wall made of anodised aluminium hollow profiles, foldable and removable
* Removable Kinnegrip stanchions
* Side wall and stanchi
Listing
Essen
814 km
Working platform semitrailer
FAYMONVILLEMAX Trailer MAX200 Telesattel
Call
Condition: used, maximum load weight: 37,535 kg, overall weight: 48,000 kg, axle configuration: 3 axles, first registration: 08/2024, next inspection (TÜV): 08/2026, total width: 2,540 mm, Equipment: ABS, You can find our entire vehicle inventory, including immediately and soon-available vehicles, on our website.
The following is an excerpt from the equipment specification. Full equipment details available on request.
Loading Platform:
* Extendable loading platform with pneumatically operated locking mechanism
* 7 pairs of fold-out lashing rings (LC 5,000 daN)
* 3 pairs of fold-out lashing rings (LC 10,000 daN)
* Cut-outs in the outer frame of the loading platform for attaching tension straps (LC 2,000 daN)
Landing Legs:
* JOST landing legs (mechanical) with 2-speed gearbox for approx. 24 t lifting capacity (approx. 50 t test load)
Axles:
* BPW axles, air-suspended, with disc brakes (approx. 430 mm), fitted with lift/lower function. Technical axle load: 10,000 kg each (ET0)
* Self-steering axle with electromagnetic reverse lock, activated via reverse gear or manually
* Axle tool
Tyres:
* Tyres 385/65 R 22.5
Brake System:
* Brake system compliant with EU regulations with EBS-E (2S2M), without connecting lines to tractor unit
Steel Construction:
* Steel construction made of high-strength fine-grained steels
* Steel grades: S355J2+N/S355MC (yield strength 355 MPa), S690QL/S700MC (yield strength 690 MPa)
Paintwork:
* Premium and durable corrosion protection of the standard shot-blasted welded frame by a two-component (2K) zinc dust primer
* High-quality single-color topcoat (2K) in RAL 3002 carmine red
* Rims in silver
* Rear section metallised and painted in RAL 9010 (pure white)
Including the following additional equipment:
* Yellow-red air couplings on galvanised front connector bar
Nsdpjxgk U Nofx Agyolc
* 4 wheel chocks with holders
* 2" king pin
* Yellow reflective tape compliant with EU-standard on sides, extension and trailer rear
* European reflector boards (red-yellow) on rear of trailer
* Loading platform with approx. 30 mm thick wooden floor encased in Omega profiles
* 10 pairs of stake pockets for insertable stanchions approx. 100 x 50 mm in the outer frame of the loading platform
* Storage for up to 9 pairs of insertable stanchions approx. 100 x 50 mm bolted to the inside of the front wall
* 1 spare wheel holder under the loading platform on the left in the driving direction, without spare wheel
* One mudflap at the rear of the trailer
* Manual and documentation on USB stick
* Bracket for rotating beacon at the rear of the trailer
* On gooseneck and rear panel, left and right, one holder each for warning signs, including socket
* Speed stickers 80 km/h, rear and both sides
* Load gauge for axle load determination including load chart
* Galvanised steel front wall (EN12642-XL), approx. 1,600 mm high
* 6 pairs of WADER container pockets on loading platform, for 1x 20' container, 2x 20' containers or 1x 40' container flush with the rear
* INOX toolbox, approx. 600 x 350 x 600 mm, under the platform on the left in the driving direction
* 4 pairs of longitudinal stake pocket rails for 80 x 50 mm insertable stanchions mounted on the loading platform
* Lift axle on the front axle with control via TEBS E depending on current axle load and loading condition
* 2 LED reversing lights mounted on rear panel
* HRM metallisation (High Resistance Metallisation)
Listing
Essen
814 km
Working platform semitrailer
FAYMONVILLEMAX Trailer MAX410 Ballastauflieger
Call
Condition: new, maximum load weight: 52,810 kg, overall weight: 63,000 kg, axle configuration: > 3 axles, total width: 2,540 mm, Equipment: ABS, You can find our complete range of immediately and soon available vehicles on our website.
Excerpt from the equipment list. Full specifications available on request.
Cargo area:
* Cargo area with approx. 30 mm thick hardwood floor
* 10 pairs of folding external lashing rings (LC 10,000 daN)
Landing legs:
* Hydraulic landing legs
TPMS:
* TPMS tire pressure monitoring system compliant with ECE R 141. Data transmission to the tractor unit is via the standardized EBS interface according to ISO 11992. For correct display, the tractor must be capable of transmitting and displaying these data.
Axles and suspension:
* BPW axles, technical capacity 12,000 kg each, first axle fixed, all others hydro-mechanically forced-steered, mounted on turntables
* Air-suspended with lift and lower valve
* Axle toolkit
Tires:
* Tires 445/65 R 22.5 169 K
Electrical system:
* Electrical system in accordance with EU regulations, lighting 24 Volt ASPÖCK-NORDIK (ASS3)
* ASPÖCK-UNIBOX at the front connection strip with 24N, 24S & 15-pin sockets
* Connections according to standards. 24N ISO-1185, 24S ISO-3731, 15-pin ISO-12098
Brake system:
* Wabco brake system compliant with EU regulations, with EBS-E (4S3M), without connecting lines to the tractor unit
Steel construction:
* Steel construction made of high-strength fine-grain steels
* Steel grades: S355J2+N/S355MC (yield point 355MPa), S690QL/S700MC (yield point 690MPa)
Painting:
* Complete steel structure automatically shot-blasted after welding using a shot-blasting machine
Nledexttc Aspfx Agysc
* Secondary blasting with corundum for optimal adhesion of the coating system
* Final painting with 2 coats of 2K topcoat, single color in RAL 1007 Narcissus Yellow according to RAL system 841GL
* Rear section metallized and painted in RAL 9010 Pure White
* Wheels in Silver Grey
* Paint structure tested in salt spray test according to ISO 9227-NSS
* Cavity sealing with special wax
Including accessories:

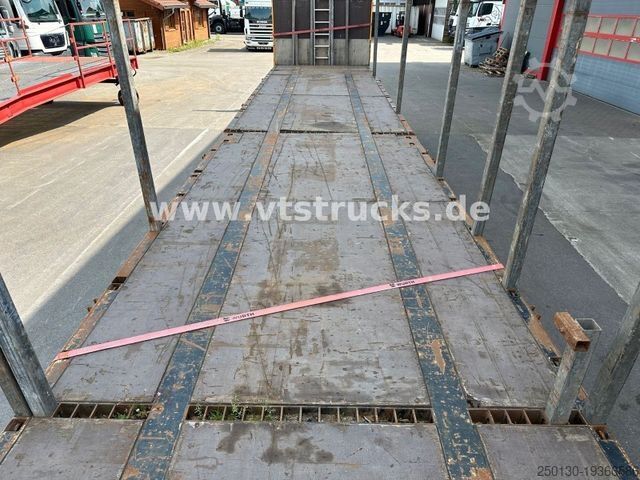

* Cargo area with approx. 30 mm thick hardwood floor
* 2-inch king pin
* One galvanized steel front wall (EN12642-XL), approx. 1,200 mm high
* Yellow-red air couplings on the galvanized front connection strip
* On the gooseneck and rear panel left and right, each with a bracket for warning signs including socket
* Rear steering from the front and rear by cable remote control via push buttons, with single-track control of the axles (without installation in the tractor unit)
* Electro-hydraulic unit
* 12 pairs of stake pockets for approx. 100 x 50 mm stakes in the outer frame of the cargo area
* Load manometer for determining axle loads including load diagram
* Lift axle on the front axle, controlled by TEBS E
* 5 pairs of crosswise stake pocket rails on the cargo area, for approx. 100 x 50 mm stakes
* One INOX toolbox 1,200 x 460 x 550 mm mounted at the front left under the cargo area (in direction of travel)
* 1 shunting coupling with reinforcement bolted to the rear cross member
* BEKAMAX (Pico) automatic central lubrication system with standard grease NLGI-2 and removable pump guard
* 2 LED reversing lights mounted on the rear panel
* HRM metallization of the entire vehicle chassis with ZINACOR 850 (85% zinc/15% aluminum)
Listing
Klagenfurt am Wörthersee
1,572 km

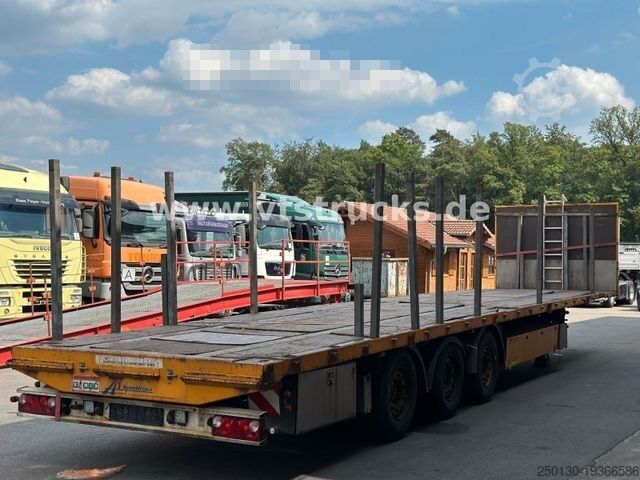

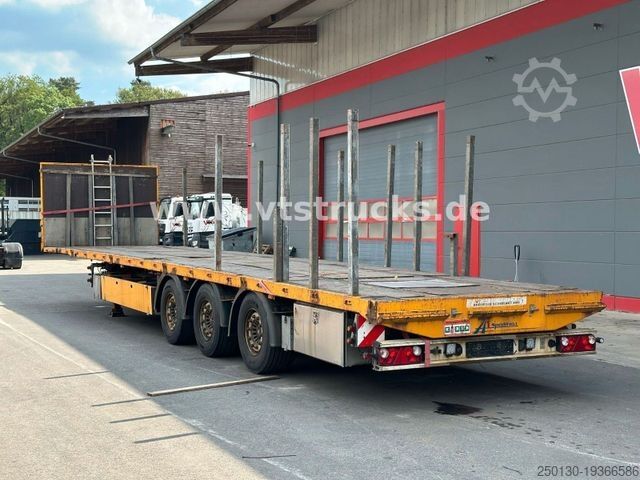

Working platform semitrailer
TRAILIS
Call
Condition: used, maximum load weight: 21,320 kg, overall weight: 27,000 kg, axle configuration: 3 axles, first registration: 06/2024, loading space length: 13,550 mm, loading space height: 800 mm, Year of construction: 2022,
We help you find what you’re looking for
You will receive new offers immediately and free of charge via e-mail
You can easily terminate the search request at any time
Used working platform semitrailers (61)
Search Machineseeker now with more than 200,000 used machines:Browse through the most popular machine descriptions:
- Aerial Work Platform
- Articulated Telescopic Work Platform
- Commercial Trailers
- Electric Platform Truck
- Heavy Duty Platform Venture 16 X 3 M Capacity 20 T
- Heavy Duty Trailer
- Heavy Goods Trailer
- Heavy Truck
- Lifting Platform
This may be of interest to you

Get information now
+44 20 806 810 84
+44 20 806 810 84
List now
*per listing / month
