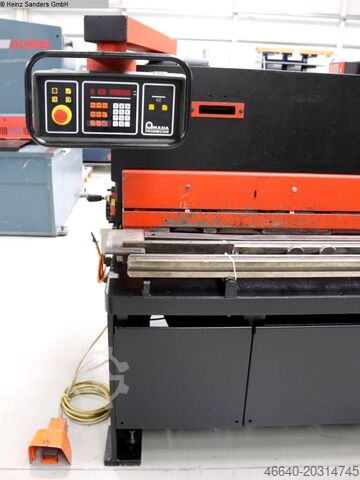

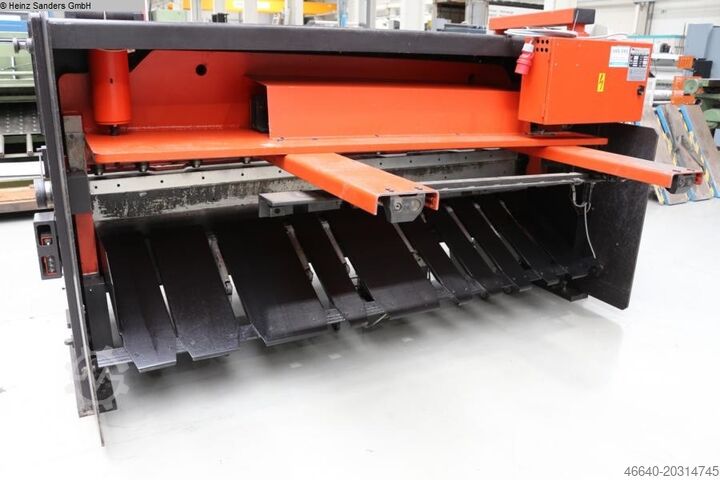

Plate Shear - Hydraulic

AMADA GPN 425

Condition: good (used), Year of construction: 1991, Capacity 4 mm, cutting length 2550 mm, mot. back gauge, frontarms with scale, cutting gap adjustment, finger stop, foot pedal, pneumatic back sheet holder Cajdpfx Ajq Tqwrjfloa

Year of construction: 1990, condition: used, pressure 75 t throat 300 mm stroke 8 - 110 mm table surface area 750 x 600 mm ram adjustment 75 mm ram surface 430 x 230 mm hole in the table 250 x 150 mm tool hole in ram 40 mm no. of strokes 60 + 90 Hub/min weight of the machine ca. 4,4 t total power requirement 4,5 - 6,8 kW dimensions of the machine ca. 1,95 x 1,1 x 2,35 m distance table/ram Hub unten, Stöß. unten 19 mm distance table/ram Hub oben, Stöß. oben 380 mm Csdpfx Asd Nl E Uefljaa Furnishing: - with hydraulic clutch-brake combination, with new hydraulics and oil cooler - with gear transmission in oil bath - fixed table prepared for the attachment of tool changing consoles - 2 roller bars in the table - mechanical overload in the ram The following work is carried out on the machine / partial overhaul: - Machine is completely disassembled, checked, seals changed, defective parts exchanged etc - Machine is repainted - new Balluff cam control - new hydraulic unit with oil cooler for the clutch - new Vogel central lubrication - new control cabinet with touch panel and ABB safety control - Current UVV test with braking time measurement

Condition: excellent (used), sheet width 2500 mm plate thickness 4 mm Control GPN weight of the machine ca. 5000 t Cajdpfxsvwgpne Aflea dimensions of the machine ca. 3000 x 2000 x 1700 m

Condition: used, Year of construction: 1979, machine/vehicle number: 5255, pressure:30 t no. of strokes:100-600 Hub/min sheet width:120 mm table-size:540 x 450 mm Bruderer Double Roll Precision Feed:links stroke adjustable from - to:16-40 mm Caedpscxxu Nsfx Afloa distance between columns:330 x 300 mm total power requirement:5,5 kW weight of the machine ca.:3 t dimensions of the machine ca.:2,10 x 1,65 x 0,75 m with air cooler, piece counter, separate electrical cabinet, air clutch, BRUDERER precision double-roll feeder on left side, machine technically, mechanically and optically as new

Year of construction: 2023, condition: new, OMCN P30/SA hydraulic press with 2-speed hand pump, 30 ton. OMCN P30/SA hydraulic press with manual operation by two-speed hand pump and sturdy basement structure that provides maximum stability and minimum floor space. Thanks to the perforated frame, the support base can be adjusted in height to 9 different positions so the press can be adapted to work with parts of different sizes. The winch allows the pallet to be lifted conveniently and quickly. Cedoklyvtopfx Afleaa +rapidity in approach +precision Indispensable on the shop floor and in the industrial sector, perfect for pressing metal objects, such as during assembly of mechanical assemblies, keying of bearings or pulleys onto shafts. Made in Italy and CE certified press made of sturdy materials that ensure reliability over time and is capable of generating a force of 30000 kg. Overall dimensions 2180 x 1300 x 600 mm Weight 280 Kg Pressure 30 tons Distance between shoulders 695 mm Piston stroke 190 mm Piston diameter 60 mm

Year of construction: 1992, condition: good (used), 21 rolls, Ø 80 mm strip width: 500 - 1.650 mm strip thickness: 1 - 5 mm Cjdpfx Afeg Iirnslsaa

Condition: used, Year of construction: 1980, machine/vehicle number: A-07/471A, sheet width - max.:130 mm straightening roll diameter:40 mm :5 :2+2 sheet thickness - min.:0,4 mm sheet thickness - max.:3,5 mm weight:0,4 t dimensions of the machine ca.:0,6x0,65x1,15 m Csdjcxxx Rspfx Aflsaa with integrated, stepless adjustable Vari-drive, reversing, operating-mode switch for manual and automatic operation, introduction roller cage, position indicator of straightening rolls via analogue display, adjustment of straightening rollers via hand wheels, automatic swivel arm control, very good condition

Year of construction: 1971, condition: good (used), decoiler - expansion mandrel with coil lifting table Casdpfod Ha E Ssx Aflea strip width: 1.200 mm strip thickness: 0,3 - 5 mm coil weight: 10 t mandrel Ø: 508 mm

Condition: used, sheet width 250 mm coil outside dia. 1400 mm weight max. in kg 2500 kg plate thickness 2 ... 4 mm straightening feed 2,5 ... 15 m/min coiler: expanding range mm total power requirement 1 + 4 kW weight of the machine ca. 1,8 t dimensions of the machine ca. m Caodpfxjfn Aqmj Aflsa decoiler, MHR 250/4: max. coil diameter: 1400 mm coil diameter inside: 450 - 530 mm unbraked decoiler with pressure roller straightening machine, MR 250/4: Belt infeed height: 1250 mm The system was dismantled, checked and repainted.

Year of construction: 1980, condition: used, pressure 80 t throat - mm stroke 50 mm table surface area 875 x 695 mm ram surface 350 x 355 mm ram adjustment 71 mm Codpfx Afedlcy Heloaa no. of strokes 30 - 90 Hub/min distance between columns 450 mm weight of the machine ca. 6,2 t dimensions of the machine ca. 2,0 x 2,1 x 3,2 m daylight (stroke down, ram adjustment above) 480 mm Further information: - the machine is currently being a partially overhauled - the machine was re-equipped with the following components: * separate control cabinet with touchscreen including cabling * new painting of the individual components in the dismantled state After the partial overhaul, the machine is safe for manual insertion open tool, a current UVV test is carried out before delivery and braking time measurement.
