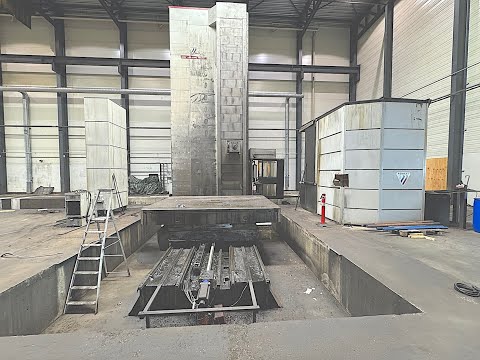

Horizontal Borer

Fermat WRF 160

Condition: like new (used), Year of construction: 2007, Retrofitted: 2026 Numerical control: NUEVO/NEW HEIDENHAIN TNC-i640 Bwsdpfxoyf Rrte Am Tor Technical features Dimensions Table dimensions: 4500 x 2000 mmNumber of T slots: 11T slots dimensions: 22 mm Traverses of axis X axis traverse: 4000 mmY axis traverse: 3000 mmZ axis traverse: 1000 mmVertical capacity (VC): 240 / 1240 mmDistance between columns: 2500 mm Milling head Auto-indexing differential head (UAD - 0,1º)Tool clamping system: HydraulicTaper nose: ISO50 (DIN69871)  /  Pull stud: DIN69872Speed range: 6000 rpmSpindle power: 30 kW Feedrates Feedrate: 5000 mm/minRapid feedrate (X / Y,Z): 15000 / 12000 mm/min Weight and dimensions Maximum weight on table: 10000 KgMachine weight approximate: 35500 KgMachine dimensions approximate: 10975 x 4770 x 5345 mm Accessories Guarding: 2 slidings doors and new perimetral wire-mesh fenceAutomatic tool changer: ATC-60 (sale option with no ATC)Chip conveyor: 1 transversalElectronic handwheel: New HR-510Coolant: External internal high pressure through spindle Sale conditions Warranty: 6 months mechanical spare partsPrice and sale conditions: On request View all technical features

Condition: refurbished (used), Year of construction: 1987, functionality: fully functional, turning diameter: 4,300 mm, faceplate diameter: 4,000 mm, Vertical Turning Lathe SC43 CNC, retrofitted and upgraded with CNC Fanuc 0𝑖-TF Plus Made in Romania by TITAN Year of manufacture: 1987 The machine was completely retrofitted in 2026 Main technical data: FACE PLATE DIA. MM 4000 MAX. SWING MM 4300 MAX HEIGHT UNDER THE CROSSRAIL MM 2000 MAX. LOADING ADMITTED KG 18,000 FACEPLATE SPEED RANGE 1-92 RPM FEEDS RANGE MM/ROT 0.05-5 CARRIAGE RAPID FEEDS MM/MIN 2500 MAIN D.C. MOTOR POWER KW 55 SIEMENS WITH SIEMENS DRIVER MACHINE WEIGHT APPROX. 63 TONS Bodjy A Iifspfx Am Towr The machine has the following brand new components: - New electrical equipment with parts made by Schneider, Shrack, Siemens, with a new cabinet - New control panel - New micro switches - New hydraulic pump and components - New pump for guideway lubrication, and the entire installation was redone - New CNC Fanuc 0𝑖-TF Plus 55KW Main motor, Siemens, refurbished in 2018 with Siemens driver The main gearbox was checked and refurbished with new bearings. The machine was repainted. We grant a 6-month guarantee for parts. We can send more photos and a video showing the machine’s precision measurements. Do not hesitate to contact us.

Condition: used, Year of construction: 2008, x-travel 450 mm Bwjdpfowgi Drjx Am Tor y-travel 400 mm z-travel 400 mm control Heidenhain Mill Plus V600 weight of the machine ca. 7000 kg

Condition: used, Radial drilling machine CSEPEL, Type RFh 75 / 1500 Machine no. 13704, Year of manufacture 1985 Drilling capacity in steel: Ø 75 mm Drilling capacity in cast iron: Ø 90 mm Spindle mount: MK 5 Nominal overhang: 1500 mm Maximum overhang of the spindle: 1500 mm (to the column) Minimum overhang of the spindle: 440 mm (to the column) Distance from spindle nose to clamping surface: 370 - 1700 mm Overarm vertical adjustment: 950 mm Table size / clamping surface: 1800 x 1100 mm Column diameter: 450 mm Quill stroke: 380 mm Spindle speed: 19-1900 rpm, 21 steps Feed rate: 0.047-2 mm/rev, 12 steps Motor power: 11 kW Mains connection: 380 Volts, 50 Hz, 15 kW - Right-hand and left-hand rotation of the drilling spindle via hand lever switch - Hydraulic gear change for spindle speed and feed rate - Hydro-mechanical central clamping device - Motorized overarm vertical adjustment - Without coolant system - Machine light - Operating manual Space required: Length 2720 mm x Width 1170 mm x Height max. 3770 mm Transport height with motor on the column: 3500 mm Transport height without motor on the column: 3250 mm Weight: 6.3 tons Good condition Bodolhwr Rspfx Am Tjwr

Condition: excellent (used), Year of construction: 1986, RAFAMET type KCF 400 Bjdpeytq T Hsfx Am Tswr Morę information on request

Condition: used, Technical Data Faceplate diameter: 1580 mm Max. turning diameter: 1700 mm Max. turning height (cross rail support): 1250 mm Bsdpfx Amswyn Nts Towr Max. turning height (side support): 1160 mm Max. faceplate load: 12,000 kg Max. distance from faceplate to underside of cross rail: 1210 mm Max. distance from faceplate to underside of side toolholder: 980 mm Max. distance from faceplate to underside of turret head: 1420 mm 18 spindle speeds: 2.8 – 140 rpm 18 feed rates: 0.063 – 3.15 mm/rev Total power requirement: 55 kW Required floor space approx.: 5300 x 3500 x 4100 mm Control: conventional

Condition: used, Year of construction: 2000, grinding diameter 360 mm grinding length 1600 mm centre height 180 mm internal diameter 0 mm grinding depth 0 mm Bwodjt Hw Rdopfx Am Tor swing diameter 0 mm total power requirement 40 kW weight of the machine ca. 10000 kg dimensions of the machine ca. m K A R S T E N S (Germany) Universal “CNC” - Cylindrical Internal and Face Grinding Machine also for grinding excentric and cam profiles and polygons and even suitable for Threadgrinding Model K 51 – 1500 Year 2000 Serial No. 99 093 Height of centres 180 mm Distance between centres / grinding length 1,700/1.600 mm Cylindrical Grinding: Grinding Ø, approx. 5 - 360 mm Grinding wheel: Ø x width x bore 500 x 100 x 127 mm Grinding spindle speeds (35 m/s / 50 m/s) 1.900 / 2.200 rpm Drives of cyl./int/face spindle units 7.5/4,0/7,5 kW Grinding Wheelhead: 3 Positions = B-Axis Head swivels in 3 positions = 240 ° / 17,5 degree X-axis adjustment in total 360 mm Increments for infeed 0,001 – 125 mm Workpiece wheelhead = C-Axis Spindle speeds steplessly adjustable 10 – 1.000 rpm Spindle taper / Spindle bore MK 4 / 24 mm Table speeds 0,01 – 10.000 mm/min Total electrical load 40 kW - 400 V - 50 Hz Weight, approx. 10,000 kg Accessories / Special Features: * Very versatile CNC Grinding Machine for almost all grinding purposes like External/Internal and Face grinding as well as for Excentric- / Cam- / Polygone Grinding and even for Thread Grinding * Free programmable CNC System make BWO Model 900 C with many grinding cycles and for easy input of the work-parameters. Graphic support, any many more features. * 3 position wheelhead with 3 Grinding spindles as B-Axis, one with measuring feeler (Z - Position) * MOVOMATIC Measuring Device Model ES 400 for diameter control, Probe head CR 60, to be mounted on table. * MPM Automatic Grinding wheel balancing Device, Dressing devices with diamantflees mounted on table surface and also motorized Diamantroll Profile dresser on table (for thread profiles, etc.) * Workhead and tailstock can be easily moved on table by air cushion. Hydraulic quill on tailstock. * No Coolant Device available ! Condition : Good to very good. Machine can be inspected under power. Delivery : Ex stock as inspected. Payment : Net, after conclusion of contract.

Condition: new, Year of construction: 2022, feed rate X-axis: 20 m/min, feed rate Y-axis: 20 m/min, feed rate Z-axis: 15 m/min, overall weight: 7,400 kg, spindle speed (min.): 4,000 rpm, spindle speed (max.): 10 rpm, travel distance Y-axis: 1,500 mm, power: 22 kW (29.91 HP), DYAS Plate Drilling Center - DYAS PDC-1500 Number of Drilling Units 1 Vertical Motor Power 22 kW Spindle Torque 280 Nm Bwedpfxjgbfaxe Am Tsr Spindle Speed 10-4000 RPM Automatic Tool Changing (ATC) 16 Units Maximum material weight 760 kg Max. Max. Drilling Capacity (mm) Ø40 mm

Condition: used, Year of construction: 2007, turning diameter 300 mm turning length 600 mm control FANUC, 18i-TB turning diameter over bed slide 230 mm travel x1 165 mm travel z1 700 mm travel x2 190 mm travel z2 720 mm travel -y axis +/- 50 mm main spindle bore 76 mm main spindle speed 5.000 U/min main spindle drive 22 kW max. torque on the spindle 208 Nm sub spindle bore 76 mm sub spindle speed 5.000 U/min sub spindle drive 22 kW max. torque on the spindle 208 Nm Bwedpsy Tpliofx Am Tor tool turret 2 x 12 Stat. number of driven tool stations 2 x 12 speed of driven tools 5.000 U/min max. torque 47 Nm tool taper BMT 55 C-axis resolution 0,001 ° rapid traverse x + z axis 20 / 40 m/min rapid traverse y-axis 7,5 m/min work piece power 5,5 kW total power requirement 68,4 kVA Accessories: collet fixture make KITAGAWA, CRS 66, on main spindle, hydr. 3-jaw chuck make KITAGAWA, BB 208, 210 mmø, on sub spindle, various tool holders for turret, bar loader make HYDRAFEED, model MULTIFEED MX-1B for bar dia. 3 - 80 mm and bar length up to 1650 mm, chip conveyor, coolant with belt filter device

Condition: good (used), Year of construction: 1999, functionality: unexamined, travel distance X-axis: 6,000 mm, travel distance Y-axis: 3,200 mm, travel distance Z-axis: 2,050 mm, total length: 13,000 mm, table length: 5,000 mm, table width: 3,000 mm, total width: 8,000 mm, spindle speed (min.): 12,000 rpm, total height: 6,000 mm, table load: 50,000 kg, overall weight: 120,000 kg, number of slots in tool magazine: 32, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, HEYLIGENSTAEDT HEYMUNILL 3200-P heavy-duty portal-type machining center with fixed cross beam, designed for processing large and heavy workpieces. Bodpfxsy Anrte Am Tswr Large working area with travel distances of X 6,000 mm / Y 5,000 mm / Z 1,500 mm, table size approximately 5,000 x 3,000 mm, and table load capacity of approx. 50,000 kg. Portal clearance approx. 3,220 mm width / 2,050 mm height. 5-axis machining / milling heads A and B axes (swivel axes in the milling head) C axis (360° rotation) Simultaneous 5-axis machining possible (with fork milling head) Milling heads: Straight milling head FK 120/340 90° angular milling head WFK 100/750M Fork milling head FK 100/2D Milling head magazine: 5 positions automatic milling head changer Additional equipment: ICS approx. 7 bar 32-position tool changer (SK50, Fibro ATC 32/50) Tool holder SK50 (DIN 69871) Tool length measuring system (laser) Chip conveyor Coolant system Adaptive feed control Heidenhain linear measurement systems X/Y/Z
