5 Axis CNC Routers

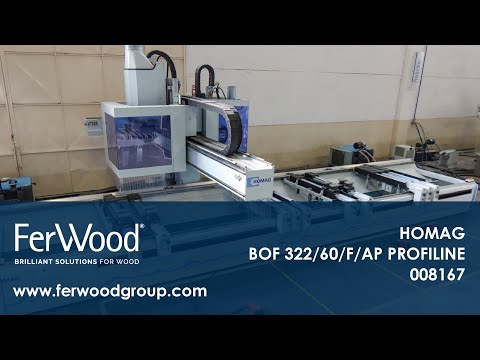

HOMAG BOF 322/60/F/AP PROFILINE

Condition: new, with planing spindle Type R-R-RP1300 Working width 1300 mm Min. working length 538 mm Working thickness 3-110 mm Isdpjd H Sc Eofx Addsht Feeding speed 6-30 m/min Total motor power 77,12 kW Motor for first unit 22 kW Motor for second unit 30 kW Motor for third unit 18,5 kW Abrasive belt size 1330x2200 mm Working air pressure 0,55mpa Volume of dust collection device 12000 m3/h Transport dimensions 3090x2020x2260 mm Weight 4700 kg

Condition: excellent (used), Year of construction: 1999, Fanuc 21T control system Turning diameter 158 mm Swing over bed 340 mm Speed 6,000 rpm 8-station turret Tailstock 3-jaw chuck, 2-jaw chuck, collet chuck Ihjdswmzhpspfx Addet Collets Various tool holders

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, feed length X-axis: 4,300 mm, feed length Y-axis: 4,300 mm, cutting length (max.): 4,300 mm, cutting height with scoring (max.): 4,300 mm, saw blade diameter: 380 mm, HPP 380/43/43, fully automatec loading with TBP 200/31/22/ Main motor 18.5 kW Machine works perffectly, possible test run Holzma Profi HPP 380 Cutting length: 4,300 mm Cutting width (program-controlled pusher travel): 4,250 mm Ijdpoxvz T Isfx Addsht Air cushion table: 2,160 x 650 mm, 3 pcs. + 1* 2,810 mm length Central blower: 1 unit with increased blower performance 2 additional alignment devices Technical Data: Saw blade projection: 95 mm Saw carriage feed: forwards 1–130 m/min, backwards constant 130 m/min Main saw motor: 18 kW Scoring saw motor: 2.2 kW, VVSH aggregate, program-controlled, vertically rising Operating voltage: 400 V (+10%/-5%) / 50 Hz Electrical connection rating for main saw motor 18 kW: 24 kW Power Control CADmatic 4.0 control with 17-inch flat display Labeling with part graphics / label program / label printer PICA 104

Condition: used, Year of construction: 2008, Used machine Year of manufacture: 2008 Condition: well-maintained, serviced regularly (last service by Homag in 11/2024) Features and technical specifications: Minimum workpiece thickness: 12 mm Maximum workpiece thickness: 60 mm Minimum workpiece size (L×W): 240 × 55 mm (with 22 mm thickness) / 100 mm (with 60 mm thickness) Minimum edge thickness: 0.3 mm (roll material) / 0.4 mm (strip material) Maximum edge thickness: 3 mm (roll material) / 20 mm (strip material) Feed speed: infinitely variable, 18–25 m/min (frequency-controlled) Type of glue: EVA hot-melt adhesive Glue application (pot / cartridge / nozzle): melting unit with granulate hopper Glue volume / cartridge size: granulate hopper, melting capacity 18–35 kg/h, level-controlled Heat-up time: approx. 8–10 min Edge magazine (slots): 2 rolls (automatic roll change) Automatic edge change: yes (automatic via PC22, can be switched manually) Pre-milling: 2 × 1.5 kW, 200 Hz, 12,000 rpm, pneumatically adjustable Pressure zone: 1 pre-press roller Ø 150 mm + 6 post-press rollers Ø 70 mm, automatic adjustment End trimming: HL84 trimming unit, 2 × 0.8 kW, pneumatically adjustable (bevel / straight) Flush milling: via pre-milling unit, pneumatically adjustable Radius milling: FK13 contour routing unit, automatic 8-position tool changer (R = 2 mm) Bevel/profile milling: yes, via FK13, pneumatically adjustable Scraper: integrated in multi-finishing unit MN21 Polishing: buffing unit in finishing module FA11 Ihedpfxswx Aaqe Addjt Jointing unit: jointing milling unit KAL310/A20/S2, 2 × 3 kW Workpiece pre-heating: available Release agent spraying device: top / bottom, type 2929 (F.01) Extraction ports: multiple Ø 100 mm (individual extraction per unit) Control: power control PC22 (industrial PC, woodCommander on Win XP embedded) Operating voltage: 400 V, 50 / 60 Hz CE / Standards: CE-compliant according to EU Directive 98/37/EC Dimensions / required space: approx. 8,000 × 1,400 × 1,600 mm Weight: approx. 3,000 kg The return conveyor system visible in the pictures is not included in the scope of supply! Availability: short-term Location: 63934 Röllbach

Condition: ready for operation (used), Technical characteristics Machining X 3180, Y 1340 Drilling capacity X 3405, Y 1260 Pneumatic locking HSK63 12 KW 3-axis electro-chuck Ihsdpfotqka Tox Addst Displacement 0-100 m / min 0-90 ° blade grooving group 14-pin vertical drilling unit, 6-pin horizontal, 15-inch screen control cabinet included SOFT and control Machine to be restarted Nombre de ventouses12 Nombre de poutres6 Caractéristiques usinageVacuum pump Capacité pompe à vide100 m3/h Power and Motors Overall dimensions

Condition: used, machine/vehicle number: 008011, X axis working area: 6200 mm Y axis working area: 1935 mm Working Table: Pod and Rail Main Electrospindle power: 10.5 KW Number of controlled axes: 4 axes Total number of drilling spindles: 40 Iodswu Af Eopfx Addjht Total number of tool changer positions: 22

Condition: used, Year of construction: 2021, axis stroke (X,Y,Z) 4062, 2,922,660 mm Number of spindle head vertical 13 St. Number of spindles head horizontal 6 St. Number of tools 27 St. Number of milling agregates 1 St. working dimensions 3200,1500,200 mm Motor output 12 kW control BECKHOFF MASTERWOOD Project 385 (Winner) ----- Exhibition machine built in 2021, available immediately! 5-axis CNC machining center in portal design for use for Interior fittings, doors, stairs optionally expandable with solid wood clamps Frame processing and arched windows Short Summary: ----- Workspace: X = 3200mm ; Y = 1500mm; Z = 200mm 1 piece 5-axis high-performance spindle, 12 kW, with HSK 63 F mount Ihjdpfx Aexmk Atoddet 1 piece of permanently installed drill head with 19 spindles with 7 individually accessible vertical drilling spindles in the X direction with 6 individually accessible vertical drilling spindles in Y direction with 2 double horizontal drilling spindles in X direction and 1 double horizontal drilling spindle in Y direction Sawing unit integrated into the drill head 27 tool changing positions: Carousel tool changer with 22 positions and 102 mm grid spacing Linear 5-fold tool magazine for large tool diameters Original SCHMALZ tubeless work table. Console table with 6 traverses Workpiece lifting device Automatic tool length measuring device. Pack of 12 original Schmalz vacuum cleaners 114 x 140 mm height = 125 mm 1 piece Becker vacuum pump 100m3/h 1 piece chip conveyor belt Construction software Masterwork: 2D-Wop for standard application panel processing/interior construction, arches, doors Master 3D Level 2: for more complex processing, Optionally also expandable for 5-axis fully interpolating Prepared for the use of solid wood tensioners (round arches), Tensioner offered as an option if needed later Technology according to the enclosed, detailed description ----- Total price in this version from the Oberkochen warehouse: on request! ----- Freight and commissioning on request! Options for frame production/round arch with additional costs: ----- Reference ring for holding chip guide elements on 5-axis electrospindles with HSK 63F mounts: 410.00 euros Basic kit for clamping arch elements - 6 pneumatic tensioners with two movements for arch elements: 7,090.00 euros (technical information according to the manufacturer - no guarantee!) Chip guide elements, price per piece: 460.00 euros All prices mentioned are net, plus tax. (technical information according to the manufacturer - no guarantee!)

Condition: used, machine/vehicle number: 006279, X axis working area: 3100 mm Y axis working area: 1250 mm Working Table: Flat table Number of controlled axes: 3 axes Ihodpokw H Eksfx Addot Total number of drilling spindles: 11 Total number of tool changer positions: 8

Condition: used, Year of construction: 2019, Numerical Control with WINCUT software Printer for barcode labels Cutting length mm 4300 Cutting width mm 4300 Blade projection mm 110 Double lateral aligner with pneumatic rubber cylinder N° 1 Fixed front Bakelite table with air curtain system and lateral guide for loading \ unloading panels N° 3 Adjustable front Bakelite tables with air curtain system for loading \ unloading panels Engraving unit (max blade diameter / power) Main blade unit (max blade diameter / power) 20 hp (15 kw) Optimized blade / presser ascent in self-learning Electronic adjustment of the engraver Adjustable speed of the blade carriage m/min 150 - 170 Speed of the pusher carriage m\min 0-90 Pusher carriage with n° 7 clamps TECHNICAL DETAILS TO BE VERIFIED Ihodpfxowcdymj Addst

Condition: used, Year of construction: 2016, MORBIDELLI AUTHOR M400 MAIN FEATURES 5-AXIS MACHINING UNIT "PRISMA: QUALITY AND PRODUCTIVITY AT THE HIGHEST LEVEL XILOG MAESTRO SOFTWARE: EXTREMELY SIMPLE MATIC PROGRAMMING" WORKTABLE: ONE POSITIONING FOR MULTIPLE MACHINING OPERATIONS TECHNICAL DATA AUTHOR M400 AXES Working area X-axis (inside stop) mm 3,680 Working area Y-axis (max. loadable piece on rear stops) mm 1,680 Workpiece passage Z / number of Z axes mm 170 / 1 Workpiece length with pendulum machining mm 1,650 Travel speed X-Y axes Pro-Speed m/min 85 Z-axis speed m/min 30 INSTALLATION Installed power KVA 62÷82 Compressed air requirement NL/min 400 Extraction air requirement m³/h 4,430 Extraction air speed m/s 25 Extraction nozzle diameter mm 250 GENERAL CHARACTERISTICS CNC-controlled drilling and milling center in gantry design and work table with workpiece supports, for carrying out: - vertical drilling on the panel surface - horizontal drilling on all four sides of the workpiece - groove milling with disc milling cutters - general milling work 3-4-5 axes MACHINE STRUCTURE The basic structure is a monolithic construction made of thick-walled steel. It is stiffened by welded reinforcements across the entire machine bed, making it extremely stable. The table shape used, with a large base, is the secret to ensuring lasting precision and stability. The machine layout allows the user optimal workflow with a minimum of space requirements. The mobile gantry support is made of a solid monoblock. It is positioned in the X direction on prismatic ground guides via recirculating ball slides. On this mobile unit carrier, the work unit is mounted on prismatic, ground guides and recirculating ball slides. All axes are moved on large-section prism linear guides and recirculating ball bearings with a large contact surface, ensuring optimal gliding even at the highest speeds and accelerations. Precise and rapid positioning of the movable gantry (X-axis) is achieved by a pinion and rack with helical teeth. Large-section recirculating ball screws ensure precise positioning of the work unit along the movable gantry (Y and Z axes). MOTORS, DRIVES AND INVERTERS Perfect mechanical dynamics and maximum positioning accuracy are controlled by high-quality drives and brushless motors, designed to achieve speeds of up to 90 m/min while ensuring the best finishing quality. CONTROL The control unit consists of a numerical control for milling and drilling machines with "Xilog Maestro" graphical user interface based on the Windows 7 Office operating system. 17-inch LCD color screen. QWERTY keyboard. Tilting control panel. Machine interface with Xilog Maestro software. Xilog Maestro Features Programming Parametric graphic programming Import of DXF files (2D; SPLINE, POLYLINE 3D geometries), linear or circular interpolation in three axes, linear in space, spiral in the selected plane. Programming with graphic and syntax aids for drilling and milling operations Automatic optimization of drilling operations and tool change cycles Possibility of Plate zero point shift for drilling on inclined or curved plate sides Ihjdpfx Aoxnldboddjt
