Used Tariqul Lathe for sale (5,384)

Condition: used, Year of construction: 2006, functionality: fully functional, Turning diameter: 650 mm Turning length: 1,500 mm Total power requirement: 33 kW Center distance: 1,500 mm Swing diameter over bed: 650 mm Swing diameter in recess: 670 Turning diameter: 650 mm Turning length: 1,500 mm Total power requirement: 33 kW Giodoykavlspfx Aadon Center distance: 1,500 mm Swing diameter over bed: 650 mm Swing diameter in recess: 670 mm Swing diameter over face slide: 260 mm Face slide travel: 380 mm Main drive Drive power AC motor - 40/60/100% duty cycle: 33/27/22 kW Spindle box Spindle bore diameter: 106 mm Spindle diameter in front bearing: 140 mm Speed range (V constant): 1 - 2,000 rpm Cross slide Feed range, face: 0.001 - 1,000 mm/rev Feed range, face, optional up to: 5,000 mm/rev Feed range, longitudinal and thread pitch: 0.001 - 2,000 mm/rev Feed range longitudinal and thread pitch, optional up to: 13,000 mm/rev Feed force flat: 9,000 N Feed force longitudinal: 12,000 N Automatic tool turret Number of tool stations: 12 With tool drive for 6 stations Tool holder system (DIN69880) VDI40 Equipment SIMENS SINUMERIK 840D sl (Shop Turn with manual functions) COMBI control station C-axis with drilling, milling, and engraving cycles Residual material detection and machining – during roughing and contour pockets MULTIFIX C forne setup Three-jaw chuck SMW AUTOBLOK: HI-GRIP HGF260-81-3 Oil emulsion mist filter for work area extraction: MAHLE LTA600 4 driven axial tool holders 2 driven radial tool holders

Condition: used, Year of construction: 2017, turning diameter 290 mm turning length 204 mm control Fanuc 31i - Model B Number of working hours 4185 + 9159 h Gijdpov Rrrhefx Aadjn number of spindles 2 Stück spindle turning speed range max. 3200 U/min x-travel 230 mm z-travel 250 mm distance between the spindle noses 450 mm spindle nose A 2 - 6 spindle bore 73 mm tool turret with 10 work positions 2 x workpiece magazin 14 Stück max. workpiece diameter 200 mm workpiece weight max. 2 x 8 kg workpiece length - max. 120 mm rapid traverse 24 m/min feed - longitudinal/cross 0 - 1260 mm/min spindle motor 11/15 kW Driven tools 3,7/5,5 kW turning speed of the driven tools 4000 U/min. total power requirement 61 kVA weight of the machine ca. 6,3 t dimensions of the machine ca. 3,1 x 2,9 x 3,6 mm Front lathe - Horizontal double spindle machine with gantry loader Raku Raku and workpiece magazine on both sides, C-axis and 10-way turret for both sides with driven tools on just the right side, 14-way workpiece pallet magazine. Machine dealer with own stock of 1600 m².

Condition: used, Year of construction: 2017, turning diameter 290 mm turning length 204 mm control Fanuc 31i - Model B Number of working hours 23850 h number of spindles 2 Stück spindle turning speed range max. 3200 U/min x-travel 230 mm z-travel 250 mm distance between the spindle noses 450 mm spindle nose A 2 - 6 spindle bore 73 mm tool turret with 10 work positions 2 x workpiece magazin 14 Stück max. workpiece diameter 200 mm workpiece weight max. 2 x 8 kg workpiece length - max. 120 mm rapid traverse 24 m/min feed - longitudinal/cross 0 - 1260 mm/min spindle motor 15/18 kW Driven tools 3,7/5,5 kW turning speed of the driven tools 4000 U/min. total power requirement 61 kVA Godsvuup Djpfx Aadjin weight of the machine ca. 6,3 t dimensions of the machine ca. 3,1 x 2,9 x 3,6 mm Front lathe - Horizontal double spindle machine with gantry loader Raku Raku and workpiece magazine on both sides, C-axis and 10-way turret for both sides with driven tools, more powerful spindle motor, 14-way workpiece pallet magazine. Machine dealer with own stock of 1600 m².

Condition: ready for operation (used), Year of construction: 1971, turning diameter over bed 800 mm turning diameter over slide rest 480 mm turning length 3000 mm turning diameter in the slot 850 mm center height over bed 380 mm Godpfxowwatre Aadsin bed width 550 mm spindle head DIN 55022/8 spindle bore 73 mm speeds 18 - 900 U/min feeds 224 / 0,018-10 mm/U thread - mm pitch ca. 84: 0,2 - 224 mm total power requirement 17,5 kW weight of the machine ca. 8,6 t dimensions of the machine ca. 5,5 x 1,8 x 1,72 m Solid universal lathe with rapid longitudinal and transverse support traverse, pole-changing spindle motor (i.e., two speeds can be selected by increasing the motor speed), single-lever control for all support movements, pre-selected feed rates, hardened bed guides, double-tiebar bed for high rigidity, high- positioned front guideway and low-positioned rear guideway in the V-prism for high accuracy, and triple bearings for the lathe spindle, threads in mm, inches and diametrical pitch. The year of manufacture is estimated. Many accessories! Machine dealer with own stock of 1600 m².

Condition: used, Year of construction: 1975, turning diameter over bed 380 mm turning diameter over slide rest 215 mm turning length 1250 mm spindle bore 41 mm bed width 340 mm number of spindle speeds 12 spindle turning speed range 14-2800 U/min total power requirement 6 kW weight of the machine ca. 1,85 t dimensions of the machine ca. 3 x 1 x 1,35 m Special price sale directly from the factory! Machine dealer with own stock of 1600 m². Godpfjycxf Ajx Aadoin

Condition: used, Year of construction: 2018, Lathes Travel distance X: 221 mm Travel distance Y :100 mm Travel distance Z: 400 mm turning length: 380 mm max. circulation diameter: 280 mm spindle boring: 65 mm input Power: 11 kW max. turning moment: 80 NM range of revolution from: 100 rpm range of revolutions till: 4500 rpm Control: Fanuc 0i-TF Godpeyi Ux Eefx Aadoin Powered tools: 12 working hours approx: 813 h control Fanuc Scrapper chip conveyor

Condition: good (used), CNC Lathe with y-axis Geminis Goratu - GHT-4 G4-800 Max. turning Ø:800mm Length: 7000mm Width: 2500mm Giodpfx Aoygv Eueaden Height: 2500mm Weight: 10000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: excellent (used), Year of construction: 2004, turning diameter 850 mm turning length 2200 mm control Siemens 840 D Gisdpfxjyhrb Uo Aadon

Condition: used, Year of construction: 2011, turning diameter 580 mm turning length 300 mm control OSP-P300L Gjdpfx Aoykb H Soadjin weight of the machine ca. 3200 kg

Condition: good (used), Year of construction: 2007, CNC lathe MICROTURN CHALLENGER BNC 1840, year 2007, equipped with FARGO 8055i/A control, tool turret VDI 40 / 8 positions, chuck diameter 250 mm. Gisdpfx Aaeyhzg Dedjn Spindle mount: CAMLOCK D1-6 Centre height: 230 mm Turning length: 1000 mm Spindle bore: 65 mm Spindle speeds: 100–4500 rpm Further data available in data sheets. Coolant system included. Machine in good condition, powered up and ready for demonstration. Machine documentation available.

Condition: used, Technical details: faceplate diameter: 5000 mm swing diameter: 6100 mm Gedpfx Aajw Rz U Aedsin turning height: 2400 mm ram stroke each side: 1490 mm ram head dimension: 340 x 340 mm max. workpiece weight: 100.000 kg total power requirement: 100 kW weight of the machine ca.: 155 t faceplate turning speed range: 0,4 - 50 U/min with 2 x 2 axes CNC SIEMENS 840 D *

Condition: used, Technical details: faceplate diameter: 1000 mm swing diameter: 1600 mm turning height: 1200 mm main drive: 75 kW faceplate speeds from - to: 7 - 800 U/min milling motor: 25 kW milling head speed: 7 - 3000 U/min milling spindle - taper: ISO 50 cross rail adjustment - vertical: 800 mm ram head dimension: 240 x 240 mm Giedpfxjvb Dcaj Aadjn weight of the machine ca.: 40 to dimensions of the machine ca.: 9 x 7,8 x 6,0 m Machine general overhould in 2004 and equiped with Siemens 840 D control - tool changer rack magazine - C-axis, live tooling, - Transmit function electronical Y-axis - angular milling head - complete splash housing - coolant device, chip conveyor *

Condition: used, Technical details: faceplate diameter: 1400 mm swing diameter: 2000 mm turning height: 1270 mm main drive: 80 kW faceplate speeds from - to: 1 - 355 U/min max. workpiece weight: 6.000 kg milling motor: 37 kW milling head speed: 7 - 3000 U/min milling spindle - taper: ISO 50 cross rail adjustment - vertical: 800 (8 x 100 mm) mm ram head dimension: 240 x 240 mm max. ram stroke: 1250 mm weight of the machine ca.: 50 to total power requirement: 133 kVA dimensions of the machine ca.: 11 x 5 x 6,4 m Machine general overhould in 2008 and equiped with CNC SIEMENS 840 D control - tool changer for 72 tools - C-axis, live tooling - angular- and straight tool holder head with CAPTO taper Gsdpfovb Dcmsx Aadoin - Transmit function - complete splash housing - coolant device, chip conveyor - diverse accessories *

Condition: used, Technical details: Gjdpfx Ajx Ngzyeadein turning diameter over bed: 3800 mm turning diameter over slide rest: 3200 mm turning length: 12000 mm faceplate turning speed range -stepless-: 2 - 200 U/min max. workpiece weight: 90.000 kg bed width: 4000 mm 2 steadies *

Condition: used, Year of construction: 1998, Technical details: turning diameter: 830 mm turning length: 4000 mm turning diameter over bed slide: 540 mm spindle bore: 130 mm turning speed range: 2 - 1600 U/min rapid speed: 4 / 5 m/min feed speeds: 1 - 2000 mm/min total power requirement: 55 kW weight of the machine ca.: 7,5 t dimensions of the machine ca.: 7 x 2,2 x 2 m Giodpfx Aaowwlt Rodsn with Teach In controll R&D MTC-K MULTIFIX toolpost size D coolant attachment *

Condition: used, Year of construction: 2009, dist. between centers 4.500 mm greates pass round over bed 820 mm Maximum cutting diameter 530 mm control Heidenhain Manual Plus 4110 workpiece weight max. 2.500 kg spindle bore 128 mm spindle nose DIN 55027 B11 turning speed range - spindle 0 - 1800 U/min phase 1 0 - 450 U/min phase 2 20 - 1.800 U/min Max. torque stage 1 3.000 Nm Max. torque stage 2 540 Nm travel -x axis 360 mm travel -z axis 4.500 mm Gisdpsyhq Tvsfx Aaden feed capacity - x 10 kN rapid traverse 10.000 mm/min dia. of quill 115 mm total connected load 55 kVA machine weight ab. 7000 kg dimensions of the machine ca. 6.500 x 1.840 x 1.860 mmxmmxmm Equipment/accessories: -1 x faceplate -5 x jaw chucks -1 x closed steady rest -Clamping jaws -Multifix holder -Turning tools -Various tips -Technical documentation

Condition: good (used), For Sale CAZENEUVE HB 575 Lathe – 3 Metres Between Centres General Description: Brand: CAZENEUVE (France) Model: HB 575 Type: Heavy-duty / Industrial Lathe Giedpoyhncnofx Aadon Distance between centres: 3,000 mm Applications: Machining of long and cylindrical parts for heavy mechanical engineering, aerospace, energy, manufacturing of large shafts, drums or special components. Technical specifications: Maximum turning diameter: ~575 mm (to be confirmed depending on chuck and tailstock) Maximum length between centres: 3,000 mm Centre height: ~285–300 mm (to be verified on machine) Cross slide travel: ~500–600 mm Chuck: depending on configuration (often 4 or 6 jaws, diameter suited for long parts) WITH 3 STEADY RESTS BT MACHINES PURCHASE & SALE ALL TYPES OF INDUSTRIAL EQUIPMENT ALL TYPES OF MACHINE TOOLS

Condition: ready for operation (used), Year of construction: 1980, functionality: fully functional, turning diameter over cross slide: 300 mm, spindle bore: 80 mm, turning length: 1,500 mm, turning diameter: 300 mm, center height: 180 mm, bed width: 485 mm, total length: 3,700 mm, total width: 1,600 mm, total height: 2,000 mm, workpiece weight (max.): 4,000 kg, For sale: VÖEST-ALPINE lathe in operational condition. An external hydraulic unit is included in the offer. The machine functioned flawlessly until it was removed from service. Loading by arrangement is possible. Year of manufacture: approx. 1980. Gisdpfsykb Iisx Aadon

Condition: ready for operation (used), For sale here is a well-maintained Weiler RDU. Test run possible. Extensive accessories available. On-site loading possible. Gsdpfxsykb Nmo Aadein

Condition: used, turning diameter 340 mm turning length 575 mm control Mazatrol SmoothEZ max. swing diameter over bed 695 mm Standard machining diameter 235 mm bar material dia. max. 65 mm x-axis 215 mm rapid traverse X-axis 30 m/min Godpfx Aowngkleadsin y-axis 100 mm rapid traverse Y-axis 10 m/min z-axis 605 mm rapid traverse Z-axis 30 m/min turning speeds 35 - 5000 U/min spindle nose A2-6 spindle bore 76 mm Motor output (40%ED) 15 KW 11 KW Max. Torque 167 Nm turning speeds 35 - 6000 U/min spindle nose A2-5 Motor output (40%ED) ca. 7,5 KW Power (continuous operation) 5,5 KW Max. Torque 53 Nm Milling spindle speeds ( driven tools) 20 - 4500 1/min torque on milling spindle max: 47 Nm power capacity - milling spindle 5,5 (40% ED) kW Milling spindle power 3,7 kW Numbers of tools 12 (angetrieben) Tool cross section (outside) 25 qmm Boring bar- Ø 40 mm Drill- Ø 20 mm Mill- Ø 20 mm Tap- Ø M20 coolant tank 225 l Chuck diameter main spindle 8 '' Chuck diameter counter spindle 6 '' w-axis 585 mm rapid travel W 30 m/min c-axis 555 weight of the machine ca. 4,9 t dimensions of the machine ca. 2,8 x 2 x 1,8 m Special accessories: - Chip conveyor, hinged belt, side ejector - Production package, this package includes Preparation for bar feed Automatic parts catcher (Ø:80mm x L:120mm x 2.5 kg) 15 bar high-pressure coolant system Preparation for chip conveyor (lateral) Signal light (3-colour LED), rectangular C-axis counter spindle 0.0001° Automatic tool eye 8" power chuck Kitag. BR08 & Cyl. SR1566C (HD1) GENERAL MACHINE OPTIONS Air blowing device on the chuck (counter spindle) Transformer for the European market Linear roller guides SD MEMORY I/F(1P) + USB MEMORY I/F(1P) 1 x USB - Memory Interface (1 slot) CE marking CE marking, metric, 50 Hz Counter spindle positioning 0.0001 degrees without C-axis Tool turret with 12 stations Y-axis control ADDITIONAL PROCESS SOFTWARE Smooth restart function / restart mode Set of manuals in electronic form on CD Main spindle motor AC 15 kW (20 hp) 2nd spindle motor AC 7.5kW (20 hp) Main spindle motor AC 7.5kW MAIN SPINDLE C-axis main spindle Input accuracy (contour/index) 0.0001° Mazak standard colour (F white(fine)/S black) Automatic switch-off via circuit breaker trip Double foot switch Hydraulic pressure interlock RFID door interlock Safety foot switch with locking mechanism Safety measures according to worldwide standard Work area lighting Complete coolant system Automatic opening/closing of chuck jaws (main and counter spindle) Feedback of the chuck status (main and counter spindle) Feedback of the chuck status via sensors. 8" power chuck 6" power chuck (counter spindle) Absolute positioning system Synchronous tapping with milling spindle Relocation Detector NC control Mazatrol SmoothEz 15" colour Lcd (touch screen) User macro (common variables: 600 pairs) EIA/ISO package EIA/ISO - input function EIA/ISO - additional functions Bolt line interpolation 3D tool compensation Workpiece coordinate rotation Geometric function Scaling External data input/output Tapping function (G33) Reverse feed rate G93 G37 Tool length measurement Polar coordinate input (EIA) Optional stop Additional workpiece coordinate systems 300 pieces User macro (600 variables) Mazak tapping/drilling cycle EIA/ISO - input function Scaling External data input/output Thr...

Condition: used, turning diameter max. 360 mm turning length 505 mm control Mazatrol SmoothC max. swing diameter over bed 660 mm swing diameter over slide guides max 255 mm bar material dia. max. 80 mm turning speed range - spindle 35 - 4000 U/min max. torque on the spindle 358 Nm x-axis 225 mm rapid traverse X-axis 30 m/min z-axis 605 mm rapid traverse Z-axis 33 m/min spindle nose A2-8'' spindle bore 91 mm spindle hollow 80 mm Milling spindle speeds ( driven tools) 5000 1/min torque on milling spindle max: 47 Nm power capacity - milling spindle 5,5 (40%ED) kW tailstock quill taper MT 5 Travel- tailstock 565 mm Axial pressure max 5,0 Nm Tool turret 1 Numbers of tools 12 (angetrieben) turning tool - shaft cross cut 25 x 25 mm tool taper BMT Required air-pressure 5 / 160 bar / l/min voltage 400 V coolant tank 180 l engine output 18,5 (30min Betrieb) kW Rated power (100% continuous operation) 15 kW weight of the machine ca. 6 t dimensions of the machine ca. 3,6 x 2 x 1,8 m Machine incl. the following special accessories: Chip conveyor on the right side Productivity package C - special according to storage machine This package includes: High-performance coolant system (1.1 kW) Flow rate max. 17.6 l/min Preparation for chip conveyor (lateral) Automatic tool eye STANDARD ACCESSORIES Transformer for the European market Use of linear systems with guide carriage SD MEMORY I/F(1P) + USB MEMORY I/F(1P) 1 x USB memory interface (1 slot) Spindle bore 91 mm Set of manuals in electronic form on CD Mazak standard colour CE marking, metric, 50 Hz C-axis input accuracy 0.0001° NC controlled tailstock Tailstock pressure adjustment Tailstock with fixed quill MK5 SAFETY DEVICES Operator door with interlock switch Double foot switch Hydraulic pressure lock Fully enclosed work area Work area lighting Safety precautions according to global standard Giodpfjv Dxw Rjx Aadon COOLANT SUPPLY Grundfos coolant pump type MTA (0.25kW / 7.6L/min) Complete coolant system Automatic switch-off via circuit breaker triggering MESSSYSTEM Absolute positioning system NUMERICAL CONTROL Synchronous tapping with milling spindle Relocation Detector Mazatrol SmoothC 10.4’ colour screen User macro (600 variables) EIA/ISO input function Tool path check in the background Thread cutting function (G33) Polar coordinate input (EIA) Drawing data direct input function Interface for LAN Various tool holders - All dimensions, weights and performance data are non-binding - Used machine without warranty -

Condition: new, Year of construction: 2024, operating hours: 40 h, functionality: fully functional, turning diameter over cross slide: 570 mm, turning length: 550 mm, turning diameter: 400 mm, spindle speed (max.): 3,000 rpm, travel distance X-axis: 220 mm, travel distance Z-axis: 600 mm, rapid traverse X-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, total height: 1,900 mm, total length: 3,010 mm, total width: 2,500 mm, turning diameter over bed slide: 570 mm, overall weight: 5,000 kg, bar passage: 87 mm, Equipment: documentation/manual, rotational speed infinitely variable, US wheeler LT300M New machine (stock machine) Further configurations and models from the manufacturer available on request. Equipment: Control: Siemens 828D Siemens drive components Centralized automatic lubrication system Gijdpfxov Eu Arj Aadon External housing Telescopic guideway cover Transformer Control cabinet Operator work area lighting Signal tower LCD monitor Linear guides Servo tailstock Hydraulic chuck Sauter tool turret with 12 driven tools (BMT55) Renishaw tool measurement system Machine operating manual Pneumatic air gun Water gun Oil skimmer Chip conveyor and coolant tank Options: Workpiece measurement system Direct measuring systems Oil mist extraction system By equipping the machines with components from the world's leading manufacturers, we can not only ensure the reliability of our products but also provide high-performance and competent service with short response times. Before being delivered to our customers, all US wheeler machine tools undergo comprehensive quality and functionality testing at our premises.

Condition: used, turning diameter 1.600 mm max. swing diameter 1.700 mm control Siemens - 840D faceplate turning speed range 1 - 320 U/min rapid traverse 3.000 mm / min feed range 1 - 3.000 mm/min size of pallet 1.168 mm numbers of pallets 2 main drive 55 kW Vertical turret lathe with cnc | SCHIESS MOWEG - BERTHIEZ TFM 125 Giedsvp Shgepfx Aadon has been overhauled by SCHIESS MOWEG (RETROFIT) in 2007. The machine video from the production plant will be shared on request. The machine is in very good condition and was in operation at an aviation company until recently. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: TFM125 | TFM-125

Condition: used, L + Z Lathe VOEST ALPINE - WEILER Type DA 210 / 1 Machine No. 1-004/2552 Year of manufacture: 1983 Centre distance: 1000 mm Swing over bed: 420 mm Gsdpfjykca Hsx Aadoin Centre height over bed: 210 mm Swing over cross slide: 240 mm Centre height over cross slide: 120 mm Spindle bore: 52 mm Spindle speed: 33 - 1500 rpm, 12 steps Chuck flange: short taper DIN 55027 size 6, 4x M12 Tailstock taper: MK 4 Motor power: 5.5 kW Power supply: 380 Volt, 50 Hz - Spindle speed via 12 gearbox steps - EMCO 3-jaw scroll chuck Ø 200 mm with turning and boring jaws - Multifix size B quick-change tool post with 3 change cartridges - Automatic longitudinal and face feed - Coolant system - Spindle brake - Emergency stop - Machine lamp - Operating manual Space requirement (L x W x H): 2200 x 1200 x 1450 mm Weight: 1400 kg Very good condition

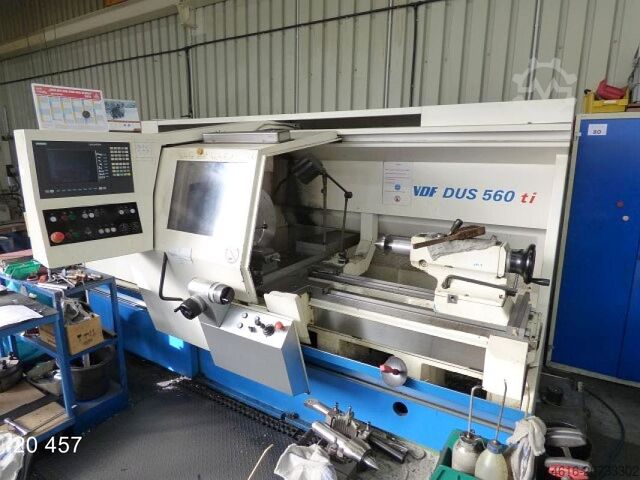

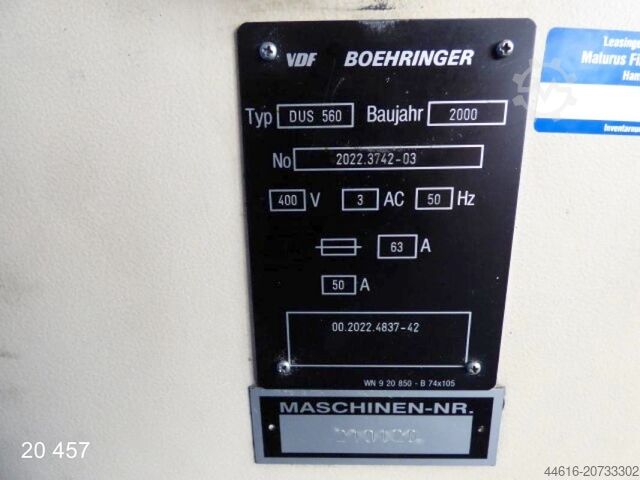

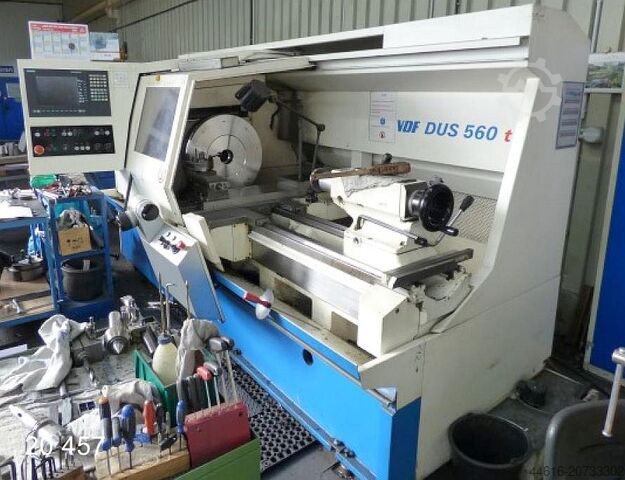

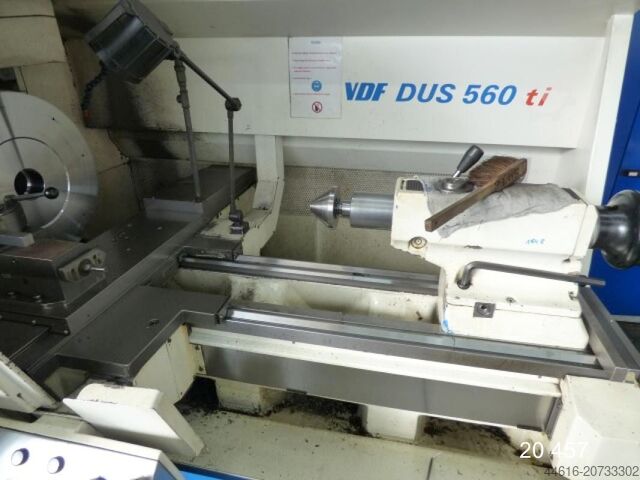

Condition: used, Year of construction: 2000, centre height 280 mm centre distance 1200 mm turning diameter over bed 570 mm turning diameter over slide 365 mm turning length 1000 mm spindle taper DIN 55027 Gr. 8 control Sinumerik 810 D SIEMENS bed width 360 mm spindle bore 62 mm turning speed range 3 - 2500 U/min feed: 5000 mm / min rapid travel - longitudinal/face 10 m/min 3-jaw-chuck diameter 250 mm quick change toolholder SANDVIK Coromant Capto drive capacity - spindle motor 25 kW taper in tailstock-quill MK 5 dia. of quill 100 mm quill stroke 190 mm voltage 400 V weight of the machine ca. 5,0 t dimensions of the machine ca. 3,55 x 2,20 x 1,95 m - Serial No.: 2022-3742-03 Giodpfxox E Dn Ae Aadsn - CNC-Control SIEMENS Sinumerik 810 D - Rapid feed - Coolant equipment - Machine lamp
