Used Westfalia Centrifuge for sale (28)

Condition: used, Used GEA Westfalia CSA 160-47-076 separator centrifuge. Working speed of bowl up to 6800 rpm. Maximum temperature up to 100°C. Machine is driven by Atex rated electric motor 30 kW, 50 HZ. Also includes tools. Fpsdpfezvychox Aansp

Condition: used, Used Westfalia model CSA1-06-475 stainless steel clarifier centrifuge. Self cleaning bowl in steam sterilizable design. Internal pressure rated 1.5 bar pressure at 127 deg.c. Capacity rated approximately 13 litre. Unit includes 1.5kw, 1415rpm drive. All mounted on skid. Includes tools Fpjdpfx Aozvyi Ueansp

Condition: excellent (used), GEA Westfalia separator for dewatering industrial and municipal waste water sludge. In excellent condition. Fpedpeyf Hw Sjfx Aanop

Condition: used, Year of construction: 1994, Overview  The Centrifugal Separator Type SB80-06-076 from the manufacturer GEA Westfalia was previously used at a brewery in Estonia. Due to a complete shutdown of the production plant, this unit is for sale. Till closing of the factory, the separator was used frequently. Fpodpfxjv N Hcxe Aanjp Tech Specs  - 4500 rpm - with self cleaning drum Accessories  - Spare Parts - Tools

Year of construction: 1976, condition: used, throughput 2.500 - 4.000 Ltr - self-cleaning - with manual star-delta switch and with emergency stop function - flowmeter - engine 7,5kW, 50 Hz, plug 32A Fpodeb Im H Uopfx Aanjp - condition: overhauled

Condition: like new (used), Year of construction: 2019, functionality: fully functional, overall weight: 2,500 kg, temperature: 80 °C, power: 22 kW (29.91 HP), rotational speed (min.): 4,500 rpm, empty load weight: 2,500 kg, screw diameter: 305 mm, year of last overhaul: 2026, Equipment: documentation/manual, rotational speed infinitely variable, Complete Technical Data (GEA OCE 305-01-32)Technical ParameterSpecification and ValuesManufacturer & ModelGEA Westfalia Separator Group GmbH – OCE 305 SeriesEquipment TypeHigh-performance 2-phase decanter centrifuge (Solid-Liquid)Bowl Inner Diameter305 mmBowl DesignFlat-cone design with an extended length (Extended L/D ratio)Maximum Hydraulic CapacityUp to 5 m³/h (varies depending on solid concentration)Maximum Solids Density 2.6 kg/dm³Drive Type2-Gear Drive (System with 2 independent motors, no magnetic brake)Differential Speed ControlAutomatic via dedicated Variable Frequency Drives (VFD)Overall DimensionsLength: 3000 mm | Width: 1000 mm | Height: 1150 mmTotal Weight (Complete Skid)Approx. 2500 kgLubrication SystemAutomatic centralized grease lubrication for main bearingsConstruction MaterialsHigh-grade duplex stainless steel (all product-contact areas)Scroll Wear ProtectionSintered tungsten carbide tiles welded onto the flight edgesII. Liquid Discharge Under Pressure SystemUnlike standard models with gravity discharge (where the liquid falls freely into acollection tank), your model retains the clarified liquid phase inside a hydro-hermetic tripetal Pump (Paring Disk): The separated liquid flows toward the cylindrical end of the bowl, entering a special chamber where a stationary disk with spiral internal channels (a reverse turbine) is etic-to-Pressure Energy Conversion: The kinetic energy of the rapidly rotating liquid is instantly transformed into hydrostatic pressure when it hits the channels of the stationary cess Advantages: The liquid leaves the decanter directly under pressure (without requiring an external transfer pump). This prevents product foaming (highly critical for oils, chemical products, or food-grade applications) and eliminates contact with atmospheric oxygen Electrical cabinet with frequency inverters ant PLC (Siemens ) with acces code for modify the parameters , including factory documentation Fodszgq Szopfx Aanspp

Year of construction: 1979, condition: used, Westfalia Separator, last used in a fruit juice plant. The separator's control system was modernized by GEA. The product is clarified in the centrifuge bowls and conveyed further under pressure. Solids collect in the solids chamber and are periodically discharged automatically. During CIP cleaning, the cleaning fluid is pumped in a circuit. Additional title: Disc centrifuge Intake capacity: 22000 l/h flow rate for fruit juice approx. 4,000 l/h Drum velocity: 6500 rpm Density liquid phase: 1 kg/dm3 Fodpfoyr Ic Nsx Aanjpp Density solid phase: 1.4 kg/dm3 Power: 18.5 kW Current: 37 A Voltage: 380 V Frequency: 50 Hz Length: 1485 mm Width: 850 mm Height: 1470 mm Weight: 1200 kg Material: Stainless steel surfaces that come into contact with the product Position: on a 685 x 585 mm foundation Features: Drum, drive, inlets for product and displacement fluid, control water inlet with solenoid valve, drain, solids outlet, control water drain, circulation monitor, oil sight glass, brake, control valve, hood flushing, pressure gauge

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, inner diameter: 365 mm, wall thickness: 10 mm, rotational speed (max.): 2,900 rpm, The GEA Westfalia Separator CA 365-03-00 is a high-performance three-phase decanter designed for the efficient separation of liquids and solids. With a drum diameter of 354 mm and an extended drum length this model offers optimized separation performance. DRUM AND HOUSING DESIGN The decanter drum is configured in a flat-cone design, enabling effective phase separation. The housing is manufactured in a standard design, facilitating integration into existing systems. LIQUID DISCHARGE Liquids are discharged with the light phase unpressurized and the heavy phase under pressure. This functionality ensures reliable and continuous removal of the separated phases. DRIVE TYPES The drum is driven via a belt drive, while the screw is driven by a gearbox. These drive types provide stable and efficient decanter operation. Fpsdpfxjy H Ixuj Aanop The GEA Westfalia Separator CA 365-03-00 provides a reliable solution for the separation of liquids and solids in various applications plus GEA WESTFALIA SAMR 5036 CENTRIFUGE CLARIFIER FOR A COMPLECT LINE FOR OILS units can be sold separate or as a complecte line ?v=nv23KAJFewE

Condition: refurbished (used), Year of construction: 1973, functionality: fully functional, rotational speed (min.): 4,800 rpm, Separator WESTFALIA type SB60-06-076 for beer, fruit juices, wine, vegetable juices, tea, coffee, for citrus and tropical fruits for pectin capacity: 300-13.000l per hour with 4,800 rpm Dimensions and weight: Height: 2500 mm Length: 2000 mm Width: 1800 mm Weight: 2350 kg Technical Data: Manufacturer: Westfalia Type: SB60-06-076 Year of construction: 1973 Serial number: 1668 021 Ø dl. 568 mm Drum speed: 4800 rpm Permissible density of the centrifuged material: Heavy liquid: 1.0 kg/ dm3 Solids: 1.45 kg/ dm Fpsdpotqf Dbofx Aansp Test books, tools, drawings available!

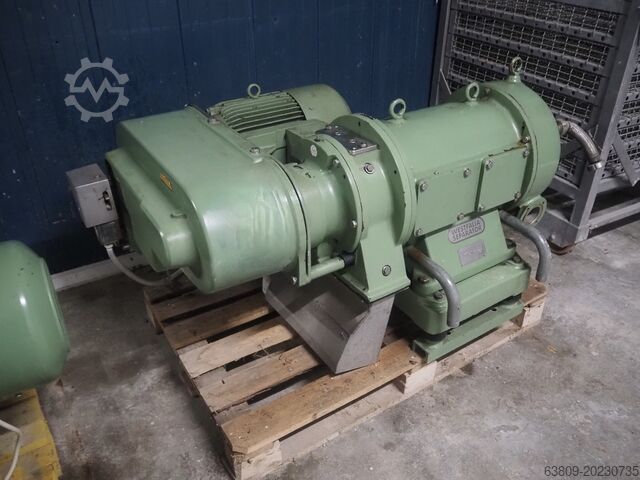

Condition: used, functionality: fully functional, machine/vehicle number: 1674938, We offer this used GEA Westfalia Separator CA 220-010 two-phase decanter, year of manufacture approx. 1985. Fjdoyrdlaopfx Aanjpp Type: CA 220-010 Machine number: 1674938 Year of manufacture: approx. 1985 Bowl design: cylindroconical with screw conveyor for solid/liquid separation Bowl diameter: 220 mm L/D ratio: 2.65 Screw drive: Cyclo gearbox Connection voltage: 3 phase 400 VAC Connected load: 15 kW If you have any questions or require further information, please send us a message or call us.

Condition: excellent (used), functionality: fully functional, Westfalia Separator AG CIP System Westfalia Separator AG CIP System | Tank, Pump, Heat Exchanger System type: CIP (Cleaning In Place) Manufacturer: Westfalia Separatoren AG / GEA Group A complete CIP (Cleaning In Place) installation from the renowned manufacturer Westfalia Separator AG, designed for automatic cleaning and disinfection of process lines in the food and dairy industries. The system is equipped with stainless steel tanks with heating jackets, recirculation pumps, a GEA Ecoflex plate heat exchanger, and a control cabinet. Main components of the system: 1. Stainless steel CIP tanks Brand: Westfalia Separator AG Type: CIP-TANK 3000 L (2 pcs) Serial numbers: 96/00408-1 and 96/00408-2 Year of manufacture: 1996 Capacity: (2×) 3300 liters Operating pressure: 0 bar Operating temperature: 80 °C Dimensions: (2×) 3000 × 1900 × 2300 mm 2. Stainless steel platform with stairs Dimensions: 2950 × 2200 × 2400 mm 3. Stairs Dimensions: 600 × 600 × 500 mm 4. Centrifugal pump Brand: Hilge Type: EURO-HYGIA-B-SUPER-II/60 B Number: 23/96/11349 Capacity: 30 m³/h Power: 11.0 kW Dimensions: 750 × 350 × 450 mm 5. Flow meter Brand: Endress + Hauser Model: Promag 53 Fjdpfx Aaextvb Uonopp Dimensions: 350 × 200 × 200 mm Accurate flow measurement for CIP media. 6. Anema centrifugal pump Dimensions: 530 × 300 × 300 mm 7. Plate heat exchanger Brand: GEA Ecoflex GmbH Type: VT20 CDS Serial number: 170/13832 Dimensions: 900 × 550 × 1500 mm High efficiency heat transfer for CIP solution preparation. 8. Control cabinet Dimensions: 670 × 220 × 800 mm Responsible for controlling and monitoring CIP system operation. 9. Stainless steel buffer tank (CIP tank) Tank dimensions: Ø 800 × 800 mm Overall dimensions: 1150 × 900 × 1770 mm 10. Anema centrifugal pump, number: 32078 Operating pressure: 12 bar Dimensions: 650 × 400 × 450 mm The Westfalia Separator AG CIP system is a comprehensive solution for cleaning process installations, providing: - high process hygiene, - monitoring of cleaning parameters (temperature, flow, time), - integration capability with dairy, food, or beverage production lines. The use of components from GEA, Hilge, Endress + Hauser, and Anema ensures reliability and long service life of the system.

Condition: used, Westfalia Revolution / minute: 10000 Fsdpo Aikfrjfx Aanspp

Condition: used, Used GEA Westfalia model SC 6-01-576 stainless steel disc bowl separator. - Manufacturer: GEA Westfalia - Model: SC 6-01-576 - Permissible density of product to be treated: heavy liquid phase 1.1 kg/dm3 and solid phase 1.4 kg/dm3 Fpjdpjzbucujfx Aanep - Maximum speed rated: 11.970 rpm. - Drive: flanged electricmotor with coupling 5.5 kW, 1740 rpm, 50 Hz, Ex II 2 G rating - Included: switchboard with control panel - Mounted on a skid

Condition: excellent (used), Year of construction: 1977, functionality: fully functional, rotational speed (max.): 3,520 rpm, input voltage: 380 V, input frequency: 50 Hz, Equipment: documentation/manual, Used, very good condition Westfalia SA7-01-576 Separator, year of construction 1977. Packed in wooden crate to IPPC standard, ready to be shipped. - Brand new Time control box with Burkert valves and automatic controls - Performance 500 - 3.000 Ltr - self-cleaning - Motor 4 kw, 380V / 50 Hz - Start-switch including phase changer and emergency stop function - with Tools, Instruction Manual and Spare part list - Made in Germany Fjdpjzryq Rjfx Aanopp If you have any questions or need more information, feel free to send us a message or give us a call.

Condition: excellent (used), functionality: fully functional, overall weight: 1,200 kg, type of input current: three-phase, power: 11 kW (14.96 HP), rotational speed (min.): 6,500 rpm, input voltage: 380 V, input frequency: 50 Hz, Equipment: documentation/manual, CLARIFIER FOR JUICES , WINES , OILS 11KW , UPT TO10 MC/H Fodpfxezv I Acj Aanspp IMMA MICRO 5,5 KW , 2MC/H =6500 EURO

Condition: good (used), Year of construction: 2017, Insulated cyclone by GEA, model CYCLONE CHE 394. Year 2017. With 2 reinforcement brackets. Bottom outlet DN100. Top inlet Clamp 1". Side inlets Clamp 1" and 4". Fpedpfxjy Hfxro Aanep No documentation available. Cyclone dimensions: Length: 650 mm Width: 560 mm Height: 1510 mm

Condition: used, Year of construction: 1978, el. cabinet. Documents are available. Capacity: app. 15-20.000 ltr/h Fodps Ahluqsfx Aanepp Suitable for wine, beer

Condition: good (used), Hermetic hydro clarifier, complete, tool set, 30 kW motor power, with documentation and overhauled. Price: 35,000 euros. Fsdpfx Aaoy Rtlzonopp

Condition: used, maximum load weight: 1,115 kg, overall weight: 1,600 kg, first registration: 06/1979, total length: 5,425 mm, total width: 2,265 mm, Car carrier trailer Hydraulically foldable Overrun brake All crossbeam supports on the trailer have been replaced. Numerous other repairs and maintenance tasks have been performed. Fpjdpfx Aszz Dwysanep Private sale Tel.

Condition: like new (used), HERMETIC CLARIFIER. POWER: 7.5 kW. COMPLETE TOOL SET. INSPECTED. DOCUMENTATION AVAILABLE. PRICE: 25,000 EUROS PLUS VAT. Fsdpfx Aasy S Smysnjpp

Condition: used, Year of construction: 2000, Name: Used Industrial Decanter Manufacturer: GEA Westfalia Type: SD0815 Year built: 2000 Max. bowl speed: 3.000 rpm Inner diameter drum: 500 / 245 mm Interior drum length: 1.466 mm Material: Stainless steel Dimensions: L 3.045 x W 1.100 x H 1.695 mm Empty weight: 2800 kg Technical doc.: Yes Accessories: A control cabinet Message: The used industrial decanter was inspected annually, and the drum was removed every two years. Fpjdpfoy Ui A Rsx Aansp Condition: Second hand Price: By request

Condition: used, Year of construction: 1976, Drum speed: 4500/min, drum diameter: 650mm, permissible density of centrifuged material, heavy liquid: 1,1kg/dm³, solids: 1,3kg/dm³, control panel: Siemens SIMATIC HMI. Maintenance was carried out every two years by a specialist company, new control system installed two years ago, very good condition, no maintenance backlog, with documentation. An on-site inspection is possible. Fpodpfx Aozun S Ioanjp

Operating hours: 240 h, condition: refurbished (used), functionality: fully functional, machine/vehicle number: MSB14, Machine fully disassembled and overhauled with new and original GEA-Westfalia spare parts. During the overhaul, the bevel gear set, among other components, was replaced with new and original parts, and the frame was oven-painted. Hydraulic capacity: Up to 8,000/9,000 l/h Effective capacity: between 500/1,000 l/h, as measured during testing with your processed product; capacity may vary considerably depending on the percentage of solid residues present in the product to be treated. Technical specifications: - 7.5 kW electric motor – 380V/3ph – 50Hz - Drum volume: 6.9 l – sludge chamber: 3.9 l - Drum speed: 7,500 rpm The machine is sold complete with the following accessories: - Set of special wrenches for drum disassembly - New electric panel with 11 kW inverter-controlled power section and PLC-operated discharge control section, inside stainless steel housing The inverter enables smoother operation and significantly reduces power consumption and maintenance\. - New operating water unit with 20 l stainless steel tank, complete with float and stainless steel pump, to ensure consistent flushing Fpjdsxvrfnjpfx Aanop - Flow indicator - The machine is mounted on a heavy-duty base with four M20 anti-vibration mounts in square profile steel.

Year of construction: 2001, condition: excellent (used), Westfalia Decanter Fodpfxsd Rwwxs Aanopp Manufacturer: GEA Westfalia Separator AG Type: CA 365-010 Year of manufacture: 1978 Drum speed: 3,300 rpm Last operational until: 2004 Application area: Used in the production of base oils for the removal of solid particles. The decanter was decommissioned after a production change in 2004 and is therefore fully functional.

Condition: ready for operation (used), Year of construction: 1986, functionality: fully functional, machine/vehicle number: 1670 242, Equipment: CE marking, documentation/manual, Fully functional Westfalia separator, all documents, tooling and cover hoist crane included. Last operational 12.2024. Fodpfxow Icgbj Aanopp
