Water jet cutting machine

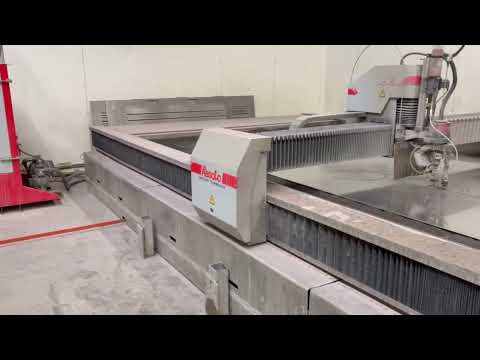

Resato ACM3060

Waterjet cutting machine 6x3m, 1x 2.5D cutting head, incl. HD pump 4000 bar, stainless steel cutting tank, abrasive remover.

Purchase date: 3-12-2013
Serial number: 20360
Model: Resato ACM 3060
Operating hours: 26,646 hours (as of 24 October 2025)
XY axis limits: 3020 & 6020 mm
Accuracy X or Y axis: +/-50 µm
Maximum bridge clearance: 210 mm +/- 10 mm
Z-axis limits: -220 – 0 mm
Maximum operating pressure: 4000 bar

Minimum speed: 1 mm/min
Speed range: 1 - 30,000 mm/min
Maximum acceleration: 500 mm/s² (acceleration depends on cutting process)
Ambient temperature: 12 - 32°C
Relative humidity: 30 - 80%
General protection class: IP54
Specific protection class: IP65
Voltage-frequency: 1x 230 ± 5% VAC, 50-60Hz
Electrical connections: 1 x 16A + N + PE
Control panel: 17’’ color touchscreen
Network/internet connection: RJ45 port
Communication: 100BaseT CAT5e
Cutting grid load: 1000 kg/m²
Floor load: 5 N/mm²
Air connection: Quick coupling, Orion type
Air condition: Dry and filtered air
Dew point at 3°C at 7 bar
Min 7 bar, max 12 bar
30 Nl/min
Required floor flatness: Max 15 mm height difference over 6 m
Typical sound pressure level: 87 – 92 dB
Notes: The tank was originally plastic but has been adapted and is now stainless steel (RVS)

Pump specifications (additional pump available as spare)
PJ4-4000 - Resato Waterjet
Centix ID: 601194
Model: Resato Powerjet 4000
Serial number: 18996
Purchase date: 26-11-2012
Maximum capacity: 3.8 L/min
Maximum pressure: 4000 bar
Maximum power: 30 kW
Number of intensifiers: 1
Fedpfxsxu U Nmj Adaogi
Low noise level.
