Planing line

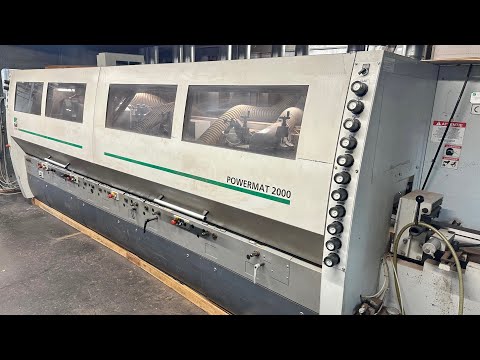

WEINIG Powermat 2000

Condition: used, Year of construction: 2004, Planer and moulder Weinig Powermat 2000 PowerLock - Technical data Working width 30 - 300 mm Working height 19 - 200 mm First lower tool holder Motor with brake 18.5 KW Speed 8000 rpm Tool flight circle 125 - 180 2nd tool holder Csdpfounbrbex Ab Eopt First right tool holder Motor with brake 15 KW Tool flight circle 93 - 200 3rd tool holder First left-hand tool holder Motor with brake 15 KW Tool flight circle 93 - 200 mm 4th tool holder First upper tool holder Motor with brake 37 KW Tool flight circle 93 - 200 5th tool holder Second lower tool holder Motor with brake 22 KW PowerLock tool holder Speed 8000 rpm Tool flight circle 93 - 225 Feed system Frequency-controlled feed, infinitely variable 6 - 36 m/min.

Condition: used, Year of construction: 2009, Price: On request Undercutting crosscut saw Weinig Dimter Opticut S 90 Serial no. 4421.24 Cpsdpfx Aewhlvgjb Eot Built in 2009 Automatic feed system Up to 60 m/min Three-phase current 400V / 50Hz Control voltage 24VAC / 230VDC Power 20kW Rated current 40A Fuse 50A Dimensions machine 2000x1400x1650 mm (LxWxH) Dimensions input table 7450x2100x1100 mm (LxWxH) Dimensions output table 4900x2400x1400 mm (LxWxH) Dimensions total setup 16300x2700x1950 mm (LxWxH) Including fencing and waste discharge belt  Available immediately - Year: 2009 - Documentation available: No - CE certificate present: No - Serial number: 4421.24 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: like new (used), Year of construction: 2010, planing height: 200 mm, Weinig Powermat 2000 XL four-sided planer: - German manufacture - DTR CE - automatically controlled - PowerLock heads - year of production 2010 - for wet wood TECHNICAL PARAMETERS: - planer width: 300 mm - planing height: 200 mm - PowerLock heads - control from the touch panel - electronically adjustable heads - pneumatically pressed heads 1 bottom head: 18.5 kW 2 right head: 15 kW 3 left head: 15 kW Cpjdpfx Aoun Natob Est 4 top head 22 kW with side cutter: 1.5 kW 5 Overhead: 18.5 kW 6 Lower head: 20 kW - heads with automatic jointing system - spindles speed: 8000 rpm - inverter-controlled feed speed: 6 - 60 m/min - six steel drawing top rollers - three rubber trailing top rollers - top feed rollers with support - six rollers in the drawing table, of which 2 milled in front of the first head - automatic central lubrication - spigot diameter: 4 x 160 and 2 x 140 mm

Condition: good (used), Year of construction: 2003, Weinig Powermat (Unimat) 2000 Speed All Powerlock spindles Bottom 15kW 8,000 RPM Cpedpfx Abow Nqbcs Eot Right 15kW 4,000 to 12,000 RPM with inverter Left 15kW 4,000 to 12,000 RPM with inverter Top 22kW 8,000 RPM Top 22kW 4,000 to 12,000 RPM with inverter Bottom 15 kW 4,000 to 12,000 RPM with inverter 11kW feed motor. Feed speed 40m/min Automatic lubrication system. Separate control panel Full documentation Possible to supply with automatic infeed and outfeed if needed.

Condition: used, total width: 3,960 mm, total length: 1,600 mm, total height: 2,300 mm, Empty weight: 5.000 kg Price: On request - Documentation available: No - CE certificate present: No - Max. workpiece length [mm]: 1300 - Max. workpiece width [mm]: 3300 - Number of cylinders [pcs]: 6 - Transport dimensions: 1600mm x 3960mm x 2300mm (l x w x h) - Transport weight [kg]: 5000kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Codjwnhulspfx Ab Eept Yorick Diebels
