Four-side moulder

WINTER TIMBERMAX 7-23-RR-TT

Condition: used, Working width: 230 mm Working height: 160 mm Spindle 1: Bottom / 7.5 kW Spindle 2: Right / 7.5 kW Spindle 3: Left / 11 kW Csdpfxermvhfo Abujpu Spindle 4: Bottom / 11 kW Spindle 5: Top / 15 kW Spindle diameter: 50 mm Number of spindles: 5 Weinig Hydromat 2000 planing and profiling machine for four-sided planing and profiling of timber with groove bed, without soundproof cabin.

Condition: used, Year of construction: 2005, functionality: fully functional, REX BIGMASTER 410-K (A+D+FR+FL+AFV4+MVG+2.FR+2.FL+HFRo+HFRu+AZG) REX Georg Schwarzbeck GmbH & Co. KG Year 2005 REX= HEAVY DUTY 4-SIDE PLANING AND MOLDING MACHINE TYPE BIGMASTER 410 - K Machine with exchangeable cutter heads K lower planing shaft A upper planing shaft D vertical shaft/right side FR vertical shaft/left side FL chamfering device (4 spindles) AFV4 mid feed device MVG 2. vertical shaft/right side /profiling shaft 2.FR Cpodpfx Asu Sg T Tjbuju 2. vertical shaft/left side /profiling shaft 2.FL upper horizontal molding/profiling shaft HFRo lower horizontal molding/profiling shaft HFRu Heavy type out feed device AZG Machine with constant table height and adjustable upper part (height adjustment by 8 columns)

Condition: new, Number of spindles 6 St. Working width 250 mm Working height 150 mm Length of the planing table 2500 mm Feed motor 4 kW Feed speed 6-24 m/min. weight 4770 kg Dimensions (L/W/H) 4722x1860x1776 mm Vierseitenhobelmaschine Kuper SWT XL-6 in Fenster-Version mit elektronischer Axial- und Radialverstellung der Spindeln. Cpedpfx Ajvnv Ubsbuju Schwerer Maschinenständer, verwindungsfrei und schwingungsarm. Anzahl der Spindeln: 6 Arbeitsbreite: 250 mm Arbeitshöhe: 150 mm Abrichttischlänge: 2500 mm Spindeldrehzahl: frequenzgeregelt 4.000 - 8.000 U/min Vorschubgeschwindigkeit: 6-24 m/min Ausführliche Beschreibung finden Sie in nebenstehender PDF-Datei! (Technische Angaben laut Hersteller - ohne Gewähr!)

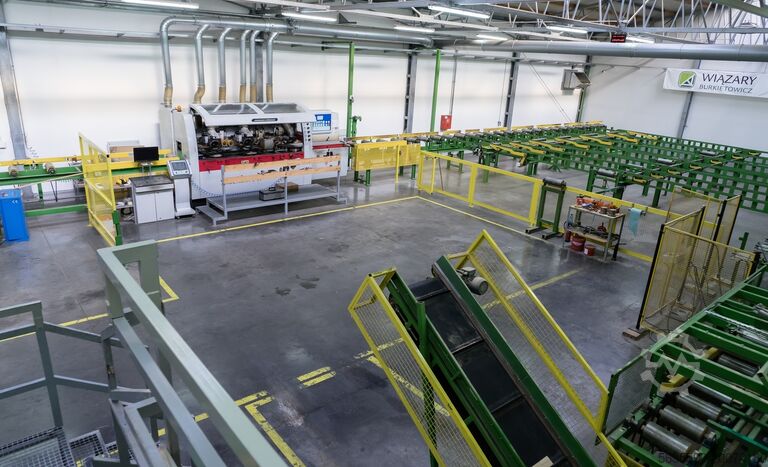

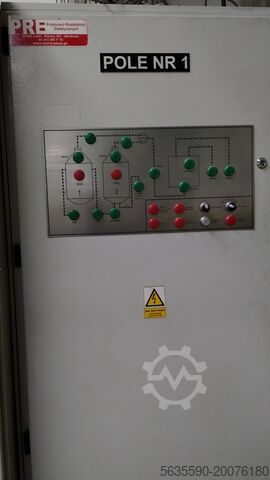

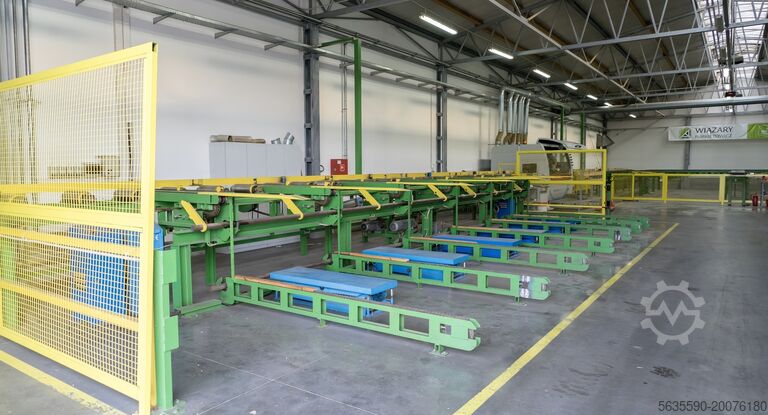

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, feed length X-axis: 13,000 mm, feed length Y-axis: 240 mm, feed length Z-axis: 100 mm, feed rate X-axis: 25 m/min, pressing force: 40 t, input voltage: 400 V, total height: 1,120 mm, working height: 1,120 mm, milling spindle length: 330 mm, control voltage: 400 V, workpiece height (max.): 100 mm, tool diameter: 240 mm, rotational speed (max.): 6,000 rpm, air pressure: 7 bar, total length of planing tables: 13,000 mm, We offer a fully automated production line for the manufacture of KVH structural timber. The line is fully certified with CE marking and by the Wood Technology Institute in Poznań. Compliant with ENPN 14.081 and 14.081 standards Cpsdsxfzyyspfx Abuou 1. Angled discharge conveyor 2. Infeed table for visual wood grading 3. Buffer before defect cutting saw 4. Automatic defect cutting saw with camera for fluorescent chalk 5. Buffer before finger jointing machine 6. Finger jointing machine with glue applicator and cross-cut saw for lengths up to 13 m 7. Chain conveyor storage from finger jointing machine to four-side planer 8. Automatic infeed for four-side planer 9. Four-side planer Winter 6-33 10. Outfeed roller conveyor from four-side planer 11. Automatic packaging machine for planed timber 12. Chain conveyor 13. Strength tester for laminated timber

Condition: repair required (used), Year of construction: 1993, machine/vehicle number: 624/9, pressing force: 10 t, working height: 805 mm, total length: 1,900 mm, Cycle press for finger joints Finger joint press Pressing force 10 t Wood width 80-300 mm Cpsdpfxjt Sc T Io Abuju Wood thickness 18-80 mm OPTIONAL with hydraulic unit

Condition: refurbished (used), pressing force: 10 t, working height: 805 mm, total length: 1,700 mm, Hydraulic finger jointing press (Keilzinkpresse), cycle press for finger joint connections, pressing force 10 t. For wood width 80–300 mm and thickness 18–80 mm. OPTIONAL: with 300 l hydraulic unit and 5.5 kW motor, manufacturer GOD, with electrical installation. Cpjdst Sc Swspfx Abuou

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, machine/vehicle number: 2301.14, Sawn timber length cross cut line, timber width 20 - 300 mm, height 10 -100 mm Cedpfx Asw Rr Dbobuspu

Condition: new, Throughput depends on material type, speed, and cutting set Cpsdpoul T Aysfx Abueu Capacity: up to 1.500 kg/h Electric power: 7.5 KW Voltage: 380 V, 50 Hz Dimensions of the machine in cm: Width: 60 Length: 100 Height: 120

Condition: used, Working width from to 40-150 mm Working height from to 18-50 mm 0 6100 mm Finger jointing line Weinig Grecon Profijoint ----- Technical Specifications: ----- 1. Milling machine: ----- Material length at entry: 150-700mm Material width: 40-150mm Material thickness: 18-50mm Jointing options: horizontal and vertical joint Cedpjx H Alvjfx Abuopu Milling spindle power: 15 kW 2. Grecon PJ7/6100 Hydraulic Press for Joining: ----- Maximum length of finished element: 6100mm Material trimming saw Saw diameter: 350mm Cutting unit power: 2.2 kW Without tools (techncial details according to manufacturer, with gurantee)

Condition: new, Year of construction: 2024, New machine Year of manufacture 2024 Equipment and technical data: · Wheel diameter: 600 mm · Belt speed: 1550 m/min · Cutting height: 400 mm · Cutting width: 580 mm · Blade length max.: 4735 mm · Saw blade width min. / max.: 15 mm / 30 mm · Optional with special covering saw blade width min. / max.: 8 mm / 25 mm · Table size: 810 x 590 mm · Table height: 920 mm · Extraction nozzle: 2 x Ø 100 mm · Motor power: 2.2 kW / 3 HP · Voltage: 400 V / 50 Hz · Color: RAL 7035 light gray and RAL 5000 violet blue · Net weight: approx. 275 kg Cjdpfew Nablox Abuopu TECHNICAL DESCRIPTION · Solid German mechanical engineering · Machine stand in an attractive, modern, torsion-free double-chamber welded steel construction · Upper and lower doors secured by limit switches · Upper and lower precision band saw blade guide APA 2, size. 2 · Finely planed gray cast iron table · Swiveling table top up to 45° · Dynamically balanced band saw wheels with vulcanized rubber bandages · Stop ruler can be used to the left of the saw blade, stop profile can be folded over · Blade tension indicator · 1 saw blade 4735 x 25 x 0.6 mm, tooth width 9 mm, No. 3780.250D · Mechanical height adjustment of the saw blade guard using a handwheel with locking pinion · From 2.2 kW - rotary cam switch with direct start and emergency stop button · From 3.0 kW - rotary cam switch with star-delta start and emergency stop button · Mechanical motor brake with main switch and motor protection relay · CE-compliant Incl. transport pallet Incl. pre-freight to 65239 Hochheim Availability: short term Storage location: Flörsheim
