350 liters

CTS CS-70/350 -70°C bis 180°C

Type: CS-70/350

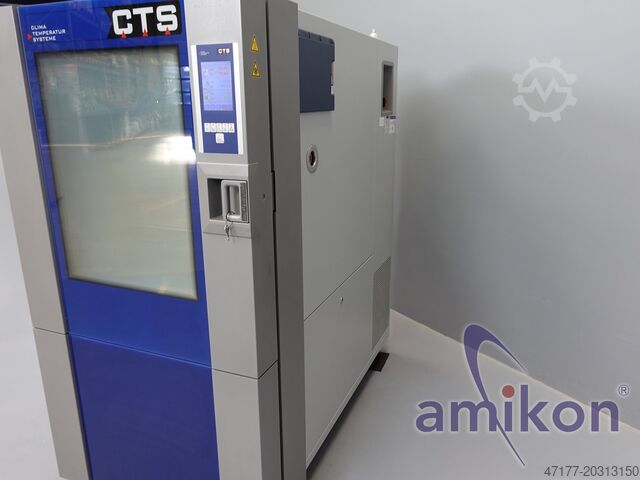

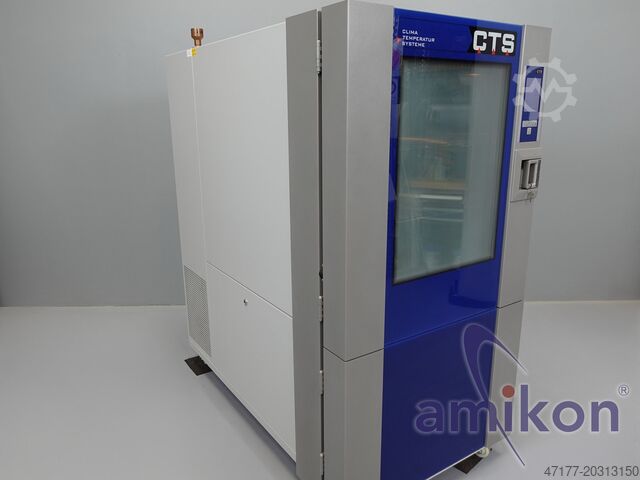

CTS Climate Test Chamber Air-Cooled
Test Chamber Volume: 350 liters
Internal Dimensions: Height 750 mm, Width 650 mm, Depth 720 mm
External Dimensions: Height 1800 mm, Width 920 mm, Depth 1665 mm
Temperature Operating Range:
Temperature Range: -70°C to +180°C
Cooling Rate: 3.0 K/min
Heating Rate: 5.0 K/min
Climatic Operating Range:
Temperature Range: +10°C to +90°C
Hfedpfx Aexn Sb Tjg Non
Humidity Range: +10% to 98% RH
Dew Point Range: +5°C to 89.5°C
Temperature Deviation: ±0.1 - ±0.3 K over time
Humidity Deviation: ±1 - ±2% RH over time up to 90% RH
max. ±1 - 3% RH over time above 90% RH
Electrical Connection: 400V 3/N, 50Hz
Power Consumption: 7.1 kW
Rated Current: 11.5 A
Refrigerants: R404A / R23
Weight: 650 kg
Important safety information for buyers!
The following points are carried out in advance on our offered chambers:
1. Functional check and replacement of necessary components
2. If necessary, refill with legally compliant refrigerant
3. Leak test with certificate
4. After successful inspection, the chambers undergo a documented test run.
Condition: used
Scope of delivery: (See photo)
(Subject to change and errors in technical data and information!)
We will be happy to answer further questions by phone.
