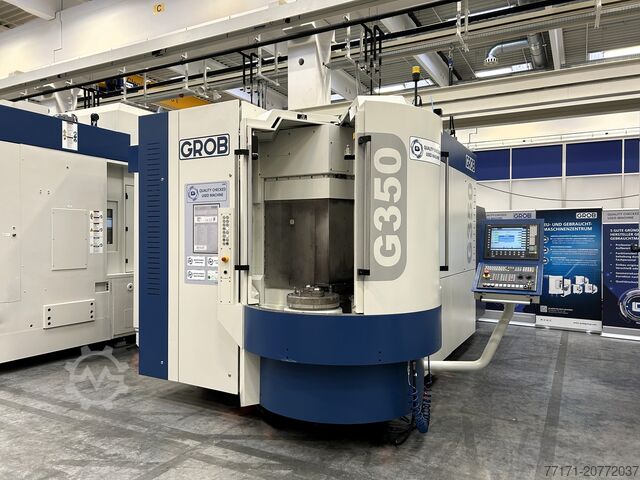

5-axis universal machining center

GROB-WERKE G350

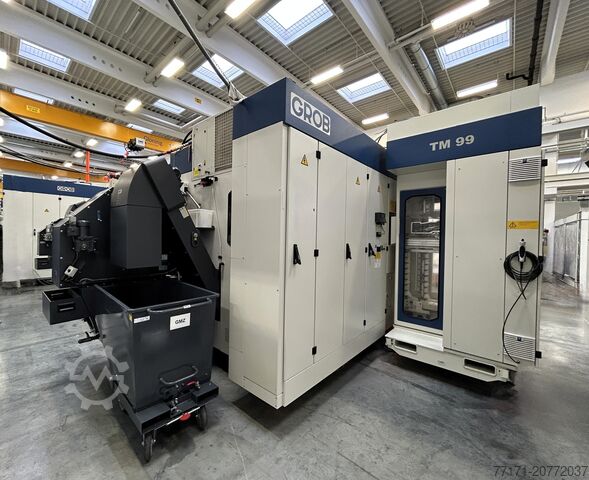

Condition: used, Year of construction: 2009, Technical details: x-travel: 600 mm Bsdpfxsqy Sr Se Apvsdd y-travel: 770 mm z-travel: 675 mm total power requirement: 47 kW weight of the machine ca.: 13 t Tool bore: HSK-A63 numbers of tools in magazin: 40 including additional tool magazine ZM 182 1 spindle , 5 axes *

Condition: ready for operation (used), Year of construction: 2018, spindle speed (max.): 5,000 rpm, travel distance X-axis: 234 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 625 mm, controller manufacturer: MAZATROL, controller model: Mazatrol SmoothG CNC, workpiece diameter (max.): 695 mm, This 4-axis Mazak QUICK TURN COMPACT 200 MSY L was manufactured in 2018. It features a maximum swing of 695 mm and a machining diameter of 380 mm. Equipped with a Mazatrol SmoothG CNC control system, it ensures precision and efficiency. The main spindle supports up to 5000 rpm, while the second spindle reaches 6000 rpm. A great opportunity to buy this Mazak QUICK TURN COMPACT 200 MSY L lathe. Contact us for further details. Bdjdpfsyk Tg Rex Apved Machine Benefits Technical Machine Benefits 1. Capacity:- Maximum Swing: 695 mm- Maximum Machining Diameter: 380 mm- Maximum Bar Work Capacity: 65 mm2. Spindle:- Main Spindle Chuck Size: 8 inches- Main Spindle Maximum Speed: 5000 rpm- Second Spindle Chuck Size: 6 inches- Second Spindle Maximum Speed: 6000 rpm3. Turret:- Number of Tools: 12- Maximum Speed: 5000 rpm4. Axes Travel:- X Axis: 234 mm- Y Axis: 100 mm- Z Axis: 625 mm- W Axis: 585 mm5. Control System:- Mazatrol SmoothG CNCInstalled Options : EIA / ISO programming Spiral machining EIA 3D compensation Rotation function Geometric functions Scaling External data I/O Shape compensation Thread cutting cycle Sub C-axis control Inverse time feed Polar coordinate input G54.1 additional work offsets Synchronous mill tapping Variable 600 macro sets Cylinder & polar coordinate interpolation EIA helical tap cycle EIA pattern cycle Seamless corner control Variable acceleration control Rapid overlap Lead error compensationMachine Hours : Power on time: 12,929 h Auto operation time: 17,565 h Auto cutting time: 15,375 hEquipment included: Turrets: 2 × revolver head – one on each side of the machine Driven tools: 1 × driven tool on the Z axis 1 × driven tool on the X axis Tool holders: Fixed holders for drilling Fixed holders for external turning Extra Information Full equipped version with C axis / Y axis / Subspindle / Long bedMachine still under power

Condition: as good as new (ex-display), Year of construction: 2024, operating hours: 3,796 h, functionality: fully functional, machine/vehicle number: S2909835010226, travel distance X-axis: 600 mm, travel distance Y-axis: 855 mm, travel distance Z-axis: 750 mm, rotational speed (max.): 21,000 rpm, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Highlights: - Powerful HSK-A 63 Motorizied spindle with 21.000 rpm - pallet change system for 2 pallets - High-pressure cutting fluid system (40 bar) _____ Bdodpfxoxtknpj Apvod Basic machine G350 AB generation 2 Travel path of the X-axis 600.0 mm Travel path of the Y'-axis 855.0 mm Travel path of the Z-axis 750.0 mm Power supply 400 V, 50 Hz, TN-S Work area door, automatic, for manual and automatic loading/unloading Decentralized work area mist collector: 800 m³ Machine control SIEMENS SINUMERIK ONE Swivel axis calibration GSC Advanced Energy efficiency package EEP1 Tilting table unit (A'-axis) Rotary table with pallet clamping system GROB (B'-axis, PW) Motorized spindle HSK-A 63, 21,000 rpm, 35/47 Nm, 29/39 kW, oil-air lubrication GROB spindle diagnostics GSD Double disk-type tool magazine HSK-A 63 with 105 (45+60) tool pockets Tool cleaning device Tool coding, system BIS-M (BALLUFF) Electromechanical tool breakage detection device Laser measurement system LaserControl NT LC50-DIGILOG for milling tools Pallet change system for 2 400 x 400 mm pallets Setup station door, automatic, for manual and automatic loading and unloading 2x Pallet 400 x 400 mm, T-slots, with pallet changer hook Pallet equipped with 6 fluid connections High-pressure cutting fluid system (5-40 bar, IKZ) Continuous cooler for cutting fluid with an air cooled cooling unit (13 kW) Compressed air feed through spindle center Cutting fluid recirculation on weekends Oil skimmer for cutting fluid care Air gun at the work area Flush gun at the work area Flushing unit (Z-axis) Part clamping system in the work area KP1: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP2: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) KP3: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) KP4: Pressure oil, proportional valve technology, 30-190 bar (H2.1)  Cooling unit for hydraulic proportional valves Part clamping system in the setup station of the pallet changer KP1: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP2: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) KP3: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) KP4: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP5: Compressed air, manual pressure regulation, 0.5-5 bar (P1.1) KP6: Compressed air, seating check system with SOPA air gap sensor make FESTO (P6.1) Work area camera for machine control panel GROB⁴Pilot (ROTOCLEAR) Radio touch probe RMP400 (RENISHAW) 12-month warranty

Condition: as good as new (ex-display), Year of construction: 2024, functionality: fully functional, machine/vehicle number: S2909535010029, travel distance X-axis: 600 mm, travel distance Y-axis: 770 mm, travel distance Z-axis: 805 mm, controller manufacturer: SIEMENS, controller model: SINUMERIK ONE, spindle speed (max.): 16,000 rpm, coolant supply: 40 bar, input voltage: 400 V, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Highlights: - powerful Motorized spindle HSK-A 63, 16,000 rpm - prepared for automation - IKZ 40 bar _____ Basic machine G350 access-SERIE Travel path of the X-axis 600 mm Travel path of the Y'-axis 770 mm Travel path of the Z-axis 805 mm Power supply 400 V, 50 Hz, TN-S Decentralized work area mist collector 800 m³ Work area door, automatic, for manual and automatic loading/unloading Stainless-steel internal work area enclosure Fluid cabinet doors SIEMENS SIEMENS SINUMERIK ONE Swivel axis calibration GSC Advanced connection of an automation system - standard interface version 1.7 (GROB) Technology package SINUMERIK MDynamics - milling (SIEMENS) Rotary table with pallet clamping system GROB (B-axis, 5-axes) Motorized spindle HSK-A 63, 16,000 rpm, 159/206 Nm, 25/32 kW (GROB) GROB spindle diagnostics GSD Compact double disk-type magazine HSK-A 63 with 90 tool pockets Tool cleaning device Electromechanical tool breakage detection device Laser measurement system LaserControl NT LC50-DIGILOG, BLUM-NOVOTEST Pallet 400 x 400 mm, T-slots, without pallet changer hook Scraper conveyor, discharge height 1,100 mm High-pressure cutting fluid system (5-40 bar, IKZ) Continuous cooler for cutting fluid with an air cooled cooling unit (13 kW) Compressed air feed through spindle center External compressed air supply via a flexibly adjustable hose Cutting fluid recirculation on weekends Oil skimmer for cutting fluid care Air gun at the work area Flush gun at the work area Compressed air cleaner bar for safety screen in work area door Machine status light, 3-colored Machine accuracy package 1 for a machining center of the access series Radio touch probe RMP400 (RENISHAW) Remote machine diagnostics with access control switch Bsdox Ewfzjpfx Apvodd 12-month warranty

Condition: used, Year of construction: 2011, Technical details: x-travel: 800 mm Bdjdpfxoyzza Io Apvod y-travel: 950 mm z-travel: 1020 mm control: Sinumerik 840D sl MDynamics Operate turning speeds: 10.000 1/min Spindle power: 26/20 kW max. torque on the spindle: 340/262 Nm tool taper: HSK-A 100 tool change unit: 120 (2x60) Pos. Pallet changer 2x: 630 x 630 mm table load capacity: 800 kg weight of the machine ca.: 20 t dimensions of the machine ca.: 3,3 x 6,15 x 3,2 m 6-axis simultaneous horizontal machining center with controlled swivel-rotary table (A/B-axis), Swivel table can swing overhead (180°), that means the part is hanging down overhead and chips don’t accumulate on pallet, they can fall free into the chip conveyor CNC controlled U-axis enables radial movement of tool for variable spindling diamenter. twin pallet changer 630 x 630 mm 6 hydraulic couplings for pallet fixture clamping with rotary joint in A and B-axis special hydraulic pump for fixture coolant through spindle (10-80bar), one channel with proportional valve for pressures 10-200 bar, electromech. tool-length measuring device GROB, BLUM laser for tool measuring, tool coding, chip conveyor, 3D touch probe M&H, el. handwheel Siemens HT8 coolant gun, coolant shower, air gun, oilskimmer, automatic door Remote diagnosis A 6th axis MAPAL Tooltronic U-axis system comes with the machine with two heads: 1. LAT125-HSK100 2. LAT160-HSK100 *

Condition: new, Year of construction: 2025, machine/vehicle number: N2097535010017, Basic machine G350 access-SERIE - FACTORY | NEW MACHINE - Travel path of the X-axis 600.0 mm Travel path of the Y'-axis 770.0 mm Travel path of the Z-axis 805.0 mm Power supply 400 V, 50 Hz, TN-S Decentralized work area mist collector 800 m³, filter class ISO ePM1 80% Stainless-steel internal work area enclosure HEIDENHAIN TNC 640 with GROB4Pilot access Control panel at tool loading and unloading position Tilting table unit (A'-axis) Rotary table with T- slots (B‘- axis) Motorized spindle HSK-A 63, 16,000 rpm, 159/206 Nm, 25/32 kW, oil-air lubrication Bjdpfx Apjqqi Dkovsdd Compact double disk-type magazine HSK-A 63 with 90 tool pockets Tool cleaning device Electromechanical tool breakage detection device Scraper conveyor , discharge height 1,100 mm High-pressure cutting fluid system (5-40 bar, IKZ) machine cooling unit with air- cooled cooling unit (4 kW) Compressed air feed through spindle center Air gun at the work area Flush gun at the work area Flushing unit (Z- axis) Compressed air cleaner bar for safety screen in work area door Rotary distributor in B'-axis rotary table with hose installation Remote machine diagnostics with access control switch 12 month warranty

Year of construction: 2016, condition: new, 1 unit of a completely overhauled, unused industrial bevel-helical gearbox from ASUG. TGL 21815. All gearbox parts have been replaced, with the exception of the housing!!! Clutch: 800 mm (only one half available) Maximum torque: 27,829 Nm Gear ratio: i = 1:80 Maximum power: 51 kW Oil capacity: 170 kg Speed: n1 = 1400 Speed: n2 = 17.5 Weight: 1450 kg Shaft diameter d1: 65 mm Shaft diameter d2: 160 mm Shaft height h1: 500 mm Overall height h2: 925 mm Bdodpfsgwlrdox Apvod Length of base: 1170 mm !! The gearbox does not have an oil cooler !!

Condition: used, Year of construction: 1978, machine/vehicle number: 150 359 - 11683, functionality: fully functional, For sale are the PS160 (2 units) and the PS140 (1 unit). One is 250 metric tons, the other is 140 metric tons. Bdjdot Ucpbjpfx Apvod The PS160 is one of the complete machines and is in operation; the PS160 does not have the control cabinet. The machines are for sale as a single unit and individually. Inquire by phone or email!

Condition: like new (used), Manufacturer: Flender Type: K2S-2,5 Backstop: Yes Bjdpsg Stz Asfx Apvjdd Power: 78 kW Ratio: 44,16:1 RPM in/out: 1.400 / 31,7 Shaft ø in: 65 mm Shaft ø out: 140 mm

Condition: like new (used), Year of construction: 2020, functionality: fully functional, For sale is a measuring system from Keyence, type XM- C1000 The measuring system is something special, as the points to be measured are scanned by hand Very user-friendly and intuitive system. Compact and easy to maintain Control unit and PC XM-1600 are included in the offer Also Measuring probe, exchangeable probes, alignment station, various clamping devices Clamping vice Mouse Touch probe Operating instructions On request, transport and loading can be organized throughout Europe for an additional charge. Prices plus VAT Viewing possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? Bdoderq Ebiopfx Apvjd For further information or contact options, please visit our website
