Machining center

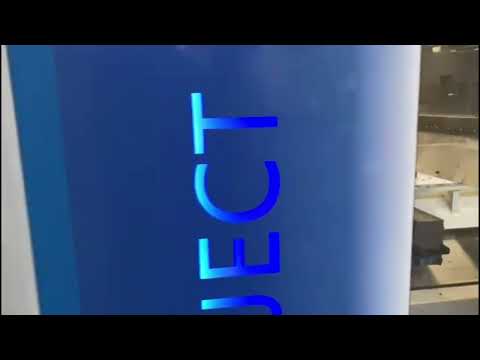

Masterwood Project 351L

Condition: excellent (used), Year of construction: 2009, CNC for complete processing of door frames / jambs , either or adjustable door frames in DIN norm Working width max 3.000 mm Working width min 480 mm Nwsdpfx Aew Sd Uujfhsb Workpiece thickness max 98 mm Workpiece width max 280 mm Aggregates per side 2 Saw aggregates per side 1 diam. 400 mm Drilling supports per side 1 Drills per side 5 Aggregates longside 1 Milling aggregate with 2 spindles Aggregate tiltable in angle 45° Angle adjustment - programmable controller Width adjustment - programmable controller Conformity marking - CE mark Weight 2.500 kg

Condition: new, Band saw machine Make: METALLKRAFT Model: BMBS 230 x 280 H-DG Art.no.: 3680013 Condition: New machine Cutting range (round): 230 mm cutting speed: 35/70 m/min standard equipped with: - horizontal vice - length stop (600 mm) - Monitoring of saw band tension, electromechanical Nwedpfx Ascuntzefheb - chip clearing brush - coolant device - operating instructions

Condition: used, Working width 1350 mm Number of sanding units 2 st. Workpiece thickness max. 160 mm Nwsdpfjrmucxox Afhsb sanding belt measurements 1370 x 2150 mm Feed motor 0,75 PS

Condition: excellent (used), Year of construction: 2015, Complete robot welding cell with rotating table and enclosure Robot: KUKA KR 150 R2700 extra Load capacity: 150kg reach: 2.090mm with welding gun (Dalex, new in 2018) with cooling device (water cooling in circuit) complete second welding gun (make ARO) included own cooling unit built in the machine automatic rotary table with 10-fold division (at present for running product only 5-fold built up) Nwsdpfx Afenr E Ensheb Workplace for parts insertion or disposal well illuminated and protected by light barriers Control of the complete line by means of Siemens SPS, provided by company HS Automation Siemens control panel for system operation at the insertion station mounted on a swivel arm All together in an enclosure with safety door. Plant can still be visited in operation.

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, Fully working UniControl 12 year 2006 from Norway - for exact technical specification please open attached document in PDF below. Cross section UniTec 12: - saw unit - edge round cutter from bottom - Hubspindel no.1 - Hubspindel no.2 - Hubspindel no.3 Long , profile section UniVar 12: - Profil cutter - Profil cutter - Profil cutter horizontal - Profil cutter - Profil cutter - Profil cutter Total el power 114 kw 400 V AC Nwedpfx Ajmgc I Nsfheb Need for suction 270 m3/min Need of compressed air 1000 L/ minMachine was in use until 15.08.2023 Payment: Prior to loading Delivery: ex. factory Rendalen - Norway Machine is located in Norway ( near to Trondheim) The machine is now disconnected, stored in dry and warm wearhouse, and are ready to be shipped. Rekman Maskin & Service - service of woodworking machines since 1986.

Condition: used, Year of construction: 2021, axis stroke (X,Y,Z) 4062, 2,922,660 mm Number of spindle head vertical 13 St. Number of spindles head horizontal 6 St. Number of tools 27 St. Number of milling agregates 1 St. working dimensions 3200,1500,200 mm Motor output 12 kW control BECKHOFF MASTERWOOD Project 385 (Winner) ----- Exhibition machine built in 2021, available immediately! 5-axis CNC machining center in portal design for use for Interior fittings, doors, stairs optionally expandable with solid wood clamps Frame processing and arched windows Short Summary: ----- Workspace: X = 3200mm ; Y = 1500mm; Z = 200mm 1 piece 5-axis high-performance spindle, 12 kW, with HSK 63 F mount 1 piece of permanently installed drill head with 19 spindles with 7 individually accessible vertical drilling spindles in the X direction with 6 individually accessible vertical drilling spindles in Y direction with 2 double horizontal drilling spindles in X direction and 1 double horizontal drilling spindle in Y direction Sawing unit integrated into the drill head 27 tool changing positions: Carousel tool changer with 22 positions and 102 mm grid spacing Linear 5-fold tool magazine for large tool diameters Original SCHMALZ tubeless work table. Console table with 6 traverses Workpiece lifting device Automatic tool length measuring device. Pack of 12 original Schmalz vacuum cleaners 114 x 140 mm height = 125 mm 1 piece Becker vacuum pump 100m3/h Nwsdpfx Afsxmk Atsheb 1 piece chip conveyor belt Construction software Masterwork: 2D-Wop for standard application panel processing/interior construction, arches, doors Master 3D Level 2: for more complex processing, Optionally also expandable for 5-axis fully interpolating Prepared for the use of solid wood tensioners (round arches), Tensioner offered as an option if needed later Technology according to the enclosed, detailed description ----- Total price in this version from the Oberkochen warehouse: on request! ----- Freight and commissioning on request! Options for frame production/round arch with additional costs: ----- Reference ring for holding chip guide elements on 5-axis electrospindles with HSK 63F mounts: 410.00 euros Basic kit for clamping arch elements - 6 pneumatic tensioners with two movements for arch elements: 7,090.00 euros (technical information according to the manufacturer - no guarantee!) Chip guide elements, price per piece: 460.00 euros All prices mentioned are net, plus tax. (technical information according to the manufacturer - no guarantee!)

Condition: used, machine/vehicle number: 008011, X axis working area: 6200 mm Y axis working area: 1935 mm Nwjdpswu Af Esfx Afhsb Working Table: Pod and Rail Main Electrospindle power: 10.5 KW Number of controlled axes: 4 axes Total number of drilling spindles: 40 Total number of tool changer positions: 22

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, HEGLA, KPL-MZ-III, 36 Compact Storage System for Glass Year of construction: 2014. Load capacity: 180 T Nedpev Iqtxsfx Afhowb Max. glass sizes: 3210 x 6000 mm, 36 compartments. In very good technical condition. Inspection is possible by appointment. Available: NOW

Condition: ready for operation (used), Technical characteristics Machining X 3180, Y 1340 Drilling capacity X 3405, Y 1260 Pneumatic locking HSK63 12 KW 3-axis electro-chuck Displacement 0-100 m / min 0-90 ° blade grooving group 14-pin vertical drilling unit, 6-pin horizontal, 15-inch screen control cabinet included SOFT and control Machine to be restarted Nombre de ventouses12 Nombre de poutres6 Caractéristiques usinageVacuum pump Capacité pompe à vide100 m3/h Power and Motors Nedpfxetqka To Afhowb Overall dimensions

Condition: used, Year of construction: 2019, total height: 2,450 mm, total length: 9,500 mm, total width: 2,400 mm, Empty weight: 5.000 kg Price: On request CNC SCM Morbidelli M100  Brand SCM Type Morbidelli M100  Year of construction 2019 Serial number AA100001570 Machining table dimensions 5510x1620 mm (LxW) 400 Volt / 50 Hz PRO-Speed safety system TEPCAD control panel with touchscreen colour display TBR14 linear tool changer (Y=1620 positions) Njdpfx Aswnibtsfhowb FAST14 linear tool changer Air blower on electro spindle Guard rails X-Y axes Vacuum pump 150/300 m3/h  50/50 Hz 5-axis unit ‘JQX’ version, 13.5 kW Fixed pod 145x145 H=75 mm Rotating pod 145x55 H=75 mm Clamp for 8 rails TV FLEX / TV FLEXDRIVE / TV FLEXMATIC MULTIGRIP 90 round clamp (H83) for TV FLEX / TV FLEXMATIC Maestro connect: 1 year (gateway kit ‘plug&play’ included) SCM DIGITAL SOLUTIONS: MAESTRO CONNECT MAESTRO ACTIVE human-machine interface software (HMI) Maestro software for cnc programming Hardware key for Maestro cnc Advanced Maestro 3D module Additional key for Maestro cnc (USB port) Windows 10 embedded 64-bit operating system Console with integrated PC ‘eye-M PRO’ Axis movement  Maximum vectorial speed in rapid traverse XY axis 56 m/min Stroke of the Z axis 180 mm Routing unit Motor power 5.5 kW  Speed 4000 rpm Tool changer up to 44 locations Air consumption 4430 m3/h Air speed 25 m/sec Connection diameter 250 mm Total dimensions 9700x5020x2650 (LxWxH) - Year: 2019 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: AA10001570 - Transport dimensions: 9500mm x 2400mm x 2450mm (l x w x h) - Transport weight [kg]: 5000kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Glenn Smeets
