Used Brazing Furnace for sale (766)

Condition: good (used), Pieco Serwis Gas Furnace 'B' With Control & Loading Bogey Itsdpfx Adsx Ahzledjb With Movable Bottom (B) Automatic Control With Computer Visualisation. Load Capacity 110 Ton, Hearth Length 11m, Gate Clearance Width 7.5m, Height 4m, Temperature 1,100° C. Temperature Dispersion ±10° C. With Extraction.

Year of construction: 1997, condition: like new (used), Maximum temperature: 1290 °C Interior dimensions: 630 x 530 x 760 mm Itodpfot Ebpujx Addsb Electrical connection: 400 V kW Space required: 1200 x 870 x 1810 mm Weight: 470 kg Heating output: 16.5 kW

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, number of chambers: 1, workpiece length (max.): 4,200 mm, workpiece width (max.): 2,500 mm, transport length: 5,500 mm, TECHNICAL DETAILS Workpiece Maximum glass dimensions: 4,200 mm x 2,500 mm Chamber Dimensions Chamber volume: approx. 21 m³ Chamber height: 3,100 mm Chamber length: 4,400 mm Chamber width: 1,600 mm MACHINE DETAILS Control system: Siemens SIMATIC Door Dimensions Clear door height: 3,000 mm Clear door width: 1,600 mm Space Requirements Footprint (L x W x H): 4,700 x 3,000 x 4,200 mm Base width: 2,700 mm Unit transport length: 5,500 mm Insulation Ceiling insulation: >170 mm insulating material Side panels and door insulation: >120 mm insulating material Floor insulation: >50 mm insulating material Heating: electric Temperature control: optimized EQUIPMENT Optimized heating and fan performance Itodpfxew Slcme Addeb Tamper-proof data recorder with industrial USB interface IT interface and order allocation User-friendly display with energy consumption indicator

Year of construction: 2006, condition: used, functionality: fully functional, Multi-purpose chamber furnace line consisting of the following components: • Aichelin chamber tempering and stress-relief furnaces VKHLE 4/2-70/85/130 (2 units) • Aichelin chamber preheating furnace VKHLG 4/2-70/85/130 (1 unit) • Aichelin single-chamber continuous furnace DGKS 4/2-70/85/130 (3 units) • Aichelin chamber washing machine EKFG 4/2-70/85/130 (1 unit) • Aichelin loading/unloading trolleys (2 units) • Aichelin table loader storage station (1 unit) • Aichelin transfer table storage station (1 unit) • Aichelin cooling unit storage station (2 units) • Storage stations (30 units) • Charging racks Itsdpfexwn R Nsx Addeb • Spare parts for the line Useful load: Grate length: 1300 mm Grate width: 700 mm Loading height above grate: 800 mm Max. batch weight: gross max. 1000 kg/grate Aichelin chamber tempering and stress-relief furnace VKHLE 4/2-70/85/130: External dimensions: Width: approx. 1820 mm Height: approx. 4050 mm Length (incl. control cabinet): approx. 3300 mm Working height above floor: 1600 mm General data: Maximum temperature: 350°C Operating temperature: 150-200°C Number of temperature control zones: 1 Chamber preheating furnace VKHLG 4/2-70/85/130: External dimensions: Width (incl. control cabinet): 3035 mm Height (overall): 4450 mm Length (overall): 3450 mm Loading height above floor: 1600 mm General data: Maximum temperature: 600°C Operating temperature: 400-500°C Number of temperature control zones: 1 Single-chamber continuous furnace DGKS 4/2-70/85/130: External dimensions: Width (incl. control cabinet): approx. 3400 mm Height (incl. maintenance platform): approx. 5300 mm Length (incl. exhaust hood): approx. 6850 mm Working height above floor: 1600 mm General data: Maximum temperature: 1050°C Operating temperature oven: 750-1000°C Temperature control range oil bath: 60-150°C Gross batch weight at 950°C (max.): 1000 kg Max. gross heating capacity from 25 to 850°C (max.): 800 kg/h Number of temperature control zones in oven and oil bath: 1 + 1 Oil bath volume: approx. 6.5 m³ Cooling capacity oil bath (at 90°C bath temperature): 80 kW Chamber washing machine: External dimensions: Width: 2900 mm Height (above hall level): 4000 mm Length: 3150 mm Loading height: 1600 mm General data: Washing fluid temperature: 50-80°C Spray fluid temperature: 50-80°C Bath volume, washing fluid: 4550 l Bath volume, spray fluid: 4700 l Gross weight incl. batch and washing fluid: 125 kN Loading table: Width: approx. 2200 mm Length: approx. 3200 mm Loading height: 1600 mm Weight (incl. batch): approx. 29 kN Batch cooling stations: Length: approx. 2100 mm Width: approx. 800 mm Height: approx. 4350 mm Loading height: 1600 mm Weight (incl. batch): approx. 20 kN Preparation table fixed: Length: approx. 2100 mm Width: approx. 800 mm Loading height: 1600 mm Weight (incl. batch): approx. 25 kN Preparation table, hydraulically height-adjustable: Length: approx. 2100 mm Width: approx. 800 mm Lift: 1000 mm Loading height: 1600 mm Lifting capacity: 2.0 T Weight (incl. batch): 25 kN The sale covers the entire multi-purpose chamber furnace line. Individual furnaces, systems, or components cannot be purchased separately. The complete chamber furnace line must be dismantled, loaded, and transported by the buyer at their own expense. Inspection appointments can be arranged on request.

Condition: as good as new (ex-display), vacuum drying oven Inside: 700 x 700 x 600mm deep Heating capacity: 3 KW Temperature range 1-120°C Outer dimensions: 1280 x 950 x 1280 Pressure range: Atmosphere - 0 Bar (Not suitable for overpressure) A suitable vacuum pump is provided depending on the application. Supply line: 3ph , N, PE 400V, 50Hz CEE plug The interior installation can of course be completely removed! Itsdefbl T Nopfx Addjb

Year of construction: 2017, condition: like new (used), functionality: fully functional, Fours H&C 2-level oven max 3460 mm x 2200 mm Year: 2024 Dimensions of glass supports:- Support 1 = 3260mm x 2200mm - Support 2 = 3460mm x 2200mm Approximate external dimensions of the oven: Width: 4300mm Height: 2710mm Depth: 3260mm + rails Maximum temperature: 160°C Isdpfx Adjvyzh Rsdstb Power: S-LTD-298

Condition: ready for operation (used), A floor chamber furnace of an unknown make is available. Internal volume: approx. 4m³, temperature range: 50°C-400°C, internal dimensions X/Y/Z: approx. 1800mm/1500mm/1800mm, machine dimensions X/Y/Z: approx. 2500mm/2500mm/2500mm. An on-site inspection is possible. Itedpfexp Rbhjx Addsb

Condition: used, Plasma-nitriding furnace, make Ipsen type: VVPH useable dimensions: ø800 x 1200 (H) mm charge weight: 600 kg gross heating power: 100 kW working temperature: 150 – 600°C PLC: Siemens S5 plasma generator: MAG-Puls QT 800/50/150-UP Itsdpfx Adexc D E Hjdjb plasma generator: MAG-Puls was newly acquired in 2008

Year of construction: 2017, condition: good (used), functionality: fully functional, Furnace Housing Dimensions External dimensions: - approx. 3,800 x 4,300 x 2,200 mm Internal (usable) furnace dimensions: - approx. 2,440 x 1,400 x 1,200 mm Batch Load weight: - 9 boxes (net weight 50 kg/each) - approx. 250 kg material per box - stack arrangement 3x3 Performance Data - 1 gas recuperator burner - 160 kW rated heating capacity - Max. allowable chamber furnace temperature 720°C Itodpjxcybkofx Addeb - Max. allowable post-combustion temperature 1,020°C - 1 temperature control zone Temperature Control Range - Chamber furnace 480°C – 700°C - Post-combustion 850°C – 1,000°C Supply Media - Natural gas L or H - Gas inlet pressure 80 mbar - Voltage 400 V - Frequency 50 Hz - Connected load 8 kVA - Compressed air 6 bar, dry, oil-free Material: e.g. brass or bronze

Year of construction: 2015, condition: used, external dimensions: lenght: 3900 mm width: 1320 mm height: 1090 mm (above base frame) muffle lenght: 3960 mm mesh belt: 480 mm width clear height 140 mm Isdpoclupdsfx Addotb max. furnace area temperature: 750°C max. temperature inside the muffle: 700°C water cooled ventilators : 3 electrical connected loads: three-phase: 3 x 400 V, 50 Hz power consumption: 75 kVA heating power, 3 zones each: 24 kW = 72 kW PLC : Siemens S7

Year of construction: 1984, condition: used, max. temperature 1.050 Grad size of opening 380 x 230 mm depth of chamber 680 mm volume 60 L voltage 380 V total power requirement 19,0 kW weight of the machine ca. 540 kg dimensions of the machine ca. 1,15 x 1,35 x 1,65 m - Serial-No.: 13817 Isdpfei Db Dbex Addjtb

Condition: used, El. heated pit furnace, make Borel Itsdevv Tk Aepfx Addsb type: 6-72 temperature: max. 1050°C connected load: 90 kW clear ø: 850 mm clear height: approx. 2150 mm without lid and control cabinet

Year of construction: 2012, condition: ready for operation (used), System type: - Pressing station with subsequent continuous furnace (curing) and sorting station - Year of manufacture: 2012 - Condition: Fully functional Process description: - Ceramic slabs are manually placed on a buffer belt - Transport of the slabs under the pressing station - Pressing under pressure and heat - Further transport of the slabs into the continuous furnace - Curing at constant temperature Itsdpfx Aewbt N Usddsb Temperatures: - Pressing station: 120 °C - Continuous oven: 120 °C Oven length: 4m

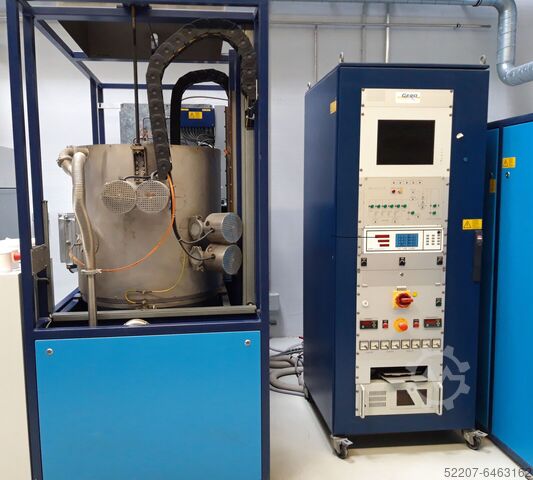

Condition: excellent (used), High temperature debinding furnace, make GERO type: HBO 50/13-3 2G Iodohgiz Iopfx Addetb heating: electrical useable space: ø400 x 400 mm temperature: max. 1.300°C ventilation: exhaust fan during the cooling phase and activated cooling fan ultimate vacuum: 10 mbar exhaustion time: ca. 5 min nitrogen: inlet pressure min. 3 bar oxygen: inlet pressure min. 3 bar

Condition: excellent (used), Walking beam-forging furnace, make Ruppmann max. temperature: 1.250°C useable dimensions (l x w x h): 3.400 x 1350 x 120 mm throughput: 1 ton/h heating: natural gas Ijdpfx Aeid Im Esddjtb Heating thru 4 hot air radiant ceiling Bloom burners, with flame monitoring by Kromschröder burners. Temperature measurement by thermocouples, as well as automatic and stepless temperature control. Heat exchanger, combustion air fan.

Condition: excellent (used), TECHNICAL DATA This furnace system is for recrystallization, normalization, soft annealing, stress relief, annealing and conditionally suitable for soldering. Iodpfx Aegi Dv Djddjtb belt width: 1000 mm working height: 300 mm (over belt) heated length: 4250 mm electrical heating power: 300 kW heating zones: 4 heating temperature: 900 – 1120°C belt speed: 6 – 60 m/h (continuously adjustable) nominal connected load: 310 kW natural gas consumption: 50 Nm3/h natural gas pressure: 30 – 50 mbar nitrogen consumption: 70 Nm3/h – on purging nitrogen pressure: 100 mbar emergency cooling water pressure: 4-6 bar furnace length: 25298 mm furnace width: 2200 mm furnace height: 2800 mm exhaust gas quantity: 1200 m3 / h

Condition: used, El. heated pit furnace, make Borel with air circulator type: 11.85 temperature: max. 550°C connected load: 5 kW clear ø: 300 mm clear height: approx. 570 mm without control cabinet Ijdpovv Sw Isfx Addetb

Year of construction: 2015, condition: new, rotary drum dimensions: length: 6000 mm inside: Ø 1600 mm outside: Ø 2280 mm max. temperature: 1200 ° C heating: gas eating power 2700 kW melting capacity: 6000 kg / h Itedpfxocmxzio Addsb The plant consists mainly of: - furnace - hydraulic power pack and tilting mechanism - heating system - carousel with molds - charge box - measuring and control system

Condition: good (used), debinding and sintering chamber furnace, make Nabertherm type: LH 280/13 DBS temp. max.: 1300°C internal dimensions (w x d x h): 750 x 750 x 500 mm external dimensions (w x d x h): 1250 x 1750 x 2100 mm loading weight : max. 150 kg power: 44 kW heating: 5-sides heated control zones: 1 weight: 700 kg voltage: 400 V 3/N current consumption: 63 A Iodsmfn Rujpfx Addjtb - with an air heater under the furnace, pre-heated air with a temperature of up to 400°C can be flushed into the furnace chamber during the debinding phase. - controllable cooling housing with autom. ball valve - automatic exhaust damper - automatic exhaust flap - monitoring of fresh and exhaust gas volume flow, as well as furnace chamber pressure by differential pressure monitor. -The furnaces themselves, particularly the brickwork, heating elements, and insulation, are in excellent condition with low or no working hours, making them practically like new. -To operate these furnaces, it will be necessary to implement at least one temperature controller per furnace, a PLC, or a similar control system.

Condition: refurbished (used), Roller hearth furnace, make Mahler Itsdpfxjfc Hbde Addob type: RHEE 500/100/3000-6500 refurbished: 2016 max. charge weight: 40 kg/m nominal throughput: 288 kg/h clear roll width: 500 mm clear height above roll: 100 mm furnace length: approx. 22100 mm working temperature: - Warm-up zone: 800-1000°C - High temperature zone 800-1250°C heating: electric connected load: 400 kW gases used: nitrogen, hydrogen

Year of construction: 2018, condition: new, Electrically heated circulating air furnace (horizontal air flow) max. temperature: 550ᵒC useable dimensions (w x h x d): 900 x 1300 x 1800 mm charge weight: 800 kg gross heating power: 72 kW circulation fan: 1 x 7,5 kW Isdpfx Adedt R Uusdstb

Condition: used, Manufacturer: DEMAK Isdpfx Adevgy Ivjdstb Housing size: 6600 x 2100 mm Maximum temperature: 200 °C In the past, the oven was part of a plant and the product was transported via a conveyor belt, The oven was previously controlled by PLC, it was dismantled,

Condition: good (used), Internal dimensions: 600 x 600 x 600 mm Max. Temperature 70°C Itedpfjh Eilvsx Addjb

Year of construction: 2024, condition: new, functionality: fully functional, Convection baking oven Powder furnace new SLS - 90 / O * D + t Transit oven divisible Memorized 1400 wide x 2000 height x 6500 depth Dimensions 1920 wide x 2810 height x 6800 depth Electric power supply Rated power 90 kW Voltage 380V Frequency 50-60 Hz Door type: 2 doors on either side - passage oven Anti-ex Castle Warm-up time 15-30 min. (180 ° C) Homogeneity < ± 3 ° C, if 180 ° C Max < ± 3 ° C Temperature of 230 ° C Max Transport: selectable Air circulation fan Heaters removable roof heating panels Vertical circulation Fan mounted radially on removable panels Iedpecutrlsfx Addjtb Door double two doors on two sides (Durschlaufofen) Divisible Motor 1,1 kW 6480 L capacity Warranty 12 months GERMAN-SPEAKING CONTACT IN GERMANY JUST ASK THEM Delivery time approximately 12 to 16 weeks after ordering Shipping costs will be calculated individually. Also plants according to your wishes. More information under Romer Germany Electrostàtica pintura, pintura en pole, powder coating, Jauhemaalaus, muovijauhetta, Peinture en poudre, thermoplastique, Verniciatura a polvere, Poederlakken, Порошковая окраска, Порошкове фарбування gemapulverbeschichtungskabine Powder coating plant Powder coating plant Powder coating cabin for powder coating Surface technology Powder gun Powder guns Einbren

Year of construction: 2008, condition: used, Protective gas conveyor belt furnace Working space: 600 mm wide, 200 mm high Electrical connection values: 3 x 400 volts, 50 hertz, approx. 300 kVA Heating: 10 pcs. Recuperator burner, make WS, connected load 400 kW gross Working temperature: max. 1150° C Heating zones: 5 Belt construction: mesh belt made of high-temperature-resistant steel, width approx. 600 mm Belt speed: adjustable from approx. 100-900 mm / minute Heating muffle: heat-resistant curved construction with bead reinforcements, length: approx. 6.85m, material: 1.4841 Cooling zones: Zone 1 approx. 1.5 m, Zone 2 approx. 4.0m, Zone 3 approx. 4.0m, Zone 4 approx. 3.0m Cooling zones made of normal steel sheet (St 37) as double-walled circulation cooling sections with measuring gas extraction nozzle, base plate 8mm thick Protective gas: nitrogen N2, hydrogen H2 Iedpfx Asv Ifzqjddstb Dimensions: working height approx. 1060 mm, heated length (5 zones) approx. 6000 mm, furnace length approx. 6900 mm, loading table approx. 1500 mm, unloading table approx. 1500 mm, total width approx. 2900 mm, total length approx. 30 m The system is available twice (built in 2008 and 2015)
