Used Kel Varia for sale (1,395)

Condition: ready for operation (used), Year of construction: 1990, functionality: fully functional, travel distance X-axis: 1,250 mm, travel distance Y-axis: 880 mm, travel distance Z-axis: 800 mm, controller model: TNC 430 Heidenhain, spindle speed (max.): 12,000 rpm, TECHNICAL DETAILS Travel range X-axis: 1,250 mm Travel range Y-axis: 880 mm Travel range Z-axis: 800 mm Main spindle Max. speed range: 12,000 rpm Drive power: 15 / 10 kW Max. torque: 500 Nm Tool holder: SK 40 Work table Clamping area: 1,500 x 1,050 mm Max. table load: 2,500 kg Number of T-slots: 10 T-slot width: 18 H7 mm T-slot spacing: 100 mm Tool changer Number of tool stations: 60 Max. tool diameter: 80 mm Max. tool diameter with free adjacent station: 160 mm Pjdpfoyxmd Tjx Aaaopp Max. tool length: 315 mm Max. tool weight: 8 kg Max. total weight: 100 kg Feeds Rapid traverse (X / Y / Z-axis): 15 m/min Feed rate: 10,000 mm/min MACHINE DETAILS Control model: TNC 430 Heidenhain Total power requirement: 29 kW Dimensions & Weight Space requirements: approx. 7.0 x 5.0 x 3.3 m Machine weight: approx. 16.0 t EQUIPMENT Documentation Chip conveyor Coolant system Tool changer Note: Transport tackle must be organized by the buyer!

Condition: used, Year of construction: 2004, travel distance X-axis: 1,800 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,100 mm, total height: 4,375 mm, total length: 12,300 mm, total width: 11,200 mm, table length: 1,600 mm, table width: 1,400 mm, table load: 3,500 kg, Equipment: documentation/manual, 5-axis CNC Universal Machining centre, simultaneous Control: Heidenhain iTNC 530 Table size: 1600x1400 mm Table load: 3500 kg Number of pallets: 2 x Maximum workpiece diameterxheight: 1950x1100 mm Movement X-axis: 1800 mm Pjdpfxjyu Twkj Aaaspp Movement Y-axis: 2000 mm Movement Z-axis: 1100 mm C-Axis table rotation: 360 ° B-Axis travel: -7 / 187 ° Spindle Speed: 18000 1/min Spindle taper: HSK-A63 Spindle motor: 28/19 kW Magazin capacity: 120 Required floor space: 11200x12300 mm Height: 4375 mm Weight: 58000 kg If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail.

Condition: excellent (used), Year of construction: 1988, Tool grinding machine, manufacturer MICHAEL DECKEL, model S0, year of manufacture 1988. Comes with accessories and operating manual. In very good original condition. Podpfxoyxgm Is Aaaopp Further data can be found in the specification sheet.

Condition: used, Year of construction: 2009, Max. bending capacity: 300 kN (30t) Cylinder stroke: 250 mm Pressure adjustable from 0-300 kN Tool height: 200 mm Biegleistung:140 x 20 mm at V125; 200 x 18 (19) mm at V200 Richtleistung Wy200 at Richtklotzabstand 1,000 mm Length stop with multiple stop flaps Automatic and manual mode possible Ppodpfxoywx E To Aaasp Weight: approx. 700 kg

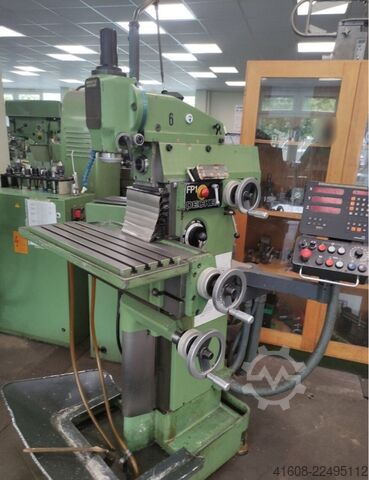

Condition: used, Universal tool milling machine with active digital display DECKEL Type FP 1 Universal milling machine Machine No. 2102 - 3351 Year of manufacture: 1986 Travel X: 300 mm Y: 150 mm Z: 330 mm Pjdpfsyxy Swjx Aaajpp Table size: 600 x 210 mm Spindle taper: SK 40 - S20x2 Spindle speed: 40-2000 rpm, 16 steps Feed rate: 5 to 500 mm/min Rapid traverse: 1200 mm/min Motor power: 1.6 and 2 kW, pole-changeable Power supply: 380 Volt, 50 Hz - Active digital readout for 3 axes HEIDENHAIN Type TNC 113 - Infinitely variable feed via servomotor in X, Y, and Z axis - Spindle speed via 2 motor speeds and 8 gearbox steps - Quill travel on the vertical milling head: 60 mm - Vertical milling head can swivel and extend horizontally by 100 mm - Fixed angle table 600 x 210 mm - Coolant system integrated into machine base - Free-standing control cabinet - Original chip tray for placing on machine base - Operating manual, electrical diagram, spare parts list available in PDF format Space requirement (L x W x H): 1350 x 1100 x 1700 mm Weight: 830 kg Good condition

Condition: used, functionality: fully functional, Tool Grinding Machine Ppjdpfx Aaoyw N Tueajp Manufacturer: DECKEL, Model: S 1 Technical Details Manufacturer: DECKEL Model: S 1 Speed: from 3750 to 7500 rpm Connection: 380 V Machine weight: approx. 400 kg Dimensions (L x W x H): 1.2 x 0.70 x 1.40 m All information provided without guarantee. A powered demonstration is possible at any time in our showroom.

Condition: good (used), Year of construction: 2011, functionality: fully functional, Technical details x-travel 400 mm y-travel 580 mm z-travel 460 mm Control Heidenhain iTNC 530 Additional information HSC Precision Machining Center HSC 55 linear NEW DMG Design Heidenhain iTNC530 3D Control SmarT.NC User Interface DMG ERGOLine® Control, 19" Screen HSC 55 linear 5-Axis Version Rotary Swivel Table Clamping Surface 400 x 400 mm Swivel Range A-Axis +10/-110°; C-Axis 360° Maximum Load Capacity 200 kg, Absolute Measuring Systems Including Drive Cooling for A and C Axes X = 450 mm, Y = 580 mm, Z = 460 mm 80 m/min Rapid Traverse Spindle Speed ??20 – 42,000 rpm For HSK-E50 Tool Holder according to DIN 69893 AC Main Drive with 13/10 kW (40%/100% ED) Tool magazine with 60 positions Chain magazine with double gripper Active cooling unit for main spindle and linear drives Active cooling unit for control cabinet Direct absolute measuring systems including purge air Coolant/air cooling switch Renishaw laser tool measurement for measuring tool length and diameter incl. calibration mandrel with tool holder 3D quickSET Toolkit for checking and correcting the kinematic accuracy of 5-axis machine configurations (only in conjunction with optional probe) PP 60 optical infrared probe Pedpfeyv Ap Hex Aaaspp Electronic handwheel Application Tuning Cycle (ATC) software Selection of the optimal machining mode for the current operation 20-position pallet tower storage and transfer station Pallet size: UPC 320x320mm Loading door and air supply at the worktable Pallet management via machine control Including UPC-P chuck Four-color indicator light Air blower through the spindle center, selectable via M-function and softkey Maintained air with low oil content Dust extraction for graphite Rotating viewing window Operating mode 4 Process monitoring in production Laminated safety glass window

Condition: like new (used), Year of construction: 1993, functionality: fully functional, Very nice Deckel Maho FP1 From the latest model! Psdpeywlakofx Aaajpp Comes from a toolmaking workshop. UNIQUE MACHINE With feed on the Y-axis.

Condition: excellent (used), Year of construction: 2005, x-travel 835 mm y-travel 510 mm z-travel 510 mm CNC-control SIEMENS table-size 1000 x 560 mm max. table load 800 kg spindle taper SK 40 Ppjdpfxeyxxyyo Aaajp spindle turning speed range 20 - 8.000 U/min feed stepless 1 - 20.000 mm/min rapid traverse 20 m/min drive capacity - spindle motor 13 / 9 kW tool change unit 20 Pos voltage 380 V total power requirement 35 kVA weight of the machine ca. 4,5 t dimensions of the machine ca. 3,50 x 3,50 x 2,70 m - Serial No.: 15415027604 - machine as good as new - Machine ON: 2.599 h program ON: 1.027 h - tool measurement BLUM-MICRO incl. calibration tool - infrared probe HEIDENHAIN TS 640 - Tool changer 20 pos. with double gripper - chip tray (no chip conveyor) - div. tool holder - coolant unit

Condition: used, Year of construction: 2012, x-travel 635 mm y-travel 510 mm z-travel 460 mm control SLIMline Siemens turning speed range - main spindle 20 - 12.000 min/-1 power capacity - main spindel 13 / 9 kW Torque 83 / 57 Nm Pedpfx Asx S Rxnoaaspp tool taper SK 40 table surface area 790 x 560 mm number of T-slots 4 + 1 T-slot - width 4 x 14H12 / 1 x 14H7 mm T-slot - distance 100 mm max. table load 600 kg table height over floor 720 mm number of toolpositions 20 pos. max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm max. tool length 300 mm max. tool weight 6 kg Total weight, approx. max. 60 kg feed speeds max. 20.000 mm/min rapid traverse 30 m/min total power requirement 17 kVA weight of the machine ca. 4,0 t dimensions of the machine ca. 4,5 x 4,0 x 2,8 m CNC-Machining Center Vertikal DECKEL MAHO - DMC 635 V Ecoline - only 9.290 Spindle-Hours

Condition: ready for operation (used), Year of construction: 1998, operating hours: 14,018 h, travel distance X-axis: 600 mm, travel distance Y-axis: 525 mm, travel distance Z-axis: 500 mm, controller manufacturer: HEIDENHAIN, controller model: TNC 426/430, spindle speed (max.): 12,000 rpm, number of axes: 3, This 3-axis DECKEL DMU 60 E was manufactured in 1998. It features a spindle speed of 12,000 rpm and an impressive X-axis travel of 600 mm, Y-axis travel of 525 mm, and Z-axis travel of 500 mm. The machine includes a fixed angle table with a clamping surface of 1000 x 542 mm and a 25-position double gripper tool changer. If you are looking to get high-quality machining capabilities, consider the DECKEL DMU 60 E vertical machining centre we have for sale. Contact us for further details. • Operating hours (duty cycle): 35,214 h • Spindle hours: 14,018 h • Table type: Fixed angle table Podpjyxrtgofx Aaaspp • Clamping surface: 1000 x 542 mm • Tool changer: 25-position, double gripper • Equipment: Electronic handwheel • Interfaces: RS-232 C / RS-422 • Power outlet: 230 V / 1 A • Condition: Guides replaced approx. 8 years ago; spindle in perfect working order • Can be powered up and tested

Condition: excellent (used), Brokelmann Boot Washer, Year 2024 Made of stainless steel AISI 304, welded body, power supply 400V AC, 50 Hz, water supply 3/4”, water outflow diam. 50mm. Two photocells activating the washing process. After entering the range of the sensors, the brushes work for a predetermined time (factory 7s). Ppodpfxjytqbke Aaajp

Condition: used, Year of construction: 2008, x-travel 1000 mm y-travel 1000 mm z-travel 1000 mm Control Siemens 840D powerline spindle tunring speed 8.000 U/min drive capacity - main spindle 100/40% ED 32/44 kW tool taper HSK-A 100 number of tool places 354 Pos. rapid traverse ( x / y / z ) 60 m/min size of pallet 800 x 800 mm In our opinion, the machine is in good used condition and can be inspected under power by appointment. Technical Features: - NC rotary table with pallet carrier - Rotary pallet changer - 40 bar internal coolant supply - Rotating viewing window - Wall-mounted magazine with 300 magazine positions - Rotating wall tool lock, 30 positions (inactive) and 54 positions (active) - Infrared measuring probe - SK 50 mechanical tool breakage detector - Tool identification - 4-color signal lamp Psdpfx Ajxcp R Ujaajpp Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Subject to changes and errors in the technical data and information, as well as subject to prior sale!

Condition: ready for operation (used), Year of construction: 1997, operating hours: 19,831 h, travel distance X-axis: 630 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 500 mm, controller manufacturer: SIEMENS, controller model: Sinumerik 840D, total height: 2,700 mm, total width: 2,800 mm, table load: 500 kg, overall weight: 4,500 kg, spindle speed (max.): 8,000 rpm, number of slots in tool magazine: 24, product length (max.): 3,300 mm, number of axes: 3, This 3-axis DECKEL MAHO DMC 63V vertical machining centre was manufactured in 1997. It features an X-axis travel of 630 mm, Y-axis travel of 500 mm, and Z-axis travel of 500 mm. The machine is equipped with a tool magazine capacity of 24 tools and a maximum spindle speed of 8000 rpm. If you are looking to get high-quality machining capabilities, consider the DECKEL MAHO DMC 63V machine we have for sale. Contact us for further details. Podpfjyw Rmvsx Aaaepp • Table: • Size: 800 × 500 mm • Operating hours: 19,831 h (actual counter from control) • Condition: Powered, connected, and fully operational • Note: Control upgrade from Sinumerik 810D to 840D Technical Specification Taper Size SK 40

Condition: ready for operation (used), Year of construction: 2004, operating hours: 27,865 h, travel distance X-axis: 2,200 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 720 mm, controller manufacturer: HEIDENHAIN, controller model: iTNC 530, overall weight: 12,000 kg, spindle speed (max.): 18,000 rpm, number of axes: 3, This 3-axis DECKEL MAHO DMF 220 Linear was manufactured in 2004. It features impressive travels of approximately 220 cm in the X-axis, 56 cm in the Y-axis, and 72 cm in the Z-axis. The machine has a maximum speed of around 18,000 rpm and includes a chip conveyor and coolant filter unit. If you are looking to get high-quality machining capabilities, consider the DECKEL MAHO DMF 220 Linear vertical machining centre we have for sale. Contact us for further details. • Connection values: 400V/50Hz • Swing door machining possible • Operating hours: 44,199 Additional equipment Ppodpfoyw Rapjx Aaajp • Chip conveyor BLECHTECHNIK DMF 220 (2003) • Coolant filter unit DMG

Condition: ready for operation (used), Year of construction: 2001, operating hours: 35,241 h, travel distance X-axis: 1,000 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 500 mm, overall weight: 9,000 kg, spindle speed (max.): 18,000 rpm, number of axes: 3, This 3-axis DECKEL MAHO DMC 100 V was manufactured in 2001. It features impressive travels of approximately 1000 mm in the X-axis, 800 mm in the Y-axis, and 500 mm in the Z-axis. The machine boasts a maximum spindle speed of around 18,000 rpm and includes a KNOLL chip conveyor and coolant filter system. If you are looking to get high-quality machining capabilities, consider the DECKEL MAHO DMC 100 V vertical machining centre we have for sale. Contact us for further details. • Control: 1 DECKEL MAHO control unit • Operating hours: 35,241 Additional equipment • KNOLL 450 K-1/40 chip conveyor (2002) • KNOLL RF 200/1100 coolant filter system (2001) Ppedpfx Aaoyw N A Noajp

Condition: ready for operation (used), functionality: fully functional, Specifications Manufacturer: Deckel Model: SOE Condition: Used Stock number: 00662 Ppsdpfxsytfbxj Aaajp

Condition: good (used), Year of construction: 1990, 10310 Direct Mailing Line - Highly flexible machine for the production of direct mailing products and a variety of other applications, consisting of: - MBO R-105 round-pile feeder - Vacubelt infeed - Compressor - MBO control panel - Hunkeler Mini-Mailer 1, processing station equipped with/for: - Various register-perforating heads for both intermittent and continuous operations (perforating, creasing, slitting, etc.) - 1 ROBATECH glue system for remoistenable adhesive (hotmelt also possible), with various application heads - Dispersion adhesive system with multiple application heads - Plow fold device (for sheet doubling, etc.) - Hunkeler control unit (six-channel controller) for all register functions - Transfer to - Hunkeler Mini-Mailer 2, processing station equipped with/for: - Various register-perforating heads for both intermittent and continuous operations (perforating, creasing, slitting, etc.) - 1 ROBATECH glue system for remoistenable adhesive (hotmelt possible), with various application heads - Dispersion adhesive system with multiple application heads - Hunkeler control unit (six-channel controller) for all register functions - MBO FW2-81/8 folding station with 8 folding pockets - Segmented folding rollers - Window folding pocket - Shingled belt delivery - Comprehensive set of processing tools - Central compressed air supply required! Ppedpfox R Utyox Aaajp

Condition: ready for operation (used), Year of construction: 1989, functionality: fully functional, feed length X-axis: 300 mm, feed length Y-axis: 160 mm, feed length Z-axis: 340 mm, travel distance X-axis: 300 mm, travel distance Y-axis: 160 mm, travel distance Z-axis: 340 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 40 rpm, Deckel FP1 milling machine with Heidenhain TNC113 digital readout in very good condition. Technical specifications: Year of manufacture: 1989 Machine no.: 2102-5533 * Speed: 40 - 2000 rpm * Infinitely variable feed on 3 axes * Rapid traverse on 3 axes * Spindle brake * Table movement X/Y/Z: 300/160/340 mm Psdpfxjytcars Aaaepp * Vertical milling head can be adjusted 100 mm on the spindle block * Vertical quill * Drawbar system SK40/M16 * Weight approx. 800 kg Accessories and equipment: 3-axis digital readout Heidenhain TNC113 Coolant system Central lubrication Operating manual, spare parts diagram

Condition: ready for operation (used), Year of construction: 1984, functionality: fully functional, feed length X-axis: 500 mm, feed length Y-axis: 400 mm, feed length Z-axis: 400 mm, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, rotational speed (max.): 2,500 rpm, rotational speed (min.): 50 rpm, input voltage: 400 V, Deckel FP4M Universal Milling Machine in excellent technical and optical condition. Machine no. 2203-1389 Year of manufacture: 1984. Pjdpfxoytb Uhj Aaaopp Technical specifications: - Working travel X/Y/Z: 500/400/400 mm - Speed range: 50 - 2500 rpm - Power: 3.7 / 4.4 kW - Spindle brake - Auto feed: X-Y-Z infinitely variable 6.3 / 630mm/min - Rapid traverse X-Y-Z 1300mm/min - Fixed angle table - Vertical quill 90mm stroke - Tool holder ISO 40/M16 - Weight approx. 1500 kg Machine options: - 3-axis Heidenhain digital readout - Coolant system - Chip tray - Central lubrication - Automatic pulse lubrication on milling head - Machine books with spare parts list and electrical diagrams

Condition: used, machine/vehicle number: 2414-0075 bzw. 2314-0703, table clamping surface: 520 x 1000 mm 6 clamping grooves: 16 mm groove spacing: 90 mm Clamping plate horizontally rotatable to the right and left by: 45° each tiltable from/to the machine by: 15° each swivelling to the right and left: 15° each permissible load movable approx.: 1000 kg permissible load rigid table approx.: 1500 kg Psdpeb Hmbpefx Aaaepp weight: 376 kg Suitable for milling machines DECKEL: FP 3 L; FP 3 LG; FP 3 LV

Year of construction: 1989, condition: used, machine/vehicle number: 2204-1736, table mounting size: 460 x 800 mm movement x: 485 mm movement y: 385 mm movement z: 380 mm tailstock stroke: von Hand ca. 70 mm spindle turning speed range: 50 - 3150 rpm Podsclli Uopfx Aaajpp carriages continuously adjustable: 2 - 1000 mm/min rapid move: 2 m/min electrical connection: 3,7/4,4 kW space needed: 2100 x 1650 x 1730 mm weight: 1850 kg

Year of construction: 1983, condition: ready for operation (used), machine/vehicle number: 2810-3076, table mounting size: movement x: 560 mm movement y: 450 mm movement z: 450 mm tailstock stroke: 80 mm Ppjdpfx Aofnry Hjaaep spindle taper:SK 40 spindle turning speed range: 40 - 4000 rpm carriages continuously adjustable: 2 - 2000 mm/min rapid move: 4 m/min space needed: 2000 x 2150 x 2030 mm weight: 2720 kg

Condition: good (used), machine/vehicle number: 16526, pattern table size: 320 x 440 mm working table size: 200 x 300 mm working area longitudinal: 250 mm working area cross: 220 mm Ppsdpfx Asdlkwgsaaop spindle turning speed range: 1460 - 8550 rpm milling proportion: bei 1 : 1 ca. 105 x 165 mm spindle drive: 0,86 kW space needed: 1000 x 900 x 1320 mm weight: 360 kg

Condition: ready for operation (used), machine/vehicle number: 27246, Dividing head carriage movement: 100 mm Table longitudinal movement: 260 mm Table height adjustment: 50 mm Swiveling the table slide by: 360 ° Swiveling of the vertical slide guide: 360 ° 2 spindle speeds by pole-changing motor: 3750/7500 rpm Drive motor, pole-changing: 0.5 / 0.6 kW Space required: 980 x 600 x 1500 mm Podpfxed Ivfye Aaaopp
