Loading/Unloading Line

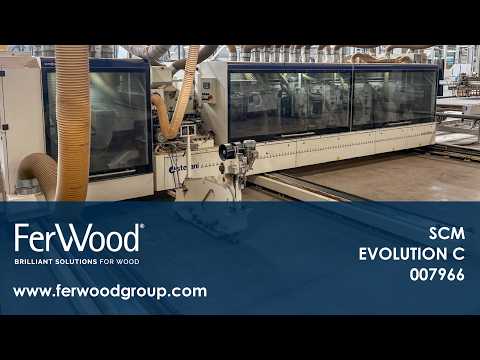

SCM EVOLUTION C

Condition: excellent (used), Double side - Independent Machine (or 1st and/or 2nd in a line) Edges (band in rolls) thickness (Min/Max) mm 0,4 / 3 Panels thickness (min/max) mm 14 / 60 Working width (min/max) mm mm 260 (ca.) / 3200 Numerical Control /Software MAESTRO PRO EDGE Adjustable feeding speed (m/min) 10- 40 Safety sound-proof enclosures/cabins + Distance (center-axes) of Disappearing Dogs (mm) 400 SIZING PART (for each side): Anti-chipping Milling Unit AS (1 x Kw 4) Hogging Units DTR (2 x Kw 8) Spraying unit (Anti-sticking liquid) AAR EDGE-BANDING PART (for each side): Lamps to heat the workpieces side Glueing Unit (Hot Melt Glue + Quick Melt system) Band Pressure zone (N.C. adjustment) Edge coils support (No 2 reels) motorized Snipping (end-cutting) unit YU/SP-750 (30 m/min) Rough Trimming unit RSP Fine Trimming unit (Multi-profile, by N.C.) RI/S 2P Corner Rounding unit ( Contour Trimming) C1+C2 (4 x Kw 0,35) ED-SYSTEM e Fast-Release Profile Scraping unit RAS/S Dodowhi Sljpfx Anyeuw Glue scraping unit RCA/2C Spraying Unit (for polishing liquid) Buffing unit SPE Milling grooving unit U (1 SX + 1 DX) 2 x Kw 5,5

Condition: used, Year of construction: 1996, Max. sheet length: 4720 mm Motor power: 2.2 kW Roller diameter: 600 mm Max. cutting height: 395 mm Max. cutting width: 585 mm Table can be tilted: Yes Stand side: left Guide rail: can be used on both sides Saw blade guide position: top and bottom Saw blade guide type: roller guide Design: stationary Dedpfjy Rz Htex Anysuw Safety switch on the doors with motor brake Weight approx.: 300 kg Dimensions: 1115 x 670 x 2115 mm Location: Nattheim

Condition: excellent (used), CNC Flexible Automatic through-feed ROUTERING, DRILLING and DOWELS INSERTING LINE Min/Max workpieces (panels) width (X axis) with FTT: mm 240 / 3100 Min/Max workpieces (panels) thickness (Z axis) with FTT: mm 12 / 60 Min/Max workpieces (panels) length-depth (Y axis) with FTT: mm 140 /1550 (or 800+800) A) Loader (Bridge Frame) "RBO" Double Station, Mod. Advantage C B) Motorized Roller table "RBO" with turning device 90° (length to crosswise) C) Gantry (Portal) CNC (Routering and Drilling) machine "BIESSE" FTT 800 Centre A: No. 2 Electro-spindles ISO 30 (Kw 3,7 each) with tool-holder magazine with 3 places each. Centre B: No. 2 predispositions for the installation of other 2 electro-spindles No. 2 tool-holder magazines (revolver) with 56 positions each. No. 4 upper drilling units (total 128 vertical spindles + 36 horizontal spindles) D) Connection transfer, with upsidedown turning machine (180°) "RBO" Mod. Ribaltatore E) Gantry (Portal) CNC (Routering and Drilling) machine "BIESSE" Mod. FTT 800 R8 No.2 horizontal units(1 left+1 right)with 4 BH18 heads with 18 spindles(36 right + 36 left),total 72 Centre A: No. 2 Electro-spindles ISO 30 (Kw 4,5 each) with 3 tool-holder magazine each. Centre B: No. 2 predispositions to install another 2 electro-spindles No. 2 tool-holder magazines (chain) with 60 positions each. Dusdpfjgvdkgox Anyow No. 4 upper drilling units (total 128 vertical spindles + 36 horizontal spindles) F) "BIESSE" RD dowel insertion unit No.2 horizontal units(1 right+1 left)with 5 insertion nozzles each (5 left + 5 right), tot. 10 nozzles G) Stacker (Bridge Frame) "RBO" Double Station, Mod. Advantage SC

Condition: used, Professional bone saw Kolbe K330 is designed for fast, precise and safe cutting of fresh and frozen meat, bones and larger product pieces in butcher shops, processing plants, supermarkets and professional kitchens. This model is an ideal solution for users who require strong performance, reliable operation and high cutting quality in daily professional use. The saw provides fast and even cutting thanks to the high blade speed of 22 m/s, ensuring efficient work and precise cuts. It is suitable for processing bones, carcass sections, large meat pieces and frozen products. Model K330 is equipped with 300 mm wheel diameter and uses a 2490 mm blade, providing stable operation, accurate blade guidance and excellent cutting results. Maximum cutting height is 320 mm, while cutting width is 280 mm. The construction is largely made of stainless steel, ensuring long service life, high hygiene standards and easy maintenance. Stable industrial design makes this model an excellent choice for professional users. Technical specifications: Machine type: Bone saw Duedpfx Ajy Izqtjnyow Manufacturer: Kolbe Model: K330 Power: 1.5 kW Voltage: 400 V Frequency: 50 Hz Blade speed: 22 m/s Wheel diameter: 300 mm Blade length: 2490 mm Maximum cutting height: 320 mm Maximum cutting width: 280 mm Material: Stainless steel Application: Cutting bones, fresh and frozen meat Use: Butcher shops, meat processing, supermarkets, professional kitchens Operation: Fast, precise and reliable Maintenance: Easy and simple

Condition: used, machine/vehicle number: 008288, Position 1: Panel Feeding and Loading SCM-MAHROS - STEFANI - CELASCHI Position 2: Double Sided Squaring/Edgebanding Machines SCM-MAHROS - STEFANI - CELASCHI Position 3: Panel Turning Device SCM-MAHROS - STEFANI - CELASCHI Position 4: Double Sided Squaring/Edgebanding Machines SCM-MAHROS - STEFANI - CELASCHI Duodpfxex Nv S Uj Anysw Position 5: Panel Turning Device SCM-MAHROS - STEFANI - CELASCHI Position 6: Splitters SCM-MAHROS - STEFANI - CELASCHI Position 7: Panel Stacking and Offloading SCM-MAHROS - STEFANI - CELASCHI

Condition: used, machine/vehicle number: 008019, Type of edging: Thin edge, Thick edge Gluing System: EVA Hotmelt Premilling Unit: yes Corner Rounding Unit: yes Grooving Unit: yes Max feed speed: 40 m/min Djdpfx Aewvq E Njnyeuw Maximum panel thickness: 60 mm Operating Units: 14 nr

Condition: good (used), For sale is a used AS bandsaw with a cutting width of 435 mm. The saw is in good condition and has been refurbished and inspected by our qualified personnel. Technical specifications: - Cutting width 345 mm - Cutting height 165 mm - Table size 445 x 350 mm - Dust extraction port Ø 100 mm - Motor power 0.7 kW / 1 hp - Year of manufacture 2016 Dusdpszar Uljfx Anyjw The machine is located in A-5431 Kuchl and can be inspected at any time during our opening hours. Subject to prior sale! For further information, please call 06244-20299. Related terms: Bandsaw, saws, saw, band Reference: R-P03CW

Year of construction: 1994, condition: ready for operation (used), A dividing system consisting of longitudinal and cross-cut saw Anthon is available. Production capacity at 800mm/500mm: approx. 20m³/h, max. panel dimensions X/Y: 6300mm/2500mm, total system dimensions X/Y/Z: approx. 48m/16m/3m, weight: approx. 60t. 1) Saw Anthon LNB-LNB, year of manufacture: 1994, max. package height: 150mm, control: Siemens S5. 2) In-house paternoster, decks: 3, levels: 2. 3) 4x liftomat Holzma Hau series, years of manufacture: 2004, stacking positions: 4. 4) Feeding system Systraplan, year of manufacture: 1989, stacking positions: 3. 5) Cut-off saw Holzma, year of manufacture: 1996. 6) Chipper Masur LZ 800, year of manufacture: 2003. Includes critical spare parts, such as a replacement control unit. This is a system for mass production. Documentation available. An on-site inspection is possible. Expected to be available from October 2026. Dodpfx Anew U Ua Tsyjuw
