Plate Shear - Hydraulic

STEINER HTS 30/16

Condition: used, Year of construction: 1994, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Nljdpfx Ajz S Nkxjbujh Working area Sheet metal width: 3,000 mm Sheet metal thickness: 16 mm Frame width: 3,200 mm Overhang: 310 mm Stroke: 300 mm Work table Table width: 820 mm Table height above floor: 1,215 mm Clamping and cutting Number of clamps: 12 pcs. Cutting angle: 0.5–2.5° Cutting angle adjustment: 1–2.5° Cutting gap adjustment: manual, via table adjustment Back gauge Back gauge: 0–1,000 mm Adjustment: motorized Positioning: digital Performance data Total power consumption: 30 kW Machine weight: approx. 19 t Dimensions Space requirement: approx. 3.8 × 2.65 × 2.85 m Overhaul and safety Overhaul: 2010 Safety features: safety light curtain EQUIPMENT Motorized adjustable back gauge Digitally positionable back gauge Electrically adjustable cutting angle Safety light curtain Loading/unloading table with conveyor belt

Condition: new, empty load weight: 15,420 kg, maximum load weight: 61,080 kg, overall weight: 76,500 kg, axle configuration: > 3 axles, loading space length: 8,600 mm, loading space width: 2,540 mm, loading space height: 900 mm, tire size: 235/75/r17,5, color: grey, Equipment: ABS, Gooseneck: Gooseneck with rear bevel of approx. 750 mm x 10° 3 pairs of lashing rings Hardwood decking 30 mm thick Loading platform: Loading area in extendable design with rear bevel of approx. 500 mm x 8° 8 pairs of lashing rings can be folded outwards 1 pair of lashing rings lying in the front of the cargo bed Cut-outs in the outer frame of the cargo bed for attaching lashing straps Hardwood flooring approx. 48 mm thick, checker plate flooring over the axles Two-part steel ramps: A pair of galvanized two-part steel ramps approx. 2,750 + 1,400 x 800 mm with approx. 48 mm thick hardwood decking. Ramp with hydraulically folding and unfolding ramp sections, hydraulic lifting gear and hydraulically movable. Maximum load per pair: 50,000 kg. Seat posts: - JOST fifth wheels (mechanical) with 2-speed gearbox for 24t lifting load (50t test load). Axles and tires: BPW axles and suspension, 4th + 5th axle self-steering Technical axle load: 12,000 kg 4th and 5th axles with electro-magnetic reverse lock via reverse gear and manual activation Tires 235/75 R 17.5 3PMSF Brake system: Brake system in accordance with EU regulations with EBS-E (4S3M) Sockets and lighting: Electrical system in accordance with EU regulations, 24 volt lighting ASPÖCK-NORDIK (ASS3) ASPÖCK-UNIBOX on the front connection strip with 24N, 24S & 15-pin sockets Connection according to ISO 24N ISO-1185 24S ISO-3731 15 pole ISO-12098 Paint finish: First-class and durable corrosion protection of the standard shot-peened welded frame guaranteed by a 2-component (2K) zinc dust primer A high-quality 2-component (2K) top coat in a single color in MB 7350 nova grey Rear section metallized and painted in RAL 9010 (pure white) No metallic paint finish possible Steel construction: Steel construction made from high-strength fine-grained steels Steel grades: S355J2+N/S355MC (yield strength 355MPa) S690QL/S700MC (yield strength 690MPa) Accessories: One spare wheel with holder in front of the bulkhead 2" kingpin One galvanized steel bulkhead approx. 400 mm high Yellow-red air couplings on the galvanized connection strip at the front 2 restraining shoes with holder on the bulkhead Mounting in the rear area of the gooseneck for ALU docking lights A bracket for a rotating beacon at the rear of the trailer Galvanized supports under the bevel of the loading area White reflective tape in accordance with EU regulations on the sides, on the extension and red at the rear Electro-hydraulic unit at the rear under the cargo bed A holder for the warning signs, including a socket, on the gooseneck and on the rear panel on the left and right respectively Control valves for the ramps mounted on the right-hand side of the trailer A mud flap at the rear of the trailer Manual and description on USB stick 3.5" kingpin supplied loose Nlodpfol Sl Izsx Abush ALU drop sides and rear wall can be plugged onto the gooseneck approx. 2,440 x 400 mm (LxH) The rear galvanized stanchions are removable (length of the body approx. 2,560 mm) 3 pairs of WADER container pockets in the loading area for a 20' (30') or a 40' container 6 pairs of stanchion pockets for 100 x 50 mm stanchions in the outer frame of the cargo bed Galvanized extensions, extendable by approx. 230 mm per side Lift axle on the front axle with control by TEBS E depending on the current axle load and the current load status Square climbing rails 20 x 20 mm every 200 mm on the outer frame of the loading area slope On the chequer plates, above the kingpin and the load floor

Condition: used, Year of construction: 2007, Used Golfetto Sangatie Stone Catcher Multiple units available Drive 2x 3kW Nodexft Ddjpfx Abuolh Used for destoning wheat Measurements in attached file Gravity Selector Dryostoner

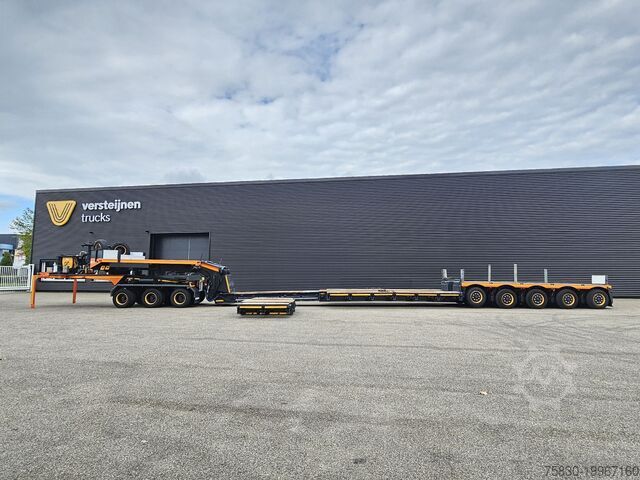

Condition: used, axle configuration: > 3 axles, first registration: 10/2006, total width: 2,850 mm, suspension: other, tire size: 285/70R19.5, color: black, Equipment: ABS, = Additional Options and Accessories = - Central lubrication system = Notes = Faymonville Jeep dolly D3 Year 2006. 1 x lift axle. 1 x friction steering axle / trailing arm steering. Air suspension. Max. technical weight: 56,000 kg. Faymonville STBZ-5VA Year 2006. Swivel axle. Removable gooseneck. Movable table. Extendable bed: 400 cm. Loading bed: 650 + 400 cm. 50,000 kg gooseneck capacity. Max. technical weight: 119,680 kg. = Further Information = Axle configuration Tire size: 285/70R19.5 Brakes: Drum brakes Front axle 1: Twin tires; tire tread depth left inside: 15%; tire tread depth left outside: 60%; tire tread depth right inside: 60%; tire tread depth right outside: 60%; suspension: air suspension Front axle 2: Twin tires; tire tread depth left inside: 30%; tire tread depth left outside: 30%; tire tread depth right inside: 40%; tire tread depth right outside: 60%; suspension: air suspension Front axle 3: Twin tires; steerable; tire tread depth left inside: 30%; tire tread depth left outside: 70%; tire tread depth right inside: 60%; tire tread depth right outside: 70%; suspension: air suspension Rear axle 1: Twin tires; steerable; tire tread depth left inside: 30%; tire tread depth left outside: 60%; tire tread depth right inside: 40%; tire tread depth right outside: 70%; suspension: hydraulic suspension Rear axle 2: Twin tires; steerable; tire tread depth left inside: 50%; tire tread depth left outside: 50%; tire tread depth right inside: 30%; tire tread depth right outside: 75%; suspension: hydraulic suspension Rear axle 3: Twin tires; steerable; tire tread depth left inside: 60%; tire tread depth left outside: 60%; tire tread depth right inside: 60%; tire tread depth right outside: 60%; suspension: hydraulic suspension Rear axle 4: Twin tires; steerable; tire tread depth left inside: 60%; tire tread depth left outside: 60%; tire tread depth right inside: 40%; tire tread depth right outside: 50%; suspension: hydraulic suspension Rear axle 5: Twin tires; steerable; tire tread depth left inside: 70%; tire tread depth left outside: 70%; tire tread depth right inside: 20%; tire tread depth right outside: 70%; suspension: hydraulic suspension Weights Unladen weight: 36,600 kg Payload: 99,400 kg GVW: 136,000 kg Financial information Price: On request Identification Type number: STBZ-5VA + 3 AXLE JEEP DOLLY / E Njdoxbng Eopfx Abuslh = Company Information = ALL PRICES ARE NET FOR EXPORT (Joris Versteijnen NL-DE-GB; Wouter Greutink NL-DE-GB-ES-IT; Govorim po ryccki). We make every effort to provide accurate information. However, no rights can be derived from the information provided.

Year of construction: 2007, condition: good (used), functionality: fully functional, machine/vehicle number: 12428 B500-851, Overheadcrane ± 14.170 mm x 25.000 kg Nljdpfx Abjv Ip Afjush

Year of construction: 1998, condition: good (used), functionality: fully functional, machine/vehicle number: 12254 B521 860, Overheadcrane ± 10.500 mm x 12.500 kg Nlsdpfx Abjv Ip Egoujh

Condition: used, Year of construction: 1995, Technical details: sheet width: 3000 mm plate thickness: 12 mm distance between columns: 3500 mm control: Cybelec DNC 10 G back gauge: 1200 motorisch mm cutting angle: 1,2 - 2,73 ° cutting gap adjustment: ja mm cutting capacity : 66.000 daN daN Knife length: 3100 mm down holder: 17 Stück interface: RS232 Table dimensions: 3200 x 600 mm total connected load: 22 kW weight of the machine ca.: 11,0 + (1,0 to Anbauteile+Zubehör) t space requirements approx. LxWxH: ca. 4,5 x 2,6 x 2,1 m transport dimensions LxWxH: ca. 5,0 x 2,25 x 2,2 m The guillotine shear was put into operation for the first time in 1998. The DNC 10 G control unit was specially designed for guillotine shears. It has a numerical axis for controlling the backgauge and automatically calculates and regulates the cutting gap, the cutting angle and the cutting depth, taking into account the material to be cut. (Data from the manufacturer) Table with side stopL:930 x W:105 x H:42 mm 2 table extensions L:1600 x W:100 x 83 mm Nsdpfxovc Amte Abujlh Angle fence (attached to table extension) Operation via control panel with swivel arm and foot control Equipment: Drain with rollers for clippings 2x protective grid *

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2012, machine/vehicle number: 34435, stroke length: 200 mm, throat depth: 405 mm, operating speed: 21 mm/s, reverse speed: 180 mm/s, table height: 970 mm, oil tank capacity: 350 l, overall weight: 11,500 kg, total length: 4,945 mm, total width: 2,000 mm, total height: 2,995 mm, power: 37 kW (50.31 HP), input voltage: 400 V, input current: 63 A, input frequency: 50 Hz, pressing force: 170 t, clearance between the columns: 2,600 mm, distance table to ram: 400 mm, ram plate length: 3,050 mm, table length: 3,050 mm, table width: 120 mm, Equipment: CE marking, documentation/manual, safety light barrier, Hydraulic press brake LVD EASYFORM 170/30 Touch-B Year of manufacture: 2012 Serial number: 34435 Technical specifications Force: 1700 kN Working length: 3000 mm Distance between uprights: 2600 mm Stroke: 200 mm Distance table – ram: 400 mm Gap: 405 mm Turbo: PP5400 Approach speed: 128 mm/s Working speed: 22 mm/s Return speed: 200 mm/s Weight: 11500 kg Motor: 37 kW Oil: 350 L Weight: 11500 kg LxWxH: 4945 x 22000 x 2995 mm Nsdpfxozk H A De Abujlh COMMAND CONTROL TOUCH-B – • Table PP8170 V-axis • EFL 90 • Top tool clamping PP3090 – Wila • Hydraulic top tool clamping PP3100 • PP3160 hydraulic clamping V-dies • Back gauge X R Z1 Z2 X’ • Safety: CE PP3580 – lasersafe • 2 supports, front

Condition: used, functionality: fully functional, Year of construction: 1995, sheet thickness steel (max.): 20 mm, sheet thickness stainless steel (max.): 14 mm, Equipment: safety light barrier, Hydraulic Shear Brand: Casanova Model: VC-26 Year: 1995 Power: 30KW New WEINTEK control installed in 2020. Cutting length: 3100mm Nedpfxewy Nhqo Abuelh Maximum cutting thickness (steel): 20mm Maximum cutting thickness (stainless): 14mm Throat: 500mm Cuts per minute: 8-18 Backgauge: 1,000mm Manual blade gap adjustment via side levers. Front safety laser.

Condition: used, Year of construction: 1990, sheet width 3050 mm plate thickness 12 mm distance between columns 3100 mm table height over floor 900 mm cutting angle adjustment 0,5 - 3 ° no. of strokes 6 - 13 Hub/min back stop - adjustable 1000 mm down holder 18 St oil volume 350 l total power requirement 22,5 kW weight of the machine ca. 8 t dimensions of machine L x W x H 3,96 x 2,10 x 2,22 m Nledpfx Aju Uu Smobush - with adjustment of cutting gap - Accessories: electr. back gauge, spare knives
