Coordinate measuring machine

Werth

Year of construction: 1973, condition: used, machine/vehicle number: 8530, screen size: 500 x 500 mm visual field: 100 mm Ø dimensions: 620 x 1020 x 1650 mm Gsds T Apyspfx Ag Hsbk weight: approx. 250 kg

Condition: excellent (used), Year of construction: 2017, operating hours: 3,200 h, pressing force: 130 t, Space requirement: 11,500 mm x 10,000 mm + Increased installation height/lift + 230 mm + 4-axis backgauge system + Rear work area lighting + Front work area lighting - TruBend documentation Automation BendMaster (60) Standard equipment: BendMaster - Sturdy base frame and manipulator made of cast aluminum construction - Load capacity 60 kg, sheet plus gripper - Low-level floor track in welded construction - Sheet sensor for contour detection - Rotary feedthrough for quick gripper change Gripper coupling on the BendMaster - Sensor system for 4-axis backgauge system - Electric drives - Double sheet detection - NC regrip station - Vacuum generation for suction grippers Control - TRUMPF PC control with operator terminal - Teleservice via internet - Convenient operation: screen, mouse, keyboard Safety - Safety fence with access door Special equipment + Track extension to 10 m + Gripper change console + Modular vacuum gripper without separation (materials for 3 grippers) + Modular vacuum gripper with separation (materials for 3 grippers) + Clamp gripper with rotary axis + Sheet removal station with linear axis + Additional pallet for sheet removal station + Right-hand side door for safety fence (or left-hand side in combination with ToolMaster) Machine - Robust machine frame entirely in steel construction - Press beam - Spherical mounting of pressure beam with inclined position - Electro-hydraulic upper drive system with 4-cylinder technology - Optical set-up and positioning assist with control valves - Generous free space for bending - Flat front covers - Block hydraulic system - Electronic pressure gauge - Measuring system with glass scale and spring-back compensation - Hydraulic oil in machine (lifetime lubrication) Gbsdpfx Aexayl Dsg Hsk - Oil cooler - Electrical cabinet cooling via air-to-air heat exchanger - Modern machine design Backgauge System - 2-axis backgauge system, X and R axes Tool Clamping - Hydraulic upper tool clamping - Lower tool holder, hydraulic clamping, hardened - Lower tool displacement, 2 positions, pneumatic Crowning - CNC crowning Control - TRUMPF TASC 6000 - Graphical workshop programming - Windows XPe (embedded), Pentium 4 with 2.8 GHz clock speed - 2 GB RAM - 15-inch touch screen - Network capability - Teleservice via internet Operation - Control panel with LCD keypad and foot switch - Communication rail - MobilControl Safety - Standard safety equipment - CE marking

Condition: ready for operation (used), Year of construction: 2020, An optical 2D coordinate measuring machine Werth is available. Measuring range X/Y: 400mm/200mm, electrics: VDE 0113, magnification: 0.2x. Machine dimensions X/Y/Z: approx. 800mm/600mm/1200mm, weight: approx. 200kg. Including two computers, software, and one replacement glass pane. Documentation available. An inspection on site is possible. Gbedpfx Asyxq U Aeg Hsk

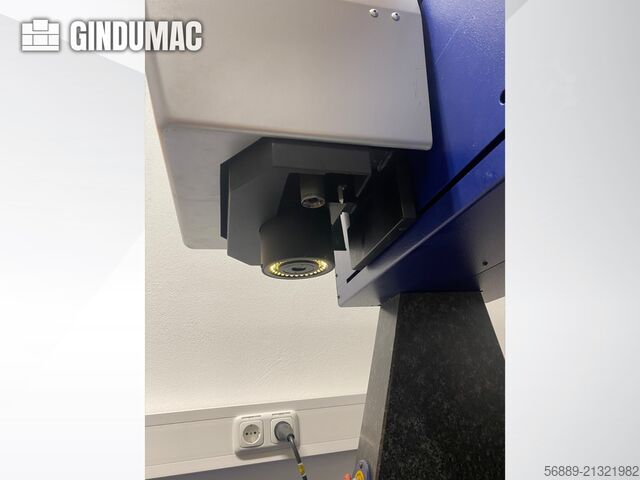

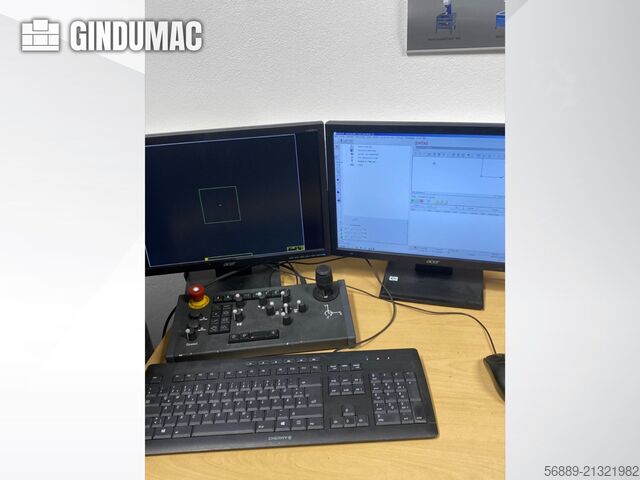

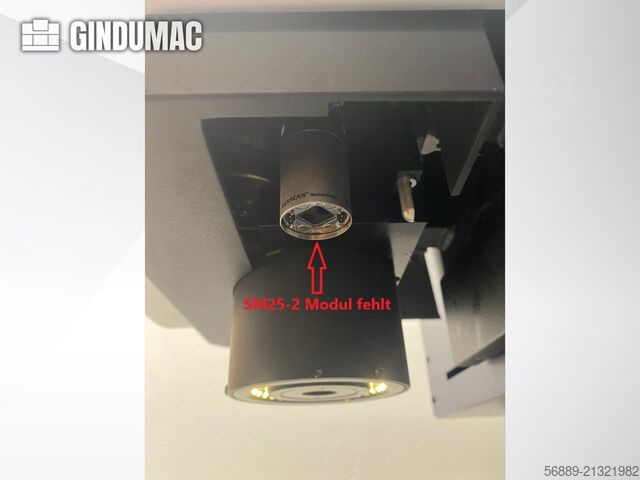

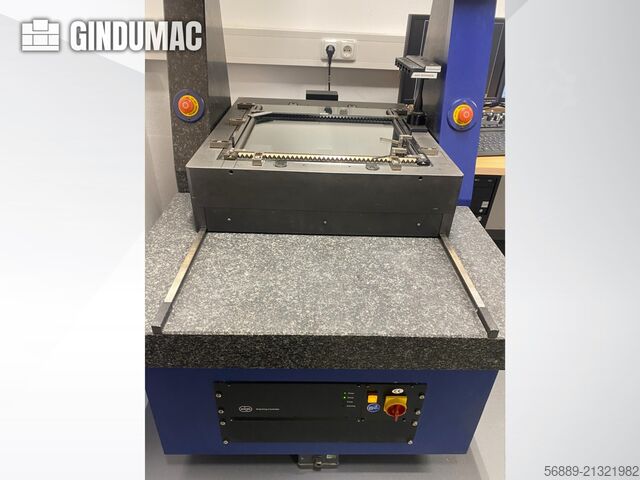

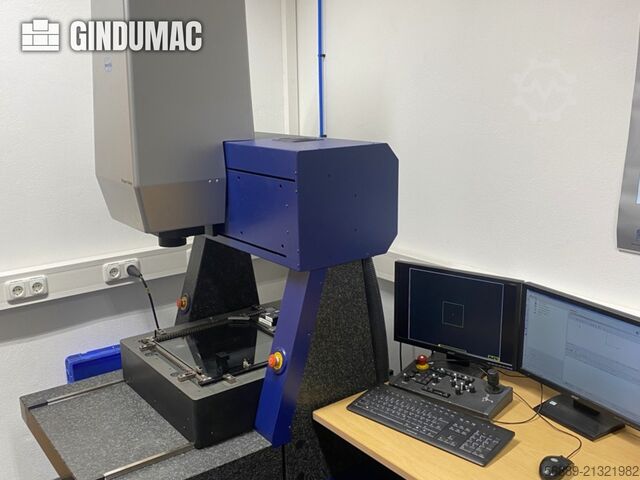

Condition: ready for operation (used), Year of construction: 2013, travel distance X-axis: 400 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 300 mm, number of axes: 3, This 3-axis Werth Scope-Check 400 was manufactured in 2013. It features a measuring range of 400 mm in the X and Y axes, and 300 mm in the Z axis. The machine is equipped with a tactile probe system and operates on Windows 7 Professional. If you are looking to get high-quality measurement capabilities, consider the Werth Scope-Check 400 CMM machine we have for sale. Contact us for further details. • Optical measuring accuracy: • MPE E1: (1.5 + L/250) µm • MPE E2: (1.9 + L/250) µm • MPE E3: (2.9 + L/100) µm • MPE PS/2D (OS): 1.1 µm • MPE PS/2D (OT): 1.9 µm • Tactile measurement: • Probe system: TP200 / SP25 Kit 1 • MPE E3: (1.9 + L/250) µm • MPE P: 1.9 µm • MPE THN: 2.5 µm • MPE THP: 2.5 µm • Operating conditions: • Temperature range: 20°C ± 1 K • Temperature gradient: 0.5 K/h • Electrical: • Voltage: 115–230 V AC • Frequency: 50–60 Hz • Maximum current: 10 A • Software: WinWerth • Operating system: Windows 7 Professional 64-bit Gjdpfx Ageym Ai Tj Hobk • Notes/condition: • SM25-2 module for tactile measurement is missing • Small chip in the glass plate (does not affect functionality)

Condition: good (used), Year of construction: 2000, machine/vehicle number: 13639, Control Heidenhain X-Way 1,200 mm Y-way 800 mm Z-way 500 mm Main spindle: Speed 16,000 rpm Drive power - main spindle 17 kW Spindle Tool holder Type HSK63 Spindle diameter in front. Bearing 70 mm Upgraded Tool changer Size: 100 Swing round table: Round table diameter 800 mm Swivel range A: -15 / + 97° rotatable C: 360° max. table load approx. 1,000 kg max. tool diameter 80 mm max. tool byway. with free neighbor box. 125 mm max. tool length 300 mm max. tool weight 8 kg Feeds: Rapid response ( X / Y / Z ) 30 m/min Gbjdpfsinh Rqex Ag Hsk Total power requirement 31 kVA Machine weight 15 tons Space requirements approx. 6.0 x 5.0 x 3.6 m other equipment - Documentation - Chip conveyors - electronic heat compensation Y- + Z-axis

Condition: ready for operation (used), Year of construction: 2010, Measuring length: 500mm, measuring diameter: 160mm, max. workpiece weight: 15kg, axes: 4, measuring mode: optical/laser/fiber probe. Including hydraulic chuck and fiber insert for Werth Fiber Probe. Documentation available. On-site inspection is possible. Gsdpfswligqex Ag Hjbk

Year of construction: 2006, condition: ready for operation (used), Max. workpiece height: 200mm, max. load: 150kg, length: 1300mm, width: 1274mm, height: 1940mm, weight: 1.1t. Gbsdpjg E Uh Uofx Ag Hok

Condition: reconditioned (used), Year of construction: 2025, operating hours: 20 h, functionality: fully functional, measuring range X-axis: 200 mm, measuring range Y-axis: 200 mm, measuring range Z-axis: 200 mm, workpiece weight (max.): 15 kg, warranty duration: 12 months, type of input current: AC, travel distance X-axis: 200 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 200 mm, input voltage: 230 V, Equipment: documentation/manual, lighting, type plate available, 3D coordinate measuring machine Mahr MS2VT used multi-sensor CMM with motor zoom and active vibration damping Factory overhauled premium multisensor measuring center with guarantee and warranty rebuilt 2022. Incl. latest SW update, 18 months free SW update service, free lifetime SW hotline and user support. Delivery with factory service or forwarding agency, worldwide. Online, optionally on-site demos with customer parts, application technology advice from accredited Profitech measurement laboratories during project planning. Complete service: – Delivery, construction, commissioning, accuracy acceptance according to standard, certification and extensive acceptance documentation. Individual education and training programs can also be booked as online courses. Gbedpfodz Er Rex Ag Hsk Rent-hire-purchase or financing possible directly via Profitech and without a financial institution. Measuring device individually configurable to customer needs • Measuring range single sensor: 200x200x200mm • Dimensions: 900x750x950mm Bcym337udm • Weight: about 170kg • Accuracy: E2 = 2.4 + L/150 [?m] • Refurbished 2024 • incl. USB camera with fixed focal length • incl. LED ring light • including calibration standard • incl. 2-monitor operation • incl. new Windows 10 • incl. Opticheck3D 5.0 ​​evaluation software (12 months free SW update) Manufacturer's icon image (sister device)

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 06-00376, measuring range X-axis: 400 mm, measuring range Y-axis: 400 mm, measuring range Z-axis: 150 mm, control type: CNC control, TECHNICAL DETAILS Measuring range X-axis: 400 mm Measuring range Y-axis: 400 mm Measuring range Z-axis: 150 mm Measurement accuracy: Length measurement deviation up to approx. 1.5 µm MACHINE DETAILS Control: CNC Software: WinWerth, version 8.40 or higher Tool holder / probe: Renishaw, MK 2 Probe system: Renishaw Probe Interface PI 200 Gbjdpfx Aeyft Tmeg Hjk Voltage: 230 V AC Frequency: 50 Hz Current consumption: max. 10 A EQUIPMENT Granite machine with measuring glass and cover CNC control with scope controller Renishaw probe (various probe inserts included) PC workstation User manuals (WinWerth) Calibration and test reports Folder with machine and measurement room documentation Software and calibration data carriers (CD/DVD) Control cabinet integrated, main switch available

Condition: used, Werth Type: Werth SCOPE- CHECK 400 3D coordinate measuring machine Technical data: Measuring capacity (X x Y x Z) : 400 x 200 x 200 [mm] Work table with integrated electrical cabinet : 1600 x 950 x 780 [mm] Max. Weight on table : 20 [kg] Operating conditions, * relative humidity, 40 - 70 [%] * Temperature; 10 - 40 [°C] Measuring precision (20°C, 8 kg, magnification 5X, resolution 0.5 micron) On table, E1 = 1.8 + L/120; E2 = 2.0 + L/150 All positions, E1 = 2.5 + L/120; E2 = 2.9 + L/100; E3 = 4.5 + L/75 Incremental dimensions Ball screw drive with servo motor Optical magnification (video) : 0.5X to 5X Optical field (video) : 13 x 10 [mm] to 1.3 x 1 [mm] Movement on linear guide with ball Combinable illumination : diascopic, episcopic ring LED/axial Voltage: 230 [V] Frequency: 50 [Hz] Power: 2 [kW] Weight: 300 [kg] Accessories CN Lighting Control via software Video sensor IP for detection of measuring contour (screen display) Electronic control for table movement Manual control for table by joystick Predisposition for mechanical probe Calibration, 3D measurement, probe communication software Scope of delivery: (Werth coordinate measuring machine with accessories as shown) Condition: used (Changes and errors in the technical data, specifications are reserved!) Gjdpeu Iub Refx Ag Hobk Please ask about transportation options before purchasing. We will be happy to answer any further questions you may have over the phone.

Condition: used, Year of construction: 2009, x-travel 800 mm y-travel 800 mm z-travel 800 mm control SIN840D spindle turning speed - stepless 5 - 10.000 U/min power capacity at 40 % load 38,00 KW power capacity at 100 % load 25,00 kW max. torque at 40% / 100% load 288 / 187 kW spindle taper HSK 100 feed X/Y/Z/-axis 0 - 60.000 mm/min rapid traverse X/Y/Z 60,00 m/min feed capacity X/Y/Z 12,00 kN B - axis 180 x 0,001 ° rapid travel B-axis 10,00 U/min size of pallet 800 x 630 mm table load 0,80 t C-axis 360 x 0,001 ° Gbjdpsx Tiy Tjfx Ag Hsk rotary table speeds infinitely variable 1 - 800 U/min power capacity - table 13,85 kW max. torque on the faceplate 1.550 Nm toolpiece magazine: chain magazine 60 Stück tool diameter 110 mm wotkpiece diameter with 2 vacant positions 230 mm tool length - max. 450 mm weight of tools max. 30,00 kg total power requirement 80,00 kW weight of the machine ca. 18,00 t dimensions of the machine ca. 7,50 x 5,50 x H3,50 m 5-axis machining center with SIEMENS SIN840D coolant filer system 980l, chip conveyor, coolant through the spindle, extraction, BLUM tool measurement, measuring probe, operating mode 4, tool cone cleaning, hydraulic clamping with proportional valve.

Condition: used, For sale is a high-quality 3D CNC coordinate measuring machine from the renowned manufacturer Werth Messtechnik – model Scope-Check 650×750×500/MB/Z. This device stands out for its precision, reliability, and versatility in industrial metrology. Features & Equipment: - CNC-controlled 3D coordinate measuring machine - Multi-sensor capable (optical and tactile measurements possible) - Moving-bridge design (MB/Z) for high stability and flexibility - High precision measurement of complex workpieces - Robust construction, designed for continuous industrial use - Suitable for quality control, production monitoring, and R&D applications Additional Equipment – Renishaw TP200 Probe System: The high-precision, touch-trigger Renishaw TP200 probe is ideal for workpieces with tight tolerances and complex geometries. It allows for quick probe change-outs and precise measurements even with long probe styli. Key Features: - Strain gauge technology: Minimizes deflections are registered with high accuracy; typical errors such as “lobing” are avoided - High precision: Repeatability up to 0.4 μm, 2D probing uncertainty ±0.8 μm - Fast changeover: Automatic probe change with SCR200 rack, no recalibration required - Durability: Probe module lifetime exceeds 10 million triggerings Gbsdpfx Asxcwxgjg Hjk - Flexibility: Standard- (SF) and low-force (LF) modules for sensitive materials - Compatibility: Usable with Renishaw PH10 probe heads and extensions up to 300 mm Technical Specifications (excerpt): - Connection: M8 connector, PI200 interface - Probing directions: 6-way (+X, -X, +Y, -Y, +Z, -Z) - Probing force XY: 0.02 N, Z: 0.07 N - Overtravel force XY: up to 0.4 N, Z: up to 4.9 N - Weight (sensor + module): 22 g - Stylus threads: M2 Technical Data: - Manufacturer: Werth Messtechnik - Model: Scope-Check 650×750×500/MB/Z - Measuring range: X = 650 mm, Y = 750 mm, Z = 500 mm - Supply voltage: 115–230 V AC - Power consumption: max. 10 A Scope of Supply: - Werth Scope-Check 650×750×500/MB/Z - Renishaw TP200 probe system including probe modules - Accessories as shown in the attached images Important note: "The table shown in the photos is not included in the sale." (Specifications and technical details subject to change and errors!) We are happy to answer further questions by phone.

Condition: good (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 06-00376, measuring range X-axis: 400 mm, measuring range Y-axis: 400 mm, measuring range Z-axis: 150 mm, Manufacturer: Werth Messtechnik GmbH Type / Model: Scope-Check 400 × 400 × 150 3D CNC Machine Type: Multi-sensor Coordinate Measuring Machine (optical / tactile) • Year of Manufacture: 2006 • Serial Number: 06-00376 Condition • Used, well-maintained overall condition • Machine was fully operational in measurement use until recently • Regular calibrations documented • No visible damage to granite, guides, or measurement system Accessories / Delivery Scope • Granite-based machine with measurement glass and protective cover • CNC control with Scope controller • Renishaw probe (multiple stylus inserts included) • PC workstation comprising: • Computer • Monitor(s) • Keyboard, mouse • Control panel / joystick • Documentation: • User manuals (WinWerth) • Calibration and inspection reports • Folder with machine and measurement room documentation • Software and calibration data carriers (CD/DVD) • Integrated control cabinet with main switch Application Area • Form and position tolerance inspection • Dimensional inspection of: • Sheet metal forming parts • Turned and milled components • Tools • Prismatic and rotationally symmetric parts The unit is currently still installed and powered. An inspection while operational is possible by appointment. Dismantling, loading, and transport are to be carried out and borne by the buyer. Gsdpfx Asx Sw R Dsg Hobk • Measuring range (X/Y/Z): 400 × 400 × 150 mm • Control: CNC • Software: WinWerth, version 8.40 or higher (data carrier included) • Tool holder / probe: Renishaw, MK 2 • Probe system: Renishaw Probe Interface PI 200 • Measurement accuracy: • Length measurement deviation approximately 1.5 µm (according to Werth documentation / calibration records) • Voltage: 230 V AC • Frequency: 50 Hz • Power consumption: max. 10 A

Condition: new, Precision control and lathe Make: OPTiturn Model: TH 4210 Item No.: 3462050 Condition: new machine Tip height: 210 mm Top width: 1,000 mm equipped as standard with: -Machine base -Quad steel holder -Light machine -Reducing bushing MK 6 / MK 4 -2 fixed centres MK 4 -Fixed bezel, 15-105 mm -Bezel running with 10-65 mm -Chuck guard, electrically protected Gjdjdbgxcspfx Ag Hebk -Coolant system -Change gears set -Oil -Control tool -Manual

Condition: not inspected (used), functionality: unexamined, overall weight: 500 kg, table length: 400 mm, table width: 270 mm, machine/vehicle number: 790182, No reserve price – guaranteed sale to the highest bidder! The machine is being auctioned due to business closure. Placing a bid obliges you to collect the machine on time between 26.01.2026 and 29.01.2026! TECHNICAL DETAILS Table dimensions: 400 mm x 270 mm Projector diameter: 600 mm MACHINE DETAILS Dimensions & weight Dimensions (L x W x H): 1,900 mm x 1,500 mm x 2,100 mm Gbodpfxsxqqi Io Ag Hsk Weight: 500 kg EQUIPMENT 2-axis digital display from RSF
