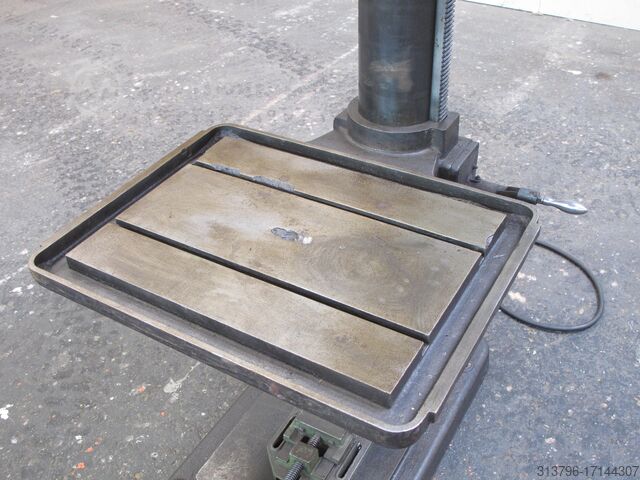

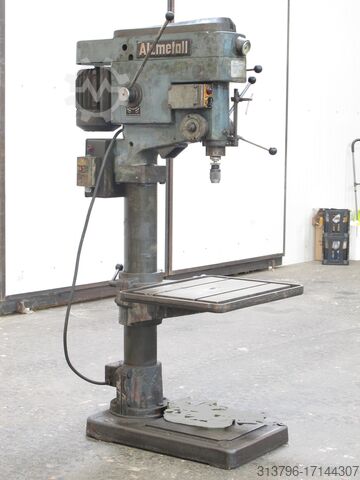

Pillar Drilling Machine

ALZMETALL AB 4 SV

Condition: refurbished (used), functionality: fully functional, spindle mount: MK 4, total height: 1,970 mm, throat depth: 345 mm, spindle speed (max.): 720 rpm, spindle speed (min.): 80 rpm, 1.) Alzmetall AB4/SV Speed range: 80–720 rpm Feed: 0.09/0.16/0.28 mm/rev Spindle taper: MT4 Arm reach: approx. 345 mm Drive power: approx. 1.8 kW Column diameter: approx. Ø 160 mm Quill stroke: approx. 180 mm Table clamping surface: approx. 730x560 mm with 14 mm T-slots Dimensions: 1000x500x1970 mm Weight: approx. 600 kg Redeunhtxspfx Abdop Price: 2,400 EUR net plus VAT 2.) Gillardon GB30 Speed range: 60–1,600 rpm Spindle taper: MT3 Arm reach: approx. 320 mm Drive power: 1.1/1.6 kW Column diameter: approx. Ø 130 mm Quill stroke: approx. 175 mm Table clamping surface: approx. Ø 500 mm with 14 mm T-slots Table swivel range: approx. +/- 90° Dimensions: 1000x500x1970 mm Weight: approx. 400 kg

Condition: used, bore capacity in steel (diameter) 40 mm throat 325 mm bore stroke 170 mm table surface area 730 x 590 mm Rodpjwn T A Uefx Abdop

Condition: used, Year of construction: 1993, bore capacity in steel (diameter) 40 / 23 mm throat 320 mm bore stroke 180 mm 4 speeds 30 - 765 U/min table-size 720 x 550 mm weight 480 kg dimensions 750 x 900 x 1900 mm Equipment: - Multi-spindle head, drill Ø 23 mm - automatic feed - coolant device - infinitely variable speed - adjustable drilling depth stop Rodpfx Aeyfwzuebdjp

Condition: used, Column drilling machine ALZMETALL type AB 4 SV Machine no. No. 14805 Year of construction approx. 1980 drilling capacity 40 mm Spindle holder MK 4 - short quill throat 340 mm Quill stroke 180 mm Table size 710 x 560 mm Column diameter 160 mm Spindle speed 30 - 765 rpm infinitely variable Rsdpfxon N Ekce Abdep Motor power 2.3 and 3.4 kW pole-changing Mains connection 380 Volt, 50 Hz - Spindle speed via 2 motor speeds and infinitely variable via variator gearbox - Reduction gear with 2 gear stages for high torque at low speeds - Spindle on/off via rotary switch or electric foot switch - Automatic feed 0.1 - 0.2 - 0.3 mm/rev - Table height adjustment via hand crank - Machine base with machined workpiece support surface - LED lighting device Space requirement L x W x H 1200 x 725 x 2050 mm Weight 615 kg good condition

Condition: repair required (used), Year of construction: 2013, operating hours: 33,439 h, - Volvo L180G - Year of production 2013 - Mileage 33,439 Mtg Rjdpfx Absu Ef Hrsdsp - Transmission after major overhaul - 340 mtg. - Engine compartment burnt out - condition shown in photos

Condition: used, Year of construction: 1978, number of spindles 3 bore capacity in steel (diameter) 40 mm Rsdpfx Absd Ih S Sjdep bore stroke 180 mm weight of the machine ca. 2,3 t

Condition: good (used), Year of construction: 1999, machine/vehicle number: 20403, Offer 25170 Technical Data: Redpfx Abowncaiodsp - Drilling capacity in steel ST 60 40 mm - Drilling ability in steel ST 60 50 mm - Drill spindle mount MK 4 - Drill spindle stroke 180 mm - Drill spindle speeds steplessly adjustable with gear stage - Stage 1 60 - 210 rpm - Stage 2 210 - 765 rpm - Stage 3 120 - 420 rpm - Stage 4 420 - 1530 rpm - Throat 330 mm - 3 feeds 0.1 - 0.2 - 0.3 U/min - Table with 2 T-slots 720 x 360 mm - Height adjustable via rack with hand crank - Max. distance table – drill spindle ca. 780 mm - Max. distance machined base plate - drill spindle 1250 mm - Coolant device - Lighting - Machine vise - Various 10 pcs HSS drills - Drive 400 V / 2.6 / 4 kW - Space requirement approx. W 720 x H 2050 x D 1150 mm - Weight approx. 350 kg

Condition: used, Year of construction: 1999, Carrying capacity: 19.990 kg GVW: 8.010 kg Front tyres / undercarriage remaining: 70 Rear tyres remaining : 70 Tyre brand: Bridgestone Front tyre size: 245/70 R 17.5 Rear tyre size: 245/70 R 17.5 Redjtr H Enepfx Abdjp Please contact PFEIFER GROUP for more information

Condition: used, Year of construction: 1965, bore capacity in steel (diameter) 40 mm Rsdpfxjv S Iqce Abdop total power requirement 4 kW

Condition: used, Pillar drilling machines Rsdpfxeb N Ezrj Abdop

Condition: new, Year of construction: 2025, functionality: fully functional, Table size 800 x 240 mm Table area 730 x 210 mm “T” slot size on table 14 (M12) Rjdpexz D Npsfx Abdep Speed ​​range 75 – 3200 rpm Drilling capacity in cast iron 45 mm Drilling capacity in steel 32 mm Longitudinal movement range (X) 560 mm Transverse movement range (Y) 190 mm Vertical travel range (Z) 350 mm Tool holders ISO40/Morze 4 Spindle - column distance 460 mm Distance between spindle nose and table surface 445 mm Spindle stroke 120 mm Total machine height in Z upper position 1450 mm Spindle can be tilted +/-90 degrees Spindle power 1.1/1.5 / 400V Machine weight 480 kgs Dimensions 1280 x 960 x 2100 mm Accessories - Thread cutting function - 3-way path measuring system - Y+Z axis covers - ISO40 drill chuck adapter - Built-in digital depth gauge - Automatic X-axis stepless feed and rapid traverse - Motorized gear lifting and lowering - Machine lamp - Cast iron machine base The machine is in brand new condition. Never used in production.

Condition: good (used), Year of construction: 1984, machine/vehicle number: 15470, Offer 25095 Technical specifications: - Drilling capacity in steel ST 60: 40 mm - Drilling capacity in steel ST 60: 50 mm - Drill spindle mount: MT 4 - Drill spindle stroke: 180 mm - Drill spindle speeds continuously adjustable with gearing - Stage 1: 50 - 175 rpm - Stage 2: 175 - 640 rpm Rjdpfx Abswd Ii Usdsp - Throat depth: 330 mm - 3 feed rates: 0.1 - 0.2 - 0.3 rpm - Table with 2 T-slots: 720 x 360 mm - Table height adjustable via rack and pinion with hand crank - Max. distance between table and drill spindle: approx. 780 mm - Max. distance between machined base plate and drill spindle: approx. 1250 mm - Coolant system - Lighting - Drive: 400 V / 4 kW - Space requirement approx. W 720 x H 2050 x D 1150 mm - Weight approx. 500 kg

Condition: used, Year of construction: 1989, machine/vehicle number: 19216, Lg.no. 22614 Technical data: Rsdpst Etiyofx Abdep - Drilling capacity in steel ST 60 40 mm - Drilling capacity in steel ST 60 50 mm - Drill spindle holder MK 4 - Drill spindle stroke 180 mm - Drill spindle speed infinitely variable with reduction gear - Stage 1 60 - 210 rpm - Stage 2 210 - 765 rpm - throat depth 330 mm - 3 feeds 0.1 - 0.2 - 0.3 rpm - Table with 2 T-slots 720 x 360 mm - Table height adjustable via rack and pinion with hand crank - max. distance table - drilling spindle approx. 780 mm - max. distance machined base plate - drilling spindle approx. 1250 mm - Coolant device - Lighting system - Drive 400 V / 4 kW - Space requirement approx. W 720 x H 2050 x D 1150 mm - Weight approx. 500 kg

Condition: excellent (used), Year of construction: 1989, Philips CNC 432 control Travel paths X/Y/Z 600 x 400 x 450 mm Spindle speed 4,000 rpm 20-position tool magazine SK 40 4th axis Lehmann Rodpfxexc N Iyo Abdsp
