Edgebander

CASADEI INDUSTRIA E 350 PM

Code: N0235
Brand: CASADEI INDUSTRIA
Model: E 350 PM

Automatic edge bander with hot melt (EVA) glue pot, chain panel feeding and pre-milling


Maximum finishing quality
Chain feeding system
Pre-milling (E350PM)
3 free spaces for finishing units

High performance
7 m/min feed speed
45 mm panel height
2 mm edge coils

Minimum space occupied
2,30 m length

Easy to use
Unit settings with a piece of edge
Easy and intuitive use of machine

3 position infeed fence
0-1-2 mm (according to edge thickness)

Chain panel feeding
Firm grip of panel guaranteed by special non-slip rubber on the pads.
Linear feeding ensured by double sliding tracks with a special geometric profile accurately machined with precision to a hundredth of a millimetre.
Long lasting monolithic frame fully processed only in one cycle on a CNC machining centre.

Pressure bar with locking levers
Top pressure bar with a double row of rubber wheels mounted on bearings, with locking levers and position indicator

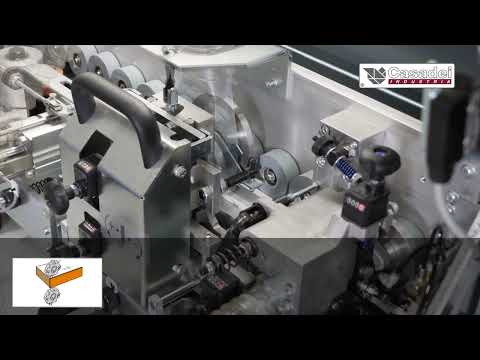

Pre-milling
INVISIBLE GLUEING LINE
Isdpfx Asyvt Exobvshw
DIAMOND tools Ø= 60mm H= 54mm
HF motors 200 Hz – 12.000 rpm – 0.75 kW (each)
Dedicated suction system and blower for panel cleaning before glueing

Glueing unit
PERFECT GLUEING, QUICK AND PRACTICAL SET-UPS
6 heating elements to guarantee uniform glue temperature.
Motorized glue spreading roller with an internal electrical heating element.
Inferior Teflon-coated glue pot to permit complete and rapid cleaning.

Pneumatic shear, pressure rollers, edge feeding system
DETAILS THAT MAKE THE DIFFERENCE
Edge feeding synchronized with panel being processed
Oscillatory movement of the cutting shear unit to guarantee perfect glueing
Quick and precise positioning of the pressure rollers.
The system “reads” the edge thickness, making mistakes impossible!

Trimming cut-off
PERFORMANCE AND VERSATILITY
End trims front and rear excess edge
Working cycle controlled by PLC
Exclusion from control panel (PLC)

Flush trimming unit
Flush trimming unit with vertical disc copiers as standard
Possibility of processing for edges from 0.4-2 mm

Anti-adherence / release agent spraying unit (Opt.)
INSTANT PERFECT CLEANING
Spray function controlled by PLC
2 sprayers (lower and upper) and liquid tank

Infrared lamp (Opt.)
TO GUARANTEE THE BEST GLUEING CONDITION
Creates the best conditions for perfect glueing
Heats panels and removes all traces of dampness.
