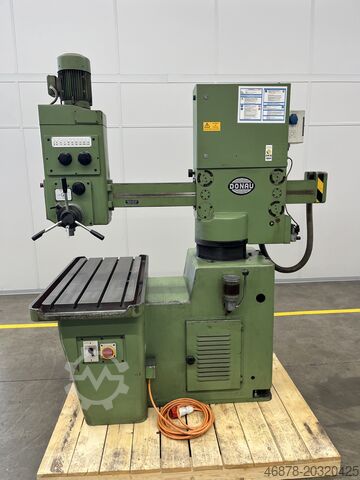

High-speed radial drill

DONAU DR 28 Z

Condition: used, Year of construction: 1990, machine/vehicle number: 2316-3, Lg.no. 10622 Technical data: - Drilling capacity into solid steel ST 60 28 mm - Drilling capacity GG 25 40 mm - Thread cutting ST 60 M 30 - Thread cutting GG 25 M 40 Hnodpfsu Et Nbex Addeg - Drill spindle holder MK 3 - Spindle diameter 50 mm - Quill stroke 150 mm - 18 drilling spindle speeds 45 - 2240 rpm - 4 drilling feeds 0.1 - 0.45 mm - min. / max. distance spindle - table 300 / 700 mm - Drilling radius min / max 305 / 1005 mm - Table height 820 mm - Table size 1200 x 600 mm - Drive 400 V / 6 kW - Space requirement approx. W 1300 x H 2800 x D 2300 mm - Weight approx. 1500 kg - with: - Thread cutting device - hydr. columns + boom clamping - Coolant device - Vertical T-slots on the left side of the machine

Condition: good (used), Technical specifications: Working length: 2100 mm Max. bending capacity: 10.0 mm Pre-bending: 8.0 mm Top roller diameter: 200 mm Bottom roller diameter: 180 mm Number of driven rollers: 3 Hydraulic folding bearing Conical bending device Extended rollers for profile bending Control panel with digital display Motor power: 5.5 kW CE mark Dimensions (length x width x height): approx. 3100 x 1150 x 1250 mm Hjdpfx Ajwchn Ujddeng Weight: approx. 4 tons Accessories: Several roller sets for pipe and profile rolling The seller is not liable for typographical or data transmission errors. The machine's appearance, technology, and wear are consistent with its age; used machines are sold without any warranty.

Condition: good (used), Year of construction: 1992, machine/vehicle number: 2355-2, Offer 24416 Technical data: - Drilling capacity into solid steel ST 60 28 mm - Drilling capacity GG 25 40 mm - Thread cutting ST 60 M 30 - Thread cutting GG 25 M 40 - Drill spindle holder MK 3 - Spindle diameter 50 mm - Quill stroke 150 mm - 18 drilling spindle speeds 45 - 2240 rpm - 4 drilling feeds 0.1 - 0.45 mm - min. / max. distance spindle - table 300 / 700 mm - Drilling radius min / max 305 / 1005 mm Hnsdeufw S Repfx Addeg - Table height 820 mm - Table size 1200 x 600 mm - Drive 400 V / 6 kW - Space requirement approx. W 1300 x H 2500 x D 2300 mm - Weight approx. 1500 kg - with: - thread cutting device - hydr. columns + boom clamping - Coolant device - Vertical T-slots on the left side of the machine

Condition: used, Year of construction: 1969, grinding length 500 mm grinding width 200 mm workpiece height 250 mm total power requirement 5,5 kW weight of the machine ca. 2500 kg dimensions of the machine ca. m J U N G Horizontal High Precision Surface- and Profile Grinding Machine Model HF 50 RD, Year 1969, partially reconditioned in 2021 Serial-no. 4082 _____ Grinding length max. 500 mm Grinding width max. 200 mm Table size 600 x 200 mm Grinding height under grinding wheel approx. 250 mm Table cross travel approx.. 230 mm Table slide cross stroke 0,2 - 8 mm/table stroke Table longitudinal travel max.. 550 mm Table speed longitudinal 1 – 20 m/min. Measurement of grinding wheel 225 x 25 x 51 mm Grinding wheel speed infinitely adjustable 1.000 - 4.500 rpm Vertical feed 0.001 - 0.01 mm/stroke Grinding spindle drive infinitely variable load 0,4 – 1,5 kW Total electrical load 5,5 kW - 380 V – 50 cycles Weight approx. 2.500 kg Accessories/Special Features: • Due to the infinitely variable speed range of the grinding wheel this design is especially suited for grinding of high alloyed steels and carbide, hardmetal, etc. • Set up switches for plunge-in or normal pendular-grinding with automatic infeed Hnodpfjt Hwziex Addjg • Automatic infeed of grinding slide during surface- and/or profile grinding, (plunge-in cut)with automatic stop of infeed by contact-Gauge. • motorized rapid feed of grinding head up/down • Manual straight grinding wheel-dressing device mounted above the grinding wheel • Manual Table mounted, swivable magnetic chuck make BRAILLON size 400 x 200 mm • separate converter cabinet for infinitely variable speed regulation and with respective display of cutting speed in m/sec. • Wet grinding facility including coolant tank and bandfilter cleaning device, separate standing, • Including 3 separate flanges, some grinding wheels, service tools, etc. Condition : good – can be inspected here under power, partially reconditioned by a JUNG Specialist (table pistons, lubrication, infeed system, Dresser, covers, etc.) Delivery : ex stock – as inspected Payment : net– after completion of contract

Condition: used, Year of construction: 1982, grinding length:500 mm grinding width:225 mm workpiece height:400 mm total power requirement:5,5 kW Hnedpfx Ascxxtmeddog weight of the machine ca.:3,4 t NC81 NC-control, table belt drive 100-25000 mm/min., automatic feed, electronic dressing unit 020 NC-K with RPM-compensation, coolant pump, emergency cut-off

Condition: repair required (used), HYDRAULIC HOT PLATE PRESS, MODEL LS/L/R 30/13 SP. 150 mm Composition - LOADER - HYDRAULIC PRESS WITH HOT PLATENS, MODEL LS/L/R 30/13 SP. 150 mm - 3000x1300 mm HOT PLATE ROLLERS UNLOADER Press platen dimensions 3000x1300 mm. Press plungers No. 6 Ø 70 mm stroke 200 mm. Hodpfx Adon R Dihjdjng Press platen thrust 70 t.

Condition: used, Cutter Manufacturer: Seydelmann Model: K 204 Ultra Made of stainless steel Volume: 200 liters 2 knife speeds 2 bowl speeds Hsdpetu I T Esfx Addjng 2 mixing speeds Dimensions: 280x205x255cm Electric power: 78kW Voltage: 400V, 3 phases, 50 Hz

Condition: used, functionality: fully functional, Year of construction: 2015, Machine - Enclosed machine frame - Automatic pallet changer in longitudinal direction - Torque drive in combination with linear direct drives - Enclosed beam guidance using fiber optic cable (LLK) - Machine cooling unit (water-air) - Integrated control cabinets with interior lighting - Power supply to TruDisk via the machine - Longitudinal conveyor belt - Work area lighting - Positioning laser diode - Oil spray device - PierceLine - FocusLine - NitroLine Hnedpfx Ajxw Uryoddsg - PlasmaLine - Automatic nozzle cleaning - Transport and assembly device TRUMPF Laser - Solid-state laser TruDisk with 1 fiber optic output - Laser cooling unit (water-air) - Excitation via pump diodes - Laser power control Cutting Unit - Universal cutting unit with fully adaptive lens system - Single cutting head strategy - Protective glass against lens contamination - Protective glass condition monitoring - ControlLine: height control and sheet metal edge detection Control - Advanced workshop programming (TruTops via network access) - Fast repeat production - 17" touch color screen - Integrated technology data - Automatic shut-off - Programmable selection of cutting gas/pressure - ContourLine - Microweld - FastLine - FlyLine - AdjustLine - Teleservice via Internet - Integrated e-shop Data Transfer - USB interface - RJ-45 network socket Safety - CE marking - Light barriers - Multi-chamber extraction system - Compact dust extractor - Machine enclosure with certified viewing window (right door) - Roll-up roof Special Equipment: • 3001 on TruDisk 4001 • Extended pallet extraction • Dust protection device panel • Viewing window left • Side viewing windows right • Storage interface • Brightline Fiber • Titanium cutting package • Brass cutting package • Copper cutting package • Nozzle changer

Condition: good (used), overall weight: 5,000 kg, working width: 1,300 mm, plate width: 1,350 mm, Veneer Press Bürkle U140 Working surfaces: 5 pcs. Intermediate plates: 4 pcs. Plate dimensions: 3050 x 1350 mm Working dimensions: 3000 x 1300 mm 8 hydraulic cylinders Max. surface pressure: 5 kp/cm2 Max. operating pressure: 348 bar Heating medium – hot water from central heating Cooling – cooling circuit with WILO pump, expansion tank, piping Weight approx. 5000 kg Hnsdpfx Asxn Um Ejddsg Good technical condition of plates and hydraulics

Condition: used, Year of construction: 2018, operating hours: 16,700 h, functionality: fully functional, We are selling our plasma cutter from MicroStep. If you are interested in the machine, we would be happy to provide you with detailed specifications. Below is the scope of supply as per our original order confirmation: 1. The MasterCut Compact Series | Guide Machine Technical Data: Machine designation: MasterCut Compact 3001.15Prk Machine number: 2534 Cable drag chain side: left Working area: 3,000 x 1,500 mm Permissible sheet thickness: robust design for materials up to 100 mm thick Guides/Drives: high-quality linear guides with backlash-free dual drive Axis control: digital, maintenance-free AC servos with IRC Positioning speed: up to 40,000 mm/min Measuring system: IRC 2500 (incremental encoder) MicroStep® CNC control system iMSNC with integrated network card One LCD control unit on the gantry Laser pointer with automatic offset transfer iMSNC® Module | Expert system iMSNC® Module | CNC program loading assistant - Page 2 of 3 - iMSNC® Module | Automatic mechanical probing calibration "THC" module | Automatic height control via arc voltage 2. Cutting table with zoned fume extraction | 3,000 x 1,500 mm 3. Grid cover for cutting table | 3,000 x 1,500 mm 4. USB 3.0 interface for storage device Hjdsw I Sunspfx Addsng 5. MicroStep RemoteDiagnostics® remote maintenance module 6. Fully automatic torch support 7. HiFocus 161i neo plasma source from KJELLBERG with automatic gas console and Contour Cut Speed technology 8. Module for automatic gas console control HiFocus 161i neo 9. CNC interface for HiFocus 161i neo | Integration into CNC system 10. TEKA Eco75 filtration system - 7.5 kW with control unit 11. TEKA pre-separator TK-FVS 7000 - 12000 12. Remote control for the filtration system 13. Second hard drive with mirrored data (RAID system) 14. "MasterCut" plasma rotator with fully automatic support 15. ACTG® - Automatic calibration unit for the beveling system 16. ACTG® Calibration Report 17. "AsperWin Basic" CAM software for programming (single-user license) 18. "AsperWin BevelCut" module for bevel cutting (single-user license)
