Edge banding machine.Format4
tempora F800 60.08 e-motion
Machine data
- Machine type:
- Edge banding machine.
- Manufacturer:
- Format4
- Machine number:
- 202.03.008.17
- Year of construction:
- 2017
- Condition:
- excellent (used)
- Functionality:
- fully functional
Price & Location
- Location:
- Škofljica, Slovenia
Technical details
- Input voltage:
- 400 V
- Input current:
- 28 A
- Input frequency:
- 50 Hz
- Type of input current:
- three-phase
- Workpiece height (max.):
- 60 mm
- Edge thickness (max.):
- 3 mm
- Height adjustment type:
- mechanical
- Feed rate X-axis:
- 12 m/min
- Total height:
- 1,693 mm
- Total length:
- 4,620 mm
- Total width:
- 1,200 mm
- Equipment:
- CE marking, documentation/manual
Details about the offer
- Listing ID:
- A22513167
- Update:
- 07.08.2026
Description
Manufacturer: FORMAT4 / Felder Group
Model: Tempora F800 60.08 e-motion
Year of manufacture: 2017
Serial number: 202.03.008.17
Location: Slovenia
Well-maintained FORMAT4 Tempora F800 60.08 e-motion edgebander in very good technical condition.
Dedpfx Apjztbute Aock
The machine has processed approximately 63,000 linear meters. It is fully operational, regularly maintained, and ready for production.

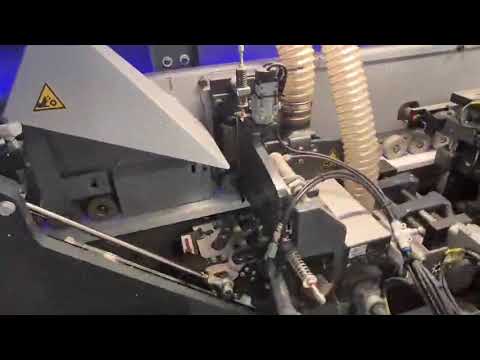

The machine is currently connected and can be inspected and tested while powered on.
Technical data:
- Feed speed: 12 m/min
- Workpiece thickness: up to 60 mm
- Coiled ABS/PVC edge thickness: 0.4–3.0 mm
- Strip edge material: up to 8 mm
- Electrical connection: 400 V / 50 Hz / 3-phase
- Rated power: 11 kW
- Rated current: 28 A
- Required compressed air pressure: 7 bar
Overall dimensions:
- Length: approx. 4,620 mm
- Machine width without extended front support: approx. 1,200 mm
- Height with safety hood closed: approx. 1,693 mm
- Required operating depth with front support extended: approx. 1,775 mm
- Height with safety hood open: approx. 2,068 mm
Equipment:
- Pneumatic-mechanical workpiece stop at the infeed
- Premilling unit with replaceable cutters
- Premilling working height up to 64 mm
- Infrared heating lamp
- EVA glue pot
- Reversing function of the glue roller
- e-motion end-trimming unit with two motors
- Pneumatically tilting end-trimming saws, adjustable from 0° to 15°
- Tandem copying unit
- Rondomat corner-rounding unit for edge thicknesses from 0.4 to 3 mm
- Motorized positioning of the Rondomat unit
- Radius scraper unit with pneumatic activation
- Flat scraper unit for nesting applications
- Release agent spray unit
- Sliding agent spray unit
- LED interior working lights
The machine is being sold due to investment in a newer edgebander.
Availability is by agreement.
Dismantling, loading, and transport are at the buyer's expense unless otherwise agreed.
Please contact me through Machineseeker for further information, additional photos, a video demonstration, or to arrange an inspection.
The listing was translated automatically. Translation errors are possible.
