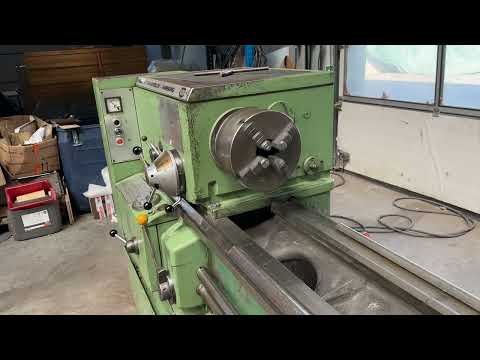

Center lathe

Heidenreich & Harbeck VDF V3

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 3,000 mm, travel distance Z-axis: 1,600 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, spindle speed (max.): 6,000 rpm, table length: 2,500 mm, table width: 2,000 mm, table load: 30,000 kg, spindle motor power: 38,000 W, rotary table diameter: 2,000 mm, feed length W-axis: 1,500 mm, Equipment: rotational speed infinitely variable, CNC travelling column milling machine MECOF EMCO mod. MASTERMILL-HPC3 Heidenhain iTNC 530 CNC control X axis 4,000 mm Z axis (vertical) 3,000 mm Y axis (cross) 1,600 mm Ram section 500 x 500 mm Rapid feeds 30,000 mm/min Rotary-translating table 2,000 x 2,500 mm Table load capacity 30,000 kg Translation 1,500 mm Continuous rotation and translation Automatic bi-rotary head with 360,000 positions A axis 0.001° B axis 3° Itedpfxjwzxiye Ag Ueh Spindle taper ISO 50 Maximum speed 6,000 rpm Spindle power 38 kW Tool changer with 80 positions Complete with: - Renishaw tool measurement system - Internal high-pressure coolant 20 bar - Chip conveyor

Condition: excellent (used), Year of construction: 1978, functionality: fully functional, machine just arrived and will be cleaned soon. turning diameter over bed: 400mm distance between centers: 1000mm Ijdpfx Aeyh Ndwog Ujth spindle size: 50 mm chuck size 200mm speed range 40 rpm to 2000 rpm machine weight: 1700kg including 3 jaw chuck and tool holder

Condition: used, Year of construction: 2000, turning diameter over bed 440 mm turning diameter over slide rest 270 mm turning length 1.500 mm center height over bed 220 mm digital readout FAGOR 3 Achsen turning diameter in the gap 620 mm centre distance 1.500 mm bed width 280 mm spindle bore Ø 52 mm turning speed range 30 - 2.360 U/min 3-jaw-chuck diameter 250 mm quick change toolholder KLOPFER Typ GX2B drive capacity - spindle motor 6,3 kW taper in tailstock-quill MK 4 dia. of quill 60 mm quill stroke 200 mm Iodpfoykb Hfsx Ag Uoth voltage 380 V total power requirement 6,5 kW weight of the machine ca. 1,5 t dimensions of the machine ca. 2,90 x 1,10 x 1,75 m - Serial-No.: D8KK0633 - 3-axis digital readout FAGOR - Quick-change steel holder - rapid clamping boring chuck RÖHM 1-13 mm - Coolant device

Condition: excellent (used), travel distance X-axis: 10,000 mm, travel distance Y-axis: 2,100 mm, travel distance Z-axis: 1,300 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, feed rate X-axis: 30 m/min, feed rate Y-axis: 30 m/min, feed rate Z-axis: 30 m/min, spindle speed (max.): 6,000 rpm, spindle speed (min.): 36 rpm, pivoting range: 360 °, SHW PowerSpeed 5 Travel Paths • X-axis (Bed): 10,000 mm • Y-axis (Vertical): 2,100 mm • Z-axis (Horizontal spindle): 1,300 mm Control System • CNC Control: Heidenhain iTNC 530 Feed Rates • X, Y, and Z axes: 2 - 30,000 mm/min • Acceleration: 3.5 m/s² Universal Milling Head in Orthogonal Design • Milling head holder swivel range: 360 x 1 degree • Milling head swivel range: 180 x 1 degree • Tool holder: SK 50 DIN 69871 • Spindle speed range: 36 – 4,000 rpm o Intermittently 36 – 6,000 rpm Automatic Tool Changer • Tool magazine for 48 tools Coolant System • Tank capacity: 500 l About the company MBM MBM Maschinenservice & Gebrauchtmaschinen GmbH is an independent specialist for SHW machine tools. Our main focus is on tool milling machines. Our services include supply of spare parts, on-site customer service, machine overhauls, and control system modernization. Services: - Used machines - Spare parts - Customer service - Machine service - Machine overhauls - Control system modernization ---- Iodpfxsxgq Ayj Ag Usth Used machine - used milling machine - used travelling column milling machine - orthogonal milling head - metalworking - tool milling machine - milling head - SHW machine - SHW spare parts - used milling machine - used fraesmaschine - used CNC milling machine - used bore milling machine - used metal milling machine - used metal mill - used metal milling machine - used CNC mill - CNC fraesmaschinen - CNC milling machines - milling machine - large component machining - large part machining - CNC large part machining - milling - SHW - PS5 - PS 5 - Powerspeed - SHW PSZ 5 - SHW Powerspeed - SHW Powerspeed 5 - PSZ 5 - Heidenhain - MBM milling machine - MBM machine - column milling machine

Condition: new, Year of construction: 2025, SAPI Powder Coating The perfect layer for lasting protection. Powder coating is a highly effective and widely used method for applying a protective and decorative finish to various types of surfaces. It is a dry finishing process in which a fine powder composed of resin, pigments, and additives is applied to a substrate. The powder is electrostatically charged so that it adheres evenly to the surface, forming a uniform coating. To achieve optimal adhesion and durability, the substrate is first thoroughly cleaned and prepared. Oils, dirt, and other contaminants are removed to ensure a clean surface. This is crucial for the powder to bond effectively to the substrate and achieve a strong and long-lasting coating. A powder coating system typically consists of various components and equipment required for the application and curing of powder coatings. SAPI_Powder_spray_gun Spray Booth and Spray Area The booth provides a clean environment for the application process and ensures even powder distribution. Powder Coating Gun A powder coating gun is used to apply the powder coating to the workpiece. Iodpfxjwf Dpgs Ag Ueth Powder Feed System The powder feed system consists of a hopper or container in which the powder coating material is stored. It typically includes equipment such as powder pumps, feed hoses, and powder screens to transport the powder from storage to the spray gun. Pretreatment Equipment Pretreatment equipment is used to prepare the substrate before the powder coating is applied. This may include processes such as cleaning, degreasing, rinsing, and surface treatment to ensure good adhesion and durability of the coating. Curing Oven A curing oven is an essential component of a powder coating system. It is used to heat the coated substrate to the correct temperature so that the powder coating can melt, flow, and cure into a durable finish. The oven typically consists of a conveyor system or racks to transport the coated parts through the oven chamber. Exhaust system An exhaust system will be installed in the facility to extract excess powder, fumes, or volatile compounds generated during the coating process. This system helps maintain a clean and safe working environment for personnel and prevents the accumulation of powder particles in the air.

Condition: like new (used), Year of construction: 2000, operating hours: 25,000 h, travel distance X-axis: 10,300 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,800 mm, feed rate X-axis: 10 m/min, feed rate Y-axis: 10 m/min, feed rate Z-axis: 10 m/min, position of the milling head: 2.5 x 2.5 °, spindle speed (max.): 3,000 rpm, spindle speed (min.): 60 rpm, table width: 3,300 mm, table length: 12,000 mm, mount diameter: 50 mm, total height: 48,750 mm, total width: 100,000 mm, total length: 212,000 mm, overall weight: 100,000 kg, Duplex milling are two machines located one opposite the other which can work seperately or as single machine, workpiece can be machined with 2 simultaneous spindles. Production increase of up to 50% in relation to conventional solutions, i.e. individual milling machines Improvements in part precision, by managing to do the machining of the part in one single setup, in most of the cases One sole operator can control the DUPLEX milling machines Reduced space and investment requirement comparing with two single machines Fast investment amortization due to the high productivity Duplex solution admits different configurations: single working area, pendulum working areas For machining excavator arms / boom like, CAT, Caterpillar, Komatsu, Hitachi, Hyundai, Doosan, Case, Bobcat, JCB, Kobelco, Liebherr, Kubota, Takeuchi, Volvo X-Axis: 10300mm Y-Axis: 2000mm Z-Axis: 1800mm Table Length: 12000mm Table Width: 3300mm Table load: 100000 Power on spindle: 22/30kW Spindle speeds: 60 - 3000Rpm Ijdpfx Aorx Rxteg Ujth Spindle Taper: 50ISO/Bt/Mk Feed rate X-Axis: 10000mm/min. Feed rate Y-Axis: 10000mm/min. Feed rate Z-Axis: 10000mm/min. Millinghead auto-index:2.5 x 2.5° Working hours: 25000H Length: 21200mm Width: 10000mm Height: 4875mm Weight: 100000kg

Condition: excellent (used), Year of construction: 2021, operating hours: 3,000 h, travel distance X-axis: 6,100 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 950 mm, CNC Travelling Column Milling Machine – Fully Retrofitted by REM (2021) Powerful and versatile heavy-duty milling machine, completely modernized by REM specialists in 2021 with state-of-the-art Heidenhain TNC 320 control. Ready for immediate production use. KEY SPECIFICATIONS: • X-axis (transversal travel): 6,000 mm • Y-axis (vertical head travel): 2,000 mm • Z-axis (axial slide travel): 950 mm Itedpfjn D N H Tex Ag Ush • Dual-spindle head | Head rotation: 360° • Spindle speed: 1,000 – 4,000 rpm • Spindle taper: ISO 50 (automatic locking/unlocking) • Head dimensions: 290 × 290 mm • Spindle motor power: 15 kW (DC) • Machine weight: approx. 32 tonnes • CNC Control: Heidenhain TNC 320 WHY BUY FROM REM? ✔ Machine fully inspected and tested in working conditions ✔ Modern CNC retrofit – new electrics, new drives ✔ Documentation and technical support available ✔ Export worldwide | Competitive shipping Ideal for heavy component machining in aerospace, energy, and heavy industry. Contact us today for full technical specifications, photos, and video demonstration.

Condition: good (used), Year of construction: 2001, travel distance X-axis: 3,200 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,460 mm, table length: 3,800 mm, table width: 1,000 mm, table load: 30,000 kg, Chip conveyor Double doors front side Chain Tool chnager 30 positions Itodexc Hh Depfx Ag Ueh Central lubrication IKZ 16 Bar and 2,2 kW Flow 16L/Min Tool blocking power 1968 daN Full set books and 1e owner machine X-Axis: 3200mm Y-Axis: 1200mm Z-Axis: 1460mm Table Length: 3800mm Table Width: 1000mm Table load: 30000 Power on spindle: 41kW Spindle speeds: 3000Rpm Spindle Taper: 50ISO/Bt/Mk Feed rate X-Axis: 10000mm/min. Feed rate Y-Axis: 10000mm/min. Feed rate Z-Axis: 10000mm/min. Millinghead auto-index:2.5 x 2.5° Working hours: 10659H Length: 8820mm Width: 6250mm Height: 3910mm Weight: 33000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: good (used), Year of construction: 1995, functionality: fully functional, travel distance X-axis: 10,000 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 3,000 mm, - CNC control Heidenhain TNC 415B - controlled 2-axes NC-milling head 2,5° - coolant device The machine will be sold without the plate field Ijdewrzkzspfx Ag Uoth Accessories: ca. 20 pieces tool tapers DIN 2080 with bolts DIN 69872 some spare parts like bevel gears for the milling head and ball screw for X-axis. Technische Daten / technical details: Verfahrweg X längs / X-travel longitudinal 10000 mm Verfahrweg Y quer / Y-travel cross 1500 mm Verfahrweg Z vertikal / Z-travel vertical 3000 mm Werkzeugschaft / spindle taper SK50 Drehzahlbereich (2-stufig) / spindle speed (2-steps) 35-3000 UpM /rpm Vorschub / infeed 6-10000 mm/min Eilgang X,Y,Z / rapid feed X,Y,Z 10, 15, 10 m/min Antriebsleistung Hauptmotor 100%ED / drive capacity main motor 100%ED 37 kW Gewicht der Maschine ca. / weight 39300 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: used, Year of construction: 1983, grinding length 8400 mm grinding width 1450 mm workpiece height 1250 mm surface area 8000 x 1250 mm table height over floor 920 mm distance between columns 1470 mm workpiece weight max. 59700 kg weight of the machine ca. 59,7 t dimensions of the machine ca. 22 x 5 x 5 m Adjustment ranges: -Crossbeam, vertical 1250 mm -Grinding support, horizontal 3100 mm Adjustment speeds: -Machine table (X-axis) infinitely variable 1-45 m/min Isdevr Hgvopfx Ag Ueth Table creep speed 5 m/min -Grinding support, horizontal (Y-axis) Rapid traverse 3000 mm/min Feed, step 0.001-0.099 mm Feed rate, continuous 100-3000 mm/min Creep speed 18+1 mm/min Tip infeed 0.001-0.019 mm -Crossbeam (W-axis) Rapid traverse 410 mm/min Table drive: -Oil transmission, Type Iv4 -Cylinder-Ø 185 mm -Piston rod Ø 130 mm -Drive motor 22 kW
