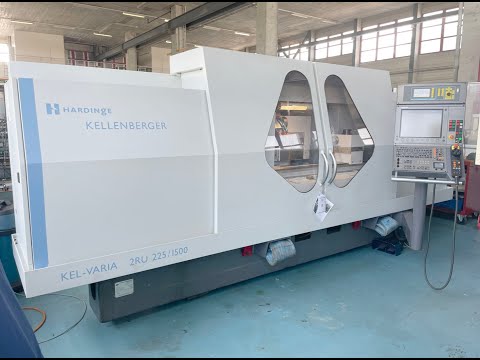

CNC cylindrical grinder

KELLENBERGER KEL-VARIA 2RU 225/1500

Year of construction: 2013, condition: ready for operation (used), A complete filling, sealing, inspection and labelling line is available, includes (1) Tray Destacker Carsoe, year of construction: 2013 (2) Volumetric Filler Lieder/Robot Food Technologies AWF 2, year of construction: 2015, with lifting and tilting device for loading, suitable for free-flowing, non-sticky and low-liquid-content products (3) Tray Sealer Multivac T700, year of construction: 2012, suitable for closing prefabricated trays, bowls and cups, evacuating, gassing and sealing (4) Covering Machine Buhmann Servolid 400, year of construction: 2012 (5) Labeller Multivac MR300/400, year of construction: 2012, with two integrated TTO printers Videojet, suitable for labelling trays from above and below (6) Metal Detector Mesutronic, with automatic rejection for bad packs (7) Tray Packer Somic 424DT, year of construction: 2013, output: 15 cartons/min (8) Hot-Melt Gluer Nordson, printer for printing trays from REA Jet in the outfeed of the machine, has been serviced regularly, including documentation and spare parts. Dcjdpfji Atnxsx Ab Eob

Condition: used, TECHNICAL DETAILS - Distance between centers : 1000 [mm] - center height : 175 [mm] - X/Z stroke : 285/1150 [mm] - Axis X programmable feed speed : [mm/min] - Resolution : 0.0001 [mm] - Axis Z programmable feed speed : [mm/min] - Resolution : 0.0001 [mm] GRINDING WHEEL HOLDER HEADSTOCK - Orientation : 0/30 [°] * Grinding wheel dimensions : 500x63 [mm] PART-HOLDER HEADSTOCK - Type of cone : ISO50 - TAILSTOCK Dcsdpfext U Rhex Ab Eeb POWER SUPPLY - Supply voltage : 400 [V] MACHINE HOURS - Number of hours under power : 28230 [h] EQUIPMENT - CNC : FANUC Oi-TD - Electronic handwheel - Automatic diamond device - Coolant tank * with paper filtering unit

Year of construction: 1985, condition: used, workpiece diameter 25-90 mm Dodpetzdyzjfx Ab Ejcb threading length 3000 mm thread pitch 2-16 mm total power requirement 25 kW weight of the machine ca. 10,5 t dimensions of the machine ca. m

Condition: used, Year of construction: 2007, x-axis 10.100 (2x 5.000) mm y-axis 3.000 mm z-axis 1.500 mm Control Sinumerik 840 D Siemens distance between columns max. 3.000 mm passage max. 1.950 mm distance spindle center to table max. 1.800 mm distance spindle nose and table 1.350 / 1.500 mm type P 8005020/00-4 turning speed range - main spindle max. 18.000 min/-1 power capacity - main spindel 20 kW max. Torque 48 Nm tool taper HSK-A63 DIN 69063 Spindle Extension 450 mm swivellable B: +110° / -10 ° rotatable C: +/- 200 ° type P 8002320/00-4 turning speed range - main spindle 20 - 5.000 min/-1 power capacity - main spindel 40 kW max. Torque 1.100 Nm tool taper HSK-A100 DIN 69063 Spindle Extension 300 mm swivellable B: +110° / -10 ° rotatable C: +/- 200 ° table surface area 4.000 x 2.200 (2x) mm max. table load 12 / 20 t height over floor 700 mm number of T-slots 11 + 19 T-slot - width 28H7 mm T-slot - distance 200 mm number of toolpositions 327 pos. number of toolpositions HSK A63: 156 pos. number of toolpositions HSK A100: 171 pos. max. tool diameter HSK A63: 52 mm max. tool length HSK A63: 250 / 500 mm Djdpfx Abevy Ihds Eecb max. tool weight HSK A63: 5,0 kg max. tool diameter HSK A100: 315 mm max. tool length HSK A100: 500 / 800 mm max. tool weight HSK A100: 40,0 kg feed speeds X: max. 30.000 mm/min feed speeds Y/Z: max. 40.000 mm/min feed speeds B: 3.600 °/min feed speeds C: 2.160 °/min Accelaration X: max. 1,5 m/s² Accelaration Y/Z: max. 3,2 m/s² x-axis 10.100 (2x 5.000) mm y-axis 3.000 mm z-axis 1.500 mm b-axis +110° / -10 ° c-axis +/- 200 ° total power requirement 150 kVA dimensions of the machine ca. 25,0 x 12,0 x 7,0 m 5-Axis Gantry-Big-Machining-Center DROOP + REIN - TFS 22 40 DT D40 P - two Milling-Heads - ca. 4.000 Power On Hours - X-Achse 10.000mm (coupled) / 2x 5.000mm (single-table) - 3 axes simultaneously (X, Y, Z) - 2 positioning axes (B, C) - tools upon request

Condition: good (used), Year of construction: 1998, table diameter 1800 mm turning diameter 2060 mm swing diameter 2000 mm work height max. 1557 mm Dedpfx Abew H Dkms Eocb power capacity - milling spindle 30 kW workpiece weight 12 t table drive 100 kW gear box 2 Stufen grinding spindle drive 30 kW milling spindle SK50 with Grinding device

Condition: used, Year of construction: 2021, Overview The filling line was manufactured in 2021 by the German company ALWID. The filling line is new and can fill  chemical products into plastic containers. With the exception of the bottle feeder and Posimat, glass bottles can also be processed. Due to ATEX certification, explosive products can be processed with the line. The equipment comes with a 2-year warranty (in single-shift operation) and all components of the equipment can be purchased separately.  Technical details Capacity: 9000 containers/h (varies according to bottle volume and product).  Container  Max. Diameter: 100mm  Max. Height: 300mm  Control Siemens S7 Single machines  Bottle Hopper | ALWID | POSIMAT-ACCESS-N15  Bottle feeder with hopper 2000 l, in stainless steel, chassis and supports in mild steel painted Positronic control system for optimal adaptation to downstream filler Machine, completely internally wired with attached control cabinet in mild steel, painted Machine according to CE guidelines; i.e. max. noise level of ≤ 80 dB +/- 2 Combined filling and closing machine (block machine) | ALWID | SUPERIOR-16MDM-5SK Fully automatic rotary filler Filling system: mass flowmeter system, type: Endress+Hauser LPG MASS Number of filling stations: 16 filling stations Filling valve diameter: Ø12mm Max. tank dimensions: height: 50-300 mm, Ø: 20-100 mm Fully automatic round capper Number of capping heads: 5 With torque adjustment via slip clutches With fully automatic cap sorting and cap feeding via BONINO disc sorter with elevator With inside drop switch to switch off the machine in case of missing closures Checkweigher | ALWID | OCS-HC-M-2000-1 Applied safety and machinery directives CE compliant Industrial load cell with stainless steel housing based on the principle of electromagnetic force compensation Force shunt free current transfer at the load cell Front protection to reduce interference on the weighing result Stainless steel control cabinet Graphics-capable color TFT touch screen, 10.4 inch, VGA resolution Flexible operability due to tiltable stainless steel operator terminal Freely configurable user interface with simple, intuitive operation Inkjet Printer | Domino | Ax350i  Fast printing of text and multi-line codes at high speeds  Labeler | ALWID | SES-120-III Tandem design Max. Label height: 120mm  Photocell for label scanning 2 x automatic winding station incl. counter pressure plate Mounting device with height adjustment for lateral label dispensers With adjustable side guides - passage width up to 150mm Dcedpomfqm Djfx Ab Eeb

Condition: used, Year of construction: 2024, controller manufacturer: Sonstige, _____ Dcodexv Nkujpfx Ab Eeb Description: Year of manuf. : 2024 Control : Sonstige In General: Year of manufacture:2024 Traverse path X/Y/Z:800/ 1,500/700 mm Maximum table load:800 kg Measuring accuracy:0.0005 mm Repeat accuracy:0.002 mm Touch probe:Renishaw PH 10M Plus

Condition: good (used), Year of construction: 2002, Universal Machining Center Machine type: DMG DMU 200 P Control: Heidenhain TNC 430 M Year of manufacture: 2002 TECHNICAL DATA: Travel paths: X-axis: 1,800 mm Y-axis: 2,000 mm Z-axis: 1,100 mm B-axis: 0.001° C-axis: 0.001° Number of controlled axes: 5 Speed range: 10,000 rpm Drive power: 44 kW Tool holder: SK 50 Tool changer Tool stations: 60 NC rotary table Table size: 1,700 x 1,400 mm Max. table load: 5,000 kg Dcodpfx Ajxuqn Sob Esb Equipment features: Chip conveyor Internal coolant supply (IKZ): 40 bar Paper band filter Measuring probe Electronic handwheel

Condition: used, Year of construction: 2017, grinding length 1500 mm centre height 180 mm weight of the machine ca. 3,9 t Dcedswm Rqgopfx Ab Eob dimensions of the machine ca. L: 4900 x 1650x 1800 m

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, machine/vehicle number: 1845/455, Completely refurbished: Mechanics, geometry, hydraulics, and electrical components Wheelhead Disassembly, cleaning of parts, replacement of worn and defective components, motor overhaul, replacement of bearings, replacement of belts, spindle disassembly, replacement of seals and O-rings, plus adjustment. New paintwork. Workhead Disassembly, cleaning of parts, replacement of worn and defective components, motor replacement, replacement of belts. New spindle bearings. New paintwork. Tailstock Disassembly, cleaning of parts, replacement of worn and defective components, motor replacement, replacement of belts. New spindle bearings. New paintwork. Internal grinding attachment Disassembly, cleaning of parts, replacement of worn and defective components, installation of the support and geometry alignment. New paintwork. Hydraulics Disassembly, motor replacement, hose replacement, defective and worn parts replaced. Hydraulic block checked. X-Axis Disassembly, replacement of worn items such as O-rings, seals, rings, etc., overhaul of hydraulic piston, regrinding of tables. Z-Axis Disassembly, regrinding of tables, replacement of worn and defective parts, overhaul of hydraulic piston, scraping of V and flat guides. New paintwork. Measuring system Digital 2-axis display included. Electrical cabinet Replacement of motor contactors and relay controls. New wiring. New variable speed drive (frequency inverter) for the workhead. TECHNICAL SPECIFICATIONS Distance between centers: 1500 mm Distance between centers (workhead to tailstock overhang): 1650 mm Center height, standard: 125 mm Center height with riser blocks: 225/250 mm Maximum grinding diameter: Ø 250 mm Maximum grinding diameter with riser blocks: 450/500 mm Table Usable surface: 2060 x 140 mm Max. length and width for surface grinding: 1750 x 200 mm Longitudinal travel, manual or hydraulic: 1750 mm Manual table movement, 1 handwheel revolution – coarse: 20.006 mm Dcjdpfxoxt Ilfo Ab Ejb Manual table movement, 1 handwheel revolution – fine: 2.457 mm Table speed, continuously via hydraulics: up to 6 m/min Table swivelling: 6° Stop and return: 0–5 sec. Workspindle Workpiece speeds, continuously variable (electric): 20–400 rpm Swivelling: 360° Workspindle taper (internal): MT5 Tailstock Internal taper, tailstock spindle: MT3 Spindle retraction, manual or hydraulic: 30 mm Diamond dresser taper (internal): MT0 Universal grinding head Cross slide travel for wheel: 285 mm Rapid traverse for wheel slide, front and rear: 40 mm Grinding spindle speeds: 1500 – 1700 – 2200 – 3600 rpm Vertical grinding spindle movement, center heights: 125–330 mm Max. wheel for cylindrical grinding: 400 x 50 x 127 mm Max. wheel for surface grinding: 250 x 20 x 76 mm Head swivelling with locking at every 90°: 270° Wheel feed 1 division of the micrometer drum: 0.005 mm/Ø Automatic wheel feed, max.: 0.9 mm/Ø Motors Grinding spindle motor: 2,900 rpm / 4.0 hp Workspindle motor: 3,000 rpm / 2.0 hp Coolant pump motor: 2,850 rpm / 0.12 hp Internal grinding attachment Bore: 70 mm Internal grinding spindle speed Ø70 mm: 14,000 rpm Internal grinding spindle speed Ø50 mm: 21,000 rpm Subject to error or omission, the technical information is provided without obligation.
