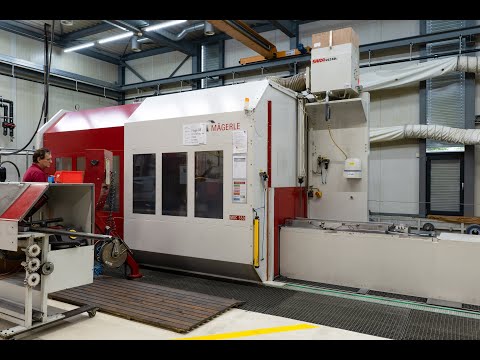

Profile grinder MAEGERLE - MGC-L 560

Mägerle MGC-L 560

Condition: used, Fully automatic scarf jointing line for the following dimensions: thickness: approx. 24 – 100 mm, width: approx. 80 – 240 mm, scarf joint lengths: 400 – 1,500 mm, finished length: 2.50 m – 13.50 m, infinitely adjustable. Consisting of the following plant components: - SMB vacuum stacking system, longitudinal, with 2 lifting tables and 2 package conveyor lines, year of manufacture 2013, package dimensions max. 1.20 x 1.20 x 6.00 m, 4 suction pads, Sicko system, singulation and infeed into a conveyor line for scanner feeding, board turner, diverter for too moist, too dry, diverter for B-quality, marking station or automatic operation - Bidac end-face scanner for scarf joint detection, year of manufacture 2013 - Brookhuis moisture measurement FMI 5, year of manufacture 2019 - Microtec scanner Goldeneye 502, year of manufacture 2012 with X-ray, 4 color cameras, and new optimization software - Dimter Opticut 350-2, year of manufacture 2003 with paddle ejector, year of manufacture 2009, and associated sorting belts and pneumatic ejector for 2 additional qualities - NKT packaging - NKT scarf jointing system with rotary table, special pack AH 1050, year of manufacture 2005, consisting of: milling machine, tipping station, infeed section, length 5.0 m, cycle press, length 6.00 m, crosscut saw - SMB stacking machine, year of manufacture 1998, length 2.50 – 13.50 m, divisible into 2 units (e.g. 2 x 5.0 m), 8 stacking arms, 8 stacking tongues, manually adjustable stop, infinitely adjustable, electro/hydraulically controlled, package width: max. 1200 mm, package height: max. 600 mm, hydraulic package ejector. Nledpfxevvi Tys Aazog Location: Customer

Condition: used, TECHNICAL DETAILS - Number of axes : 10 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 25.4 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.1 [°] - Number of guide bush holders : 2 GUIDE BUSH HOLDER 1 Njdpsuha Ugjfx Aazjlg - Number of positions : 5 GUIDE BUSH HOLDER 2 - Number of positions : 5 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] END ATTACHMENT - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 6000 [rpm] SECONDARY OPERATION - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 14 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2270 x 1650 [mm] - Machine height : 2200 [mm] - Machine weight : 3500 [kg] MACHINE HOURS - Number of working hours : 80490 [h] EQUIPMENT - CNC : Fanuc - Rotating tool motor on : S2,S3,S5,S6 - Rotating guide bush - Parts catcher - Ejection of workpiece - Chips conveyor - Coolant tank * with high-pressure pump - Bar loader : ROBOBAR SBF 532 - Oil mist extractor - Cooling unit

Condition: used, Year of construction: 1982, Technical details: faceplate diameter: 2600 mm turning diameter over support: 2500 mm turning length: - mm centre distance: 1600 mm turning diameter over bed: 2900 mm spindle bore: 100 mm revolution per minute: gear steps U/min feed range: Überdrehen 0,12-31,5 Plandrehen 0,12-45 mm/min bed guideways length: 2900 mm max. workpiece weight between centres: 400.000 kgs total power requirement: 45 kW weight of the machine ca.: alle Komponenten zusammen: ca. 29,0 t machine dimensions LxWxH: 5.2 x 5,0 x 3,1 m 3-way measuring system with digital display RSF electronics Nljdpfx Aajwtctyezsg Control panel Cooling unit for Rittal electric cabinet *

Condition: good (used), Year of construction: 2001, CNC turning machine Manufacturer: OKUMA Type: LB-250T Model: OSP-U10L YEAR OF MANUFACTURE: 2001 2-axis CNC turning machine with robotic loading Description: Two-axis X-Z turning machine for short workpieces, equipped with a robotic workpiece magazine X-AXIS: 180 mm Z-AXIS: 325 mm Nlodpfx Aek Hz Iwsazeg Spindle speed: 4500 rpm Coolant system and chip conveyor

Condition: excellent (used), Year of construction: 1999, Control system: Heidenhain TNC 426 Travel ranges X/Y/Z: 1250 x 880 x 800 mm Spindle speed: 8,000 rpm Tool magazine for 60 tools, SK 50 Nedjzqv A Topfx Aazslg Universal milling head +0° / -90° indexing NC rotary table 1250 x 1000 mm Chip conveyor Measuring probe

Condition: used, Year of construction: 2018, Startech cn MAIN FEATURES FLEXIBLE AND CUSTOMIZED PRODUCTION COMBINED WITH SPEED AND PRECISION DRILLING FROM ABOVE WITH REFERENCE TO THE TOP OF THE PLATE ALLOWS ABSOLUTELY PRECISION MACHINING NUMERICAL CONTROL WITH 7" COLOR SCREEN: SIMPLE AND INTUITIVE TECHNICAL DATA Startech CN AXES Max. workpiece dimensions X-Y-Z mm 3050 x 800 x 50 Min. workpiece dimensions X-Y-Z mm 300 x 90 x 10 Drilling/slotting work area mm 0 x 800/0 x 800 X-axis stroke mm 750 Max. travel speed of the X-Y axes m / min 25 DRILLING UNIT Vertical spindles number 7 (4X-4Y one of them common) Horizontal spindles (along the Y axis) Number 2 (1+1) Horizontal spindles (along the X axis) Number 1 Fixed groove saw (direction) X Diameter of the groove saw mm 100 Max. thickness of the groove saw mm 5 Motor power kW (HP) 1.5 (2) Spindle speed rpm 3350 Speed of the groove saw rpm 4300 INSTALLATION Power supply V (Hz) 380 / 400 (50 / 60) Installed power KVA 4.5 Compressed air demand bar 6 Compressed air consumption Nl/cycle 90 Extraction demand m3 / h 1200 Extraction air speed m / sec 20 Extraction nozzle diameter mm 120 GENERAL CHARACTERISTICS Universal CNC drilling machine with work table with fixed gantry and movable workpiece for performing the following machining operations: - Vertical drilling on the panel surface - Horizontal drilling on all four sides of the workpiece - Groove Milling with integrated groove saw in the "X" direction. Self-supporting structure. Machine frame made of tubular steel to provide a large base for the work table. The structure is positioned on three self-leveling feet. The electrical control cabinet is integrated into the machine frame. "Easy Motion" central Bakelite support table: - an MDF sector for through-hole drilling, automatically pivoting for horizontal drilling - an infeed roller that facilitates panel loading - a rear roller conveyor that facilitates panel sliding - left and right stops - a central aligner with manual adjustment. The left and right stops are required to drill the two opposite sides of the panel horizontally in the "X" direction. Panel positioning along the X axis is achieved by means of suction cups. Unit support. This is a gantry structure made of tubular steel. The main machining unit is installed on the gantry. F10L drilling unit includes: - 7 independent vertical spindles - Drill chuck D10 mm - Distance between spindles 32 mm - 2 horizontal drilling heads, 1 in X direction with a single drill, 1 double drilling head in Y direction (1 + 1 drill chuck D10 mm) - Speed 3350 rpm - 1 integrated sawing unit in X (max. diameter 100 mm) - Saw blade speed 4300 rpm - Motor power 1.5 kW - Vertical pneumatic travel per spindle 70 mm - Horizontal pneumatic travel of the drilling unit Positioning of the workpiece and drive of the machining unit A CNC-controlled suction cup clamps the workpiece and positions it sequentially under the machining unit during machining. The movement in X and Y axis is carried out on THK guides with transmission on reinforced toothed Movement in Z axis is carried out pneumatically on "ball-bushing" guides with positioning on stop adjustable via the positioning of the working units is carried out via technology and drives with -CONTROL The control was specially developed for use Nlodpfx Aaovwbp Aezeg

Condition: new, Year of construction: 2026, -Tfon Leveltech® S-3513 Leveling Machine. -The Tfon Leveltech® S-3513 is a precision leveling machine optimized for ultra-thin materials, combining advanced electromechanical controls with easy operation for consistent, high-quality flattening results. Nlodpfxskyrzlo Aazeg -Key Specifications: Material Thickness: 0 – 0.3 mm. -Maximum Material Width: 1.300 mm Minimum Material Length: 70 mm Quick Change System for Straightening Rollers: Standard. Flattening Gap Adjustment: Electromechanical / PC Controlled. Machine Dimensions (L × W × H): 2,685 × 1,585 × 1,820 mm. Total Weight: 5.000 kg.

Condition: ready for operation (used), Year of construction: 1995, functionality: fully functional, machine/vehicle number: 4304, rotary table diameter: 600 mm, grinding height: 450 mm, overall weight: 14,500 kg, Machine is equipped with 3 spindles, surface grinding, external grinding, bore grinding Turret head B-axis with 1° division Belt filter system included Nlodpfx Aaovt A Rtjzeg

Condition: excellent (used), Year of construction: 2009, travel distance X-axis: 5,000 mm, travel distance Y-axis: 3,500 mm, travel distance Z-axis: 2,350 mm, feed rate X-axis: 13,000 m/min, feed rate Y-axis: 13,000 m/min, feed rate Z-axis: 13,000 m/min, total length: 12,000 mm, total height: 4,800 mm, table width: 2,000 mm, total width: 6,800 mm, table length: 2,500 mm, drilling capacity: 180 mm, rotational speed (min.): 2,000 rpm, feed length W-axis: 1,000 mm, Coolant true spindel 20 Bar Paper filtration system ATC Tool changer 60 Positions  Spindel extension L = 550 mm Full B-Axis 360.000 with ROD880C Table load 28.000 Kg X - Travel: 5000mm Y - Travel: 3500mm Z - Travel: 2350mm W - Travel: 1000mm Table Length: 2500mm Table Width: 2000mm Table load: 28000 Speeds / ranges: 2000Rpm Power: 51kW Spindle Taper: 180 ISO50ISO/Bt/Mk Feed rate X-Axis: 13000mm/min. Feed rate Y-Axis: 13000mm/min. Feed rate Z-Axis: 13000mm/min. Feed rate W-Axis: 13000mm/min. ATC Toolchanger: 60 Coolant through spindle / Bar:20 Number of controlled axis: 5 Length: 12000mm Width: 6800mm Nsdpfey Hq Dyex Aazslg Height: 4800mm Weight: 44000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: excellent (used), Year of construction: 2018, total length: 9,800 mm, total width: 4,000 mm, feed length X-axis: 3,500 mm, feed length Y-axis: 1,100 mm, feed length Z-axis: 1,100 mm, feed rate X-axis: 30,000 m/min, feed rate Z-axis: 5,000 m/min, table length: 3,000 mm, table load: 6,000 kg, table width: 1,200 mm, power: 22 kW (29.91 HP), Surface grinder Ziersch - Z1030 MACH-ID 9597 Make: Ziersch Nodpfx Ajy En Dnjazelg Type: Z1030 Control: Mitsubishi Touch Year: 2018 X - Travel: 3500mm Y - Travel: 1100mm Z - Travel: 1100mm Table Length: 3000mm Table Width: 1200mm Table load: 6000 Feed rate X-Axis: 30000mm/min. Feed rate Z-Axis: 5000mm/min. Grinding stone dimensions:500 x 100 x 203mm Power: 22kW Speeds: 3000Rpm Cooling system: yes Feed rate Y-Axis: 3000mm/min. Length: 9800mm Width: 4000mm Height: 4500mm Weight: 27500kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
