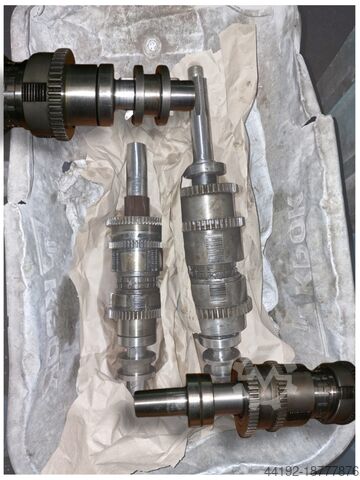

Clutch shaft for 1M63/1M65/1H65 lathe

Ryazan 1M63 / 1M65 / 1H65

Condition: used, Down table size: 1120x1250mm Technical characteristics: Guodpfx Ao Dv Nxjf Tea *UP DOWN STROKE 1000 mms *FORWARD BACKWARD STROKE 1200 mms *LEFT RIGHT STROKE 1000 mms

Condition: used, Year of construction: 2008, turning diameter 1000 mm swing diameter 1250 mm turning height 500 mm control Siemens Sinumerik 840 D Workpiece spindle flange diameter 520 mm work piece spindle speed range 0-440 U/min total power requirement 75 kW weight of the machine ca. 25 t dimensions of the machine ca. 5100 x 3034 x 4500 mm With grinding spindle Table travel: - Z1/Z2 axis 1000 mm, - X1/X2 axis approx. 1300 mm Table speed continuously adjustable: - Z axis 0–30 m/min, - X axis 0–50 m/min Gusdpsw Rgcfofx Af Toa - Feed speed continuously adjustable 0.01–15 mm/min - Feed dependent on stroke 0.0005–0.1 mm - Workpiece spindle positioning C axis Equipment/accessories: - Grinding spindle - Kaiser dresser - Tool measuring probe - Filter system - With flushing nozzle connections - 2 Capto holders - 1 set of jaws for chuck - technical documentation

Condition: used, Year of construction: 1987, pressure / t stroke / mm table-size / mm weight of the machine ca. 65000 kg Make: Shepherd Type: SVRM 4-roller bending machine: Year of construction: 1986 Working width: 3000cm Smallest pipe diameter with 600 mm roller: Ø 720 mm Smallest tube diameter with 360 mm roller: Ø 460 mm Gjdpfx Asuddcasf Teua Sheet thickness up to (depending on the material): 50 mm Material SA- 738 B Working width: 2500 mm Material SA- 738 B Material thickness: 35 mm conical bending: Except for the top roller, all rollers can be moved in an inclined position for conical bending. The roller positions can be read on display instruments. For semi-automatic or fully automatic operation of the machine, the bearing jewels of the rollers are equipped with scale bars and slide cams for limit switch actuation. This allows the rollers to return to the same set position over and over again, giving a very high level of uniformity in the shot wefts being bent.

Condition: good (used), Year of construction: 2006, Brand: GEMINIS Model: GHT4 G2 700x 2000 Cnc: FANUC 21 TB Gujdpfx Aexdub Ijf Tea Distance between centers: 2000 mm Ø Swing over bed : 720 mm Ø Over carriage: 470 mm Spindle diameter : 104 mm Maximum piece weight between points : 2.560 kg Spindle nose: DIN 55027-11 Spindle speed: 0-1600 m/min Total power : 28 kw

Condition: used, Year of construction: 2005, functionality: fully functional, measuring range X-axis: 700 mm, measuring range Y-axis: 1,000 mm, measuring range Z-axis: 600 mm, Equipment: type plate available, Mitutoyo Crysta Apex C7106 coordinate measuring machine Temperature compensation on all axes Active vibration isolation system from BILZ X-axis measuring range = 700 mm Y-axis measuring range = 1000 mm Z-axis measuring range = 600 mm Measurement uncertainty = 1.9 + 3L/1000 (µm) Renishaw PH10MQ probe head Gjdswhb A Nopfx Af Tjua Renishaw SCR200 interchangeable rack Renishaw TP200 sensor Renishaw TP200 modules = 6 units MCosmos measuring software WIN10 PC system, 27" monitor Reference sphere / calibration sphere Optional software upgrade Optional hardware upgrade Full service available upon request

Condition: ready for operation (used), Year of construction: 2005, turning diameter over cross slide: 570 mm, turning length: 2,000 mm, spindle bore: 62 mm, spindle speed (max.): 2,500 rpm, spindle speed (min.): 3 rpm, workpiece weight (max.): 2,000 kg, Equipment: rotational speed infinitely variable, The VDF 560 DUS are the most popular teach-in lathes from VDF Boehringer in terms of turning diameter. With a standard chuck size of 315 mm or more, these machines offer optimal machining efficiency for the production of single parts and small series. This machine is currently on display in our showroom; an on-site inspection is possible! Scope of delivery: Includes drawer cabinet with various tools and Multifix holders. Specifications Manufacturer: VDF Boehringer Model: DUS 560 TI Year: 2005 Condition: Used Stock number: 00164 Maximum turning diameter: 570 mm Maximum turning length: 3000 mm Spindle bore: 62 mm Gsdpjwv S Rtsfx Af Tsua Speed (min-max): 3 - 2500 rpm Spindle power: 19 kW Spindle mount: DIN 55 027 Gr. 8 Tool turret: Multifix Turret positions: 2 Tailstock taper: MK5 CNC control brand/type: Heidenhain Manual Plus 4110

Condition: ready for operation (used), Year of construction: 2009, turning diameter over cross slide: 925 mm, turning length: 2,800 mm, turning diameter: 1,200 mm, spindle bore: 132 mm, spindle speed (max.): 2,000 rpm, CNC Siemens 840D 48-tool changer, Capto C8 tools chip conveyor Gusdpfx Afowzyn Rs Tsa Forkardt 400MM chuck, 2 hydraulic steady rests SMW Autoblok capacity 2800x1250MM, spindle bore 132MM weight 23,500 kg

Condition: used, Year of construction: 1988, plate width 2000 mm plate depth 3500 mm plate height 270 mm weight 5,5 t Guodpfjiiii Sox Af Toa +++++ Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. +++++

Condition: used, Year of construction: 2000, functionality: fully functional, grinding width: 2,600 mm, workpiece weight (max.): 35,000 kg, grinding length: 12,000 mm, distance between stands: 2,800 mm, grinding height: 1,600 mm, Portal Grinding Machine 12x2.6m Brand: GIORIA Guodowql H Djpfx Af Tja Year:2000 Controller: Siemens 840C (twin operator panel with HPU) Table: 12.500 x 2.600mm Heigh feed: 1.600mm Hydrostatic table Including grinding disc etc.

Condition: good (used), Year of construction: 1994, functionality: fully functional, pressing force: 1,000 t, table width: 1,500 mm, distance table to ram: 1,750 mm, total length: 2,700 mm, Used 1000ton hydraulic press for sale 1000TON PRESS SIDE FRAME Max TYPE CAPACITY 1000ton PRESSURE 175kgf.cm2 STROKE 1000mm DAYLIGHT 1750mm BOLSTER AREA 2700mm x 1500mm PULL BACK CAPACITY 52.7ton DIE CUSHION CAPACITY 50ton Guedsucdgpepfx Af Tsa DIE CUSHION STROKE 180mm MAIN MOTOR 415v 50hz 6p 110kw OIL TANK CAPACITY 1800L
