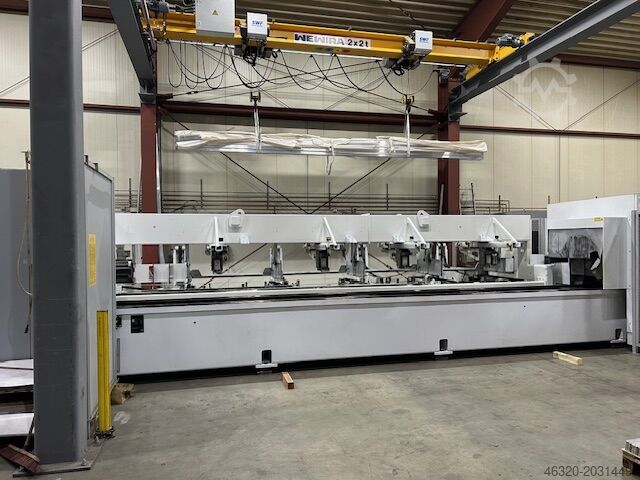

Fiber tube laser – 6.5 m – under 3T/h

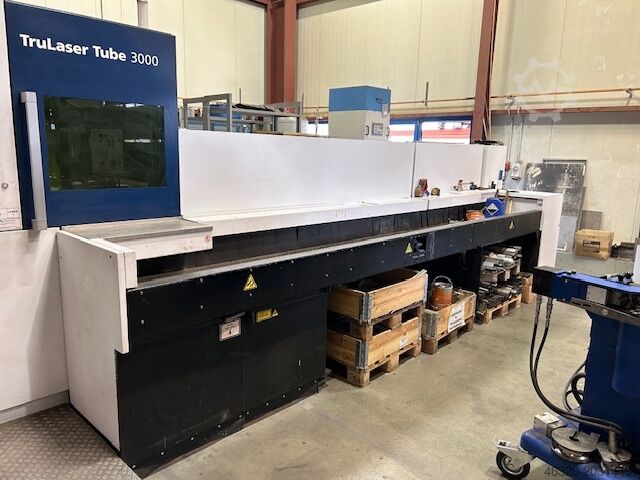

TRUMPF TruLaser Tube 3000 (T10)

Machineseeker – Trumpf TubeLaser 3000 – Ebertz
Under 3,000 Laser Hours

Fiber Tube Laser – Immediately Available

Manufacturer: TRUMPF
Model: TruLaser Tube 3000 fiber (T10)
Year of Manufacture: 2020
Machine Number: A044D0013
Operating hours, approx.: 2,750 h (Laser on)

TECHNICAL DATA:
Max. outer diameter round tube: 152 mm (170 mm with jaw set)
Max. circumscribed diameter rectangular tube: 170 mm
Max. raw material length for automatic loading: 6,500 mm
Machine bed for 6.5 m raw material length
Max. finished part length: 4,500 mm
Max. workpiece weight per meter: 18.5 kg (120 | 148[3] kg total)
Laser: TruFiber 2001 – 2 kW (average power consumption 6 kW)
Max. material thickness:
- Mild steel: 8 mm
- Stainless steel: 4 mm
- Aluminum: 4 mm
- Copper/Brass: 3 mm

EQUIPMENT:
- Through-feed chuck with self-centering clamping rollers
- Workspace lighting
- Feed station with self-centering jaws
- Tube support (raw material) with automatically retractable rests
- Tube support (finished parts) with extendable guide rollers
- High-precision drives
- Adaptive clamping technology for through-feed chuck
- Eject station for 3 m finished part length (including scrap container)
- Parts storage tray

TRUMPF Laser
• Excitation via pump diodes
• Laser power control
• Logbook function for laser
• Enclosed beam guidance via laser light cable (LLK)

Cutting Head
• Lens cutting head with 150 mm focal length
• Magnetic coupling

Controller
• TRUMPF controller based on Sinumerik 840D SL
• Integrated technology data
• Automatic on/off function
• Tiltable operator panel with 19" touchscreen
• Condition Guide
Hodpfx Adsxn Tn Ijdeng
• Remote support interface
• Programmable cutting gas pressure

Functions
• AdjustiLine
• NitroLine
• FocusLine
• ControlLine

Data Transfer
- Online Update Manager
- RJ45 network interface
- USB interface
- Wireless Operation Point
- Central Link

Safety
- CE Marking (ex works)
- Single and dual beam safety light curtains
- Monitoring system for gas pressure, temperature, and cooling water
- Protective cabin with laser safety windows

EXTENDED STANDARD EQUIPMENT:
• Solid-state laser TruFiber 2001
• Machine bed for 6.5 m raw material length
• LoadMaster Tube for 6.5 m raw material length
• Laser chiller (water-air)
• Compact exhaust system

Machine Accessories
• Initial set of cutting nozzles
• Ceramic part (1 piece)
• Jaw set up to D152 mm/D170 mm
• Guide rollers for round and rectangular tubes

SPECIAL EQUIPMENT:
- Increased finished part length (+1.5 m) including additional finished part support
- SeamLine Tube with inner detection, weld seam detection on both inner and outer tube surfaces
- Low-scratch LoadMaster Tube design, plastic rollers and strips
- Adaptive clamping technology – feed station with additional clamping elements for clamping L and U profiles as well as flat material
- MobileControl App

This used machine can be viewed under production conditions. All information provided without guarantee – sale excluding any warranties or liability and exclusively in accordance with our General Terms and Conditions of Sale and Contract. Subject to prior sale.
