Used Mesh welders for sale (41)

Condition: excellent (used), Year of construction: 2004, Technical Details : Year of manufacture: 2004 The mesh max. width: 2200 mm Mesh density: 20 welding heads in arbitrary distribution (40 heads are also possible) Increment: 20mm - up to 200mm Wire thickness: 1.6mm-3.0mm (max 550Nnmm) Lodpsryv Sisfx Ah Esru Energy requirement: 8 kW Weight: approx. 10 tons Drive: digital servo, control (PLC).. Stepless regulation.. Accessories: manual

Condition: refurbished (used), SCHLATTER Welded wire mesh production line MG24 Full revamped WORKING RANGE Panel width: max. 2500 mm Weft wire length: min. 900 mm Weft wire length with QF5 dispenser: min. 300 - 1600 mm Spacing between extreme warp wires: max. 2400 mm Mesh length (warp wire length): max. 2500 - 6000 mm Spacing between warp wires: min. 100 mm Spacing between weft wires: 25-250 mm Adjustable by cutting device (0-1) Warp wire diameter: 4.0 - 12.0 mm Weft wire diameter: 4.0 - 12.0 mm Number of warp wires: max. 24 WELDING MESH MACHINE MG 24.1/8C, Basic equipment including: - 1 Machine frame - 1 Upper support for press reception, continuously adjustable by hand crank - 1 Magnet supports with retaining magnets and weft wire monitoring. - 1 Row of pneumatic solenoid valves for press actuation. - 1 Installation for air and water. - 2 Pneumatic rotary drives with oil damping - Static motor torque with 5 bar compressed air: 480 Nm - Front continuously adjustable from: 25 - 250 mm adjustable by cutting device (0-1) - 1 Advance carriage with panel lifting device - 1 Set of tools for machine adjustment WELDING SECTION 8 Type C Transformers Lodewu Tu Dopfx Ah Eoru Rated power of each transformer: 100 kVA No-load secondary voltage: 7.1 V Rated secondary current: 14 kA 8 Thyristor contactors ES 130 12 Welding presses: 5.0 kN 12 Chain current bridge for spacing of warp wires: 50-100 mm 12 Chain current bridge for spacing of warp wires (for offset warp wires): 100 mm 10 Chain current bridge for spacing of warp wires: 100-150 mm 8 Chain current bridge for spacing of warp wires (for offset warp wires): 150 mm 6 Chain current bridge for spacing of warp wires: 150 - 200 mm 6 Chain current bridge for spacing of warp wires (for offset warp wires): 200 mm 24 Lower electrode holders Cu with standard angled electrodes and each with a water-cooled current cable, width: 58 mm 24 Wire clamping pliers Panel width: max. 2500 mm Weft wire length: min. 900 mm Weft wire length with QF5 dispenser: min. 300 - 1600 mm Spacing between extreme warp wires: max. 2400 mm Mesh length (warp wire length): max. 2500 - 6000 mm Spacing between warp wires: min. 100 mm Spacing between weft wires: 25-250 mm Warp wire diameter: 4.0 - 12.0 mm Weft wire diameter: 4.0 - 12.0 mm Number of warp wires: max. 24

Condition: new, Year of construction: 2025, Starweld PE STARWELD PE is a high performance mesh welding line for the production of fine & light mesh in rolls or rolls & sheets. The mechanisms are designed in a way that the produced mesh is of high quality, even when the wire processed is of a very small diameter. Products can be used for cages, fencing, etc. Features: Line & cross wire feeding from coil Edge trimming Mesh fabric slitting Fully or semi automatic system for mesh cutting, rolling & ejecting Excellent mesh accuracy Fully automatic CNC programmable High speed High precision through advanced servo technology Easy machine adjustments Easy maintenance & use High reliability & long life Specifications Model PE2100 PE2600 PE3100 Lsdpfx Aod Rlaijh Esru Mesh Width (mm) 2100 2600 3100 Min Line wire spacing (mm) 25 25 25 Min Cross wire spacing (mm) 12.5 12.5 12.5 Range of wire diameter (mm) 1.2-3 or 1.4-3 or 1.4-3.5 1.2-3 or 1.4-3 or 1.4-3.5 1.2-3 or 1.4-3 or 1.4-3.5 Working speed (strokes/min) Up to 160 Up to 150 Up to 130

Condition: excellent (used), Year of construction: 2007, COMPLETE mesh welding plant Lrodpfx Ahjwr Tk Hs Esu Plant consist of - 1. Mesh welding line SCHLATTER model MG-230 Min/Max wire diam - 3,5 - 14,00 mm Max width of mesh - 2.500mm Line and Cross wire feeding - from precut wires / bars Construction year - 2007 2. COMBINED rolling/ribering/straightening/cutting line Line is COMBO - wire rolling/ribering/straightening/cutting Construction year - 2023. 3. Straight and cut machine WAFIOS model R-41-L Min/Max wire diam - 3,00 - 10,00 mm Max cutting length - 10.000 mm Construction year - 1990. Please contact us for more details. VIDEOS AVAILABLE upon request.

Condition: ready for operation (used), Year of construction: 1996, machine/vehicle number: 25560, Arbeitsbereich Trägerhöhe : min. 70mm - max. 250mm Trägerlänge : in Stufen von 100mm - max. 14000mm Basisbreite : 60mm, 80mm Zick-Zack-Teilung : 200mm Stapelhöhe : max. 500mm Drahtdurchmesser Obergurt : min. 5mm - max. 12mm Untergurt : min. 4mm - max. 12mm Zick-Zack : min. 3,5mm - max. 6mm Arbeitsgeschwindigkeit : max. 75 Takte/min (30m/min) Lrodpjvrb U Iefx Ah Eeu

Condition: excellent (used), Year of construction: 2022, functionality: fully functional, QRP26 Automatic Mesh Welding Portal inclusive of: • Tooling for 49 line wires • Top and bottom electrodes and current distribution • Pneumatic weld presses x 25 (Parallel/Direct Weld Triplex) • Transformers 250kvA x 13 Lodpexgg T Ujfx Ah Ejru • Weld controllers • Electrical panel • Programming computer • 2500mm (100”) wide Including PLL 26 automatic linewire picking and loading system.

Condition: refurbished (used), functionality: fully functional, working width: 1,200 mm, Schlatter MG900, 1,200mm wide, with 4 x 100kVA transformers, updated control with Siemens S7-300 PLC from 2016. Mechanically completely rebuilt and all new control cables. Ljdpfsvvf T Asx Ah Esru

Condition: refurbished (used), Year of construction: 2025, JAGER welded mesh line U-Gsa-st Full revamped "as new" Technical data 24 pay off for longitudinal wire spools, longitudinal wire straightening equipment Line wire pull off system Longitudinal wire loop Longitudinal wire straightening equipment Cross wire magazine Number of installer line wires : 24 up to 10 mm Diameter of lines wires : 4 to 10mm Diameter of cross wires : 4 to 10mm Separation between line wires : 100, 150, 200, and 300 mm Separation between cross wires : min 30 mm , steplessly programmable Max. length of cross wire (mesh width) 2500 mm , max welding width : 2400 mm Mesh length : min 3000 mm and max . 6000 mm Trafos : 8 x 160 Kva Number of installer line wires: Number of installer line wires : 24 up to 10 mm Lrsdpfx Ahjwu Dcxe Eeu Diameter of lines wires: 4 to 10mm Diameter of cross wires: 4 to 10mm Separation between line wires: 100, 150, 200, and 300 mm Separation between cross wires: min 30 mm , steplessly programmable Max. length of cross wire (mesh width): 2500 mm Max welding width: 2400 mm Mesh length: 3000 - 6000 mm Trafos: 8 x 160 Kva

Condition: new, Year of construction: 2025, STARWELD PO is a high performance mesh welding line for the production of medium & heavy weight wire or reinforcing mesh panels. It is a line appropriate for big production needs. Design is made in accordance to the specific project & mesh type parameters – e.g. there can be a rolling mechanism for the machine to produce rolls too if so desired. PRATTO can supply all the necessary auxiliary equipment. Products can be used in the construction industry. They are also used for shelves, grids, cages, pallets and containers as well as for fencing (plain & bent). Features: Line wire feeding from coil Ledpfxed Rlals Ah Esru Cross wire feeding from coil Edge trimming (optional) Panel stacking (optional) Panel tilting (optional) Rolling mechanism (optional) Bending unit (optional) Excellent mesh accuracy Fully automatic CNC programmable High speed High precision through advanced servo technology Easy machine adjustments Easy maintenance & use High reliability & long life

Condition: excellent (used), Year of construction: 2020, High capacity, Fully Automatic Engineered Mesh Welding Plant SUPERWELD Longitudinal wires diameter 6.0 mm – 13.0mm* Number of longitudinal wires 39 Cross wire diameter: 6.0 mm – 13.0 mm* *Rebar real diameter Φ must not exceed 13mm !! Mesh width: 3.800 mm Mesh length min 1.000 mm – max 10.000 mm Longitudinal wires pitch at 100mm Cross wire Step min 50mm Cross wire overhang 50mm – 150mm adjustable Power transformer welding 10 x 420 kVA Welding Speed of the machine at wire thickness 6x6mm, mesh spacing 100x100mm and 2150mm will reach 130 strokes. Ledjwig Exepfx Ah Ejru

Condition: excellent (used), Year of construction: 2023, functionality: fully functional, Wire mesh welding system (Schlatter MG316d) H6.1, Spool pay-off system, line wire LEU1.1, Line wire end supervision RZ2, Alignment device with center adjustment Lredpfx Ahsxgg Rte Eju LHV5, Line wire pull-off device LHA5, Line wire compensating system loop RZT, Alignment device with center adjustment LVR6, Line wire roller advance unit MG26.26.3, Welding machine H17, Spool pay-off system, cross wire DV6, Prefeeding system DA4, Loop control device DES5.1, Cross wire pull-in and feeding device SD3, Cross wire shear QAE6, Cross wire feeding device SL4.3, Mesh shearing machine MST17.4, Mesh stacking device RGW-L, Roller conveyor SAB2.1, Automatic tying device RGW-L, Roller conveyor RGW-L, Roller conveyor SPH3/6000, Mesh package stacking device RGW-S, Roller conveyor MP PLS S7-1500, Control center E10-80, Wire butt welding unit

Condition: excellent (used), functionality: fully functional, welding power (max.): 180 kVA, Schlatter Posiweld type Libra. Machine was built in 2005, control was upgraded by Schlatter in 2022. Lodpfx Ahjxlvn Eo Eoru

Condition: new, Year of construction: 2025, Features: Line & cross wire feeding from pre-straightened and cut bars Automatic feeding of cross wires from hopper Manual feeding of line wires Automatic Panel stacking Excellent mesh accuracy Fully or semi-automatic CNC programmable High speed Ljdpof Ar N Uefx Ah Ejru High precision through advanced servo technology Easy machine adjustments Easy maintenance & use High reliability & long life

Condition: used, Year of construction: 2002, functionality: fully functional, SCHLATTER model MG 316 Mesh welding line Technical Details - • Purpose: For the production of standard mesh Ledov Unt Njpfx Ah Eoru • Manufacturer Schlatter • Condition: Not in operation • Longitudinal wire Ø min: 3 mm • Longitudinal wire Ø max: 8.5 mm • Crosswire Ø min: 3 mm • Crosswire Ø max: 8.5 mm • Cycles (transverse wires) max: approx. 120 • Max mat width: 2500 mm • Max nr. of longitudinal wires: 26 • Longitudinal wire feed: From coil • Crosswire feed: From coil • Longitudinal wire spacing: 100/150/200 mm • Crosswire spacing: 100-400 mm • Year installed: 2002 • Weight: ca. 30’000 Kg

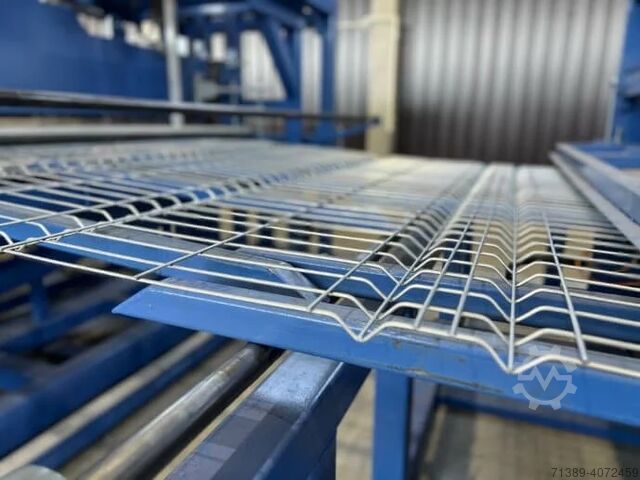

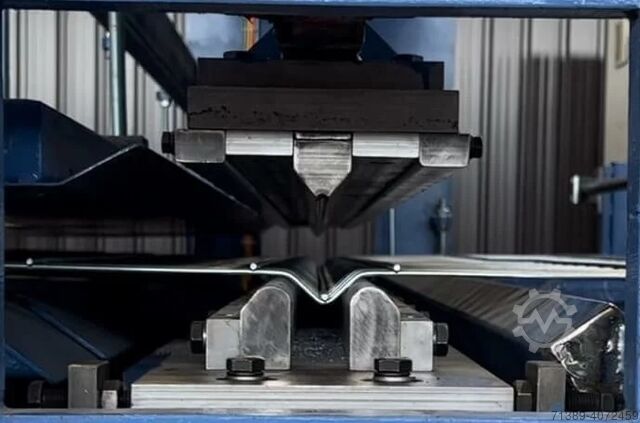

Condition: new, Year of construction: 2025, STARWELD POBH is an advanced version of our high-performance mesh welding line, designed to produce high-quality wire mesh 3D fences, including Eurofence and “V”-shaped fence designs. This model is equipped with a bending unit that allows for precise shaping of wire mesh, making it an ideal choice for various fencing projects. Bending Unit: The integrated bending unit empowers STARWELD POBH to effortlessly shape wire mesh into Eurofence or “V”-shaped fence patterns with precision. This feature enables you to meet the demands of diverse fencing projects with ease. Lrodpod Rlanefx Ah Esu High-Quality Output: Expect nothing less than exceptional quality from STARWELD POBH. Whether you’re crafting aesthetically pleasing Eurofences or robust “V”-shaped fences, our model ensures each piece meets the highest industry standards. Tailored to Your Needs: Just like its predecessor, STARWELD POH, this model is customizable to your specific project and mesh type parameters. We can adapt the design to suit your unique requirements, ensuring optimal performance and results. STARWELD POBH is not only ideal for the construction industry but also finds its utility in crafting shelves, grids, cages, pallets, containers, and, of course, fencing. Its ability to create intricate 3D fence designs makes it a standout choice for projects that demand both functionality and aesthetics. Elevate your wire mesh production capabilities with STARWELD POBH, where innovation meets precision to redefine the art of fence manufacturing. Contact us today to discuss how STARWELD POBH can transform your fencing projects into works of excellence.

Condition: new, Year of construction: 2025, STARWELD GR is a high performance mesh welding plant for the production of electro-fused grating. A big product range can be achieved through its easy adjustments. Special designs can be adopted according to the customer needs (special technical specifications or special products). Lredpfjd Rlapjx Ah Esu Products can be used for stairs, floorings, catwalks, platforms, fencing, etc. Features: Feeding from coil or pre-straightened and cut bearing bars Automatic or manual feeding of flat steel bearing bars Automatic feeding of round or twisted-square cross bars from coils or hopper Various bearing bar spacings: 22, 25, 30, 34 mm or different on demand Very effective grating flattening mechanisms Cross bar automatic edge trimming Fully automatic CNC programmable High speed High precision through advanced servo technology Easy machine adjustments Easy maintenance & use High reliability & long life
