Injection molding machine

Arburg 320C 500-170

Condition: ready for operation (used), Year of construction: 2006, operating hours: 61,935 h, clamping force: 500 kN, screw diameter: 30 mm, injection weight: 77 g, Hydraulic injection moulding machine manufactured in 2006. This Arburg 320C 500-170 GE features a clamping force of 500 kN and a screw diameter of 30 mm. It has a maximum ejector stroke of 125 mm and a platen distance of 550 mm. If you are looking to get high-quality injection moulding capabilities, consider the Arburg 320C 500-170 GE machine we have for sale. Contact us for further details regarding this machine. • Min. mould installation height: 200 mm • Tie bar spacing (H × V): 320 × 320 mm • Platen distance: 550 mm • Max. ejector stroke: 125 mm • Installed total power: 22.9 kW • Total connected load: 34 kW • Nominal voltage: 400 V • Frequency: 50 Hz • Rated current: 49 A Nkodoylybqopfx Aacou • Total machine cycles: 11,986,266 • Total pump operating hours: 61,935 h

Condition: excellent (used), Year of construction: 2011, operating hours: 55,806 h, functionality: fully functional, clamping force: 1,500 kN, screw diameter: 45 mm, total length: 4,700 mm, total width: 1,700 mm, total height: 2,000 mm, overall weight: 4,850 kg, For sale is an Arburg injection moulding machine, model 470 C 1500-400. The offer includes Arburg handling, type Multi Select Axis X/Y/Z 600/600/1400 mm. The machine is in excellent condition and ready for immediate use. Technical data: Year of manufacture: 2011 Nksdpow E Itiefx Aacju Clamping force: 1,500 kN Tie bar spacing: 470 x 470 mm Mounting plate: 650 x 650 mm Operating hours: 55,806 h (pump) Injection unit: Ø 45 / SP 400 Shot volume: approx. 254 cm³ Shot weight: approx. 232 g Injection pressure: up to 1,580 bar Dimensions: approx. 4,700 x 1,700 x 2,000 mm Weight: 4,850 kg Transport and loading can be organized Europe-wide upon request (at extra cost). All prices plus VAT. Inspection possible by appointment. Please contact us – our team will be happy to assist you. Trade-in or exchange possible! Machinery Purchase / Sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MORE. Are you looking for a high-quality yet affordable metalworking machine for your production? Or do you want to sell yours? For more information or contact options, please visit our website.

Condition: used, Year of construction: 2016, clamping force: 50 kN, displacement volume: 85 cm³, injection pressure: 2,000 bar, overall weight: 2,900 kg, load hours: 35,500 h, screw conveyor diameter: 30 mm, terms of delivery: EXW (ex Works) delivery time: on request terms of payment: 100% prior to delivery Nkodpsylpy Nofx Aacju

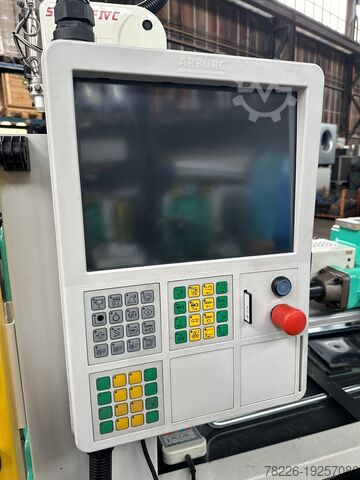

Condition: excellent (used), Year of construction: 2014, Arburg 320C 500-170 e² / Hybrid Machine Year of manufacture: 2014 Injection Unit: Screw diameter: 30 mm Shot weight: 77 g Injection pressure: 2000 bar Dosing volume: 85 ccm Clamping Unit: Clamping force: 50 t Tie bar distance: 320x320 mm Platen size: 446x446 mm Ejector: hydraulic Clamping unit: hydraulic Nkedjylitcspfx Aacju Control system: SELOGICA - Touchscreen Additional equipment: Hybrid machine: energy-saving and very quiet Operating hours: 48,000 h in automatic mode Air valve x 2 Core pull control Controller with 8 hot runner zones Injection unit hardened - bimetallic Main motor of the machine: servo motor with inverter – energy-saving Proportional valve on the injection unit – for precise injection Dimensions: Weight: 2210 kg Length/Width/Height: 3.41x1.43x1.99 m All machines offered are started up by our service technicians prior to sale. It is possible to receive a video of the technical tests for the selected machine or to participate in live technical tests at our company in Łódź. Price: On request

Condition: good (used), Year of construction: 2000, operating hours: 83,000 h, clamping force: 350 kN, screw diameter: 25 mm, For sale is an injection molding machine of the Marker Arburg and the type 320S 350-60 Year of construction: 2000 Operating hours automatic: 83000 Screw diameter: 25 mm Clamping force: 350 kN Barrel length: 60 On request, transport can be organized throughout Europe for an additional charge. Price incl. VAT Machines purchase / sale Njdpfshhuq Ajx Aacsku PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For further information or contact options, please visit our website

Condition: excellent (used), Year of construction: 2011, Arburg 320C 500-170 Year of construction: 2011 Injection unit: Screw diameter: 35 mm Injection weight: 105 g Injection pressure: 1470 bar Metering volume: 115 ccm Clamping unit: Clamping force: 50 t Distance between tie bars: 320x320 mm Size of the clamping platens: 446x446 mm Ejector: hydraulic Clamping unit: hydraulic Control system: SELOGICA touchscreen Additional equipment: Operating hours: approx. 35,000 h in automatic mode Control system with air valve Core pull control Hardened injection unit - bimetal Proportional valve on the injection unit - precise injection Original Demag mold crane: chain, electrically controlled, 2 lifting speeds Dimensions: Weight: 2310 kg Length/width/height: 3.41x1.47x1.99 m Drive: Pumps/motor: 11 kW Heating output: 9.4 kW Total output: 20.4 kW Nodpfxoylirfo Aacjku All offered machines are started by our service technicians before sale. It is possible to obtain a video of the technical tests of the selected machine or participate in live technical tests at our company in Łódź. Price: On request

Condition: excellent (used), Year of construction: 2006, Arburg 320C 500-170 with the Wittmann W811 robot Year of construction: 12/2006 Injection unit: Screw diameter: 30 mm Injection weight: 77 g Injection pressure: 2000 bar Dosing volume: 85 ccm Clamping unit: Clamping force: 50 t Distance between tie bars: 320x320 mm Size of the clamping platens: 446x446 mm Ejector: hydraulic Clamping unit: hydraulic Control system: SELOGICA touchscreen Additional equipment: Euromap 67 Robot interface Air valve x 1 Hydraulic core pull x 1 Hardened injection unit - bimetal Proportional valve on the injection unit - precise injection Built-in sorting flap Robot Wittmann W811 Year of construction: 2010 4-axis robot: 3 axes are driven by servomotors (electric); axis C - pneumatic Travel in axes: X-420, Y-1200, Z-1500 Touch control panel The safety package for robots Robot with adapter, protective housing Purchase of the robot for an additional charge Dimensions Weight: 2400 kg Length/width/height: 3.41x1.47x1.99 m Drive: Pumps/motor: 11 kW Nkjdjylip Rjpfx Aacju Heating output: 9.4 kW Total output: 20.4 kW All offered machines are started by our service technicians before sale. It is possible to obtain a video of the technical tests of the selected machine or participate in live technical tests at our company in Łódź. Price: On request

Condition: ready for operation (used), Year of construction: 2004, travel distance X-axis: 600 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 450 mm, nominal power (apparent): 10 kVA, overall weight: 6,500 kg, spindle speed (max.): 20,000 rpm, Heidenhain TNC530, 4th axis rotary table spindle 20,000 rpm, HSK 63 table 850x530 mm Nodpfew Dc Irjx Aaceku travels 600x450x450 mm 30-tool changer weight 6,500 kg

Year of construction: 2006, condition: ready for operation (used), An injection molding machine used in a cleanroom with a laminar flow module Max Patek and diverter is available. Clamping force: 500kN, screw diameter: 30mm, max. ejector stroke: 125mm, mold installation height: 200mm, tie bar spacing: 320mm, max. shot volume: 77g, platen spacing: 550mm, flow module air capacity: 450m³/h, operating hours: approx. 62000h. Without temperature control units and hopper dryer. The machine shows paint flaking, and the hydraulic hoses should be replaced. Documentation available. An on-site inspection is possible. Nsdpfx Asykbgfoacsku

Year of construction: 2009, condition: ready for operation (used), Two injection molding machines are offered, year of manufacture 2008 and 2009. Clamping force: 500kN, tie bar spacing X/Y: 320mm/320mm, mold mounting plates X/Y: 446mm/446mm, opening stroke: 350mm, max. platen distance: 550mm, injection unit 170: screw diameter: 25mm-30mm, shot volume: approx. 59ccm/25mm screw, approx. 85ccm/30mm screw, shot weight: approx. 62g to 77g, injection pressure: up to 2500bar. Inspection is possible by arrangement. Nkodpfsx I Rqcex Aacsu

Condition: used, Year of construction: 2006, machine/vehicle number: IntNr231476, Haas Mini Mill NC Control: HAAS CONTROLLER Travel (approx.): X = 406 mm, Y = 305 mm, Z = 254 mm Table size (approx.): 914 x 305 mm Spindle speed: 6,000 rpm / 45 Nm at 1,200 rpm 10-position tool changer, SK40 taper Max. distance between table and spindle nose: 102 – 356 mm 10-tool magazine Tool measuring system Rotary table USB & RS232 interfaces Automatic central lubrication system Program support with G/M codes Tool load monitoring Coolant system Dimensions (L x W x H): 1,880 x 2,007 x 2,692 mm Machine weight: 1,542 kg Nsdpfx Asydd E Djaceku The machine can be inspected under power by prior appointment. Technical data and information are subject to change and error. Interim sale reserved.

Condition: excellent (used), Year of construction: 2011, clamping force: 500 kN, screw diameter: 30 mm, clearance between the columns: 320 mm, displacement volume: 85 cm³, injection pressure: 2,000 bar, injection weight: 77 g, mold height (min.): 200 mm, ejector force: 30 N, ejector stroke: 125 mm, plate height: 200 mm, General data Year of manufacture: 2011 Clamping unit Clamping force: 50 t Mould clamping system: 50/ … Platen size: 446 × 446 mm Mould height: 200 mm Opening stroke: 350 mm Maximum platen distance: 550 mm Ejector force: 30 kN Ejector stroke: 125 mm Injection unit: … / 1350 Nodpjyguwvefx Aacjku Screw diameter: 30 mm Injection volume: 85 ccm Shot weight: 77 g Specific injection pressure: 2,000 bar

Condition: like new (used), Year of construction: 2014, Arburg 320 C 500-170 (2014) Working hours : 44.124 h Clamping force: 50 t Screw diameter : 25 mm Shot weight : 75 g Clamping force: 500 kN Distance between tie bars: 320 × 320 mm Platen size (H × V): 446 × 446 mm Minimum mould height: 200 mm Maximum daylight opening: 550 mm Ejector stroke: 125 mm Screw diameter: 30 mm Maximum shot volume: 85 cm³ Maximum shot weight (PS): 77 g Injection pressure: 2000 bar Screw speed max: 400 r/min Nozzle stroke: 250 mm Nozzle contact pressure: 40.6 kN Heating capacity: 9.4 kW Pump drive power: 11 kW Total installed power: approx. 20.5 kW Nkedpsxqdtasfx Aaceu L 3.4 m x W 1.4 m x H 2.0 m Weight :2 400 kg Injection Unit Thermoplastics injection unit, 25 mm screw, high wear-resistant design Standard screw coupling with flat-ended geometry Open nozzle, 25 mm Nozzle tip for open nozzle Heater band for open nozzle Clamping Unit Mounting platen set, central diameter 125 mm Core pull 1, serial movement, holding pressure via check valve Hydraulic ejector Ejector quick-coupling Connector for ejector platen protection

Year of construction: 2005, condition: ready for operation (used), There are two BOY 55M available, both year of construction 2005. Clamping force: 550kN, screw diameter: 38mm, stroke volume: 196cm³, injection pressure: 2000bar, platen dimensions: 565mm/540mm, tie bar distance: 360mm/335mm. Workpiece height min./max.: 250mm/650mm, opening stroke: 400mm, max. platen distance: 1050mm, ejector stroke: 80mm, max. mold weight: 600kg. Dimensions X/Y/Z: approx. 3300mm/1200mm/2100mm, weight: approx. 2300kg, operating hours: 29664h, control: Procan MD. Robot interface Euromap 12 included. Nkedpfjtyaypox Aaceu

Condition: refurbished (used), operating hours: 54,300 h, functionality: fully functional, clamping force: 500 kN, screw diameter: 35 mm, Awaiting refurbishment at our headquarters in Northamptonshire is this Arburg 320C 500-170, Golden Edition, injection moulding machine. Fitted with a 35mm plasticising unit and the Selogica controller. It is one of the most popular machines on the used market and Arburg have done exceptionally well with the combination over the years. Any machines awaiting refurbishment with us can be reserved with a 10% deposit and we then prioritise the refurbishment and aim to have the machine available for inspection within 8 weeks from order. Refurbished machines from STV Machinery undergo a comprehensive test procedure during which every function of the machine is tested and if necessary repaired. A production run of at least 5000 fault free cycles prior to sign off ensures trouble free operation once delivered. Machines are ultra clean and cosmetically as good as we can get them. We guarantee our refurbs are delivered fault free and leak free. Prices shown are ex-works, but we can quickly provide DAP (Delivered at Place) Incoterm pricing on request. We can take out the hassle and additional costs of purchasing machinery within the UK and EU. Contact us with a potential delivery address and we’ll do the rest. Please note that the video shown is of a near identical machine previously refurbished by STV Machinery. It’s a good example of what can be expected once this machine is fully refurbished by our team. Njdswqnfpspfx Aacsku
