Edgebander

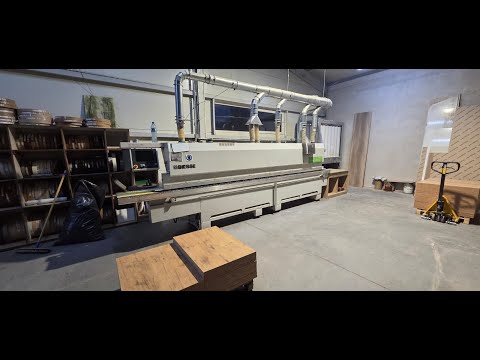

BIESSE Akron 1440A

Condition: used, machine/vehicle number: 008125, Type of edging: Thin edge, Thick edge Gluing System: EVA Hotmelt Premilling Unit: yes Corner Rounding Unit: yes Hfjdjw Tivmspfx Apneg Operating Units: 9 nr

Condition: used, machine/vehicle number: 007687, Type of edging: Thin edge, Thick edge, Solid wood Gluing System: EVA Hotmelt, Hot Air Premilling Unit: yes Corner Rounding Unit: yes Max feed speed: 18 m/min Maximum panel thickness: 60 mm Operating Units: 7 nr Hfodpfx Aswuz Npspnog

Condition: used, machine/vehicle number: 008127, Position 1: Single Edgebanders BIESSE + FORMETAL-AKRON 1440 A Hjdpfx Asw Tq Iwspnefg Position 2: Panel Return Systems BIESSE + FORMETAL-AKRON 1440 A

Condition: used, Year of construction: 2015, machine/vehicle number: 100007528, functionality: fully functional, power: 13 kW (17.68 HP), type of input current: three-phase, total height: 1,700 mm, total length: 9,000 mm, total width: 3,000 mm, Biesse Akron 1440 A With Automatic Return Table And Conveyer, PUR Glue Pot NC Controlled , Pre miller, fence, Radius Trimmer And Scraper. Edging Thickness Selectable From Pc with automatic Setting Hfedpfxsxmi E Hj Apneg Delivery can be arrange in the Republic of Ireland

Condition: used, Painting system consisting of: Pos.1 Venjakob belt conveyor - Manufacturer: Venjakob - Working width: 1,300 mm - Length: 3,000 mm - Feed adjustable via handwheel ~ 2.5 – 7.5 m/min - Volt, Hz: 400 / 50 - Colour RAL 7035 Pos.2 Cefla dust extraction machine - Manufacturer: Sorbini - Type: VS/32-E - Year of manufacture: 1998 - Working width: 1,300 mm - Working height: 900 mm + - 20 mm - Operating side: right - Roller conveyor - Air blowing channel, above 2 pcs. - Air blowing channel, below 1 pc. - Dust remover brush - With ionisation bar from above - With ionisation bar from below - With own drive - With own control - Length ~ 910 mm - Width ~ 2,600 mm - Weight 1,260 kg - Extraction nozzle D 180 + 120 mm - Total connection 7.6 kW - Volt, Hz 400/ 50 Pos.3 Venjakob VEN SRAY Perfect automatic spraying machine - Manufacturer Venjakob - Type. VEN SPRAY PERFECT - Year of construction 2013 - Working width 1,300 mm - Working height 940 + - 20 mm - Operating side left - IR preheating, number of radiators 2 pcs. - Duo-design spray gun drive - Dry suction - Diameter of suction nozzle 600 mm - Exhaust air capacity 10,000 m³/h - Belt transport system - feed speed infinitely variable ~ 4-10 m/min - conveyor belt cleaning system - paint recovery via V-belt system - gun control, EPS-CNC CNC 7000 - colour management system for number of pumps 3+1 pcs. - number of installed airless spray guns 4 pcs. - Quick-change system for spray guns - Remote maintenance system - Dust cover on the outlet side of the machine - Exhaust air recirculation system - Exhaust air control of the suction ventilator - Machine suitable for water-based paints - Machine suitable for solvent-based paints - Length 5,509 mm - Width 4,500 mm + 2,400 mm - Height 3,380 mm + 510 mm - Total connection ~ 20 - 26 kW - Volt, Hz 400/50 - Colour RAL 7035 - Kremlin AVX AirMix spray guns - Small parts container - gun support arm system for quick removal of 4 AirMix spray guns from the spray booth, including quick couplings for pneumatics and material hoses. Pos.4 Venjakob belt conveyor - manufactured by Venjakob - working width 1,300 mm - length 2,000 mm - feed adjustable via handwheel ~ 2.5 – 7.5 m/min - Volt, Hz 400 / 50 - Colour RAL 7035 Pos.5 Cefla pallet dryer - Manufacturer Cefla - Type VN 2000/5500/190.5/30 Hfjdpsv I Akvefx Apnjg - Year of construction 2003 - Working width 1,300 mm - Number of pallets 30 pcs. - Pallet length 5,600 mm - Usable pallet length 5,300 mm - Load capacity per pallet 300 kg - Max. part height ~ 110 mm - Clearance between pallets 120 mm - Dimension: centre of pallet to centre of pallet 3,658 mm - Max. part length ~ 5,200 mm - Number of controllable temperature zones 2 pcs. - Supply air flow rate 6,000 m³/h - Exhaust air flow rate 6,000 m³/h - Heat output max. 175 kW - Max. drying temperature ~ 55 - 60 degrees - With heat exchanger, hot water - Without hot water control valves - U-shaped flow direction - Inlet side on the right - Feed speed via frequency converter control ~ 2-20 m/min - Suitable for water-based paints - Suitable for solvent-based paints - Length 7,820 mm mm - Width 6,130 mm - Height 3,905 mm - Total connection ~ 23 kW - Volt, Hz 400 / 50 - Voltage fluctuations max. +/- 5 % - Without control valves and water pumps Pos.6 Cefla belt conveyor - Manufacturer Cefla - working width 1.300 mm - length 2.000 mm - feed adjustable via handwheel ~ 2.5 – 7.5 m/min - volts, Hz 400 / 50 - colour RAL 7035

Condition: used, Year of construction: 2011, Working size in X-direction: 2770 mm Working size in Y-direction: 1220 mm Working thickness (Z-dimension): 80 mm Machine design: Gantry-type machine Main spindle power: 11.0 kW Main spindle speed: 1500 - 24000 rpm Hfjdpfxevvi Htj Apnjg Vector controlled spindle: Yes Clamping system: HSK 63 F Spindle cooling: Air cooling Number of axes: 3 Tool changer: Yes Tool changer positions: 10 Keyboard: Yes Mouse: Yes Programming system: Xilog Plus DXF interface: Yes Online connection possible: Yes CD-ROM drive: Yes Table type: Matrix table Stop system: Stop cylinders Number of vacuum pumps: 1 Vacuum pump capacity: 250 m³/h Safety: Safety tread mats Storage location: Sonnefeld

Condition: used, Year of construction: 2011, Base Machine M800 X5 TV 1 WORKING RANGE X: 5,020 mm Y: 1,830 mm Z: 675 mm Clearance Height: 300 mm (from 50 mm suction cup height) MACHINE STRUCTURE The base structure is a monolithic construction made from thick-walled steel. It is reinforced across the entire machine bed with welded components, providing exceptional stability. The table design, with its large base, is the key to ensuring lasting precision and stability. The machine’s layout enables the operator to achieve optimal workflow with minimal space requirements. The mobile gantry is built as a solid monoblock. It is positioned in the X direction on prismatic, ground guides with recirculating ball carriages. The machining unit is mounted on this mobile support carriage, also on prismatic, ground guides and recirculating ball carriages. AXIS MOVEMENT All axes travel on prismatic linear guides with large cross-section and recirculating ball shoes with a wide contact surface, which ensures optimal sliding, even at high speeds and accelerations. The precise and fast positioning of the movable gantry (X-axis) is achieved via helical rack and pinion. Large cross-section recirculating ball screws ensure accurate positioning of the machining unit along the movable gantry (Y and Z axes). The perfect mechanical dynamics and maximum positioning accuracy are controlled by high-quality drives and brushless motors. Max. axis speeds: · X-axis = 90 m/min · Y-axis = 90 m/min · Z-axis = 30 m/min Safety device with bumper and light barrier 1 Bumpers with sensors are fitted to the movable upright, and a light barrier system is installed at the front of the machine. If the operator enters the active zone, the X-axis travel speed is reduced to a lower value of 25 m/min without stopping the machine. This system allows parts to be loaded during pendulum operation without the limitation of access areas, as seen with pressure mat systems. This prevents unwanted interruptions in the machining cycle and offers greater freedom of movement around the worktable. CE certification for the safety system 1 Safety protection fence 1 Side and rear protection fence Automatic central lubrication controlled via CNC 1 The lubrication of the X, Y, and Z axes is controlled by the CNC; intervals are regulated automatically, without manual intervention. Central extraction connector 1 All individual extraction connections of the machining units are collected into a central extraction port. Inside the port, there are various slider valves controlled by the NC. This reduces the required extraction air volume. Chip conveyor 1 Maxi – 5-axis electrospindle 11 kW HSK-63 “Prisma K 1 5-axis electrospindle, 11 kW at 20,000 rpm S1 (100% duty cycle) Speed: max. 20,000 rpm Rotation direction: left/right Liquid cooling Tool interface HSK 63F Inverter 18 kW, stepless, smooth power delivery Max. rotation B-axis = 200° (+-100°) C-axis = 650° Thanks to the non-orthogonal axes, it is possible to perform complex horizontal positioning in a small workspace. This enables the machining of complex geometries without the risk of collision. Hfodpfxexy Tmno Apneg

Condition: used, Year of construction: 2017, machine/vehicle number: A1711012, Pos.1 VEN CLEAN Smart dedusting systemCompressed air dedusting for cleaning the workpieces to be painted from dust on profiled workpiece surfaces. Five rotating blowing stars are installed. These remove the dust from the surface. The loosened dust is extracted on both sides by suction shafts. on both sides. An external extraction system is required on site. Technical data: Roller transport length: 2,060 mm Roller pitch: 85 mm Working width: 1,300 mm Total width: 1,800 mm Drive power: 0.25 kW Exhaust air volume: 4,000 m³/h To be provided by the customer Compressed air consumption: 980 Nl/min. Ionisation as nozzle bar, not EX) with compressed air nozzles, Compressed air consumption 840LN/min. Pos. 2 Automatic spray gun VEN SPRAY Comfort- Manufacturer Venjakob - Type. VEN SPRAY Comfort CNC 7000 - Year of construction 2017 - Working height approx. 930mm+-20mm - Working width 1300 mm - Operating side left - Price for overhauled machine - Actual condition, machine not overhauled - Gun drive in duo version - Dry extraction system - Extraction nozzle diameter 500 mm - Exhaust air capacity 10.000 m³/h - Belt conveyor system - Infinitely variable feed speed ~ 2-6 m/min - With belt cleaning system with doctor blade in tungsten carbide design - With option to install a second beltcleaning system. Software and electric parts inside. - Gun control, touch screen CNC7000 - Installed colour circles 1 pc. (optionally more possible) - Supply air filter cover - Suitable for water-based paints - Suitable for solvent-based paints Hfodpju U Ryyofx Apneg - Control cabinet, free-standing - Length: 4.350 mm + (2,060 mm) - Width: 3.540 mm - Height: 2.600 + 440 mm - Volt, Hz 400 / 50 - El. Power 23,33kW / 63A - Colour RAL 7035 - Location, in stock Voltage fluctuations max. +/- 5 % _____ Optionally, we can also provide you with a quotation for the assembly and start-up of the system, as well as training for your employees. We also offer regular maintenance and servicing of the machine on request. For further information, get in touch with us!

Condition: used, Number of sanding units 4 St. sanding width 190 mm Sanding height max. 180 mm Control ja weight 3300 kg Dimensions (L/W/H) 2600x920x1890 mm Dust suction hood 2x180, 2x120 mm Löwer DSM 2004 Double-Sided Sanding Machine ----- 4-Belt Sander + Disc Unit (Top/Bottom) Manufacturer's Description: ----- Double-sided, four-belt, single-wood sander for sanding solid wood such as window frames, etc. Highly stable, top-quality design with innovative details. Suitable for high continuous loads, even with high material removal rates. - Sequentially arranged grinding units for roughing, fine grinding, and finishing, each from above and below 1. Belt grinding unit with heavy steel roller 2. Belt grinding unit with rubberized roller and shoe 3. Finishing unit with fiber brush (see optional equipment below) - Direct-drive grinding rollers for slip-free power transmission - Maintenance-free and wear-free CERMET-coated grinding shoes with very good thermal conductivity and absolute dimensional accuracy - External cooling of the grinding zones for cooler grinding and longer belt life - Forced pneumatically controlled grinding belt oscillation - Effective grinding dust extraction directly at the grinding rollers - Airborne dust extraction at the tension rollers - Integrated brushing and finishing unit with large grinding dust extraction - Motorized grinding thickness adjustment via precision threaded spindles and large linear ball bearing sets on hardened and ground precision shafts with dust and Dirt protection - Chip removal adjustment at the bottom via precision threaded spindle with dimension display via scale ring (0.1 mm resolution) - Sanding belt tension via pneumatic cylinder with constant tension pressure - Sanding belt change with pneumatic belt release in seconds - Sanding belt tracking adjustment during belt change - Electropneumatic compressed air monitoring - Infeed protection via contact roller for workpieces that are too thick - Workpiece transport via calibrated, non-slip and adhesive conveyor belts over heavy-duty cast iron tables with a finely planed surface and spring-loaded pressure rollers with fine adjustment - Cardan shaft drive for smooth and consistent workpiece transport - Geared feed motor with infinitely variable speed 4-20 m/min - All motors electrically protected - Ergonomically arranged operating elements - Digital thickness display (0.1 mm resolution) with modern magnetic tape system Technical data: ----- - Sanding belt speed 22 m/s - Sanding belt length 1800 mm - Sanding belt width 200 mm - Working width 190 mm - Sanding thickness 2-180 mm - Four brake motors for drive 5.5 kW - Feed motor 1.5 kW - Feed speed 4-20 m/min - Automatic height adjustment 0.37 kW - Two brush units with fiber brushes D 120 x 200 mm at 0.37 kW each - Extraction ports 2 x 180 mm, 2 x 120 mm - Extraction air velocity 20 m/s - Pneumatic connection 6 bar - Working height 870 mm - Length (with soft disc 2740 mm) 2600 mm - Length with control unit (with soft disc 3035 mm) 2985 mm - Width 880 mm - Height 1910 mm - Weight approx. 3300 kg - Operating voltage 400 volts, 50 Hz, 3P - CE compliant Equipped with the following special options: Hedpfx Ajvu Hgbopnofg -----...

Condition: used, Year of construction: 2004, machine/vehicle number: P 04-09-002, neu U05 10 001, Spraying machine Venjakob VEN SPRAY-K All pictures only for example - Producer Venjakob - Year of construction 2004 - Current condition: not refurbished - Offer price for refurbished condition - Working width 800 mm (1000) mm - Operating side, right - Duo gun drive system - Dry filter system 4.000 m³/Std. - Diameter exhaust air pipe 400 mm - Transport belttransport System - Feed speed adjustable 3 - 8 m/min - Lacquer reclaiming system with v-belt - Gun control system LS 1 - Number of installed lacquer circles 1 Stk. - Airless spraying system 4 Stk. Krautzberger KAA 1300 - Number of lacquer pumps 1 Stk. - Producer lacquer pump Wagner 35-70 - Suitably for solvent based lacquer - Suitably for water based lacquer Hfedpjumvr Tefx Apnog - Total connection power 7 kW, Stromaufnahme 17 A , Absicherung 35 A - Location, on stock - Voltage fluctuation max. +/- 5 % _____ Optionally, we can also provide you with a quotation for the assembly and start-up of the system, as well as training for your employees. We also offer regular maintenance and servicing of the machine on request. For further information, get in touch with us!
