CNC Turning Machine

DMG Nef 600

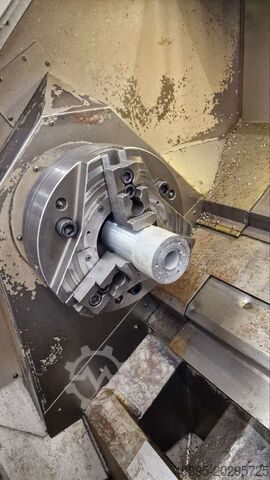

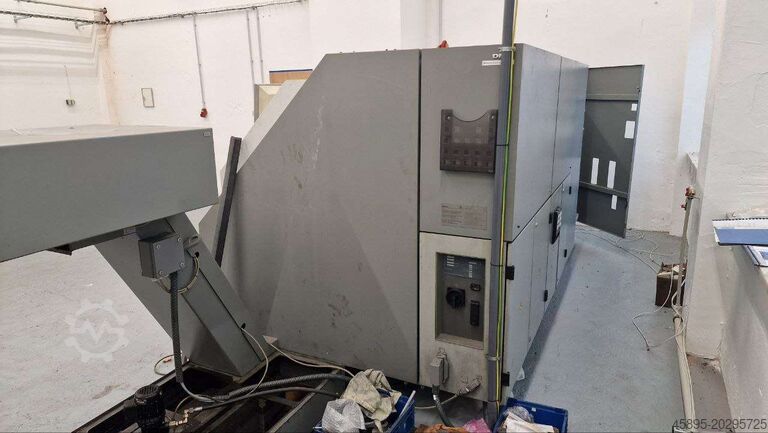

Condition: good (used), Year of construction: 2006, CNC - lathe machine Machine type: DMG Gildemeister NEF 600 Control: Heidenhain IT Turn Plus Year: 2006 SPECIFICATIONS Max. turning length: 1.250 mm Max. swing over bed: 600 mm Max. swing over slide: 410 mm Spindle bore: 90 mm Amount of controlled axes: 2 Spindle speeds: 3.000 rpm Spindle power: 36,5 / 27,5 kW Torque: 785 Nm Tailstock: MK 5 Quill: 80mm Amount of turrets: 1 Tool: VDI 40/8 Tool capacity: 8 Dodpfx Apoziyz Demskw Machine weight: 5.500 kg Req. space (LxBxH): 5,0 x 2,0 x 2,2 m m Equipment Chip conveyor 3-jaw chuck: 315 mm Main Spindle: neu gelagert Innenraum neu lackiert Wartungspaket

Condition: used, Year of construction: 2011, travel -x axis 850 mm travel -y axis 700 mm travel -z axis 500 mm control HEIDENHAIN - iTNC 530 Dodpfx As Ah Uabspmskw turning speeds 10.000 U/min numbers of positions in the tool changer 38 tool taper SK40 5-axis simultaneous machining center | HERMLE - C 40 U equipped with internal coolant supply (80 bar), a 38-tool changer, a swivel axis, and a rotary table (ø 800). Additional equipment: - Swivel axis - rotary table (ø 800) - Blum Tool breakage control / -measurement The machine is in a well-maintained condition and can be inspected at any time under power. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: C 40 | C40 | C-40 | C40U

Condition: good (used), Year of construction: 2005, Mazak Integrex 300 - III turning/milling center, year of manufacture 2005, CNC control 640 MT, travel X/Y/Z 630/230/1,585 mm, B axis NC swiveling head -30°/+195°, tool magazine with 80 positions Capto, main spindle 26 kW, C axis 0.001°, tailstock MK 5, high-pressure coolant system 70 bar with filtration unit, Tooleye, Dkodsyzfr Ispfx Apmjw 5-axis simultaneous machining package, Mazak Monitoring System, chip conveyor,

Condition: excellent (used), Year of construction: 2011, Technical data: Two-column design Cutting capacity: 700 x 520 mm Cutting diameter (round steel): max. 520 mm Cutting diameter (square steel): max. 520 x 520 mm Cutting diameter (rectangular steel): max. 520 x 520 mm Dkodpfxsxlcpve Apmsw CNC control: B&R PP 45 Hydraulic bundle clamping Hydraulic lowering Infinitely variable saw band speed Mobile control panel with digital display Saw blade dimensions: 6640 x 41 x 1.3 mm Cutting speed: 15 - 90 m/min Working height: 770 mm Motor power: 5.5 kW Dimensions (L x W x H): approx. 3500 x 3000 x 2500 mm Weight: approx. 5.0 t Accessories: 4 new saw blades Condition: Almost as-new condition The seller is not liable for typographical or data transmission errors. The machine's visual appearance, technology, and wear are consistent with its age; used machines are sold without any warranty.

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, DMG Deckel Maho DMC 1035 V Vertical Machining Center. The machine is in very good optical and technical condition. Inspection while powered on is possible at any time. Technical data: Year of manufacture: 2008 Control system: Heidenhain iTNC530 Travel distances: X: 1,035 mm Y: 560 mm Z: 510 mm Dodpezun Snofx Apmskw Clamping area: 1,200 mm x 560 mm Spindle speed: 10,000 rpm Tool changer: 20-position Tool holder: SK40 Coolant/air blast switchover Electronic handwheel Operating mode 4 Coolant tank free on truck ex works Hagen

Condition: used, Year of construction: 2023, surface area 1168 x 508 mm max. table load 1800 kg travel -x axis 1016 mm travel -y axis 508 mm travel -z axis 508 mm spindle taper SK40 Djdeza Hqnepfx Apmekw spindle speed 10000 U/min spindle capacity 15 kW spindle torque max. 99 Nm rapid traverse y/x/z axis 28 m/min control HURCO MAX5 total power requirement 20 kW weight of the machine ca. 4,15 t dimensions of the machine ca. 3,7 x 3,3 x 2,5 m The machine is like new !!!, only 61 spindle hours Tool changer: - Magazine capacity: 24 positions - Max. tool diameter: 80 mm - Max. tool length: 360 mm - Max. tool weight: 7 kg Accessories: documentation

Condition: used, Year of construction: 2006, DOOSAN DAEWOO PUMA 240 Lathe YEAR OF FIRST INSTALLATION: 2007 CNC FANUC Series 21i – TB IMPECCABLE MACHINE LIKE NEW, CONNECTED ANY TEST POSSIBLE CHUCK DIAMETER: 220 mm MAX. SWING OVER BED: 550 mm MAX. SWING OVER CARRIAGE: 390 mm MAX. TURNING DIAMETER OVER BED: 350 mm MAX. TURNING LENGTH FROM CHUCK: 562 mm BAR CAPACITY: 65 mm SPINDLE SPEED: 45 – 4,500 RPM SPINDLE MOTOR POWER: 15 / 18.5 kW TRAVELS: X: 242 mm Z: 580 mm TOOL TURRET: 12 POSITIONS Dsdpfjyuqacox Apmjkw CHIP CONVEYOR TOOL PRESETTER COMPLETE WITH ALL DOCUMENTATION

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 730 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 425 mm, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 60 m/min, torque: 90 Nm, controller manufacturer: Siemens, controller model: 840D PL, overall weight: 10,000 kg, spindle speed (max.): 12,000 rpm, coolant supply: 25 bar, number of spindles: 1, number of slots in tool magazine: 20, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, We are Chiron experts. The machine is currently being partially overhauled and is in very good condition. If a probe or another option is needed, we can gladly provide it for an additional charge. FZ15W with 4th and 5th axis Machine dimensions: approx. 4200mm x 2400mm Dkodpfjwpcfusx Apmjw Travel range -X = 730mm -Y = 400mm -Z = 425mm Control: 840D Powerline Main spindle: -Speed: 12,000 rpm -Tool holder: SK40 -Torque: max. 90NM Tool changer -Tool places: 20 Workpiece changer -Peiseler table with Afrocontroller Chip conveyor Coolant system with internal and external cooling Hydraulic clamping device Complete documentation available Geometry tip-top HS runout 0.008mm QC20 measurement 12.6µm (Manufacturer's tolerance 18µm, new machine 23µm, used machine) The machine can be inspected under power.

Condition: used, Year of construction: 2004, functionality: fully functional, turning length: 1,000 mm, turning diameter over cross slide: 350 mm, TECHNICAL DATA Turning diameter: max. 465 mm Turning length: 1050 mm Diameter when turning: 680 mm Chuck diameter: 325 mm X-axis travel: 300 mm Z-axis travel: 1050 mm Control system: Fanuc Series 21I-TB Spindle speed range: Max. 3500 rpm Drive power: 33 kW Torque: max. 630 Nm Bearing diameter in the spindle: 120 mm Max. bar diameter: 90 mm Tailstock stroke: 850 mm Tool post stroke: 150 mm Dkodpjv Epzvsfx Apmew Rapid traverse X/Z: 30 m/min Number of tool positions: 12 positions Tool holder: VDI 40 Accessories: Chip conveyor Tool holders, chuck jaws

Condition: good (used), drilling depth: 1,500 mm, feed length X-axis: 2,000 mm, feed length Y-axis: 1,300 mm, feed length Z-axis: 1,500 mm, Manufacturer: TBT deep drilling technology Type: BW 250-S Control: SIEMENS 840D Year of manufacture: 2007 Drilling, Milling, Tapping for heat exchanger bases and plates Swivable A Axis + 25 to - 15 Degrees Filtration and Coolant system 1000 L Cip conveyor 2000 x 1200 height out put Milling tool changer Tower Station 20 positions Capacity ELB Drilling 3 - 35 mm Capacity Milling 250 ccm/Min Feed rates all axis 15,000 mm/Min X-Y-W-Z Cutting hours approx. 15,000 Large tooling package Specifications Metric US Standard Max. Drill Ø steel 40 mm Drilling depth 1500 mm X - axis Djdpfx Apsv A Uw Djmekw 2000 mm Y - Axis 1300 mm Z-axis 1500 mm W-axis 750 mm Table load 15000 Table dimensions / L x W or ø 1600 x 1200 mm Spindle mount HSK 63 Mk Spindle power 11 kW Speed 8000 Rpm Dimensions (estimate) Length 7200 mm Width 7800 mm Height 4250 mm Weight 23000 kg Please note: The information on this page is believed to be accurate and is provided by us and, where possible, from the manufacturer. The information is provided in good faith but accuracy cannot be guaranteed. Accordingly, it will not constitute a representation or contractual terms. We recommend that you check all important details.
