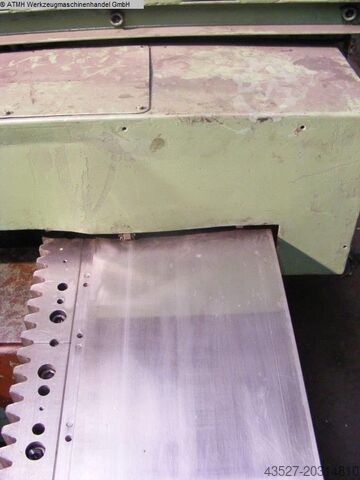

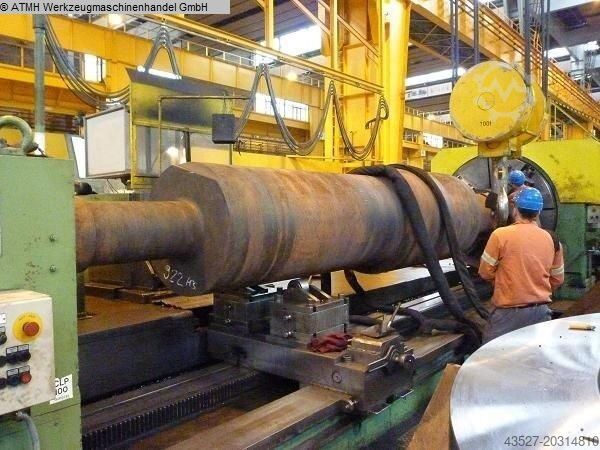

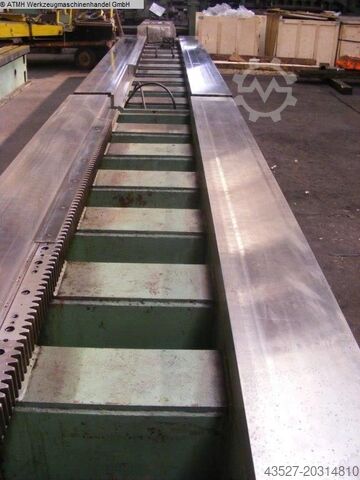

Heavy Duty Lathe

KRAMATORSK 1 K 671 320 F3 - 10000mm

Year of construction: 2007, condition: ready for operation (used), travel distance X-axis: 3,500 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,500 mm, number of axes: 5, This 5-axis TOS Varnsdorf WHN130 was manufactured in 2007. It features a horizontal boring and milling machine with a table size of 1800 × 1800 mm and a spindle diameter of 130 mm. The machine includes a rotary table and is controlled by an NCT-104 system. Consider the opportunity to buy this TOS Varnsdorf WHN130 boring machine. Contact us for more information. • Control system: NCT-104 • Table: rotary, 1800 × 1800 mm • W (spindle quill): 570 mm • Spindle diameter: 130 mm Hnsdpfx Aox Imtajacok

Condition: used, Year of construction: 2007, x-travel 900 mm y-travel 300 mm z-travel 1000 mm control Siemens 840D max. workpiece dia. 1600 mm max. module 20 mm tip circle diameter 350 mm weight of the machine ca. 33500 kg dimensions of the machine ca. 10,53 x 6,38 x 4,68 m Technical details: - x-travel: 900 mm - y-travel: 300 mm - z-travel: 1000 mm - Control system: Siemens Sinumerik 840D - Workpiece diameter - max.: 1600 mm - Module - max.: 20 mm - Head circle diameter: 350 mm - Milling spindle diameter: 375 mm - Total power consumption: 80 kVa - Machine weight approx.: 33500 kg - Space requirement approx.: 10.530 x 6.375 x 4.680 m Feed rate: - X-axis 1 to 3000 mm/min - Y-axis 1 to 3000 mm/min - Z-axis 1 to 4000 mm/min Spindle speeds in 1/min: Hjdpfx Aajwzypuecjnk - Tool 26 to 265 - Workpiece table 0 to 8 Equipment/accessories: - Motor milling head M 2 - Milling mandrels - Oil cooler - Technical documentation

Condition: excellent (used), Year of construction: 1983, overall weight: 35,000 kg, Energy of blow: 3 600 kgm Ram weight: 1 250 kg. Hnodpfotgpdzex Aacjk Max. ram stroke: 800 mm Number of strokes per minute: 110 Total weight: 35 ton Anvil weight: 24 ton

Condition: excellent (used), feed length X-axis: 450 mm, feed length Y-axis: 300 mm, feed length Z-axis: 300 mm, CNC TOS INTOS ZEBRAK FNG30 milling machine TNC310 Heidenhain control X450mm Y300mm Z300mm tool clamping hydraulic Hnsdperq D Ukofx Aacsk inverter on spindle SK40 machine in very good condition

Condition: ready for operation (used), Year of construction: 2022, spindle motor power: 29,000 W, spindle speed (max.): 5,000 rpm, overall weight: 620 kg, number of axes: 6, This 6-axis EMCO Hyperturn 65 Powermill G2 was manufactured in 2022. A highly productive CNC turn-mill center, it features a main spindle and subspindle both with a max torque of 250 Nm and speeds up to 5000 rpm. The milling spindle offers up to 12000 rpm. Includes a 40-position tool magazine, 12-position turret, and advanced Sinumerik ONE control system. If you are looking to get high-quality turning and milling capabilities consider the EMCO Hyperturn 65 Powermill G2 machine we have for sale. Contact us for more information. • Main spindle (direct drive): • Max. torque: 250 Nm • Subspindle (direct drive): • Max. drive power: 29 kN (as provided) • Max. torque: 250 Nm • Speed range: 0–5000 rpm • Milling spindle (direct drive): • Max. drive power: 37 kW • Max. torque: 30 Nm • Speed range: 0–12000 rpm • Tool turret (direct drive): • Max. drive power: 10 kW • Max. torque: 30 Nm • Speed range: 0–12000 rpm • Kinematics and axes: • Cross slide at the top with turning/milling spindle as motor spindle; hydraulic clamping during turning • Y-axis travel: +/- 120 mm • B-axis with direct drive: +/- 120°, hydraulic clamping • Tooling: • 40-position tool magazine, HSK-T63 • 12-position radial turret with direct drive, BMT55P tool interface • Spindles and clamping: • High-clamping cylinder with draw tube for main spindle • Full clamping cylinder with partial hollow clamping 66 x 550 mm deep in counter spindle • Programmable clamping pressure for main and counter spindle • External feed flushing on main and counter spindle • Mechanical holding brake on main and counter spindle • C-axis for main and counter spindle • Control and HMI: • SINUMERIK ONE / OPERATE, EMCONNECT app-based UI • 22" multi-touch display • IPC with 240 GB • SHOPTURN dialog programming • 3D simulation and Drawing • Residual material detection • Unblocking from external memory • CAD reader (DXF import) • TRANSMIT and TRACYL for C-axis programming • USB interface, Network drive (Ethernet) • PC keyboard incl. HMI hotkey • LED status bar • Fluids and utilities: • 2 coolant lines at 25 bar • 2 flushing pumps at 4.3 bar • Control cabinet air conditioning unit • Cooling system for spindle motors, milling spindle, B-axis torque motor, and turret direct drive • Hydraulic unit • Machine light • 8 leveling elements • Feedback/measurement: • Glass scales: X1 (incl. air system), Y1, Z1, X2 (HT65-PM-G2 / 840D-sl) Additional equipment • Chip management and filtration: • Hinged belt chip conveyor, discharge height 1200 mm • Belt filter system, 980 liters • Dirty water pump • Control/monitoring options: • BAOD-SL electronic handwheel (portable, magnetic mount for Siemens controllers) • EMCO tool breakage and wear monitoring / B40D-SL • Wireless probe / HSK drill breakage control BK-MICRO • 4-axis turning / balance cutting (SINUMERIK option) • Alternative-end spindle speed (SINUMERIK option) • Turret as tailstock (SINUMERIK option) • Counter spindle as tailstock (SINUMERIK option) • Bar feeder (specifications as provided): • Bar length: 300–1200 mm Hodpfex D E Hbsx Aacenk • Bar diameter: 10–104 mm • Material support surface (front view): 800 x 1250 mm • Material capacity: 12 bars with 65 mm diameter • Max. load capacity: 400 kg (max. 74 kg/bar) • Rectangular material: min. edge length 6 mm; max. circumference 105 mm • Hexagonal material: SW 5 to 85 mm • Round material:

Condition: used, Year of construction: 1994, Technical details: number of spindles: 8 spindle passage: 32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AF32 S DNT Yob: 1994 Eight-spindle automatic lathe with 8 main spindles max. nominal diameter D=32mm control: Siemens SIMATIC S7 electronic cam control Balluff gripper in position 8 for backworking CNC cross slide position 6 CNC cross slide position 7 Workpiece belt Coolant cooling Schimpke Chip conveyor with magnetic separator Tapping couplings Hodpfxjl Su Rxs Aaconk The tooling shown may differ from the scope of delivery! Please, contact us for getting more information and pictures on mail(at) or *

Year of construction: 1976, condition: good (used), strip width: 300 - 1.350 mm strip thickness: 0,35 - 3 mm Hodebh Ubwjpfx Aacsnk coil weight: 12,5 t mandrel Ø: 508 mm

Condition: excellent (used), Year of construction: 2023, operating hours: 1,500 h, functionality: fully functional, cutting force: 630 t, power: 90 kW (122.37 HP), empty load weight: 36,500 kg, total width: 2,400 mm, total length: 9,500 mm, overall weight: 40,000 kg, cutting length (max.): 1,600 mm, year of last overhaul: 2024, type of input current: three-phase, operating pressure: 220 bar, Scrap shear MS-6300e (scrap shear with electric motor) without operating materials. A 250kW diesel generator can be offered separately. Model: MS-6300e Cutting force: 630t Cutting length: 1600mm Discharge height: 500mm Power: 110 KW Capacity: 12-17 t/h Machine weight: 40 tons (+ diesel generator 4 tons) Hopper size: 3850mm x 2600mm x 1500mm Information: A scrap shear is used for economical scrap cutting: - simple automatic operation - Energy-saving - Cost-saving - No foundation required Function: Scrap is fed into the loading area with the aid of an excavator. Due to the horizontal filling area and the scrap's own weight, it falls down into the loading chamber and into the cutting area. The scrap is compacted at the front wall and cut by the horizontally moving tool pick-up side via the blades on the front wall. While the tool carrier carriage moves horizontally, the processed material is pushed out via the blades on the front wall of the container. When returning to the rear position, the loaded scrap moves into the interior of the shears under its own weight. Hnsdpfeuu Upgox Aacsk The scrap shears are available in different versions depending on customer requirements and the output size can be selected (for new orders). Inspection and trial operation are possible.

Condition: ready for operation (used), Machine was overhauled and is fully functional, with documentation. Hodpfxsfw Az Ue Aaconk

Condition: used, Year of construction: 2012, x-travel 850 mm y-travel 700 mm z-travel 500 mm Control Siemens 840 D rotary table 800 mm c-axis 0.001º ( ±360º) 0 B-axis (table) º mm number of spindle speeds 18.000 U/min/rpm tool taper HSK 63 Tools changer 38 fach/tools Internal cooling system 80 bar total power requirement 43 kVA weight of the machine ca. 10,6 t Hjdpfeyxy E Rex Aacsnk Equipment- Paper belt filter – 200 l tank- Active control cabinet cooling- Infrared probe M&H (Heidenhain)- Laser tool measuring system Blum- Chip conveyor- Cleaning pistol with pump 2 bar / 40 l min- 3D Quick Set- Electronic handwheel
